Product Overview
Description
Product Description
Product Name | Fiber Optic Equipment |
Type | Switch, BRAS, OLT, ONU |
Our advantage | 10G PON, 5G Optic Connection& 100G Date Center Solutions |
Brand | HUAWEI/ ZTE |

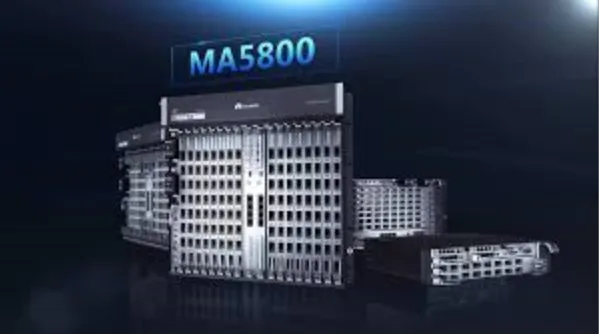

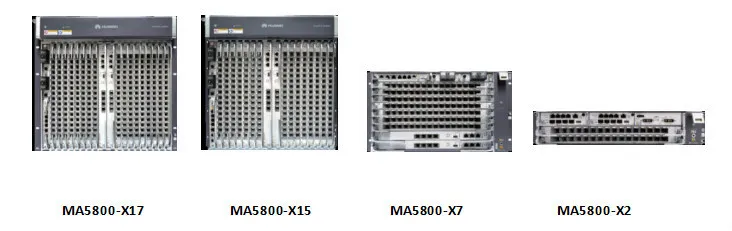

OLT Optic Line Terminal
OLT equipment is an important central office equipment, which can be connected to the front-end (aggregation layer) switch with network cables, converted into optical signals, and connected to the user-end optical splitter with a single optical fiber; to achieve the control and management of the user-end equipment ONU, Ranging; and like the ONU device, it is a photoelectric integrated device.
OLT equipment composition
1) The control board (also called the main control board or super control unit) generally an OLT has two main boards,
2) The DC power supply board (the power supply from the negative 48 volts of the switching power supply) is generally the main and standby 2 boards.
3) Fan unit (heat dissipation and environmental monitoring of main equipment, etc.)
4) Machine frame (or business frame)
5) Upstream board: GE optical interface board (including daughter board), integrated optical transceiver module, generally a board is a 2-way GE port (currently 10GE has been commercialized), upstream board is connected to BRAS through transmission (OTN transmission (Broadband remote access server) and other aggregation switches or directly connect devices such as BRAS and SR equipment, if there is IPTV service, you need to access the corresponding BNG device) The upstream board has a different transmission distance according to the optical module (no transmission in the middle). Reach 10-40KM.
1) The control board (also called the main control board or super control unit) generally an OLT has two main boards,
2) The DC power supply board (the power supply from the negative 48 volts of the switching power supply) is generally the main and standby 2 boards.
3) Fan unit (heat dissipation and environmental monitoring of main equipment, etc.)
4) Machine frame (or business frame)
5) Upstream board: GE optical interface board (including daughter board), integrated optical transceiver module, generally a board is a 2-way GE port (currently 10GE has been commercialized), upstream board is connected to BRAS through transmission (OTN transmission (Broadband remote access server) and other aggregation switches or directly connect devices such as BRAS and SR equipment, if there is IPTV service, you need to access the corresponding BNG device) The upstream board has a different transmission distance according to the optical module (no transmission in the middle). Reach 10-40KM.
Long-term working environment | -5℃～+45℃ | ||
Short-term working environment | -25℃～+55℃ | ||
Long-term working humidity | 5%RH～95%RH | ||
Short-term working humidity | 10%RH～100%RH | ||
Air pressure environment | 70kPa～106kPa | ||
Maximum power consumption | 150W | ||
Power supply | DC | ||
Operating voltage range | -38.4V ~ -57.6V | ||

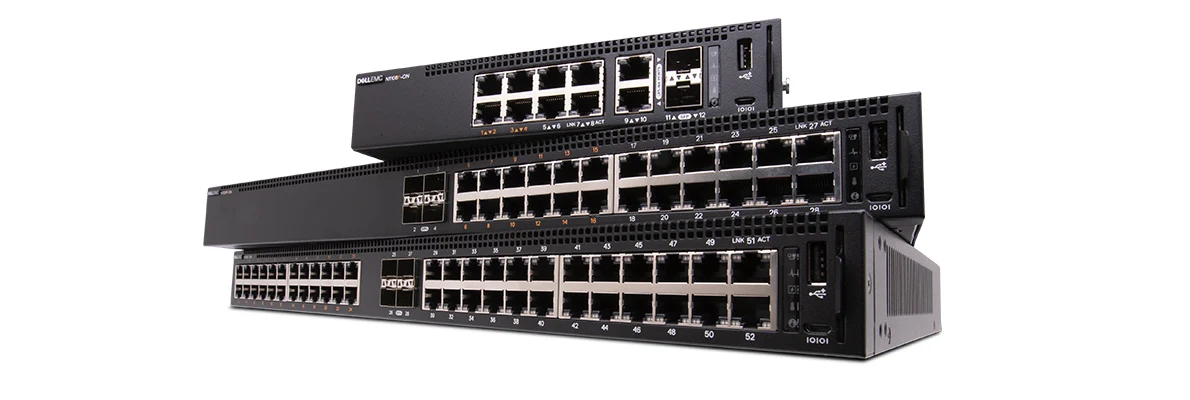

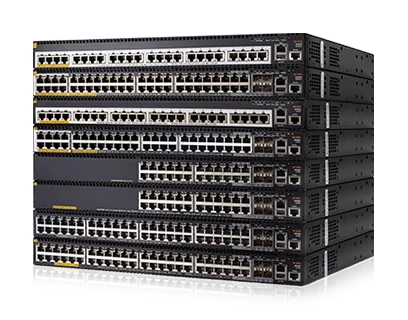

The main functions of the switch include physical addressing, network topology, error checking, frame sequence, and flow control. The switch also has some new functions, such as support for VLAN (Virtual Local Area Network), support for link aggregation, and some even have a firewall function.
Due to the increasing scale of the network, a layered network structure appears in the network. The general network can be divided into: core layer, convergence layer and access layer. The core layer completes the exchange of data packets to achieve high-speed data traffic To operate, the core layer equipment not only needs large capacity, fast forwarding, but also needs to have high stability; the role of the aggregation layer is to isolate the topology change, control the size of the routing table and control the convergence of the network, and achieve rich business features: Into the layer, terminal users need to access a large number of ports, powerful access capabilities, and rich service features. This layered network structure requires detailed planning when assigning IP addresses.

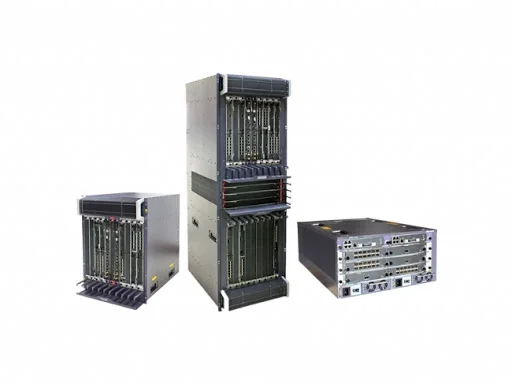

BRAS
Broadband Access Server (BRAS) mainly completes two functions. One is the network bearer function, which is responsible for terminating the user's PPPoE (Point-to-Point Potocol Over Ethernet, which is a way to transfer PPP sessions on Ethernet), and converging the user's flow function; the second is to control the implementation function, and the authentication system, The charging system cooperates with the customer management system and the service policy control system to realize the authentication, charging and management functions of user access.
Related Products
Packing&Shipping
Packaging
1. All products will be packed in carton , so the product can get effective protection to avoid damage.
2. Packaging according to customer requirement
Shipping
1. We shipping via DHL / FedEx / TNT/etc for samll orders. Yow can get your packages in about 3-5 days all over the world.
2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.
3. You can choose your own shipping agent, we will provide good cooperation for it.
1. All products will be packed in carton , so the product can get effective protection to avoid damage.
2. Packaging according to customer requirement
Shipping
1. We shipping via DHL / FedEx / TNT/etc for samll orders. Yow can get your packages in about 3-5 days all over the world.
2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.
3. You can choose your own shipping agent, we will provide good cooperation for it.
Company Introduction
Hunan Zikun Information Technology Co., Ltd. is a provider of information and communication solutions for optical communication technology and video processing technology.
The company can provide users with leading optical communications products and IPTV, system solutions and professional services at home and abroad who dedicates to create the greatest value for customers.
Currently the company’s main business scope includes DWDM, GPON, EPON, switches, IPTV, EOC, passive devices and other products those are wid-ely used in radio and television cable network, triple play and safe urban security, road facilities, airports, ports, Securities industry, tourism scenic area, school education industry, public security law and politics, medical and health, intelligent community and large and medium-sized enterprises ect... We will make our all efforts to make you succeed and gain benefit from the cooperation with us, as the customers'success is our success. And through our joint efforts, continue to contribute to the development of human science and technology.
The company can provide users with leading optical communications products and IPTV, system solutions and professional services at home and abroad who dedicates to create the greatest value for customers.
Currently the company’s main business scope includes DWDM, GPON, EPON, switches, IPTV, EOC, passive devices and other products those are wid-ely used in radio and television cable network, triple play and safe urban security, road facilities, airports, ports, Securities industry, tourism scenic area, school education industry, public security law and politics, medical and health, intelligent community and large and medium-sized enterprises ect... We will make our all efforts to make you succeed and gain benefit from the cooperation with us, as the customers'success is our success. And through our joint efforts, continue to contribute to the development of human science and technology.
Our Services & Strength
1. We can provide detail documents and remote help for device installation and configuration.
2. Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3. Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned
goods must keep original state and it’s accessories are complete.
2. Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3. Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned
goods must keep original state and it’s accessories are complete.
FAQ
Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q:Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed . If quantity is more than 1000pcs /order, it will need extra 1-2 weeks .
Q: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our formal products.
Q: Could we make a visit to your factory?
A: Yes,sure, you are welcomed .
Our Advantages:
All the products 100% Original / Ability for OLT & ONU configuration and Firmware updating./ UK |US|AU|EU Power Adapter Available
/ English Firmware Setup Interface.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q:Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed . If quantity is more than 1000pcs /order, it will need extra 1-2 weeks .
Q: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our formal products.
Q: Could we make a visit to your factory?
A: Yes,sure, you are welcomed .
Our Advantages:
All the products 100% Original / Ability for OLT & ONU configuration and Firmware updating./ UK |US|AU|EU Power Adapter Available
/ English Firmware Setup Interface.
