50W Monocrystalline Semi Flexible Solar Panel portable solar panel for RV
- Category: >>>
- Supplier: Dongguan Tengyu New Tech Co. Ltd.
Share on (1600080928515):
Product Overview
Description
90W Flexible Monocrystalline Solar Panel
Details Images
32Cells 90W Solar Panel for sale

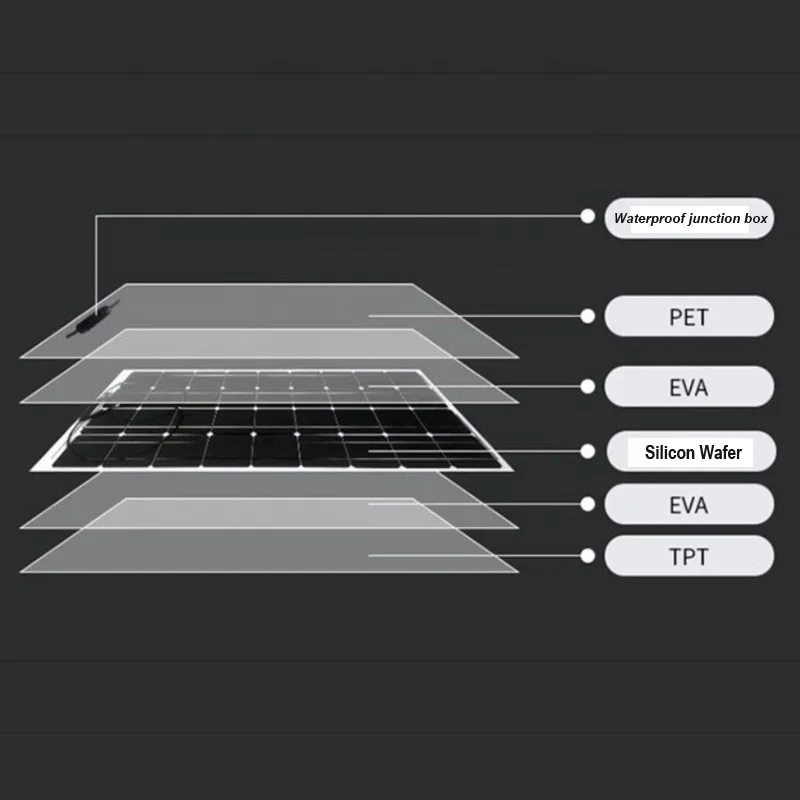

6 layers
32 Cells
Semi- Flexible
Product Description

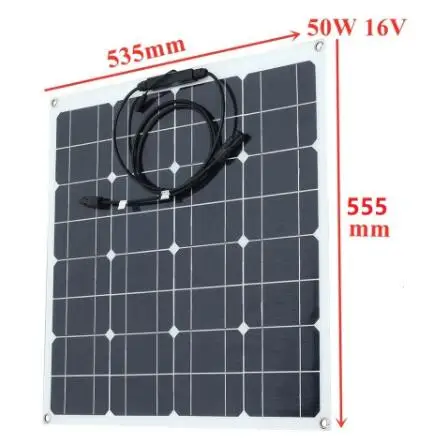

Product Name | 50W Monocrystalline Semi Flexible Solar Panel portable solar panel for RV |
Material | Monocrystalline Silicon |
Function | Solar Panel make it always keep charging for energy |
Package | 560*555*40mm |
- 50W Monocrystalline Semi Flexible Solar Panel portable solar panel for RV
The 50 Watts 16 Volt Flexible Monocrystalline Solar Panel is the most convenient panel to convert your
house from a energy dependent home to an energy producing location.
house from a energy dependent home to an energy producing location.
Product Paramenters
Electrical Date | Mechanical Data | |||||
Maximun Power at STC | 50W | Solar Cell Type | Monoctrystalline(125x125mm) | |||
Optimum Operating Voltage (Vmp) | 16.0V | Number of Cells | 16(4x) | |||
Optimum Operating Current (Imp) | 5.0A | Dimensions | 560*555*40mm | |||
Open Circuit Current (Voc) | 19.2V | Weight | 1.2kg | |||
Short Circuit Current (Isc) | 6.16A | Application Class | Class A | |||
Module Efficiency | 18.3% | Frame | None | |||
Maximum System Voltage | 700VDC (IEC) | Connectors | MC4 Connectors | |||
Maximum Series Fuse Rating | 10A | Fire Rating | Class C | |||
Thermal Characteristics | MC4 Connectors | |||||||
Operating Module Temperature | -40℃to+85℃ | Rated Current | 30A | |||||
Norminal Operating Cell Temperature (NOCT) | 45±2℃ | Maximum Voltage | 700VDC | |||||
Temperature Coefficient of Pmax | -0.42%/℃ | Maximum AWG Size Range | 10AWG | |||||
Temperature Coefficient of Voc | -0.31%/℃ | Temperature Range | -40°F to194°F | |||||
Temperature Coefficient of Isc | 0.05%/℃ | IP Rating | IP67 | |||||
Junction Box | ||||||||
IP Grade. | IP 67 | |||||||
Number of Diodes | 1 Diodes. | |||||||
Output Cables. | 10 AWG (2.95ft long) | |||||||
* All specifications and data described in this data sheet are tested under Standard Test
Conditions(STC-Irradiance:1000W/m2,Temperature:25℃,Air Mass:1.5)and may deviate marginally from actual values.
Conditions(STC-Irradiance:1000W/m2,Temperature:25℃,Air Mass:1.5)and may deviate marginally from actual values.
Product Usage
Description of product use effect
Outdoor camping
Multiple-function
Marketing Campaign
Packing&Shipping
Semi-Flexible Solar Panel 90W Monocrystalline
Company Introduction
Dongguan Tengyu New Tech Co., Ltd is a professional manufacturer and exporter concerned with the design, development and production of Solar Panels and Batteries products.
We specialized in manufacturing Solar Panels and such Batteries as Solar panels, Solar Chargers, lithium batteries and other components.
Currently, we are equipped with a complete production line of Solar Panels. we are committed to providing the comfortable and safe Solar Panels for every consumers. Besides, Our company has an experienced and professional team, our products have exported to many countries and regions especially the Southeast Asia and Africa. After years of unremitting efforts, we have became a stable exporter due to our excellent products and services.
In the future, Dongguan Tengyu New Tech Co., Ltd will continue to provide high-quality products and efficient services for tens of millions of users around the world. We welcome customers and business partners at home and abroad to establish cooperation and crate a bright future together.
FAQ
1. Why the shipping cost changes so differently?
Actually, the shipping cost according to the quantity, if you need 10 pcs, the package is totally different with the package of 100 pcs. that is why the shipping cost is different.
2. May I start to test the sample at a very small quantity? Such as one pc ?
Sure, you can. We fully understand that at the very beginning, you need to test the quality, also the market, so one pc of sample is acceptable. but please be noted that: if the quantity is very small, the shipping cost may very expensive. because it is not suitable for the shipping by Sea, and by Express, the shipping cost may expensive.
3.How long about the lead time after I paid ?
If you paid online, after we received your payment, we would arrange the package and delivery according to our production line.
Normally if the quantity less than 200 pcs, the lead time would within 5 days, if there is the holiday or the hot selling season,
such as the Black Friday and Double 11, the lead time may be delay. and we would notify you before the delivery.
Normally if the quantity less than 200 pcs, the lead time would within 5 days, if there is the holiday or the hot selling season,
such as the Black Friday and Double 11, the lead time may be delay. and we would notify you before the delivery.
4. If I did not receive the parcel, what should I do ?
Sometimes, if the parcel is really lost during the delivery, we would arrange the re-send service. to make all the customers have good buying experience.
