1.3mm 1.4mm 1.8mm Gr2 Titanium Thin Coil Wire
US $20.00-$55.00
Titanium Wire Gr1 Gr2 Gr7 Gr5 TB5 422 for Glasses Frame
- Category: Titanium Wire >>>
- Supplier: Baoji City Changtai Metals Trading Co. Ltd.
Share on (1600080933243):
Product Overview
Description
Product Description
Titanium Wire Gr1 Gr2 Gr7 Gr5 TB5 422 for Glasses Frame
Material | Pure Titanium (Gr1 Gr2 Gr4) and Alloy Titanium(Gr5 Gr7 Gr23 TB5 422) |
Standard | ASTM B863 ASTM F67 ASTM F136 |
Dimension | Straight: Dia.: 1.0mm-5.6mm (tolerance: +/-0.05mm, +/-0.002"), 3000mm (118") max length Coil: Dia.: 0.1mm-5.0mm ( tolerance: +/-0.05mm, +/-0.002") Spool diameter: around 300mm (12") |
Type | Coil, Straight, Spool |
Surface Treatment | Black, Pickled, Polished (for dia. >1mm) |
Application | Jewelry, Medical Devices, Industrial, Mechanical part, fastener, rack, electrode materials, welding materials, Aerospace alloys and applications, Medical implants, Automotive applications, Piercing & Accessory, Optical frames, Surgical instruments, Architectural applications, Cladding to other materials etc. |
Processing | Bar billets-hot rolling-drawing-annealing-strength-pickling |
Titanium wire on spool

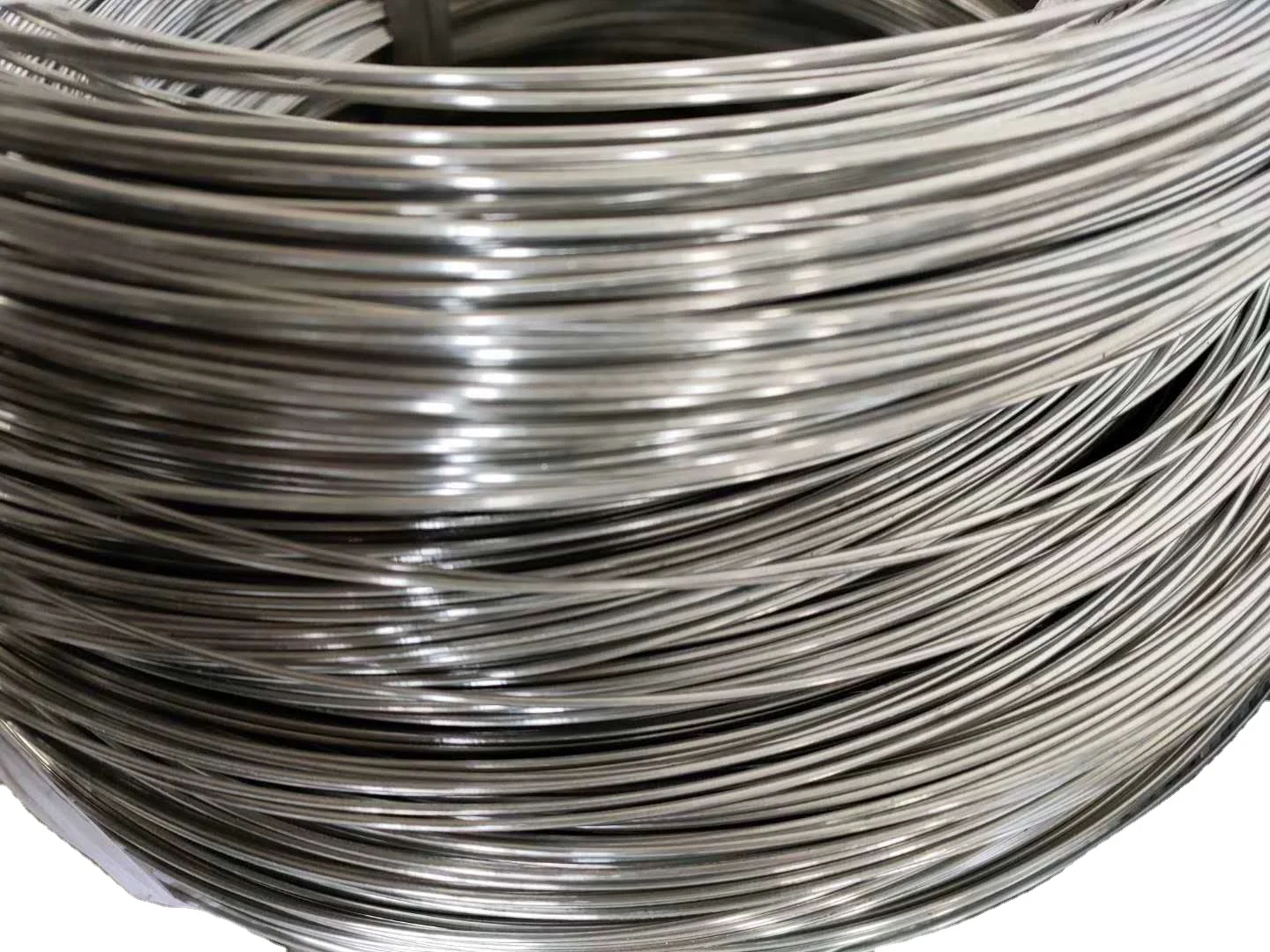

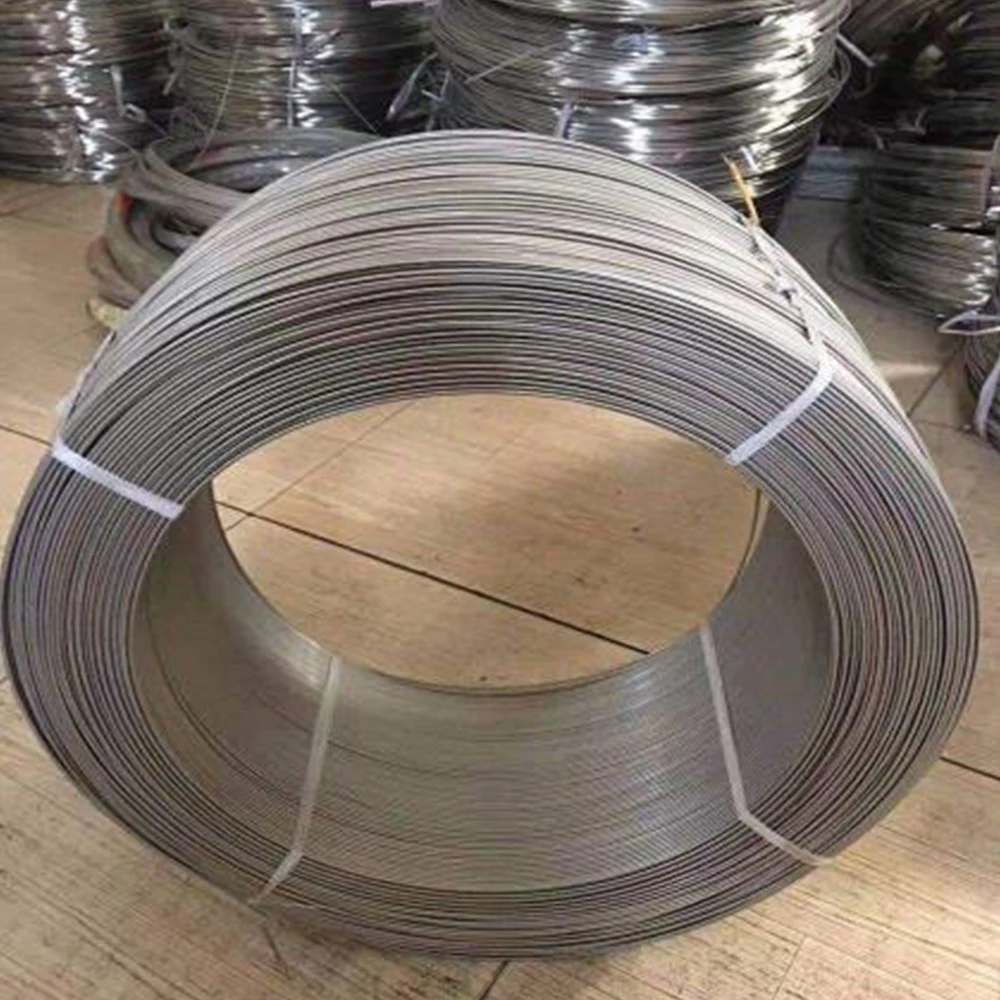

Titanium wire in coil
Bright surface titanium wire
Pickling surface titanium straight wire
Produt details
Titanium Wire Features
Titanium wire is small in diameter and can come on a spool, cut to TIG rod length, or full bar length. Characteristics: unique corrosion resistance, lighting weight, higher strength, higher efficiency and so forth. These “Ti” wires are commonly used in chemical processing and anodizing, where parts are hung or tied down with wire. “Ti” Wire for TIG welding is cut to 36″ lengths and also available in common welding rod sizes.
Chemical component & Mechanical properties
ASTM No. | N max | C max | H max | Fe max | O max | Pa | Al | V | Bal |
Grade 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | Ti |
Grade 5 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | 5.5-6.75 | 3.5-4.5 | Ti |
Grade 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | 0.12-0.25 | / | / | Ti |
Grade 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | / | 2.5-3.5 | 2.0-3.0 | Ti |
ASTM Grade | Alloy composition | Tensile strength | Yield strength | Elongation % | ||||
ksi | Mpa | ksi | Mpa | |||||
GR1 | Unalloyed Ti(Pure)35A-CP1 | 35 | 240 | 25 | 170 | 24 | ||
GR2 | Unalloyed Ti(Pure)50A-CP2 | 50 | 345 | 40 | 275 | 20 | ||
GR5 | Ti 6Al 4V | 130 | 895 | 120 | 828 | 10 | ||
GR9 | Ti 3AI 2.5V | 90 | 620 | 70 | 483 | 15F | ||
Titanium Wire Diameters and Tolerances:
Diameter | 0.1-0.3mm | 0.3-0.8mm | 0.8-2.0mm | 2.0-6.0mm |
Tolerance | +/- 0.025 | +/-0.04 | +/-0.05 | +/-0.10 |
Length | 200-500mm | 500-1000mm | 1000-2000mm | &2000mm |
Tolerance | +/-1.0 | +/-1.5 | +/-2.0 | +/-2.5 |

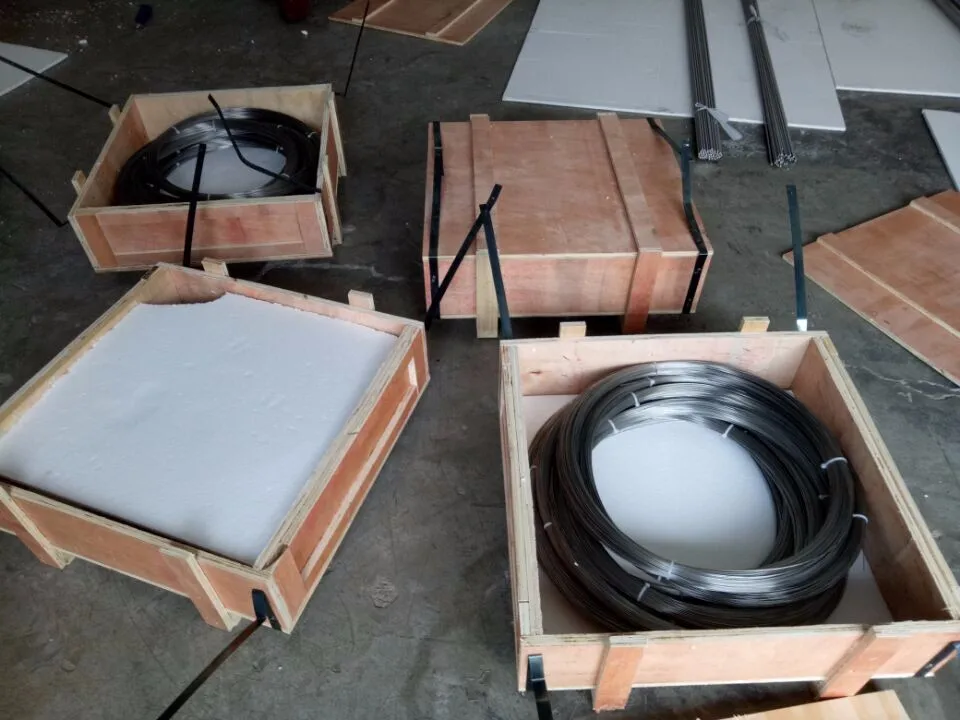

Package
1.Plastic bags and foam paper as inside,Wooden case as outside.
2.packing according to your requirement.
Related Products
Production Process
Quality Control:
In order to make qualified products continuous ,we as a professional manufacturer pay more attention to production .
Except testing to choose high level titanium ingot , hot forging and annealing become the most important thing in production . They affect the physical ability (tensile strength , yield strength, elongation ,reduction of area.), micro structure , and hardness a lot .
So according to the mature work flow which developed by our technicians and practiced thousands times by production department , our experienced workers forging titanium perfect now !
Except testing to choose high level titanium ingot , hot forging and annealing become the most important thing in production . They affect the physical ability (tensile strength , yield strength, elongation ,reduction of area.), micro structure , and hardness a lot .
So according to the mature work flow which developed by our technicians and practiced thousands times by production department , our experienced workers forging titanium perfect now !
Exhibition

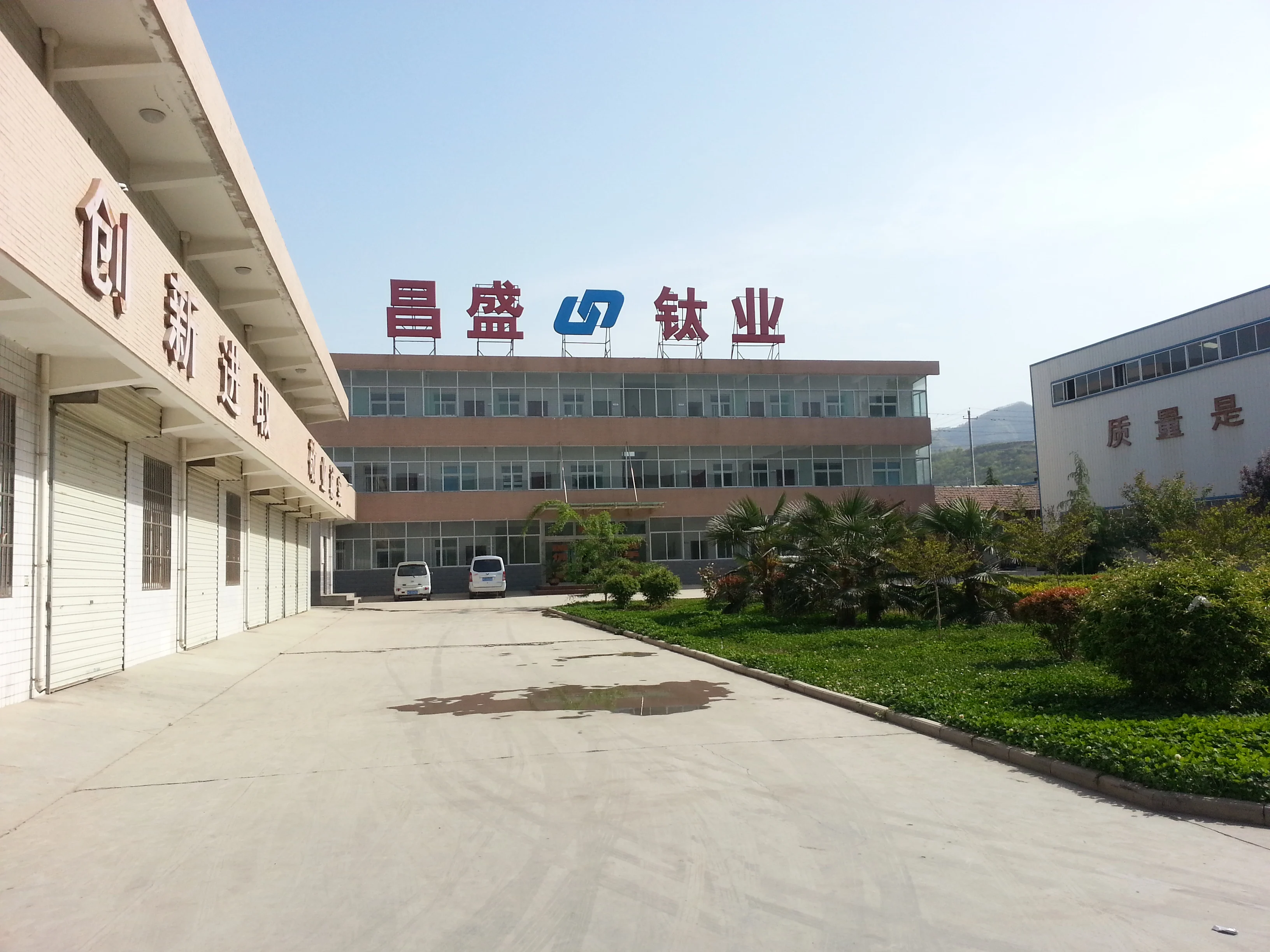

Company Information
Baoji City Changsheng Titanium Co.,Ltd
* In the year 2001, set up the forging workshop.
* In 2006, registered for Changsheng Titanium Co.
* In 2008, started the global business, established Changtai Metals Trading Co.
* In 2008, worked with alibaba.com, and to be the golden supplier of alibaba.
*In 2010, researched and developed the technology of big seamless titanium tube.
* In 2012, finished the trial production of big seamless titanium tube sucessfully, and applied for the national patent.
* In 2013, made mass production of big seamless titanium tube.
* In 2014, developed the technology of Grade 5 tube, introduced Germany production equipment.
* In 2014, enlarged the production line of customized parts, made titanium radiators and heat exchangers for Canada Saltswork and American Ural Company.
*In 2015, finished the trial production of Grade 5 tubes, and started to make mass production.
* In 2016, set up foreign sales team in Xi'an City.
* In 2017, enlarged the production of tube.
* In 2018, enlarged the production of plate and anode.
* In 2019, we focus on India market, plan to attend two exhibitions India in September & November.
* In 2006, registered for Changsheng Titanium Co.
* In 2008, started the global business, established Changtai Metals Trading Co.
* In 2008, worked with alibaba.com, and to be the golden supplier of alibaba.
*In 2010, researched and developed the technology of big seamless titanium tube.
* In 2012, finished the trial production of big seamless titanium tube sucessfully, and applied for the national patent.
* In 2013, made mass production of big seamless titanium tube.
* In 2014, developed the technology of Grade 5 tube, introduced Germany production equipment.
* In 2014, enlarged the production line of customized parts, made titanium radiators and heat exchangers for Canada Saltswork and American Ural Company.
*In 2015, finished the trial production of Grade 5 tubes, and started to make mass production.
* In 2016, set up foreign sales team in Xi'an City.
* In 2017, enlarged the production of tube.
* In 2018, enlarged the production of plate and anode.
* In 2019, we focus on India market, plan to attend two exhibitions India in September & November.
FAQ
1.Are you the manufacturing or trading company?
Real manufacturing company, started from 2001, nearly 20 years. With 2 sales teams for foreign trading business, started from 2008, more than 10 years experiences.
--------------------------------------------------------------------------------------------------------------------------------------------------------
2.Do you have a dedicated R & D team? Can you design a product for us?
We have a dedicated technical team responsible for research and development. But most of titanium wires are standard, we can follow ASTM B863 or other you asked.
--------------------------------------------------------------------------------------------------------------------------------------------------------
3.Can you provide samples? Is there a charge?
Samples can be provided for a fee.
--------------------------------------------------------------------------------------------------------------------------------------------------------
4.What is your payment method?
We can accept T / T, LC, trade assurance order from alibaba.com. Samples are 100% prepaid. Orders for mass production are below 1000 USD, 100% prepaid, above 1000 USD, 30% prepaid, and 70% paid before delivery.
--------------------------------------------------------------------------------------------------------------------------------------------------------
5.How long is your delivery time?
Inventory samples: within 3 working days Products for bulk orders: 25-30 days under normal circumstances.
-------------------------------------------------------------------------------------------------------------------------------------------------------
6.After-sales products, how to deal with problems?
Based on our statistics for each year, the probability of problems with titanium products is around 0.8%. There are two main reasons for the problem:
1) Among the products that have problems, 93% are misplaced in pre-sales communication, and the product that the customer needs is not really clear.
2) 5% is an unexpected situation and the extension of the construction period.
3) 2% is the problem of transportation and packaging. During long-distance transportation, the packaging is damaged and the surface is damaged.
--------------------------------------------------------------------------------------------------------------------------------------------------------
7.What is your company's response to the product in question?
1) Verify and blame for pre-sales communication issues. Compensation is handled according to the proportion of liability.
2)We are 100% responsible for problems caused by damaged packaging during transportation.
Real manufacturing company, started from 2001, nearly 20 years. With 2 sales teams for foreign trading business, started from 2008, more than 10 years experiences.
--------------------------------------------------------------------------------------------------------------------------------------------------------
2.Do you have a dedicated R & D team? Can you design a product for us?
We have a dedicated technical team responsible for research and development. But most of titanium wires are standard, we can follow ASTM B863 or other you asked.
--------------------------------------------------------------------------------------------------------------------------------------------------------
3.Can you provide samples? Is there a charge?
Samples can be provided for a fee.
--------------------------------------------------------------------------------------------------------------------------------------------------------
4.What is your payment method?
We can accept T / T, LC, trade assurance order from alibaba.com. Samples are 100% prepaid. Orders for mass production are below 1000 USD, 100% prepaid, above 1000 USD, 30% prepaid, and 70% paid before delivery.
--------------------------------------------------------------------------------------------------------------------------------------------------------
5.How long is your delivery time?
Inventory samples: within 3 working days Products for bulk orders: 25-30 days under normal circumstances.
-------------------------------------------------------------------------------------------------------------------------------------------------------
6.After-sales products, how to deal with problems?
Based on our statistics for each year, the probability of problems with titanium products is around 0.8%. There are two main reasons for the problem:
1) Among the products that have problems, 93% are misplaced in pre-sales communication, and the product that the customer needs is not really clear.
2) 5% is an unexpected situation and the extension of the construction period.
3) 2% is the problem of transportation and packaging. During long-distance transportation, the packaging is damaged and the surface is damaged.
--------------------------------------------------------------------------------------------------------------------------------------------------------
7.What is your company's response to the product in question?
1) Verify and blame for pre-sales communication issues. Compensation is handled according to the proportion of liability.
2)We are 100% responsible for problems caused by damaged packaging during transportation.
