2110 led 280led/M 4mm&5mm narrow width FPCB CRI90 led flex strip light tape
- Category: >>>
- Supplier: Hanron Lighting Co. Limited
Share on (1600081035451):
Product Overview
Description
Welcome for your visit to our website. Established in 2010, Hanron has become a Leading led strip light manufacturer in China. By offering more than 2000 type of led strip, we've cooperated with 500+ customers in 78 countries.
Product Detail
Features
1. TOP SMD2110 chip, high brightness, wide beam angle, low decay.
2. Easy to install for any bending
3. Low power consumption, long life span, free maintenance
4. Working temperature: -40℃-50℃
5. Storage temperature:-50℃-60℃
Application
1. Cove lighting
2. Architectural lights for canopy, corridor, window, archway
3. Backlight or edge lighting for signage
4. DIY lights for home use
5. Path and contour marking
6. Decorative lights for holiday, event, show, exhibition
7. Special light effect for art gallery and glass-made items
Parameter
Item NO. | LED | LED QTY | Voltage | Power | Color | Wave Length/C. T. | Luminous | Beam | Protect Level |
HR00-J24ACW280 | SMD2110 | 280 | DC24 | 9.6 | White | 5500-6500K | 960LM±10% | 120° | IP20/ |
HR00-J24AWW280 | SMD2110 | 280 | DC24 | 9.6 | Warm White | 2800-3200K | 960LM±10% | ||
HR00-J24ANW280 | SMD2110 | 280 | DC24 | 9.6 | Natural White | 4000-4500K | 960LM±10% |
White/Black/Yellow Color FPC optional

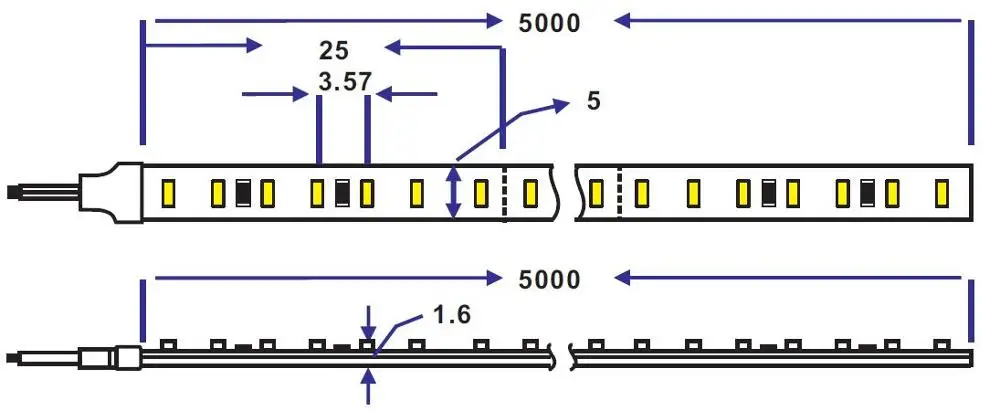

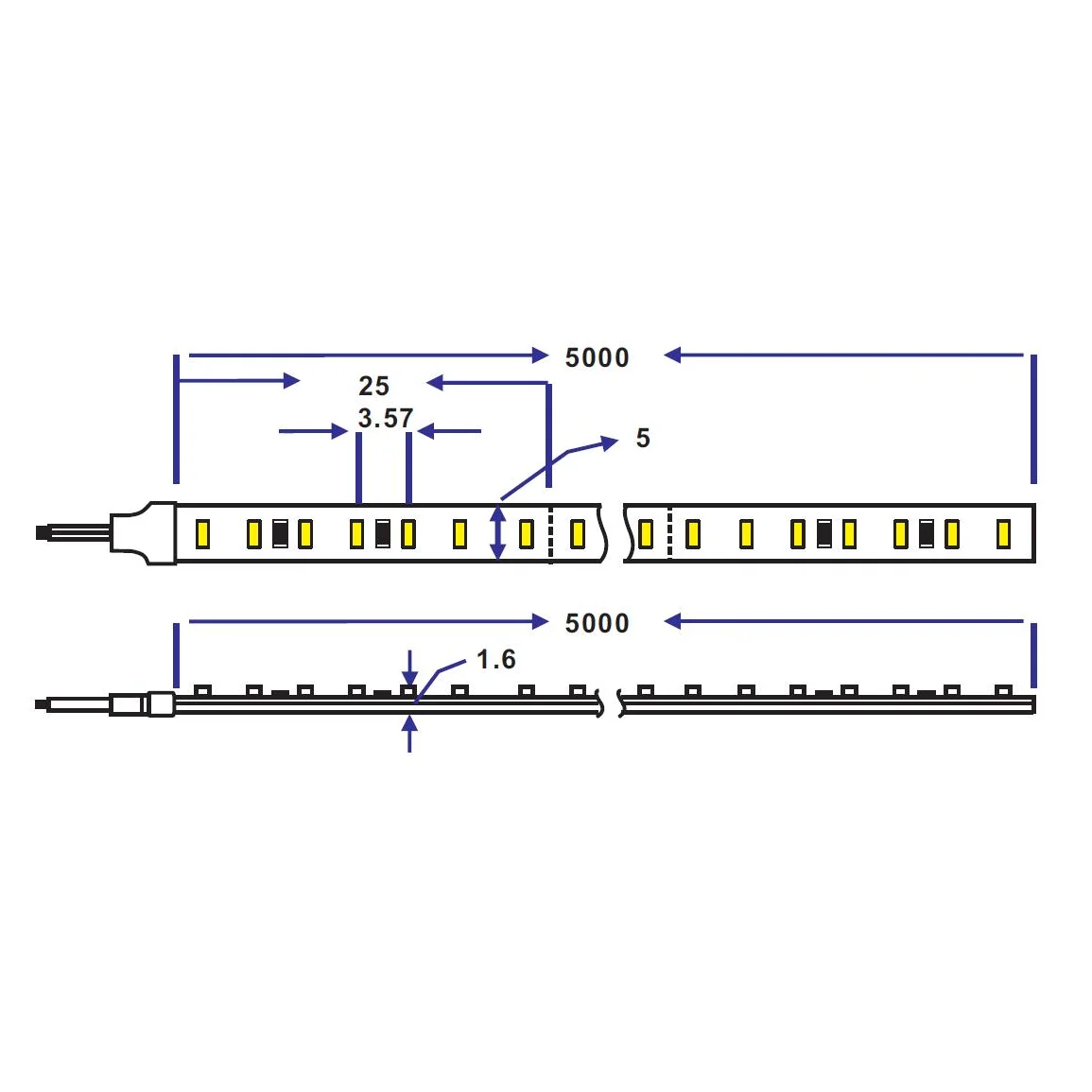

Dimension

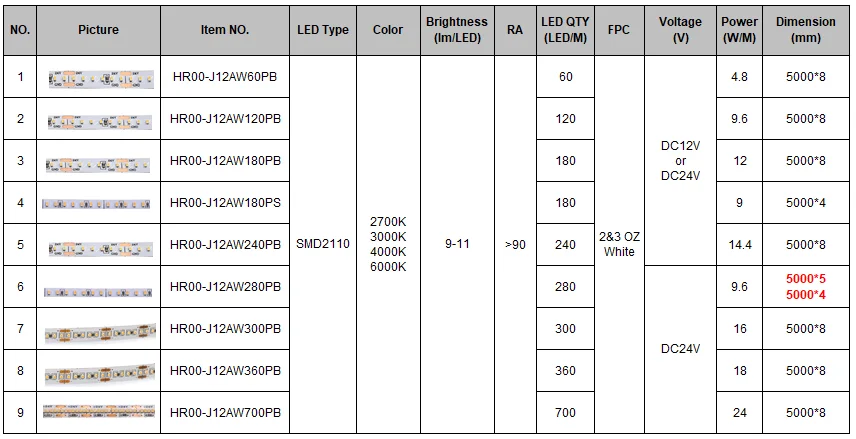

Other TYPES OF 2110 led ribbon light

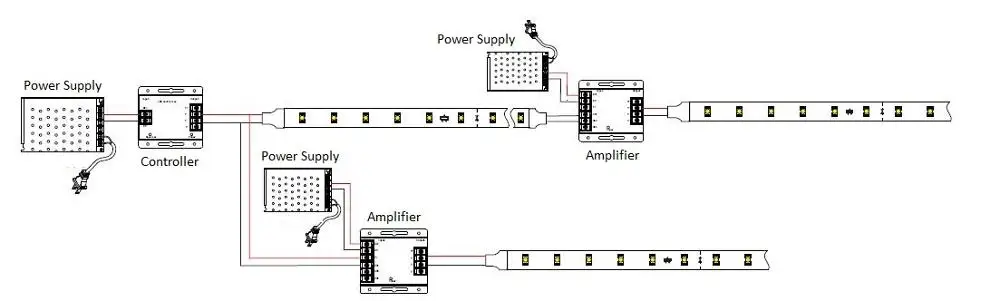

Connect Drawing
Note: the above connection is with dimming controller
Installatioin
IP Rating Available
The item can be made into IP65, IP66, IP67, IP68 as below. Please check detail quotation with our sales if you need.
Accessories
