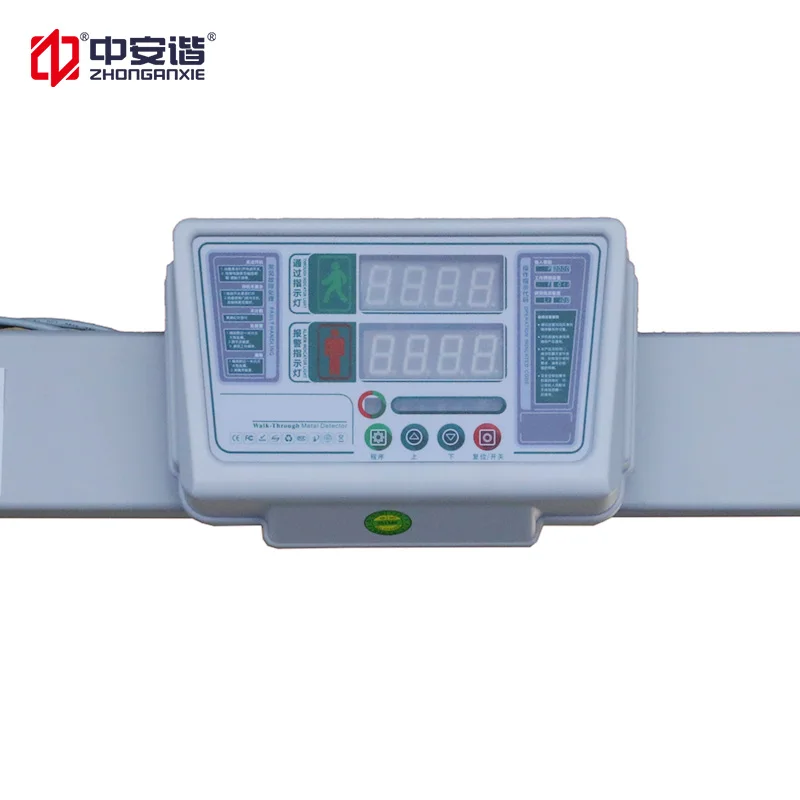

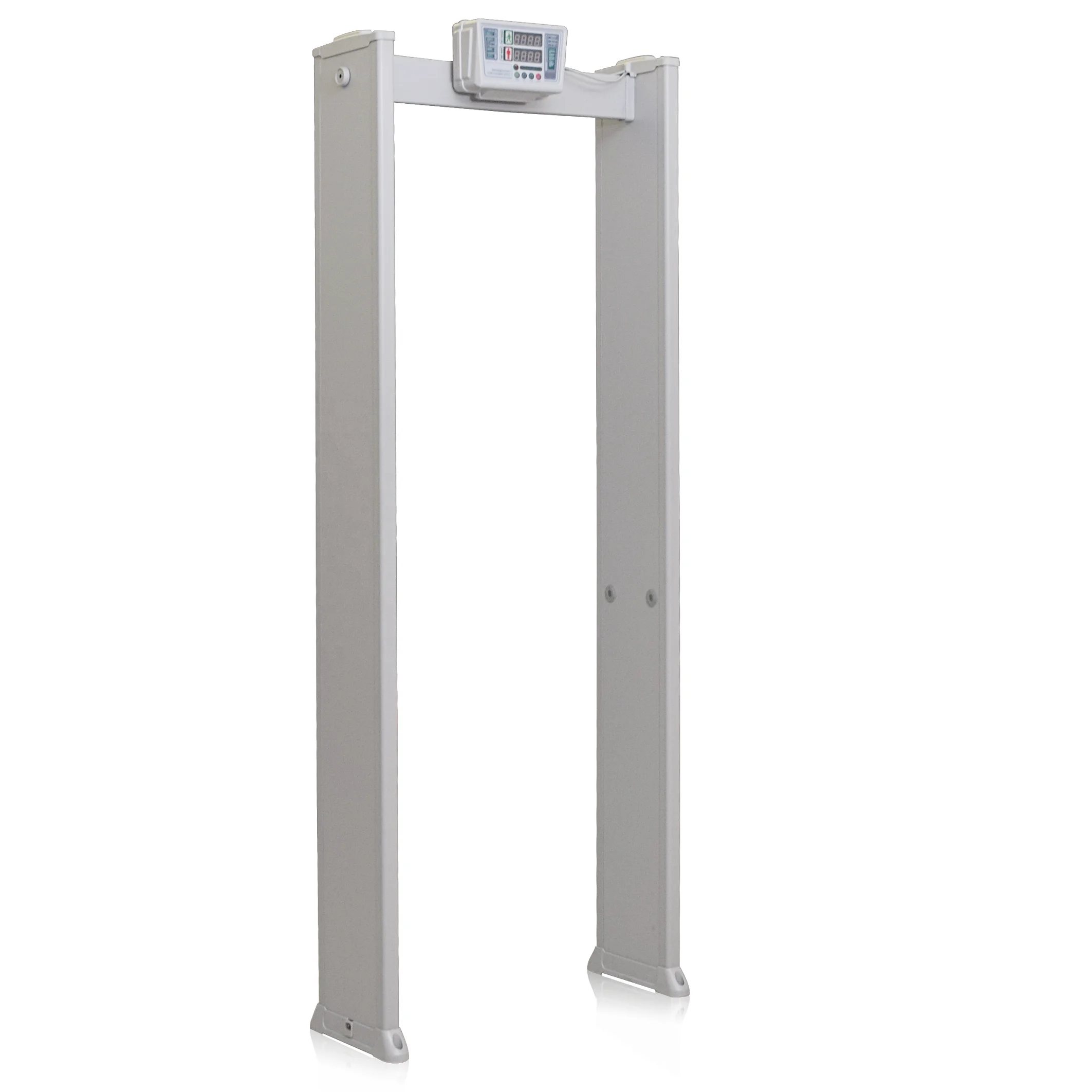

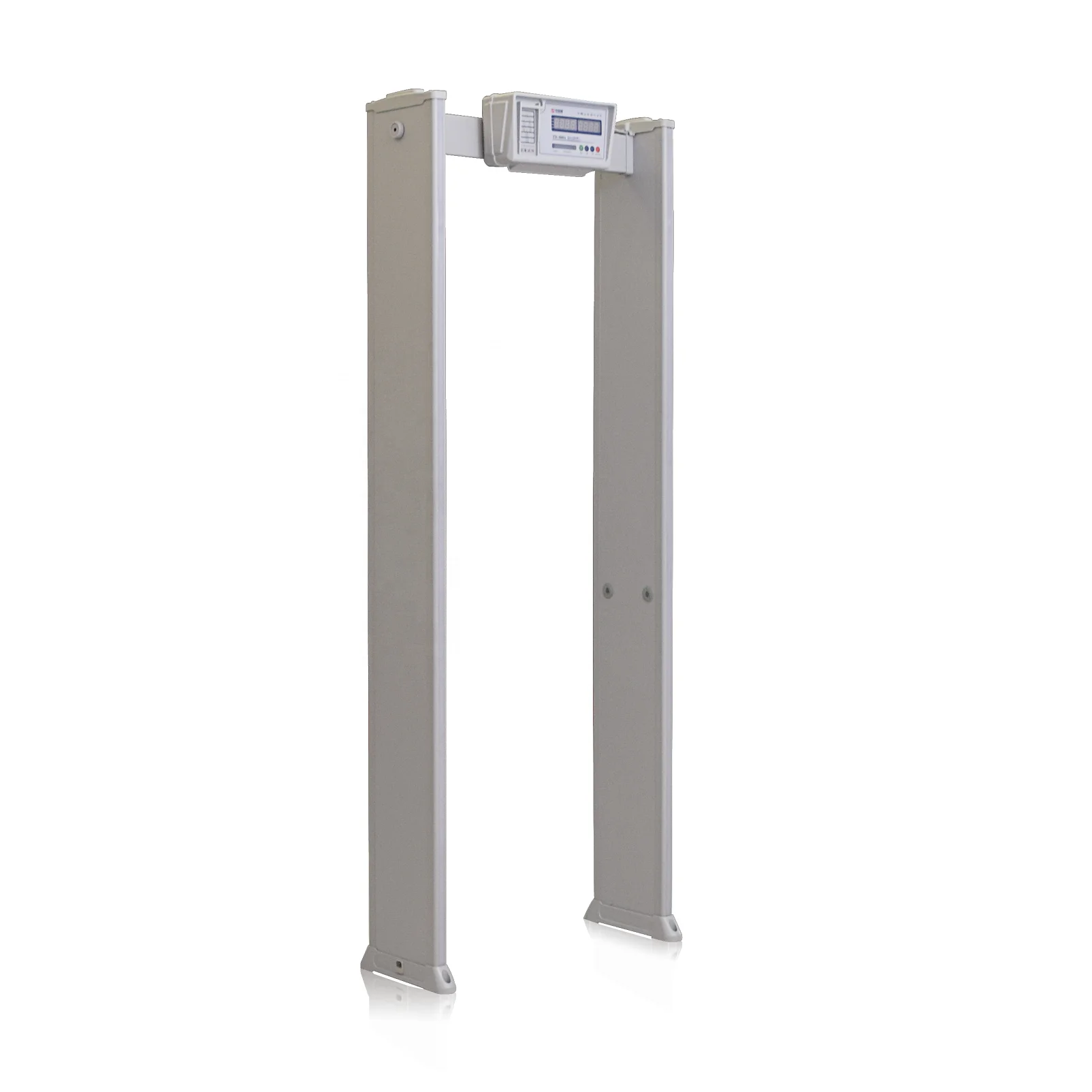

Door frame metal detector 240 seires LED Display 9 Detection Zones Walk Through Metal Detector Door
- Category: >>>
- Supplier: Heyuan Zhonganxie Technology Co. Ltd.
Share on (1600081067902):
Product Overview
Description
Product Description
240 Series LED Display 9 Detection Zones Walk Through Metal Detector Door for Publich Security Check
Device Performance
● the system has the function of displaying environmental monitoring data;High performance, high sensitivity and high stability;
● with system networking, can manage multiple devices through one PC (optional).
● preset the weight, volume, size, position of metal objects, exclude the false alarm of key, jewelry, belt buckle, etc.
● accord with EMC electromagnetic radiation standard, adopt weak magnetic field technology, harmless to pacemaker wearers, pregnant women, floppy disks, film, videotape, etc.
● with system networking, can manage multiple devices through one PC (optional).
● preset the weight, volume, size, position of metal objects, exclude the false alarm of key, jewelry, belt buckle, etc.
● accord with EMC electromagnetic radiation standard, adopt weak magnetic field technology, harmless to pacemaker wearers, pregnant women, floppy disks, film, videotape, etc.

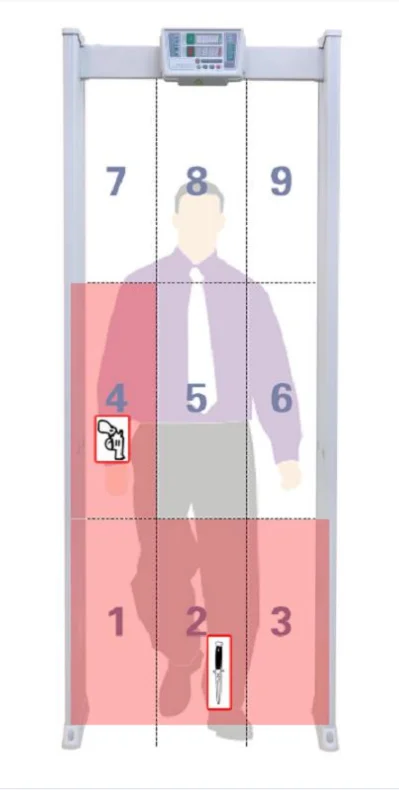

Schematic Diagram of defense area
Unique continuous partition technology, multiple independent partition, more accurate detection
Product Paramenters
Technical Parameters | ||
Product model | 240 TD-800P/6 | |
Vertical dimension | 2157×812×349mm | |
Vertical channel dimension | 2011×716×349mm | |
Packing Dimension | 2295×400×200mm | |
Net weight of main cabinet/detection door panel | 25KG | |
Gross weight of main cabinet/detection door panel | 30KG | |
Operating voltage | AC90V～240V 50／60Hz | |
Power dissipation | 12W | |
Operating frequency range | 1—50 Bands | |
Working environmental temperature | -20℃～65℃ | |
Installation environment | (W)100cm*(L)200cm(metal-free minimum range)Sheet Transverse | |
Regional detect metal precision range | Maximum Sensitivity ≥10g Metal | |
Technical Standards | ||
Electrical refer to EN60950 safety standard | Compliance | |
Radiation refer to EN50081-1 standard | Compliance | |
Anti-interference refer to EN50082-1 standard | Compliance | |
Implementation GB15210-2003 Walk through metal detector standard | ● | |
Enterprise through IS09001:2008 quality management system certification | ● | |
Enterprise through 0HSASl 8001 Occupational health certification | ● | |
Enterprise through ISO14001 environmental management certification | ● | |
Products through the EU CE certification | ● | |
FCC | ● | |
ROHS | ● | |

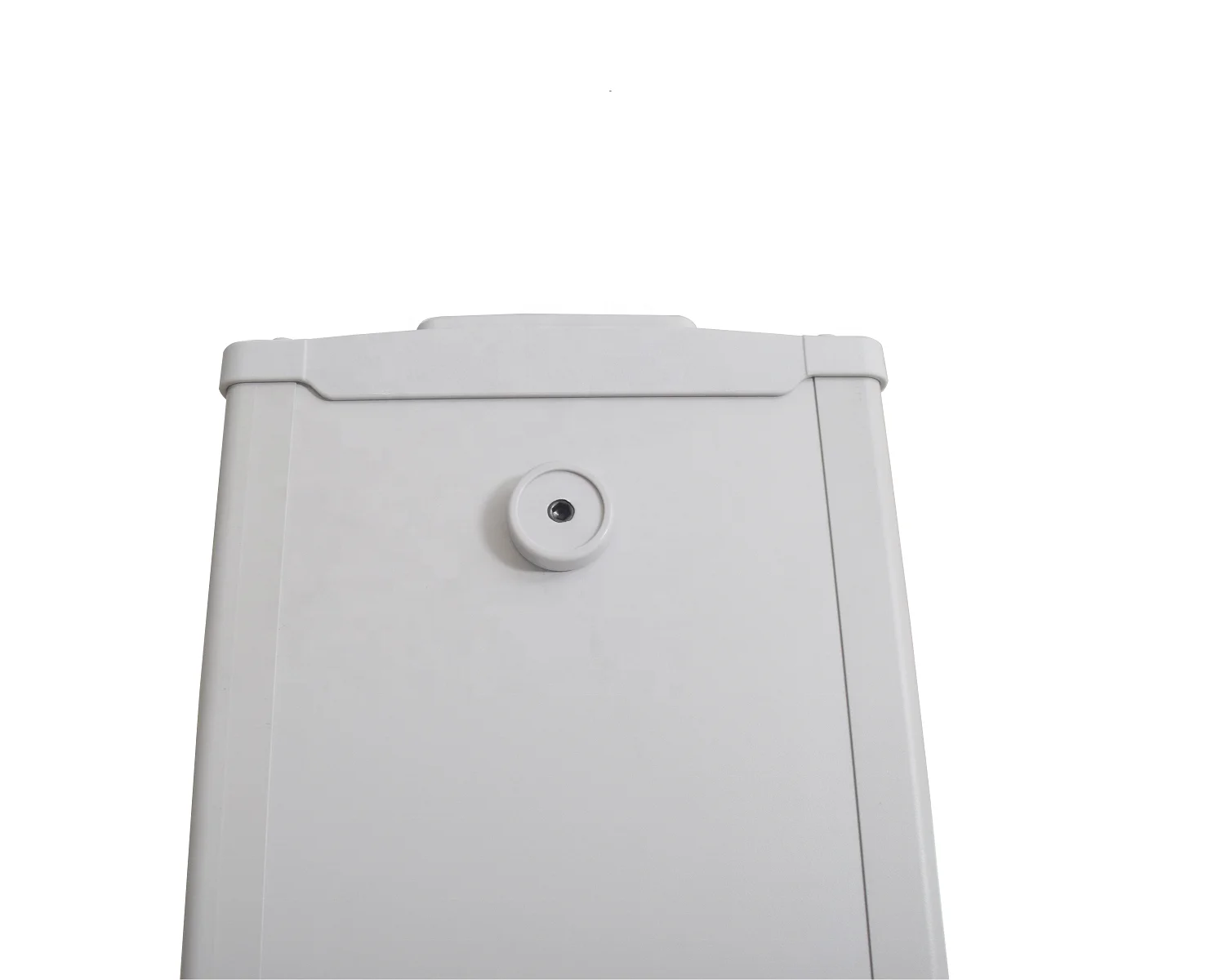

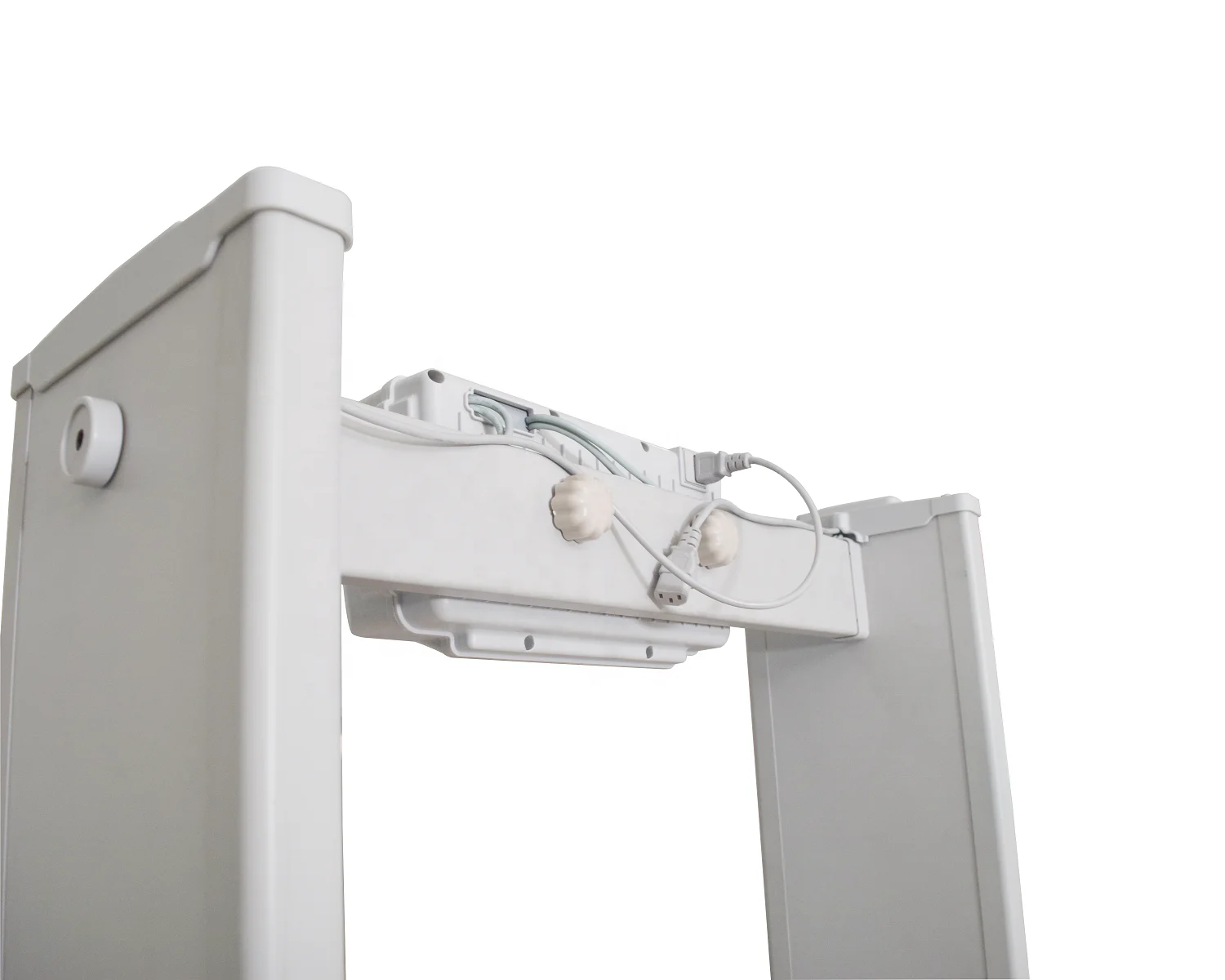

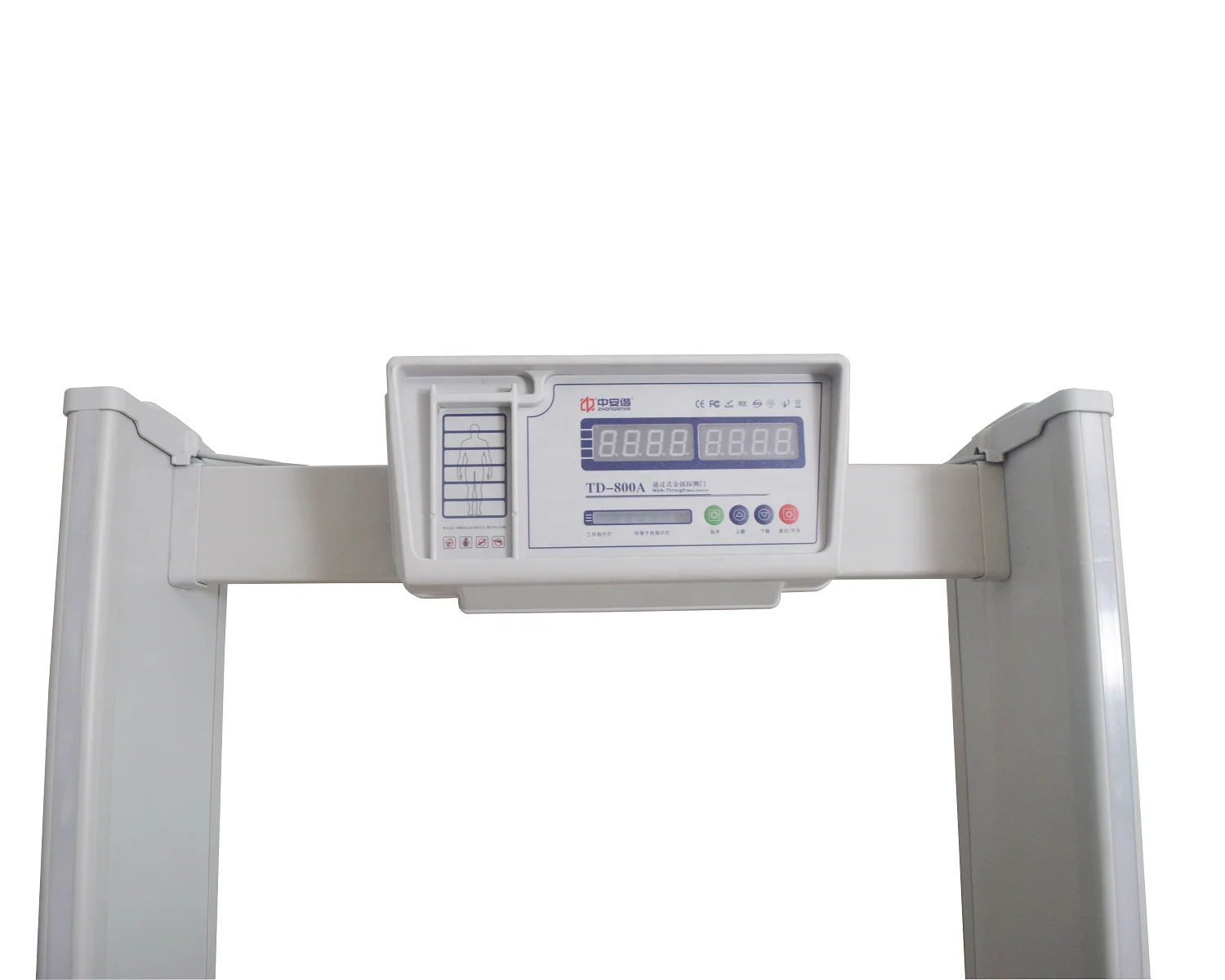

Details Images
Exhibition
Company Profile
Shenzhen Zhonganxie Technology Co., Ltd (Head Office)
Heyuan Zhonganxie Technoloy Co., Ltd (Factory)
Established in 2011, has been supplying security metal detection equipment for nearly 10 years. Our company have a plant of 13,000 ㎡, product line including:
Walk-through Metal Detectors
Hand-held metal detectors
Under Vehicle Inspection System
X Ray Security Scanner
Ground Search Metal Detectors
Hazardous liquid detector
Impurity detector for food and drug and etc.
Walk-through Metal Detectors
Hand-held metal detectors
Under Vehicle Inspection System
X Ray Security Scanner
Ground Search Metal Detectors
Hazardous liquid detector
Impurity detector for food and drug and etc.

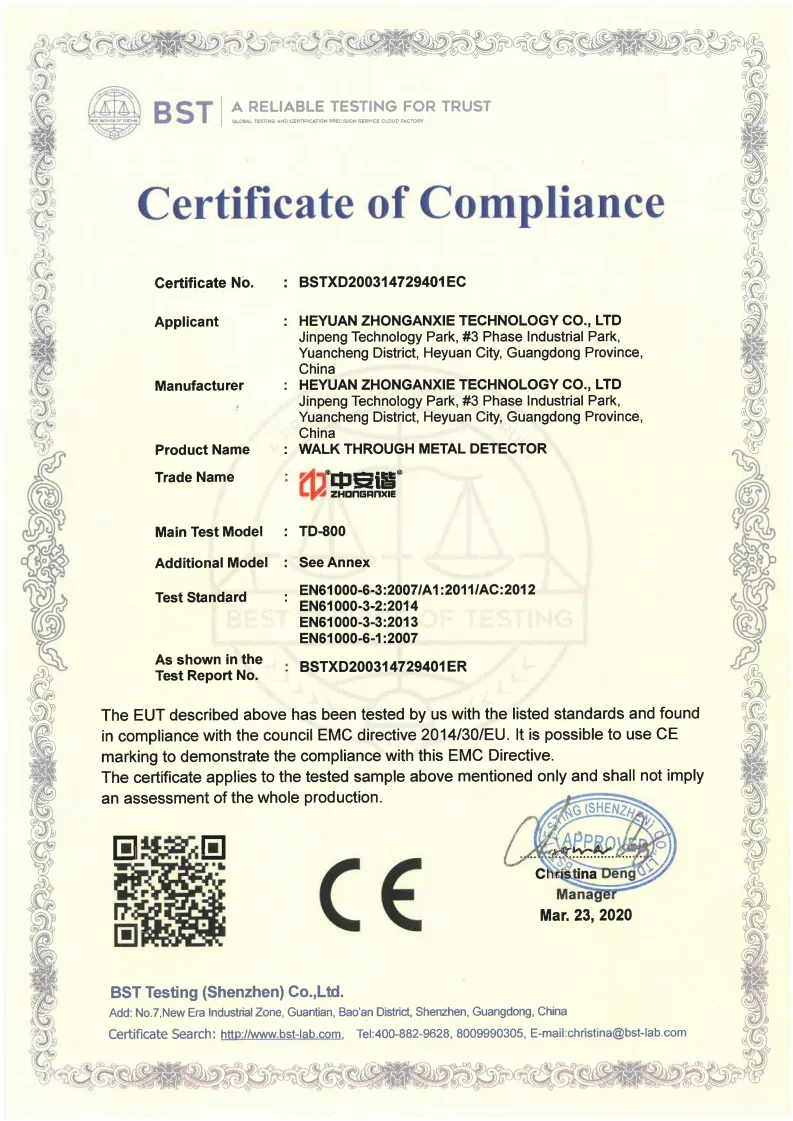

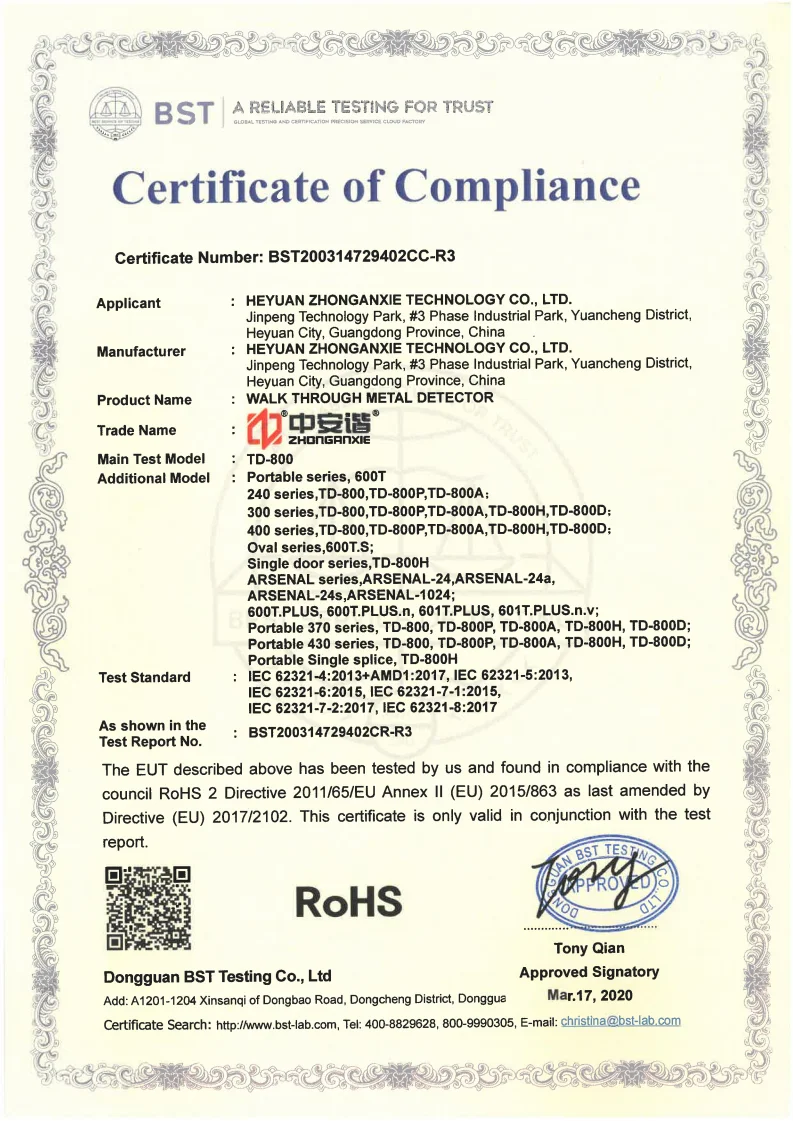

Certifications

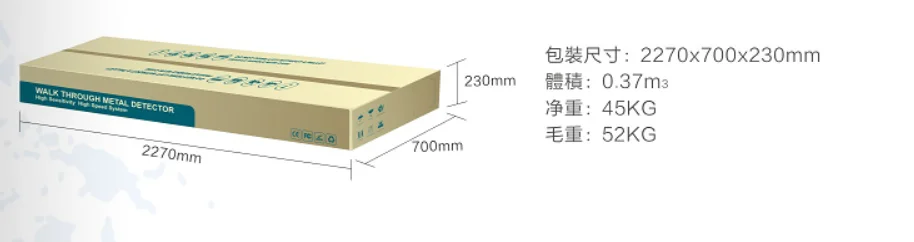

Product packaging
