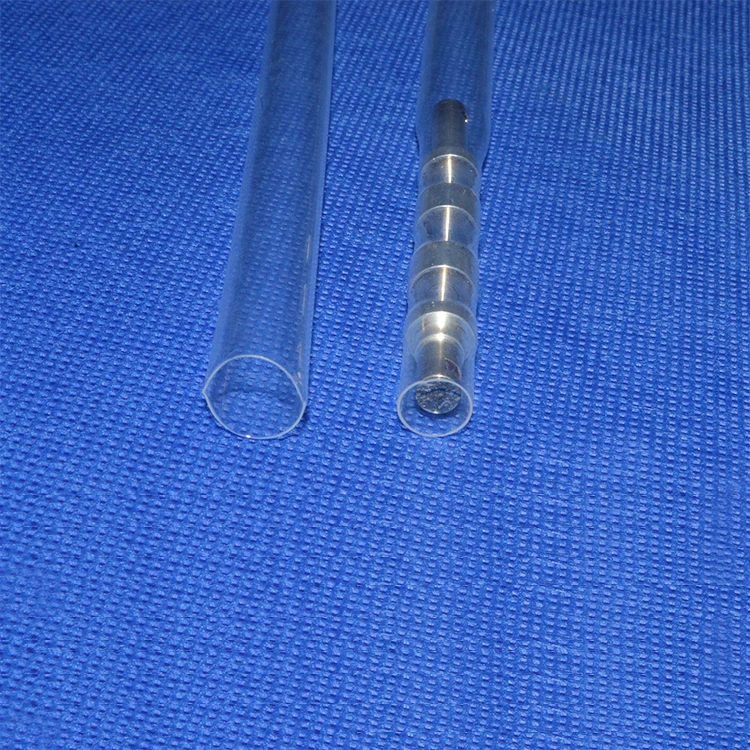

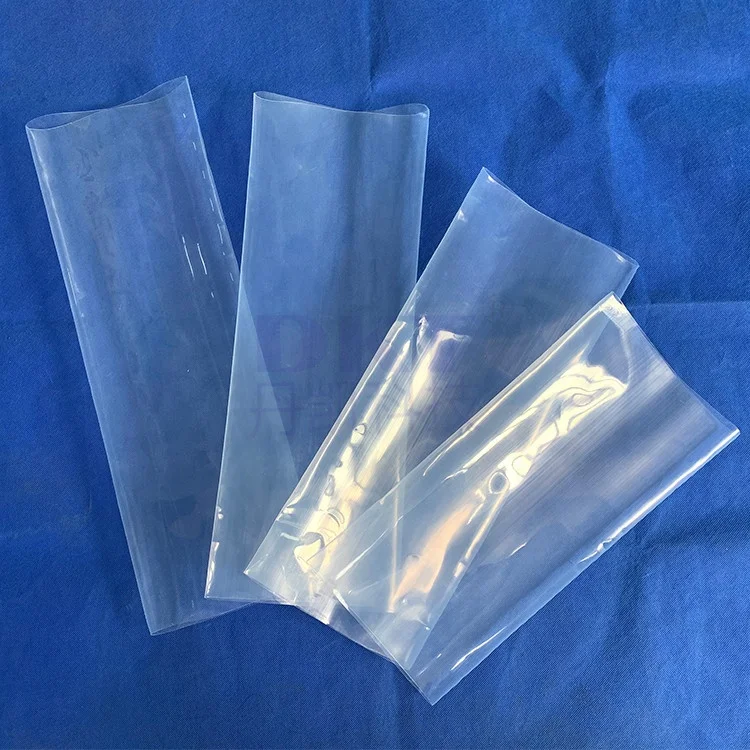

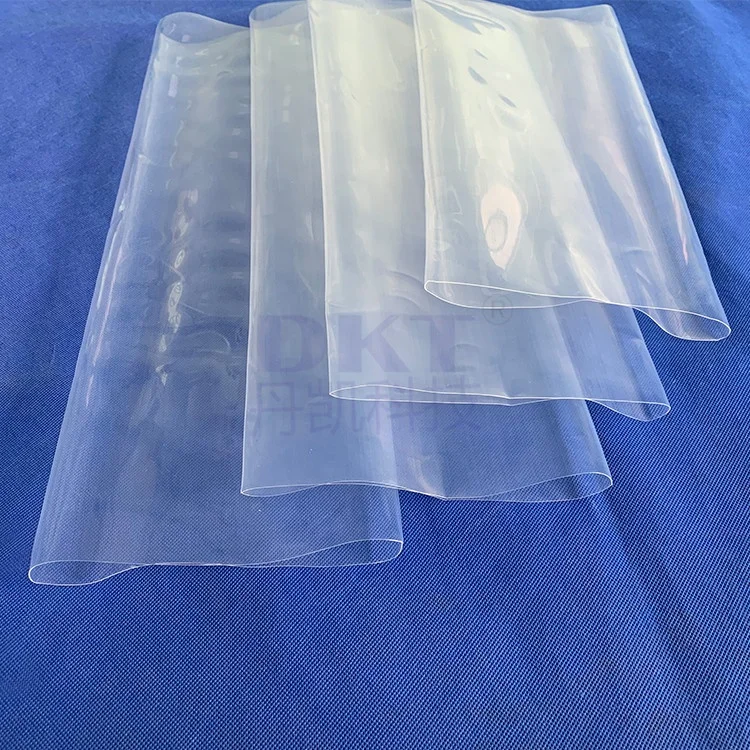

Dankai Factory Produce FEP heat shrink Tubing for Using T6/T8/T10 UVC lamps.
- Category: >>>
- Supplier: Shenzhen Dankai Technology Co. Ltd.
Share on (1600081353080):
Product Overview
Description
Dankai Factory Produce FEP heat shrink Tubing for Using T6/T8/T10 UVC lamps.
Product Description
Features / Benefits
Various performance perfluorinated ethylene propylene copolymers and copolymer -FEP PTEE similar, but slightly lower heat
resistance, long-term at -85 degrees +205 degrees, short-term to -200 degrees to +300 degrees working; impact high strength, creep
resistance, low temperature toughness than PTEE; crystallization heat treatment temperature varies with the degree of molding
processability is good; non-toxic, non-tackiness, electrical insulation, wear resistance, chemical stability, rather than the PTEE
Applications. Features / Benefits, shrink ratio 2: 1 · flexible, semi-rigid, thin-wall insulation High flame resistance · Good
temperature resistance · Excellent resistance to solvents, oil and chemical resistance
2> Temperature range, continuous working temperature: -55 ~ 200 ℃ · Minimum initial shrinkage temperature:
Packaging & Shipping
Our Services
Hot Sale
Certifications
Specification
PTFE TUBING
| Product Number | Note | ID | OD | Wall | Material | Available Lengths | Working PSI (at 73°F) | Bend Radius (in.) | Bend Radius (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 3000074 | .031 (1/32) | .063 (1/16) | .016 | Fluoropolymer PTFE | 100 | 412 | 1/2 | ||
| 3000151 | .031 (1/32) | .094 (3/32) | .030 | Fluoropolymer PTFE | 100 | 390 | 1/2 | ||
| 3000228 | .063 (1/16) | .125 (1/8) | .030 | Fluoropolymer PTFE | 50, 100 | 290 | 1/2 | ||
| 3000382 | .094 (3/32) | .156 (5/32) | .030 | Fluoropolymer PTFE | 50, 100 | 220 | 5/8 | ||
| 3000459 | .125 (1/8) | .188 (3/16) | .030 | Fluoropolymer PTFE | 50, 100 | 180 | 3/4 | ||
| 3000536 | .125 (1/8) | .250 (1/4) | .063 (1/16) | Fluoropolymer PTFE | 50, 100 | 290 | 1/2 | ||
| 3000690 | .188 (3/16) | .250 (1/4) | .030 | Fluoropolymer PTFE | 50, 100 | 130 | 1 | ||
| 3000767 | .188 (3/16) | .313 (5/16) | .063 (1/16) | Fluoropolymer PTFE | 50, 100 | 222 | 7/8 | ||
| 3000844 | .250 (1/4) | .313 (5/16) | .030 | Fluoropolymer PTFE | 50, 100 | 100 | 2-1/4 | ||
| 3000921 | .250 (1/4) | .375 (3/8) | .063 (1/16) | Fluoropolymer PTFE | 25, 50, 100 | 180 | 1 | ||
| 3000998 | .313 (5/16) | .375 (3/8) | .030 | Fluoropolymer PTFE | 25, 50, 100 | 80 | 2-3/4 | ||
| 3001152 | .375 (3/8) | .438 (7/16) | .030 | Fluoropolymer PTFE | 25, 50, 100 | 70 | 4 | ||
| 3001229 | .375 (3/8) | .500 (1/2) | .063 (1/16) | Fluoropolymer PTFE | 25, 50, 100 | 130 | 2-1/4 | ||
| 3001306 | .438 (7/16) | .500 (1/2) | .030 | Fluoropolymer PTFE | 25, 50, 100 | 60 | 4 | ||
| 3001460 | .500 (1/2) | .563 (9/16) | .030 | Fluoropolymer PTFE | 25, 50, 100 | 55 | 5 | ||
| 3001537 | .500 (1/2) | .625 (5/8) | .063 (1/16) | Fluoropolymer PTFE | 25, 50, 100 | 100 | 3 | ||
| 3001614 | .563 (9/16) | .625 (5/8) | .030 | Fluoropolymer PTFE | 25, 50, 100 | 50 | 5-1/2 | ||
| 3001845 | .625 (5/8) | .750 (3/4) | .063 (1/16) | Fluoropolymer PTFE | 25, 50, 100 | 80 | 6 | ||
| 3010175 | 2mm | 4mm | 1mm | Fluoropolymer PTFE | 50, 100 | 290 | 13 | ||
| 3010350 | 4mm | 6mm | 1mm | Fluoropolymer PTFE | 50, 100 | 180 | 25 | ||
| 3010525 | 6mm | 8mm | 1mm | Fluoropolymer PTFE | 50, 100 | 130 | 51 | ||
| 3010700 | 8mm | 10mm | 1mm | Fluoropolymer PTFE | 25, 50, 100 | 100 | 64 | ||
| 3010875 | 10mm | 12mm | 1mm | Fluoropolymer PTFE | 50, 100 | 80 | 76 | ||
| 3011050 | [B] | 12mm | 14mm | 1mm | Fluoropolymer PTFE | 50, 100 | 60 | 89 |
[B] Limited stock item; lead times and minimums may apply --call for details.
I.D. and O.D. dimensions are NOMINAL. Wall dimension is REFERENCE.
Sold by standard coil length only.
Working pressures are calculated from burst testing using a 4:1 safety factor. Application testing is recommended.
Add length suffix to part number when ordering. Example: 100 ft. of 1/32" I.D. x 1/16" O.D. tubing is part number 300 0074-100.
NOTE: Orders for 50 ft. lengths of PTFE tubing may be filled with a maximum of two lengths of product totaling 50 ft. Orders for 100 ft. lengths of PTFE tubing may be filled with a maximum of three lengths of product totaling 100 ft.
OD is the critical dimension for fittings application.
FEP TUBING
| oduct Number | Note | ID | OD | Wall | Material | Available Lengths | Working PSI (at 73°F) | Bend Radius (in.) | Bend Radius (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 3100090 | .063 (1/16) | .125 (1/8) | .030 | Fluoropolymer FEP | 50, 100 | 445 | 1/2 | ||
| 3100167 | .063 (1/16) | .188 (3/16) | .063 (1/16) | Fluoropolymer FEP | 50, 100 | 612 | 1/2 | ||
| 3100244 | .094 (3/32) | .156 (5/32) | .030 | Fluoropolymer FEP | 50, 100 | 357 | 1/2 | ||
| 3100321 | .125 (1/8) | .188 (3/16) | .030 | Fluoropolymer FEP | 50, 100 | 296 | 3/4 | ||
| 3100398 | .125 (1/8) | .250 (1/4) | .063 (1/16) | Fluoropolymer FEP | 50, 100 | 460 | 1 | ||
| 3100552 | .188 (3/16) | .250 (1/4) | .030 | Fluoropolymer FEP | 50, 100 | 223 | 1-1/2 | ||
| 3100629 | .188 (3/16) | .313 (5/16) | .063 (1/16) | Fluoropolymer FEP | 50, 100 | 368 | 1-1/2 | ||
| 3100706 | .250 (1/4) | .313 (5/16) | .030 | Fluoropolymer FEP | 50, 100 | 178 | 1-3/4 | ||
| 3100783 | .250 (1/4) | .375 (3/8) | .063 (1/16) | Fluoropolymer FEP | 25, 50, 100 | 307 | 1 | ||
| 3100860 | .313 (5/16) | .375 (3/8) | .030 | Fluoropolymer FEP | 25, 50, 100 | 148 | 2-1/2 | ||
| 3101014 | .375 (3/8) | .438 (7/16) | .030 | Fluoropolymer FEP | 50, 100 | 127 | 3-1/2 | ||
| 3101091 | .375 (3/8) | .500 (1/2) | .063 (1/16) | Fluoropolymer FEP | 25, 50, 100 | 230 | 2 | ||
| 3101168 | .438 (7/16) | .500 (1/2) | .030 | Fluoropolymer FEP | 25, 50, 100 | 111 | 6 | ||
| 3101322 | .500 (1/2) | .563 (9/16) | .030 | Fluoropolymer FEP | 25, 50, 100 | 89 | 12 | ||
| 3101399 | .500 (1/2) | .625 (5/8) | .063 (1/16) | Fluoropolymer FEP | 25, 50, 100 | 184 | 3 | ||
| 3101707 | .625 (5/8) | .750 (3/4) | .063 (1/16) | Fluoropolymer FEP | 25, 50, 100 | 153 | 6 | ||
| 3101938 | [B] | .750 (3/4) | .830 | .040 | Fluoropolymer FEP | 10 Straight | 74 | 8 | |
| 3102015 | .750 (3/4) | .875 (7/8) | .063 (1/16) | Fluoropolymer FEP | 5, 10 Straight | 132 | 12 | ||
| 3102169 | .875 (7/8) | 1.000 | .063 (1/16) | Fluoropolymer FEP | 5, 10 Straight | 115 | 22 | ||
| 3102246 | [B] | 1.000 | 1.100 | .050 | Fluoropolymer FEP | 5, 10 Straight | 75 | 26 | |
| 3102323 | 1.000 | 1.125 (1 1/8) | .063 (1/16) | Fluoropolymer FEP | 5, 10 Straight | 75 | 24 | ||
| 3102477 | [B] | 1.250 (1-1/4) | 1.375 (1-3/8) | .063 (1/16) | Fluoropolymer FEP | 5, 10 Straight | 70 | 30 | |
| 3102631 | [B] | 1.500 (1-1/2) | 1.625 (1-5/8) | .063 (1/16) | Fluoropolymer FEP | 5 | 64 | 36 | |
| 3110177 | 2mm | 4mm | 1mm | Fluoropolymer FEP | 50, 100 | 464 | 38 | ||
| 3110352 | 4mm | 6mm | 1mm | Fluoropolymer FEP | 50, 100 | 309 | 44 | ||
| 3110527 | 6mm | 8mm | 1mm | Fluoropolymer FEP | 50, 100 | 232 | 64 | ||
| 3110702 | 8mm | 10mm | 1mm | Fluoropolymer FEP | 25, 50, 100 | 186 | 70 | ||
| 3110877 | 10mm | 12mm | 1mm | Fluoropolymer FEP | 50, 100 | 155 | 102 | ||
| 3111052 | 12mm | 14mm | 1mm | Fluoropolymer FEP | 50, 100 | 119 | 305 |
[B] Limited stock item; lead times and minimums may apply --call for details.
Sold by standard coil length only.
I.D. dimension is REFERENCE.
Working pressures are calculated from burst testing using a 3:1 safety factor. Application testing is recommended.
Add length suffix to part number when ordering. Example: 50 ft. of 1/16" I.D. x 1/8" O.D. tubing is part number 310 0090-50.
All FEP lengths are supplied in single-section packages.
OD is the critical dimension for fittings application.
PFA TUBING
| Product Number | Note | ID | OD | Wall | Material | Available Lengths | Working PSI (at 73°F) | Bend Radius (in.) | Bend Radius (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 3200176 | .063 (1/16) | .125 (1/8) | .030 | Fluoropolymer PFA | 50, 100 | 449 | 1/2 | ||
| 3200330 | .094 (3/32) | .156 (5/32) | .030 | Fluoropolymer PFA | 50, 100 | 360 | 1/2 | ||
| 3200407 | .125 (1/8) | .188 (3/16) | .030 | Fluoropolymer PFA | 50, 100 | 299 | 3/4 | ||
| 3200484 | .125 (1/8) | .250 (1/4) | .063 (1/16) | Fluoropolymer PFA | 50, 100 | 464 | 1/2 | ||
| 3200561 | .188 (3/16) | .250 (1/4) | .030 | Fluoropolymer PFA | 50, 100 | 225 | 1 | ||
| 3200715 | .250 (1/4) | .313 (5/16) | .030 | Fluoropolymer PFA | 50, 100 | 179 | 1-3/4 | ||
| 3200792 | .250 (1/4) | .375 (3/8) | .063 (1/16) | Fluoropolymer PFA | 25, 50, 100 | 310 | 1 | ||
| 3200869 | .313 (5/16) | .375 (3/8) | .030 | Fluoropolymer PFA | 50, 100 | 150 | 2-1/2 | ||
| 3201100 | .375 (3/8) | .500 (1/2) | .063 (1/16) | Fluoropolymer PFA | 25, 50, 100 | 310 | 1 | ||
| 3201331 | .500 (1/2) | .563 (9/16) | .030 | Fluoropolymer PFA | 25, 100 | 75 | 12 | ||
| 3201408 | [B] | .500 (1/2) | .625 (5/8) | .063 (1/16) | Fluoropolymer PFA | 25, 50, 100 | 186 | 3 | |
| 3201716 | .625 (5/8) | .750 (3/4) | .063 (1/16) | Fluoropolymer PFA | 25, 50, 100 | 155 | 6 | ||
| 3210354 | 4mm | 6mm | 1mm | Fluoropolymer PFA | 50, 100 | 312 | 44 | ||
| 3210529 | 6mm | 8mm | 1mm | Fluoropolymer PFA | 50, 100 | 234 | 64 | ||
| 3210704 | 8mm | 10mm | 1mm | Fluoropolymer PFA | 25, 50, 100 | 187 | 70 | ||
| 3210879 | 10mm | 12mm | 1mm | Fluoropolymer PFA | 50, 100 | 156 | 102 |
[B] Limited stock item; lead times and minimums may apply --call for details.
Sold by standard coil length only.
I.D. dimension is REFERENCE.
Working pressures are calculated from burst testing using a 3:1 safety factor. Application testing is recommended.
Add length suffix to part number when ordering. Example: 25 ft. of 5/8" I.D. x 3/4" O.D. tubing is part number 320 1716-25.
All PFA lengths are supplied in single-section packages..
OD is the critical dimension for fittings application.
