Aa 00 size European Style 40 position Multifix QCTP quick change tool post and holder for lathe

Product Overview

Description

Aa-00  size European Style 40 position Multifix QCTP quick change  tool post  and holder for lathe



1)it is main parts of normal lathe
2)Cam-lock handle can firmly lock and quickly release tool holder.

3)Height of cuting edge is easily & accurately adjusted by special screw.

4)Tools can be reground without removal tool holder and set device remain unchanged.

5)40 different angles (every 9°) can be conveniently selected from position dials with marker.

6)holders are interchangeable with most other brand 40 position tool post.







Quick change tool post:





order no.	lathe swing	Xmin	Xmax	y	h	v	s	u	t
Aa	120-220	18.5	26.5	6.5	12	68	37	34.75	13





5-piece set

order no.	each set includes	N.W(kgs)
Aa-00	1Pcs Aa. 3Pcs AaD12x50 and 1pcs AaH12x50	1.23



Aditional tool hoder work with the tool post as below:

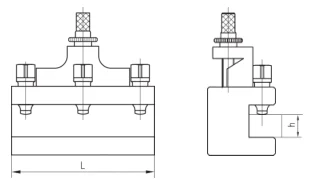

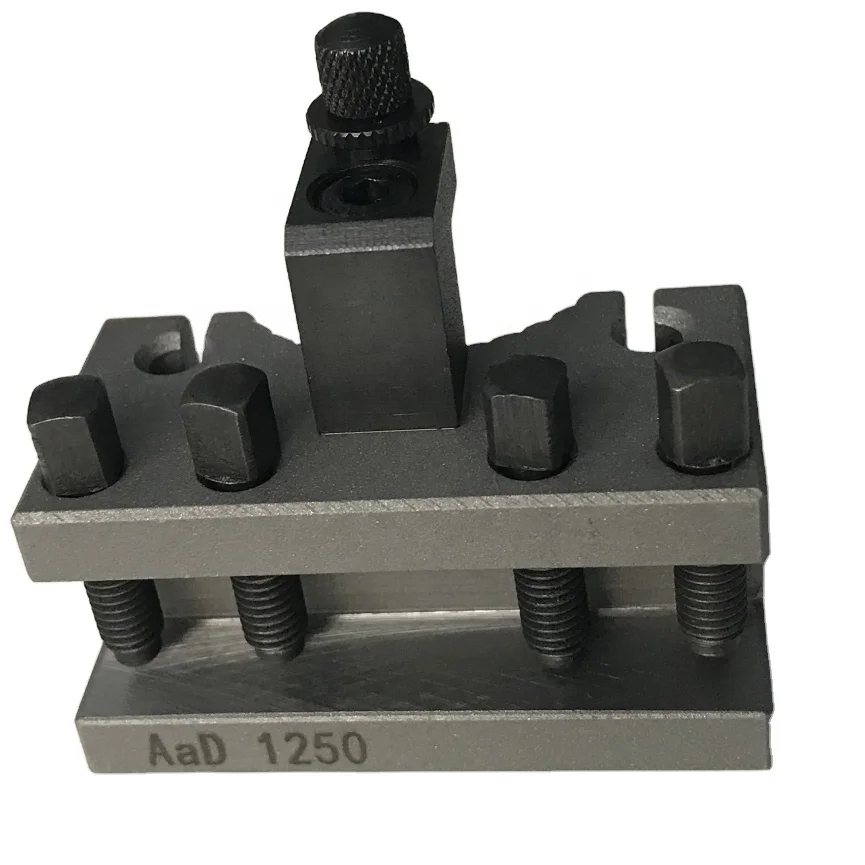

1). turning and facing tool holder:



order no.	h(mm)	L(mm)
AaD12x50	12	50

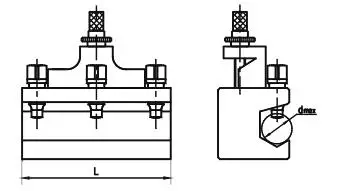

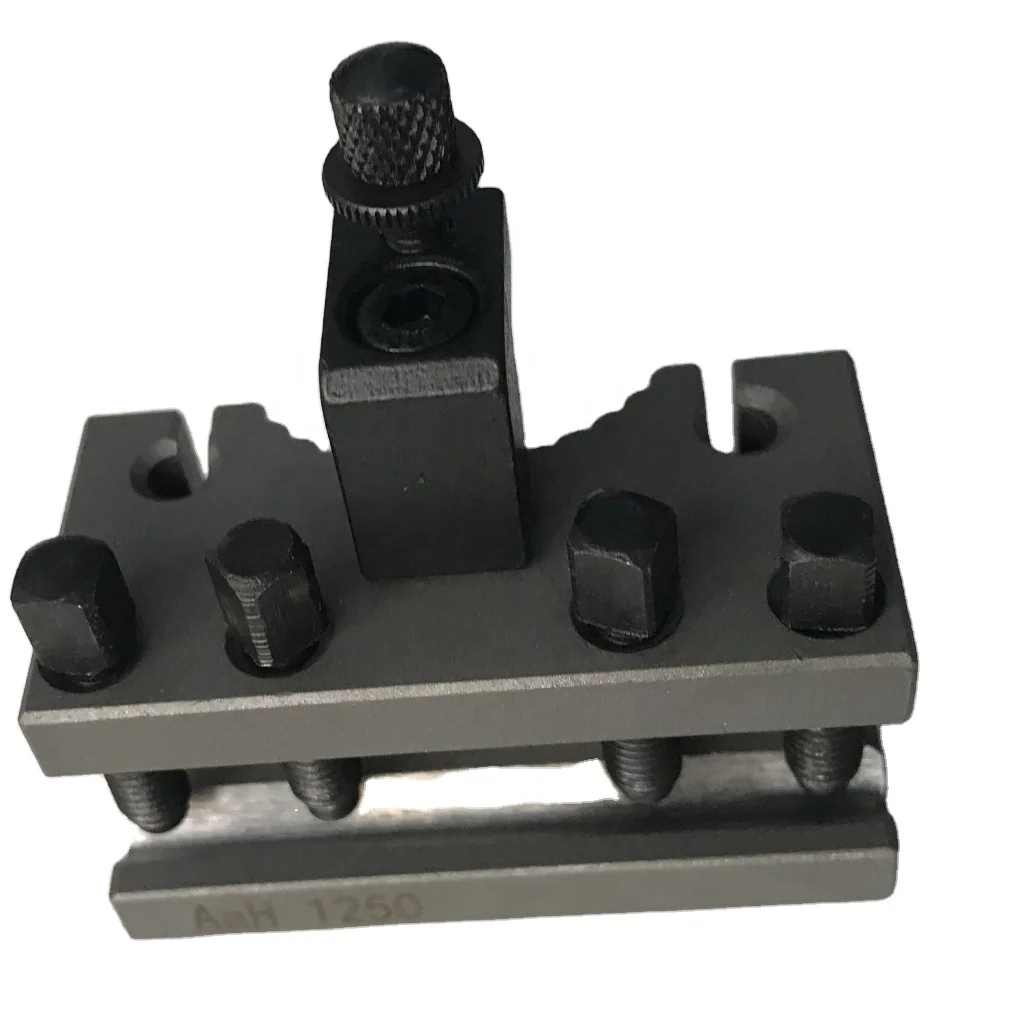

2)turning facing and boring holder:

order no.	dmax(mm)	L(mm)
AaH12x50	12	50

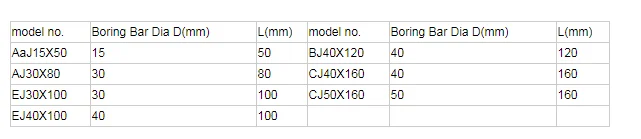

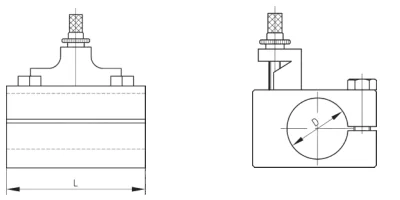

3)heavy duty drilling and boring tool holder:
