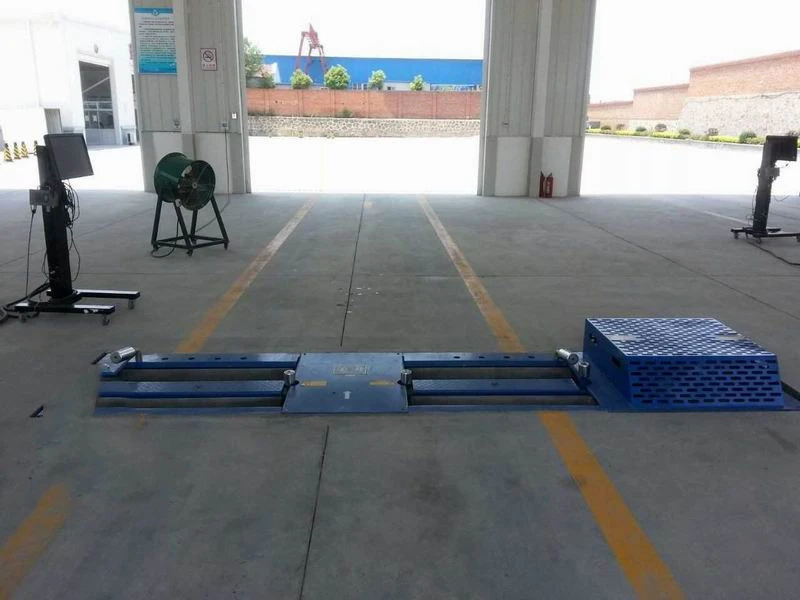

UE ASMLGD 3 car inspection line Light duty steam\diesel working condition method mixed detection equipment car testing machine
- Category: >>>
- Supplier: Shanghai UE Automotive Technology Co. Ltd.
Share on (1600081748874):
Product Overview
Description
Products Description
Product Paramenters
Item | NBDCG-03 | NBDCG-10 | NBDCG-13 | ||
(Petrol car) | (Mixed inspection of gasoline vehicles and light diesel vehicles) | (Heavy diesel car) | |||
Maximum axle load kg | 3000 | 10000 | 13000 | ||
Maximum braking torque N.m | 1400 | 1900 | 3300×2 | ||
Maximum absorbed power | 160 | 250 | 450×2 | ||
Power absorption device | Air-cooled eddy current machine | Air-cooled eddy current machine | Air-cooled eddy current machine | ||
Drive test range | 0-5000 | 0-10000 | 0-15000 | ||

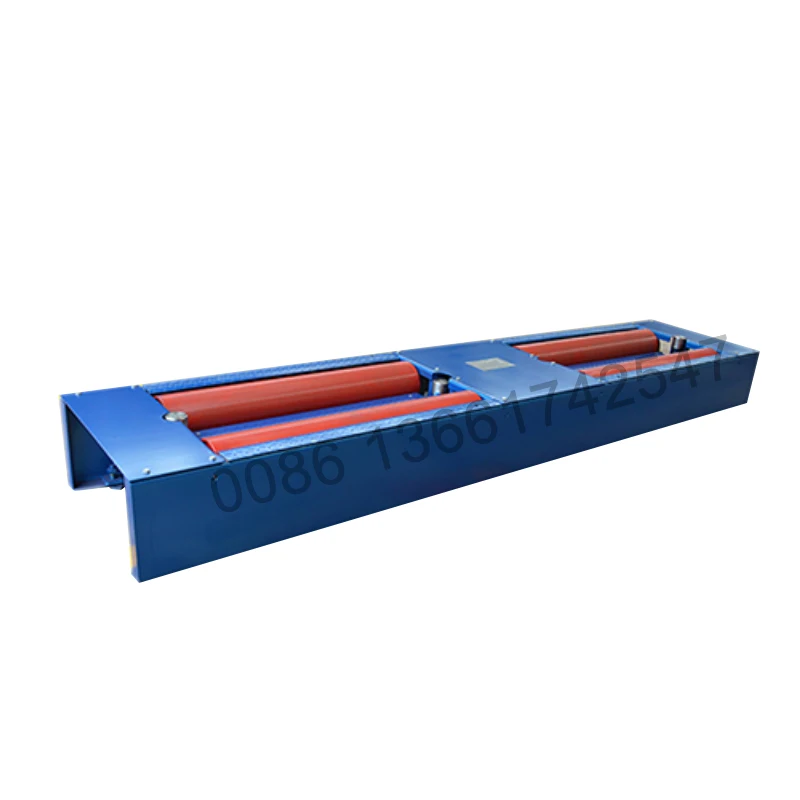

Drum diameter × length mm | φ216×1000 | φ216×1000 | φ422×1000 | ||
Roller inner distance × outer distance mm | 650×2650 | 650×2650 | 820×2820 | ||
Drum center distance mm | 434 | 434 | 734,986 | ||
Maximum test speed km/h | 130 | 130 | 130 | ||
Considerable inertia kg | 908±18 | 908±18 | 1450±18 | ||
Preheating motor | 7.5 | 7.5 | 11 | ||
Lifting method and ability kN | Airbag lift, 30 | Airbag lift, 100 | Airbag lift, 130 | ||
Working pressureMPa | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 | ||
Calibration rod ratio | 1:10 | 1:10 | 1:10 | ||
Dimensions mm | 3900×950×400 | 3900×950×400 | 4750×3415×660 | ||
Indication error | Speed: ±1%, driving force: ±3%, power: ±3.5%, distance: ±1% | ||||
Features
Main performance characteristics:
1. The integral welded frame has high strength, compact and reasonable structure, and beautiful appearance;
2. The air-cooled eddy current machine equipped with this equipment is specially designed and manufactured for automobile chassis dynamometer, with large power absorption, beautiful appearance and superior performance;
3. The speed measurement system equipped with this equipment is a high-precision photoelectric encoder, which ensures accurate and reliable data collection;
4. The surface of the roller adopts special knurling treatment technology, the adhesion coefficient is large, and it is durable;
5. The lifting device adopts multi-airbag single beam integral guide lifting, with strong lifting capacity and good synchronization;
6. The air circuit control devices such as airbags, trachea and solenoid valves are selected from well-known domestic brands, with high reliability and long service life;
7. Adopt domestic well-known brand pressure sensors with high accuracy, good long-term stability, durability, accurate and reliable output data;
8. The large and small wheel gears are installed to effectively prevent damage to the tire caused by the lateral slip of the front-drive car during the test;
9. A special motor is used to preheat the system, which has low noise and stable rotation. It can be used in conjunction with the frequency converter to make stepless speed regulation, which can accurately measure the parasitic power of the table body and verify the speed;
10. The basic inertia is accurate and meets the requirements of relevant standards;
11. The whole machine is installed without anchor bolts, and the accurate operation of debugging and leveling effect is extremely simple and convenient.
12. The performance meets the latest national standards.
1. The integral welded frame has high strength, compact and reasonable structure, and beautiful appearance;
2. The air-cooled eddy current machine equipped with this equipment is specially designed and manufactured for automobile chassis dynamometer, with large power absorption, beautiful appearance and superior performance;
3. The speed measurement system equipped with this equipment is a high-precision photoelectric encoder, which ensures accurate and reliable data collection;
4. The surface of the roller adopts special knurling treatment technology, the adhesion coefficient is large, and it is durable;
5. The lifting device adopts multi-airbag single beam integral guide lifting, with strong lifting capacity and good synchronization;
6. The air circuit control devices such as airbags, trachea and solenoid valves are selected from well-known domestic brands, with high reliability and long service life;
7. Adopt domestic well-known brand pressure sensors with high accuracy, good long-term stability, durability, accurate and reliable output data;
8. The large and small wheel gears are installed to effectively prevent damage to the tire caused by the lateral slip of the front-drive car during the test;
9. A special motor is used to preheat the system, which has low noise and stable rotation. It can be used in conjunction with the frequency converter to make stepless speed regulation, which can accurately measure the parasitic power of the table body and verify the speed;
10. The basic inertia is accurate and meets the requirements of relevant standards;
11. The whole machine is installed without anchor bolts, and the accurate operation of debugging and leveling effect is extremely simple and convenient.
12. The performance meets the latest national standards.
