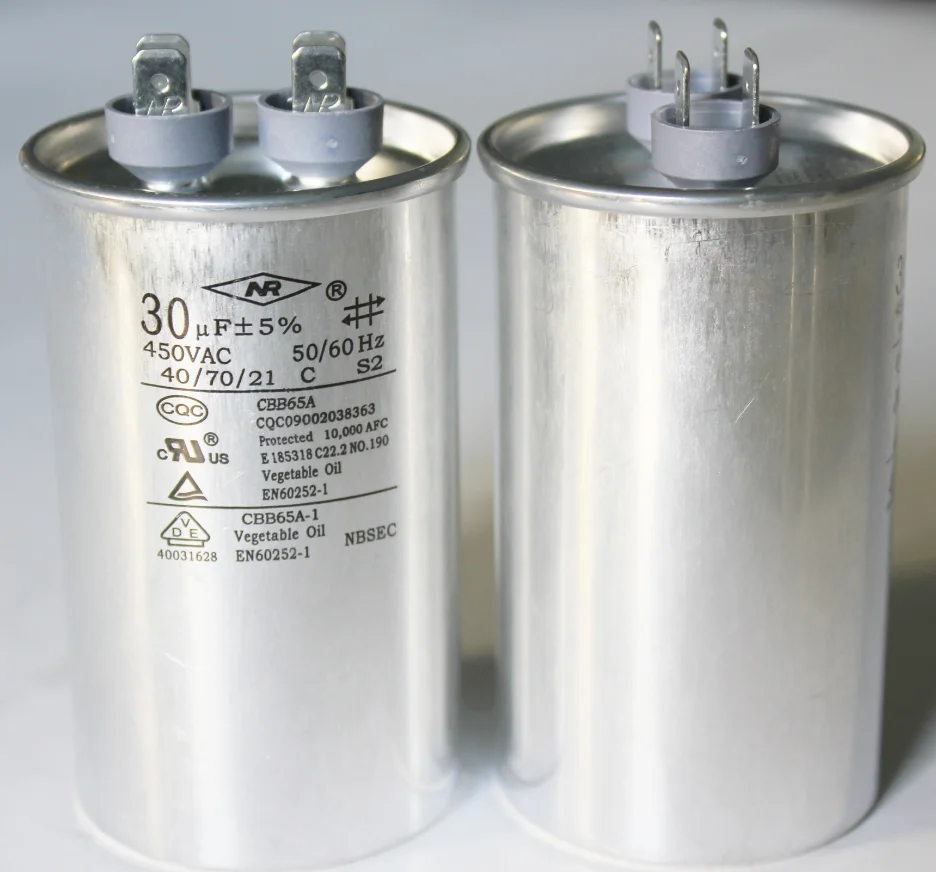

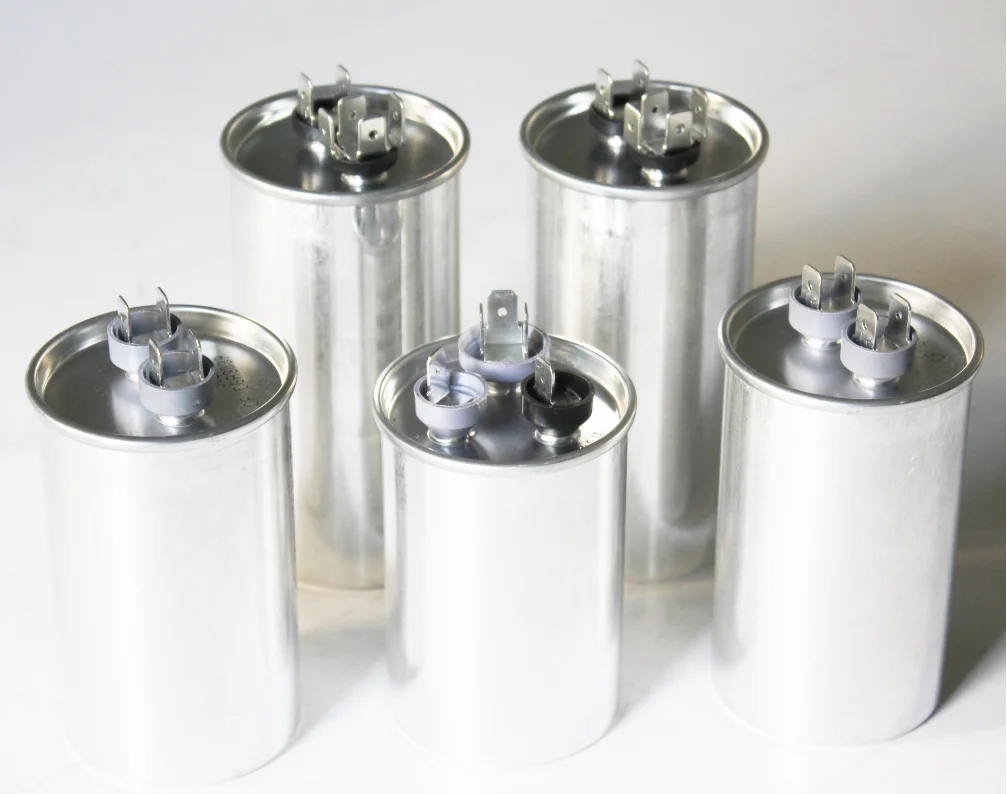

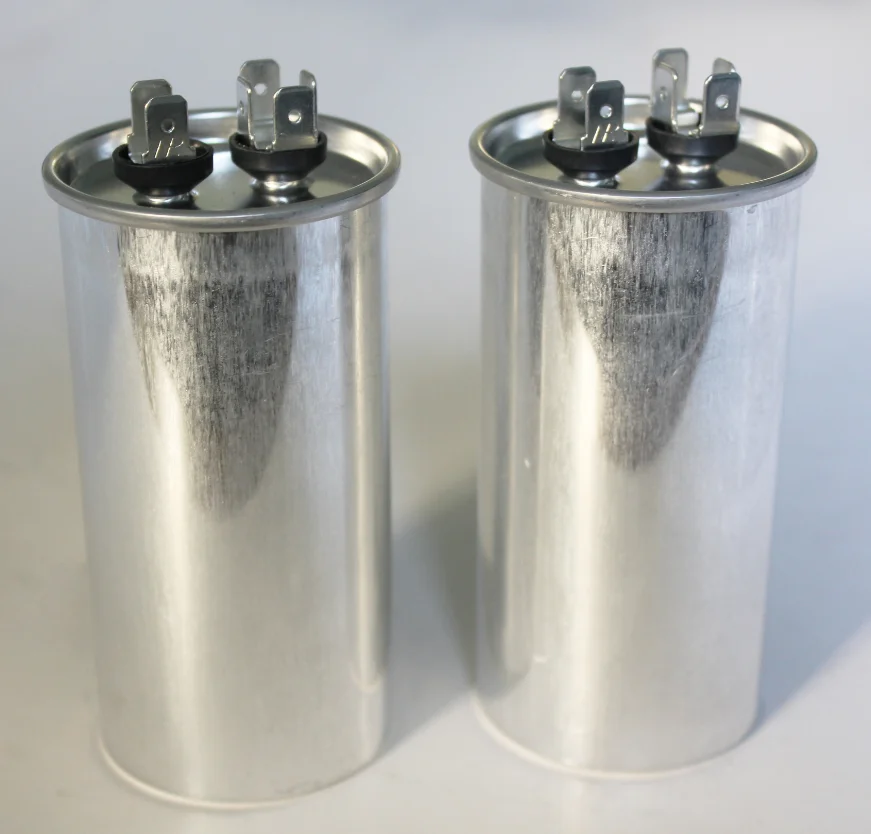

ac film motor capacitor for air conditioner CBB65 40/5uf 450VAC

Product Overview

Description

CBB65 AC motor start capacitor 40/5uf 450vac film capacitor



Application:

Products are suitable for home appliances,such as air-conditioner,air conditioners,freezers and washing.



Characteristics:

1. It selects high-quality polypropylene coated film as the medium

2. uses the advanced zinc-aluminum coating process

3. Oil-immersed aluminum shell and explosion-proof stucture.

4. Products have the male tabs or wire leads and the structures,such as single structure and combined stucture.

5. Products are with characteristics of high temperature,low loss and long life,etc.



Technical Specification:

c	Aluminum Shell,Oil Filled,Protective Device
Temperarure	-40℃~85℃
Capacitance Tolerance	±5%
Dissipation Factor	≤0.002(50Hz )
Testing Voltage	T-T:2.0Un 2s  T-C:2000VAC 2s
Insulation Resistance	T-T:≥3000mΩ/uF T-C:≥1000mΩ(20℃)
Rated Frequency	50/60Hz
Lif Class	B,C
