1.5 Inch Very Small Lcd Screen JHD144B2605
US $0.01-$1.00

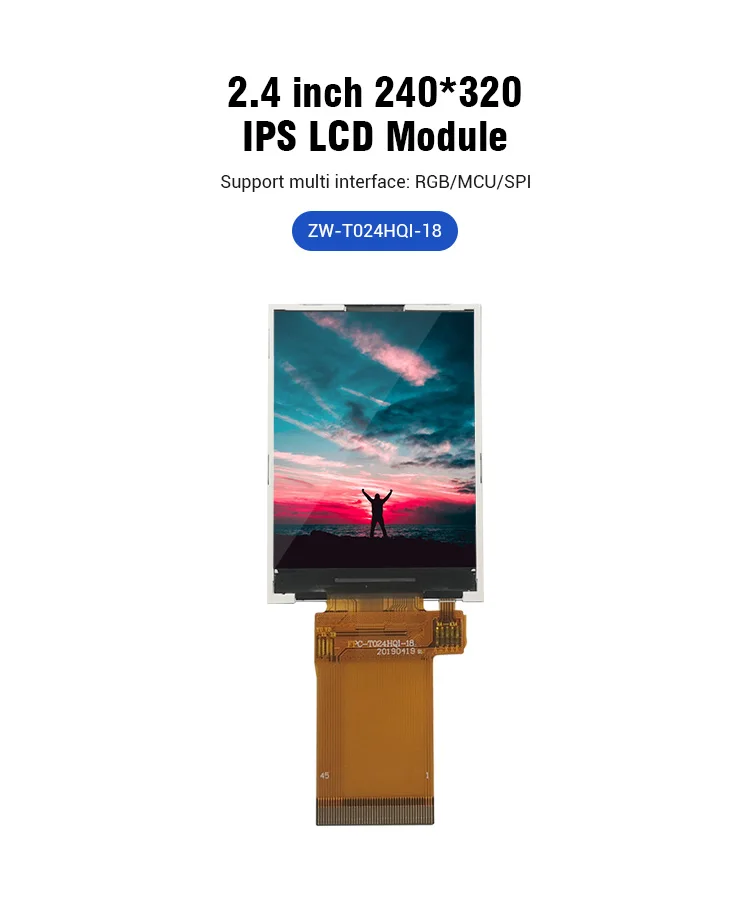

MCU/RGB/SPI Interface IPS Full Viewing Angle 2.4 inch 240*320 LCD panel for ebike display
- Category: LCD Module >>>
- Supplier: Disea,Electronics,Co.,Limited
Share on:
Product Overview
Description
Why Choose Us
>>>5,000-50,000 PCS TFT LCD Display Complete Solution Manufacturer<<<
1. We are a professional designer manufacturer of LCD module and capacitive touch module.
2.We have the IATF16949 certificate issued by TUV, which can produce automotive-grade LCD display modules that are higher in impact resistance, reliability, consistency, life and manufacturing standards than ordinary industrial products.
3.We are good at ODM and OEM, product specification,LOGO and packaging can be customized.
4.We are good at the development of display module in the industrial field and provide the total solution of capacitive screen.
5.We have 6 production lines, with shipment of more than 3,000,000 pieces per year.
6.Our products can support long-term supply,Maximum supply cycle is 5-10 years.
7.We combine touch screen technology with LCD display module, which greatly saves your cost. Perfect after-sales service will be one of the reasons why you choose us.
8. Product series:From 0.9-12.3 inches, we have accumulated more than 2,000 customized products, among which LCD + CTP products have accumulated more than 400 models, and batch models have nearly 800 models.
Products Description
Feature | Specification | Unit | ||
Display Specification | Brand | Disea | - | |
Size | 2.4 | inch | ||
Resolution | 240*320 | dots | ||
Pixel pitch | 0.153(H)*0.153(V) | mm | ||
Display Mode | IPS/NB | - | ||
Viewing Direction | All | o'clock | ||
Gray Scale Inversion Direction | All | o'clock | ||
Luminance | 250 | cd/m2 | ||
Mechanical Characteristics | LCM (W * H * D) | 42.72*59.46*2.20 | mm | |
Active Area (W * H ) | 36.72*48.96 | mm | ||
With /Without TP | without | - | ||
LED Numbers | 4-LED | pcs | ||
Operation temperature | -20~+70 | ℃ | ||
Storage temperature | -30~+80 | ℃ | ||
Electrical | Interface | RGB/MCU/SPI 45PIN | - | |
LCM Power Supply | 2.8 | v | ||
Characteristics | LED Power Supply | 3 | v | |
Color Depth | 65K/262K | - | ||
LCM Driver IC | ILI9341V | - | ||
CTP Driver IC | - | - | ||
More OEM Products
>>>>>Click here for more product<<<<<
OEM & ODM Services
DISEA has a very professional management team. Our founder Steven is an expert in the field of LCD modules and has 20 years of LCD display industry experience. At present, we have a total of 320 employees, including 60 engineers for project development and technical support. All engineers in the core team of our project are from leading LCD companies, and they have more than 10 years of experience in the LCD industry.
1-CUSTOM YOUR TFT LCD DISPLAY MODULE:
2-CUSTOM YOUR LCD MODULE WITH CAPACITIVE TOUCH SCREEN:
Customized process | DISEA process | ||||
1> Customer requirements: | Size, resolution, brightness, interface,CTP specification and other requirements, or to drawing, sample for evaluation. | ||||
2> Disea provides solutions: | Evaluate and propose solutions according to customer requirements. | ||||
3> Customer confirmation: | The customer confirm the solution provided by Disea. | ||||
4> Disea offer: | Provide reasonable and advantageous tooling cost quotation and confirm product unit price. | ||||
5> Customer payment model fee: | Customer pays the tooling cost. | ||||
6> For drawing: | Disea design and issue formal drawings for customer's confirmation. | ||||
7> Customer confirms drawings: | The customer has confirmed whether the engineering drawings of Disea meet the requirements. Please sign back. Our company will change to meet the requirements if necessary. | ||||
8> Make Tooling: | According to the drawing confirmed by the customer, Disea will make the sample. | ||||
9> Sample confirmation: | Send the sample to customer for confirmation within the agreed time. | ||||
10> Sample debugging: | If customers encounter any difficulties in sample debugging, Disea's engineers will provide technical support as soon as possible. | ||||
11> Sample confirmation: | Customer's sample debugging is completed, and the specification and effect are satisfied. | ||||
12> Production: | Determine the final unit price, quantity and delivery time after customer orders to Disea. | ||||
13> Production arrangement: | According to the final sample confirmed by the customer, Disea arranges the material for production scheduling. | ||||
14> Delivery order: | Arrange shipment according to customer's quality requirement or Disea standard. | ||||
15> After-sales service: | Warranty within one year, provide follow-up technical support. | ||||
Packing & Delivery
We attach great importance to the packaging and transportation of our products. We use multiple packaging methods to ensure the integrity of the goods in transit
Company Profile
DISEA Electronics Co., Ltd. established in 2011 in Shenzhen, China.Currently we have total 320 staffs, including 60 engineers. for project development and technical support. All the engineers in our project core team are from the leading LCD enterprises, and they have more than 10 years experience in LCD industry.
DISEA devotes itself to the research, development and manufacturing of various of industrial, TFT-LCD, with capacitive touch panels, and with AD boards. We mainly offer the customization, service to the customers who need small and medium size color LCD modules.
IATF16949 (International Automotive Task Force)
The acquisition of this certificate indicates that this company has successfully obtained a pass to enter the automotive supply chain and can design and manufacture automotive-grade LCD modules. The automotive-grade LCD module is higher than ordinary industrial products in impact resistance, reliability, consistency, life, and manufacturing standards. Disea has very strong confidence in our products.
IOS9001
DISEA is a manufacturer company that attaches great importance to quality management.We have passed ISO9001: 2015 international quality system certification, we will provide the best products and services.
FAQ
1. Where can I get the datasheet, initialization code and other technical files ?
Unfortunately, Alibaba can not Support upload/download the files for the time being, please contact with our sales chat on Trade Manager or send me a email , we will send the datasheet by mail.
2. Is there a Touch Panel (Touch screen) on the display ?
We can offer you the Resistive Touch Panel or Capacitive Touch Panel if you need.
Resistive touch panel - RTPs are the most common and lowest cost touch panel technology. They are activated by contact from any object, regardless of the material used. They are lower cost and will operate in a wide range of temperatures and environmental conditions.
Capacitive touch panel – Allows multi-touch operation as seen on a smart cell phones or tablets, and allow more light to pass through, providing a brighter display. It is more expensive than resistive touch panels and only recognizes a touch from skin or a special pen.
3. How to Understand Stock for Sale?
Stock levels are based on item's sales history. We fill most small quantity orders immediately. If an item goes out of stock after you order it, we will contact you. If your order quantity exceeds the list quantity in our store, please contact with our sales for price, stock availability and lead time;
4. What is covered under warranty and for how long?
All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year from the date of shipment and all products are free of visual defects and missing parts for a period of 30 days from the date of shipment. If a product was damaged during shipping or the order is incorrect, you must notify us within 7 days of receipt.
Unfortunately, Alibaba can not Support upload/download the files for the time being, please contact with our sales chat on Trade Manager or send me a email , we will send the datasheet by mail.
2. Is there a Touch Panel (Touch screen) on the display ?
We can offer you the Resistive Touch Panel or Capacitive Touch Panel if you need.
Resistive touch panel - RTPs are the most common and lowest cost touch panel technology. They are activated by contact from any object, regardless of the material used. They are lower cost and will operate in a wide range of temperatures and environmental conditions.
Capacitive touch panel – Allows multi-touch operation as seen on a smart cell phones or tablets, and allow more light to pass through, providing a brighter display. It is more expensive than resistive touch panels and only recognizes a touch from skin or a special pen.
3. How to Understand Stock for Sale?
Stock levels are based on item's sales history. We fill most small quantity orders immediately. If an item goes out of stock after you order it, we will contact you. If your order quantity exceeds the list quantity in our store, please contact with our sales for price, stock availability and lead time;
4. What is covered under warranty and for how long?
All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year from the date of shipment and all products are free of visual defects and missing parts for a period of 30 days from the date of shipment. If a product was damaged during shipping or the order is incorrect, you must notify us within 7 days of receipt.
