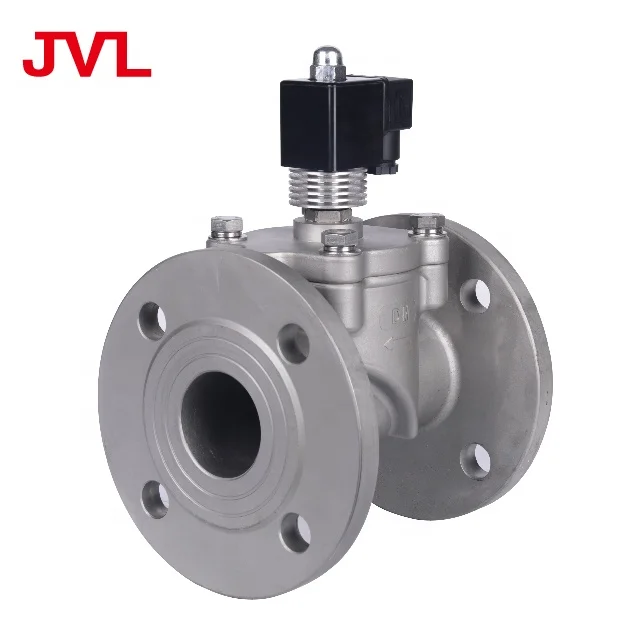

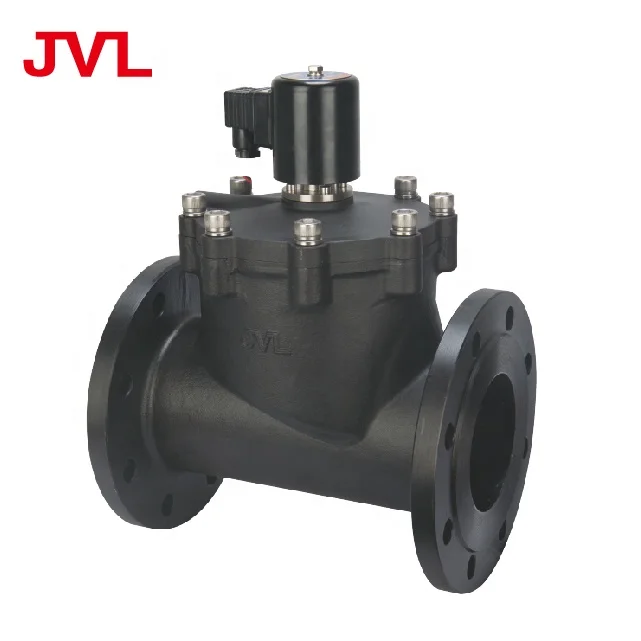

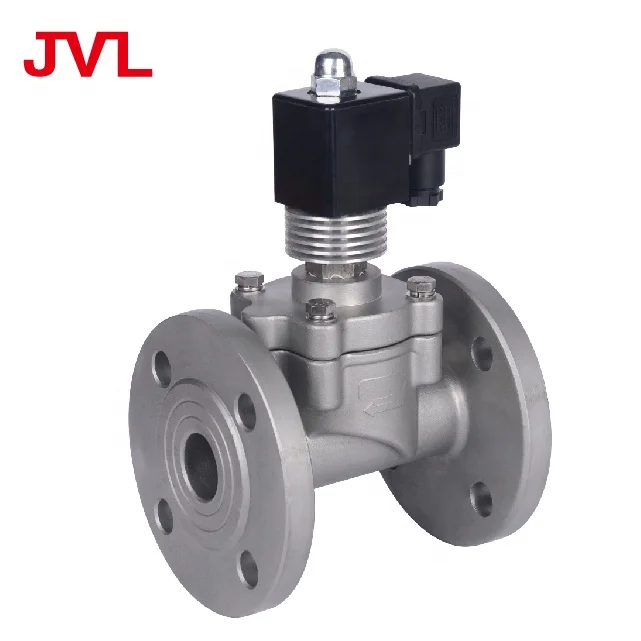

JVL 1 inch water 24v pilot high pressure solenoid valve price High temperature solenoid valve
- Category: >>>
- Supplier: Shanghai Juliang Valve Group Co. Ltd.
Share on (1600082017335):
Product Overview
Description
Products Description
Model Selection notice:
2.Install Filter screen in front of valve avoiding particles
3.Proper length for DC power line important for normal operation
4.Design control project,Normal close valve as priority.
5.Consult us for Certain Voltage or special function
DN | DN20~100mm |
Connection type | Flange(on going standard:GB/T9113-2010,other options can be customized) |
Work principle | Pilot mode |
Body material | Cast steel ,Stainless 304,optional 316 or 316L |
Seal material | NBR,FKM PTFE ,other option consult us |
Suitable media | Vapor,liquid,gas, oil etc. |
Media temperature | 1.-20℃~80℃ 2.-20℃~150℃ 3.100℃~200℃ 4.120℃~250℃ or consult us for other option |
Ambient temperature | Standard：-20~60℃ |
Install method | Horizonal installation coil vertical upward(consult us for other option) |
Protection class | Iron shell:IP54 Plastic sealing:IP65 Flame-proof:BT4 CT5:IP65 |

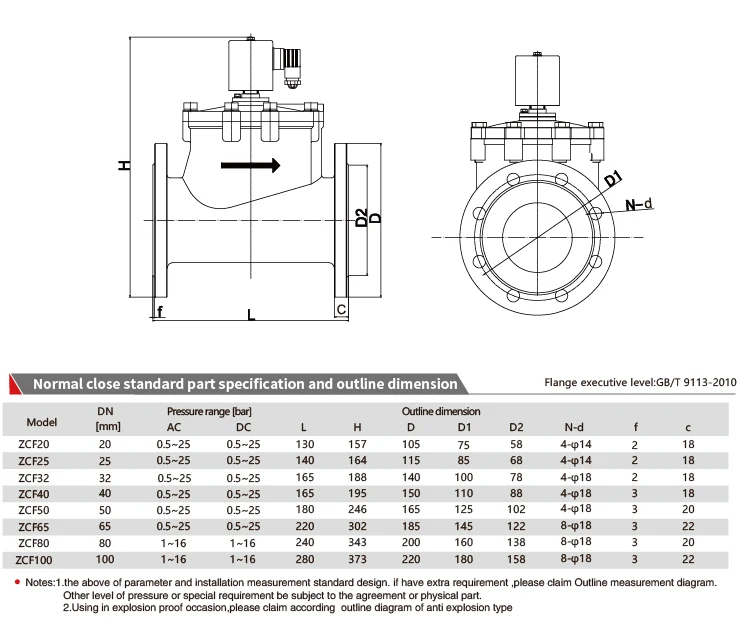

Product Size
Related Products
Certificate
Company Introduction
Shanghai Juliang Valve Group is located in the core section of Songjiang District Shanghai national economic and technological development zone with a building of 20,000 square meters, a modern high-tech group enterprise, which integrates scientific research, manufacturing, sales and international trade. People in Juliang inherit the traditional Chinese craftsman spirit and absorb Germany's rigorous manufacturing idea.
To be the world's top 10 enterprises in the fluid control field is our the vision.we pursue material and the spiritual happiness, and provide customers high quality products . In the past of decades , devoting to researching and exploring the control valves ,we constantly improve our products with an extreme attitude. Therefore, the unique "JVL " brand come out. From digital control valves to intelligent control valves, then to industrial 5.0 era, we are always at the forefront of innovation and change; From universal valves to high temperature and high pressure valves , then from high-end manufacturing to special customization, we are always at the leading line of fluid control valves fields.
So far as now, JVL awarded 30 patented technologies and high-tech achievement transformation projects with lot of honors such as "National High-tech Enterprise" and so on. Our products are widely used in diverse fields such as Aerospace, Defense military, Petrochemical, Bio-pharmaceutical, HVAC, etc. Main ranges are Automatic control valves and Automatic products & services for global customers.
To be the world's top 10 enterprises in the fluid control field is our the vision.we pursue material and the spiritual happiness, and provide customers high quality products . In the past of decades , devoting to researching and exploring the control valves ,we constantly improve our products with an extreme attitude. Therefore, the unique "JVL " brand come out. From digital control valves to intelligent control valves, then to industrial 5.0 era, we are always at the forefront of innovation and change; From universal valves to high temperature and high pressure valves , then from high-end manufacturing to special customization, we are always at the leading line of fluid control valves fields.
So far as now, JVL awarded 30 patented technologies and high-tech achievement transformation projects with lot of honors such as "National High-tech Enterprise" and so on. Our products are widely used in diverse fields such as Aerospace, Defense military, Petrochemical, Bio-pharmaceutical, HVAC, etc. Main ranges are Automatic control valves and Automatic products & services for global customers.
International Cooperation
Packing&Shipping
FAQ
1.Are you a factory or trading company?
A: We are a factory, we have rich experience for manufacturing more than 10 years.
A: We are a factory, we have rich experience for manufacturing more than 10 years.
2.Where is your factory located? How can I visit there?
A：Our factory is located in Shanghai, China. The Shanghai port and airport are within easy reach. If necessary, please visit our factory.
3.What is your advantage ？
A:We have more than 30 patented technology and high-tech achievements transformation projects, and also won the honor of "National High-tech Enterprise
4.What is your philosophy and vision ？
A：We take the vision of "becoming one of the world's top 100 companies in the field of fluid control", and "not only pursue the overall material and spiritual happiness, but also provide customers with quality products and efficient services, and contribute to us". Taking "Developing World Industrial Automation" as its mission
