2HAL D 2 horse angle load deluxe trailer Australian standard
- Category: >>>
- Supplier: Jinan Jinli Hydraulic Machinery Co. Ltd.
Share on (1600082258596):
Product Overview
Description
2HAL-D 2 horse angle load deluxe trailer Australian standard
- with 2 axles ,5 tyres
- double hot dip galvanized
- 1200mm saddle box for 2 saddle
- lockable rug rack
- front kitchen with water system(your given type & color
- adjustable divider, fully padded
- roof lining & 2 roof vents
- 2 axles , 4 wheel electrical brake
Jinan Jinli Hydraulic Machinary Co., Ltd, which is the biggest manufacturer of horse trailer in China
with 20000 square meter factory,12 years experience in this line.
we do manufacture Australian standard horse floats and customized horse floats,goosenect float,dog trailer etc , our products sell well through Australia ,New Zealand ,Chile etc, about 220 sets of horse trailer every year
Product Overviews
specification of 2 horse angle load deluxe
| Model:2HAL-D |
| 1. TRAILER MATERIALS |
| 1.1 CHASSIS MATERIAL double hot galvanized RHS(3.5mm-4.0mm |
| 1.2 FRAME MATERIAL double hot dip galvanized RHS (2.5MM) |
| 1.3 BODY PANEL galvanized (1.2mm) |
| 1.4 ROOF special molded FRP 4120*1980 |
| 1.5 NUTS & amp ;BOLTS stainess steel |
| 2. WHEEL &TYRES |
| 2.1 WHEEL RIM 14'aluminium alloy rims |
| 2.2 types 185R14C |
| 2.3 SPARE WHEEL one |
| 3.AXLES & SUSPENSIONS |
| 3.1 AXLES two special trailer axles |
| 3.2 LEAF SPRINGS ROLL ROCKER TANDERM SPRING SUSPENSION 6 plates |
| 3.3 BRAKE SYSTEM single axle electia brake with break -away systems |
| 4.WINDOWS & DOORS |
| 4.1 FRONT WINDOW 1220*610 |
| 4.2 SIDE WINDOWS 2 top -up rectangle windows ,2 slidign rectangular windows |
| 4.3 VENTS double sash casement vent |
4.4 SIZE OF SIDE DOOR 1755*615 |
| 4.5 REAR UPPER DOOR 2020*065 |
| 4.6 RAMP DOOR 2020*1210 |
| 4.7 REAR UOOER & RAMP DOOR STRUT high-intensity anti-rust strut |
| 4.8 HINGS FOR REAR UPPER DOOR special 6mm diameter copper hinges |
| 5. DRAWBAR |
| 5.1 DRAWBAR CHECKER PLATE 1.2mm aluminium |
| 5.2 DRAWBAR SAFETY CHAIN TWO |
| 5.3 BRACING WHEEL one |
| 6. LIGHTS & RETRO REFLECTSORS |
| 6.1 TRAILER PLUGS spuare 7 wick plug |
| 6.2 SIDE LAMPS 6 |
| 6.3 REAR LAMPS LED group |
| 6.4 REAR LAMPS STAND aluminium |
| 6.5 RETRO REFLECTIORS 6 |
| 7. MUDGUARD |
| 7.1 MUDGUARD TYOE compact mudguard |
| 7.2 MUDGUARD CHECKER PLATE 1.2mm aluminium in the front of mudguard |
| 7.3 PEDAL & ALUMINIUM STEP 1.2mm aluminiumdecoration board |
| 8. INTERIOR & EXTERIOR |

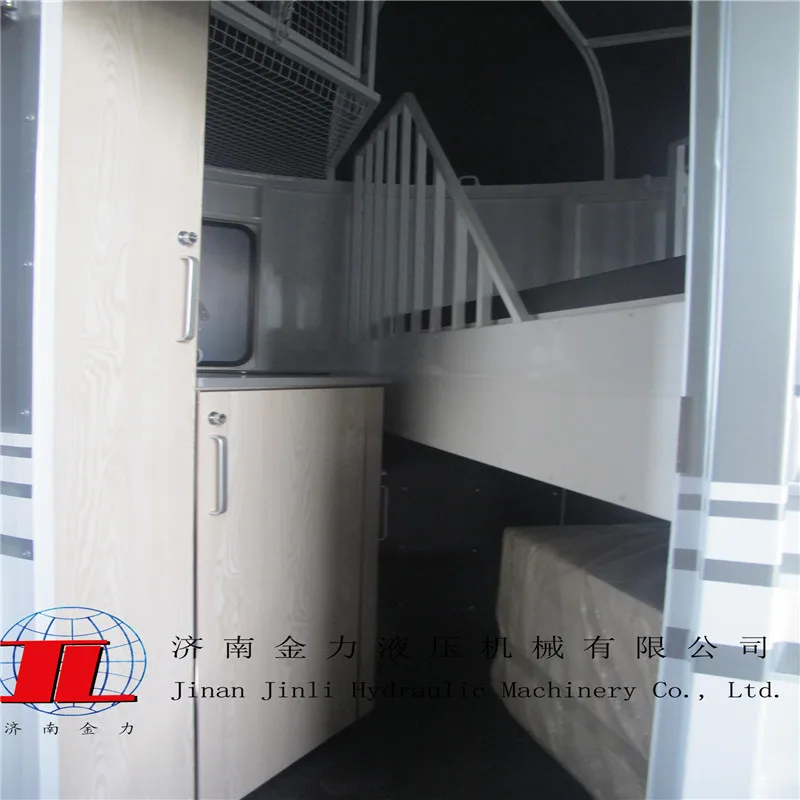

| 8.1 A KITCHEN with a cupboard and appliance from yourself |
| 8.2 HORSE PROTECTION FRAME full padded |
| 8.3 HORSE RING four |
| 8.4 RUBBER MATTING FOR RAMP DOOR 10mm rubber matting |
| 8.5 RUBBER MATTING FOR FLOOR 10mm rubber matting |
| 8.6 RUBBER MATTING FOR INNERSIDE PANEL 6mm rubber matting |
8.7 WOOD BOARD FOR FLOOR * AMP ,RAMP DOOR 18mm hardwood plywood |
| 8.8 RUG RACK side |
| 8.9 SADDLE RACK in saddlebox |
| 8.10 SADDLE BOX 1200mm height for 2 saddles |
| 8.11 PAINTING customized |
| 9. DIMENSIONS |
| 9.1 OVERALL DIMENSIONS (L*W*H:mm)4970*2280*2590 |
| 9.2 BODY DIMENSIONS (L*W*H:mm)4120*1980*2230 |
| 9.3 INNER DIMENSIONS (L*W*H:mm)4095*1930*2155 |

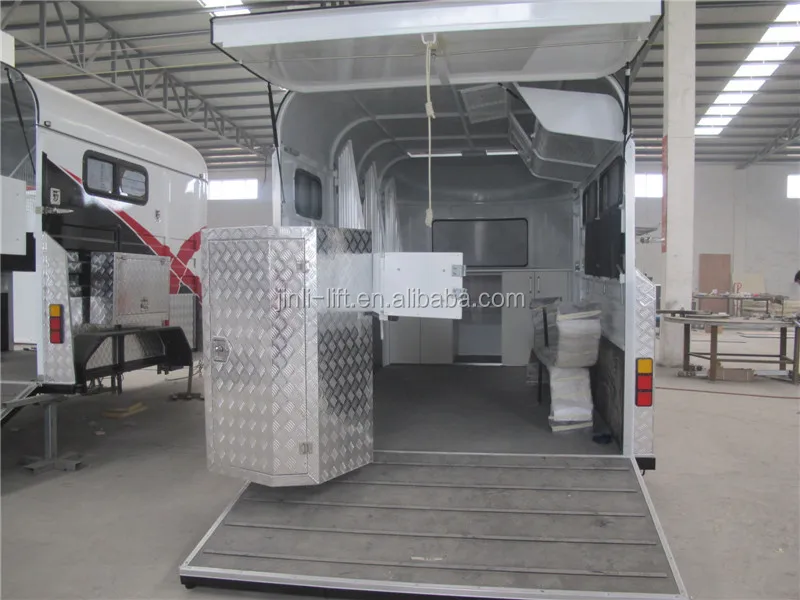

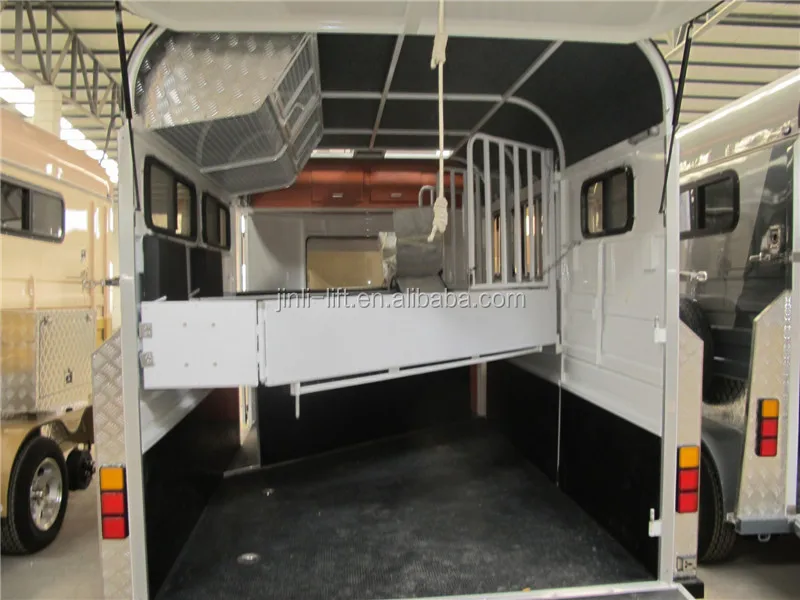

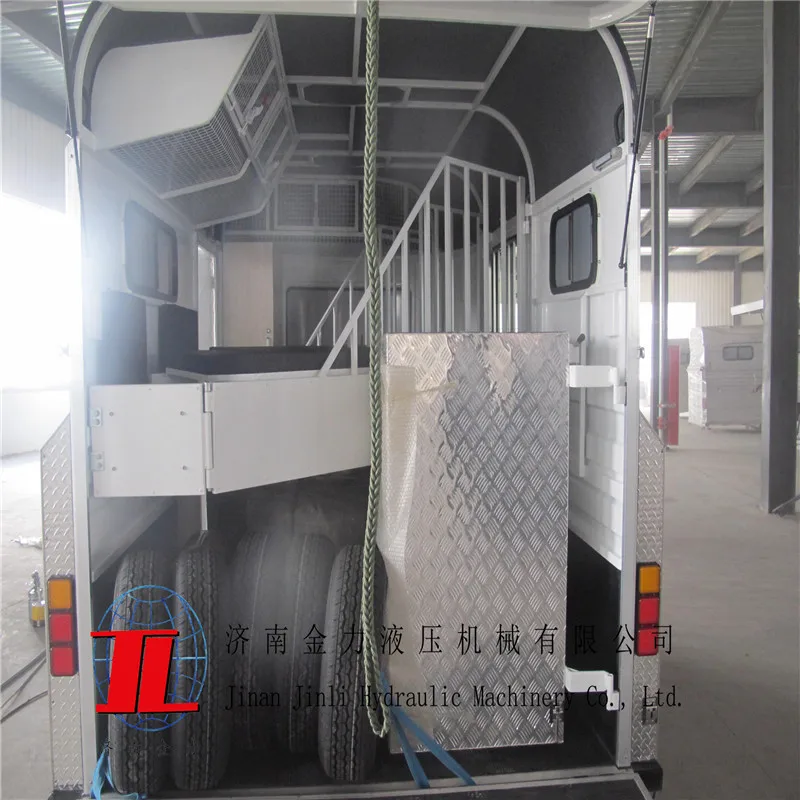

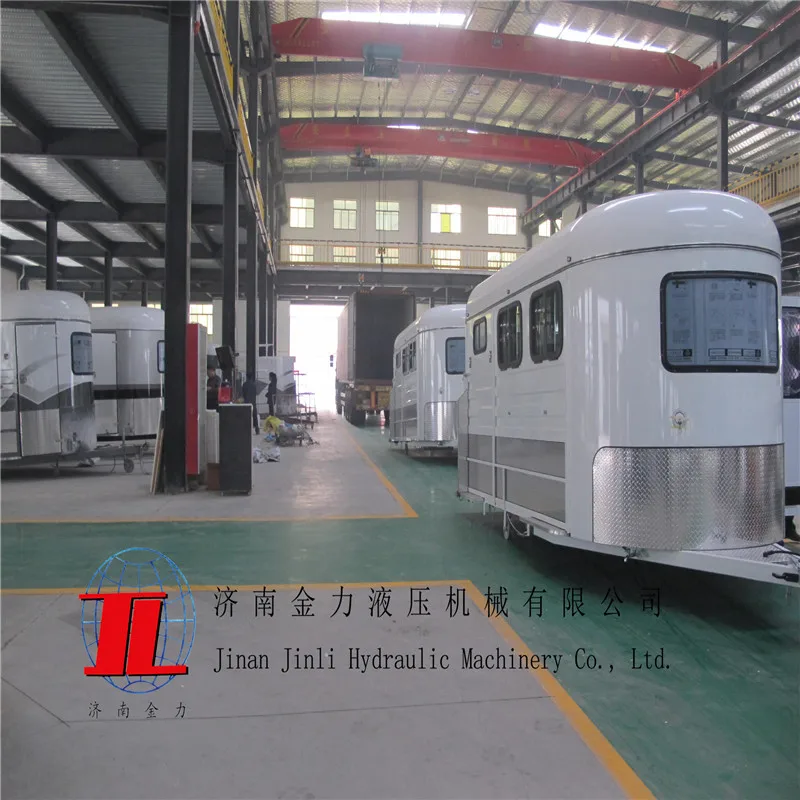

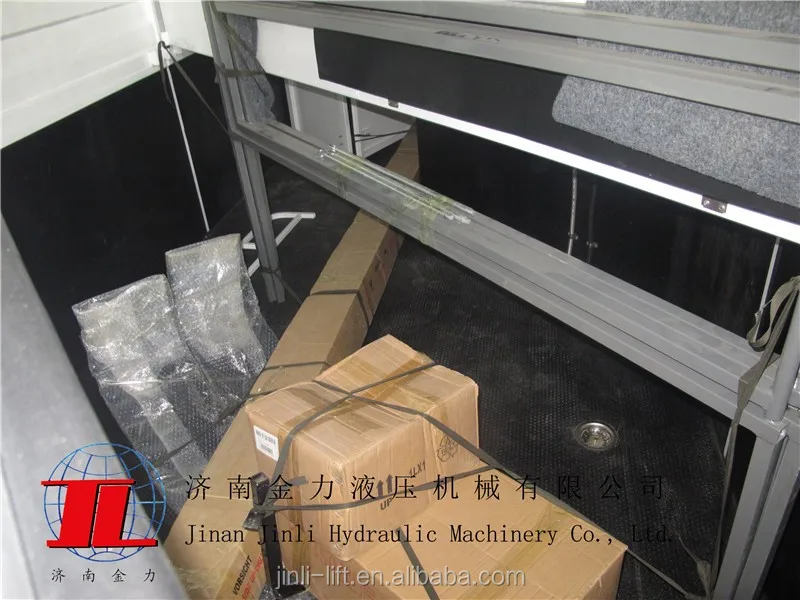

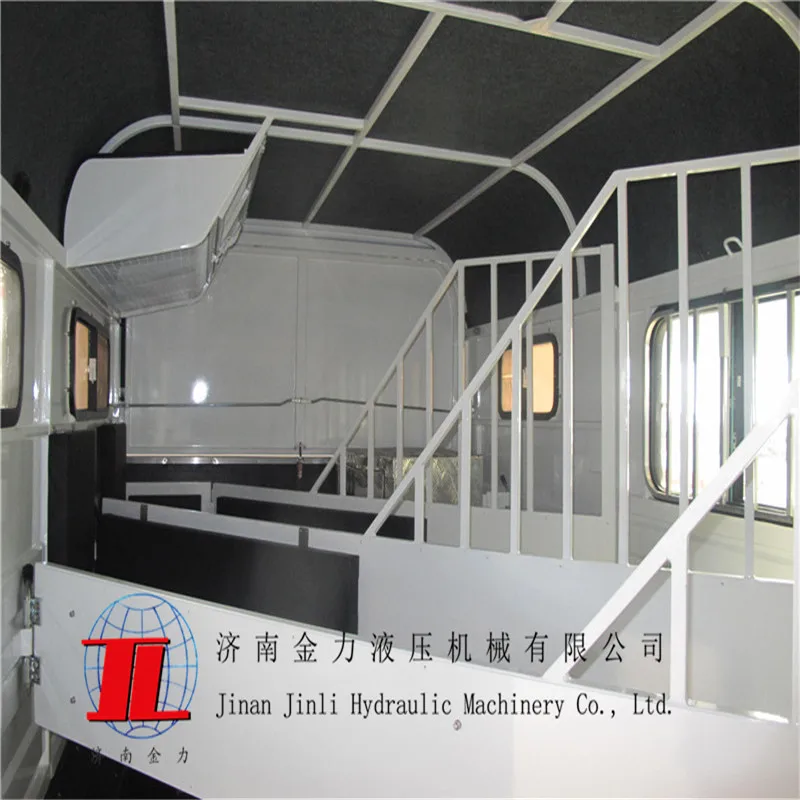

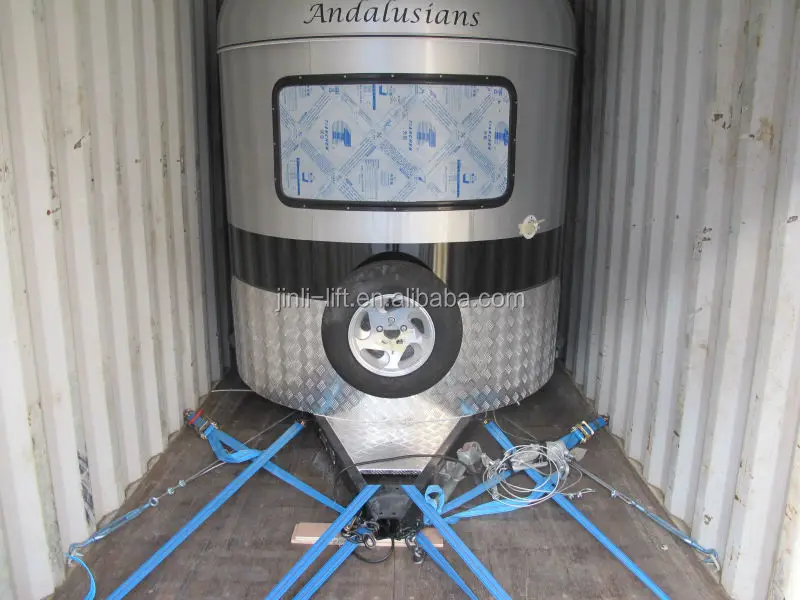

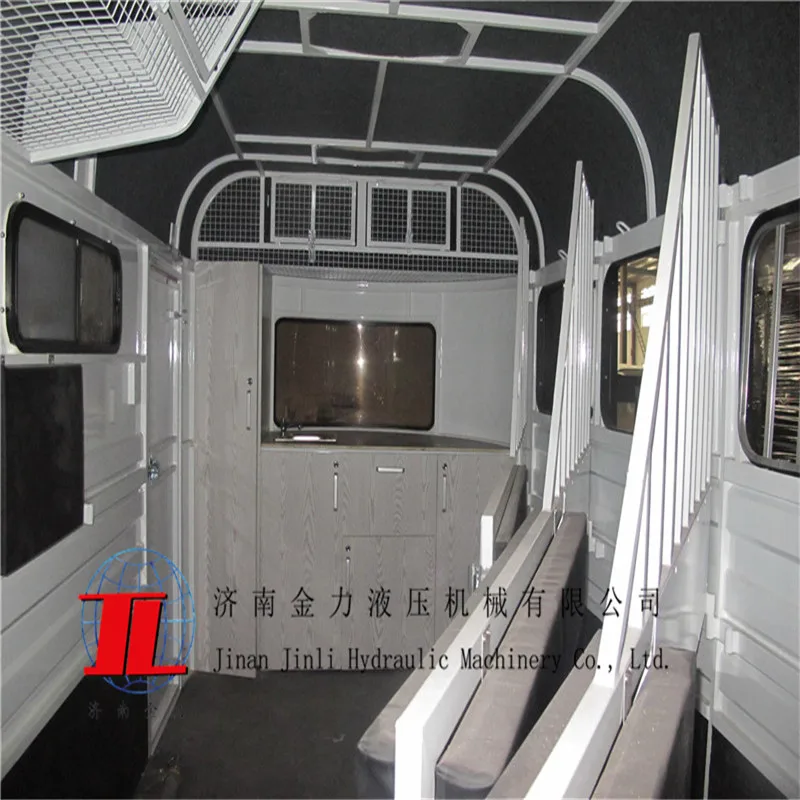

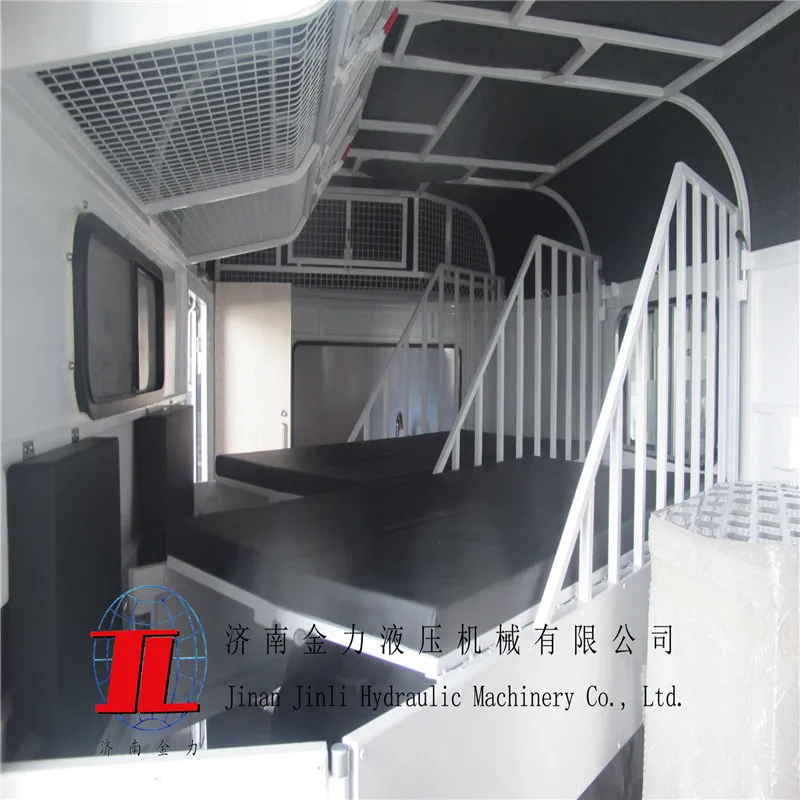

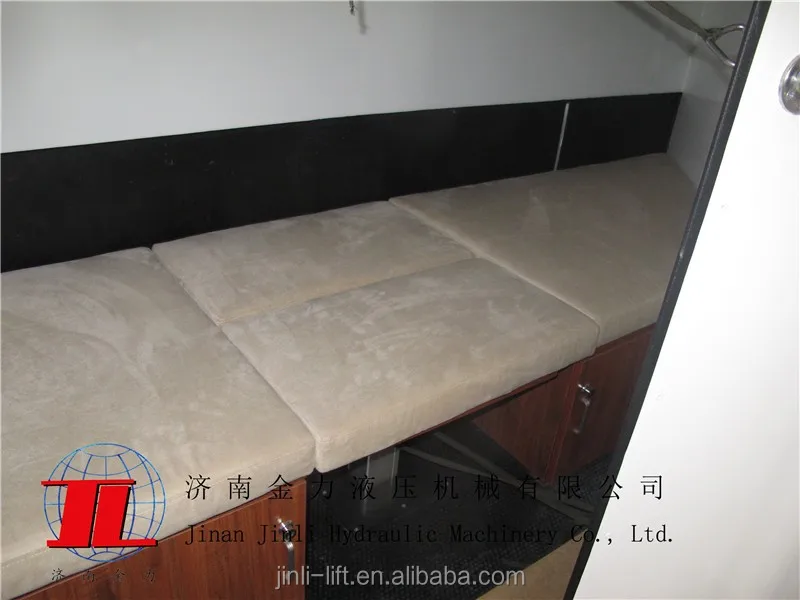

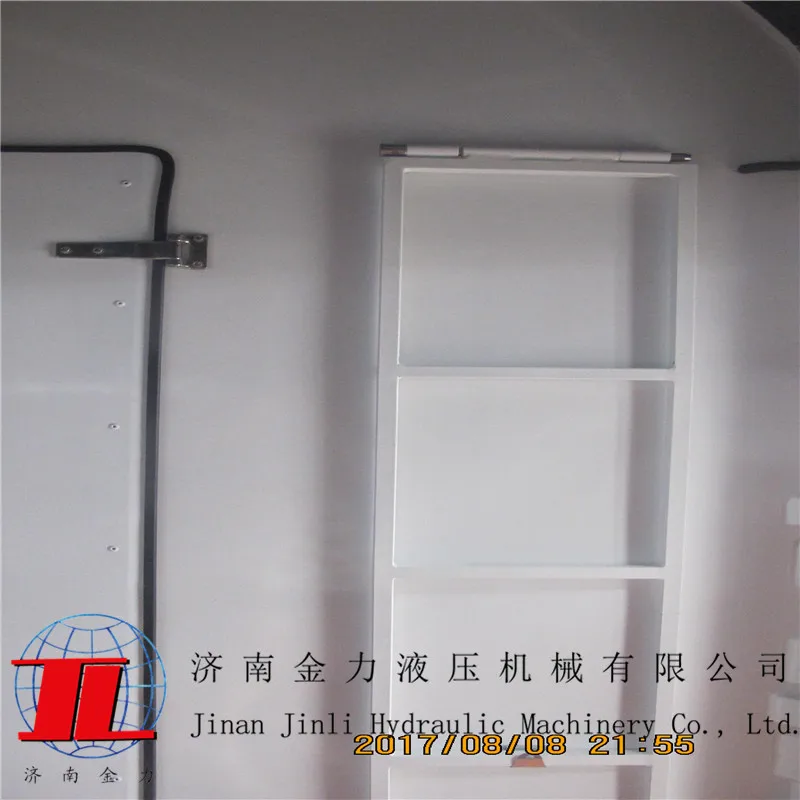

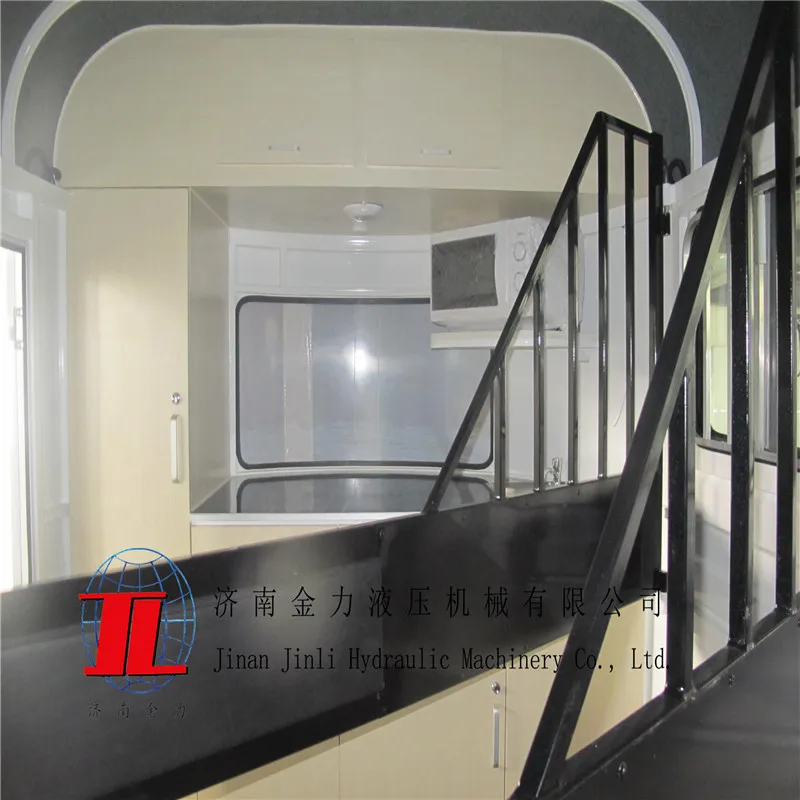

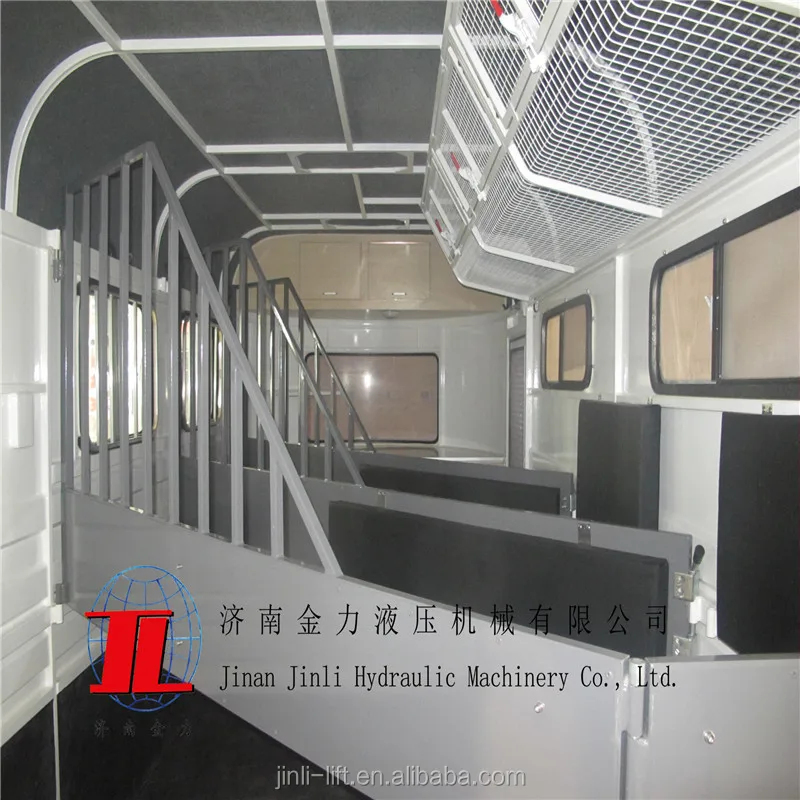

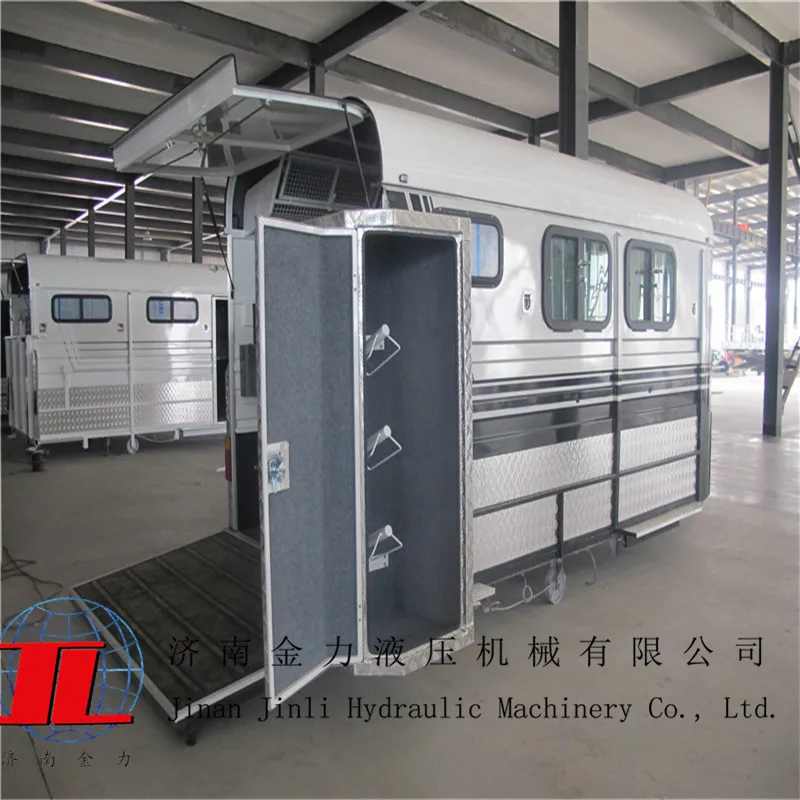

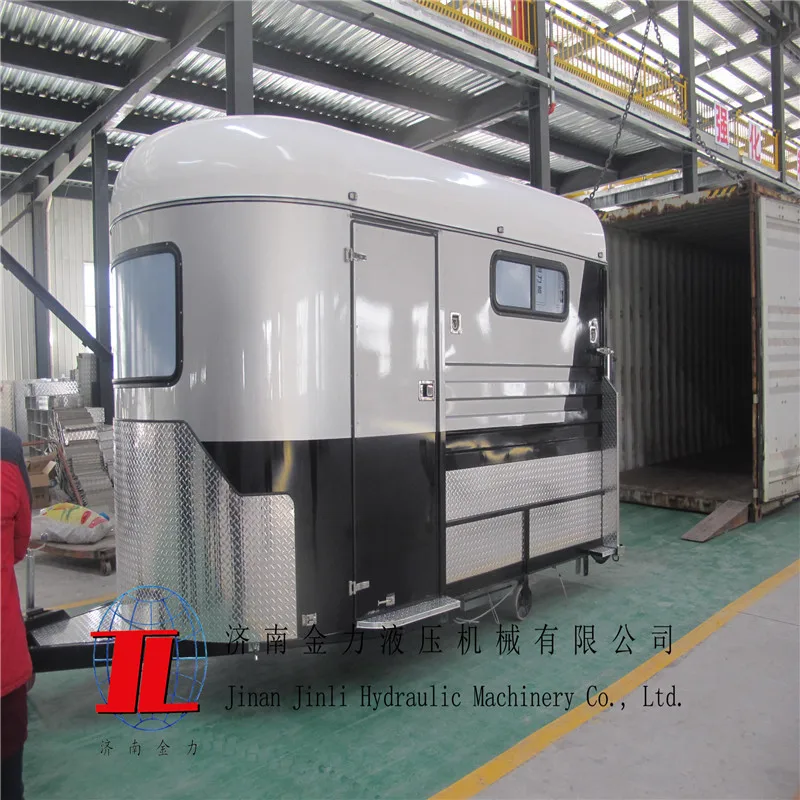

Our product & delivery photoes
