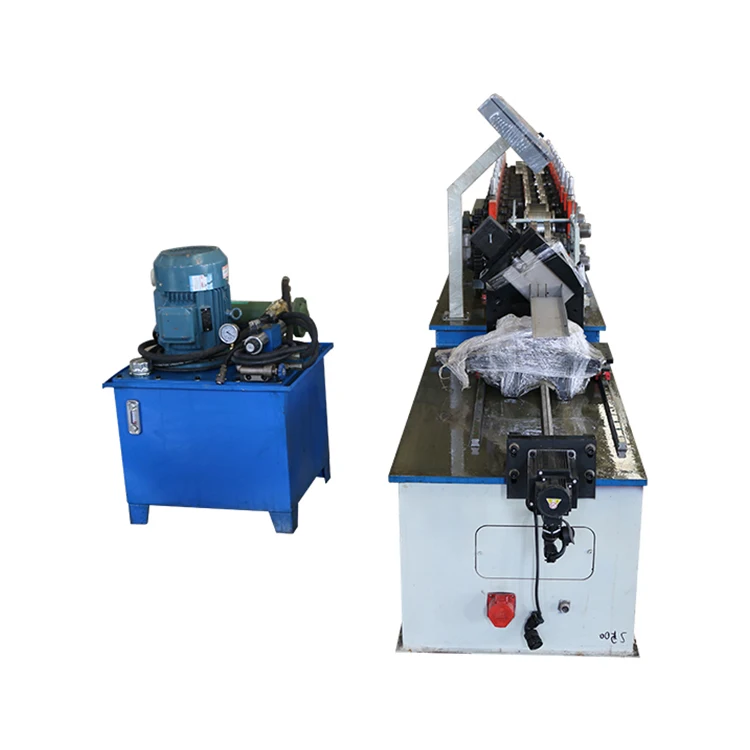

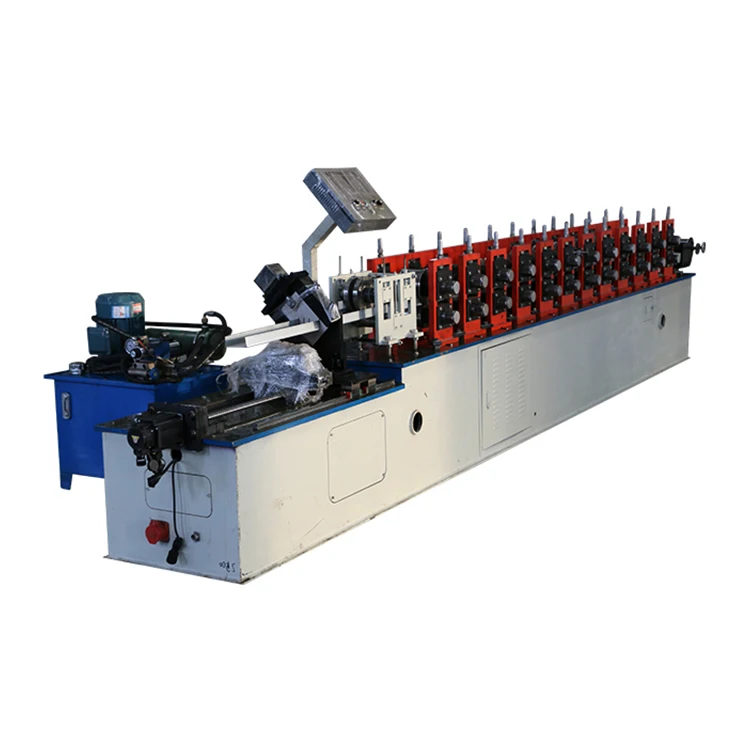

Omega Metal Profile Furring Channel Light Steel Keel Cold Roll Forming Machine
- Category: >>>
- Supplier: Hebei Forward Science And Technology Co. Ltd.
Share on (1600082478331):
Product Overview
Description

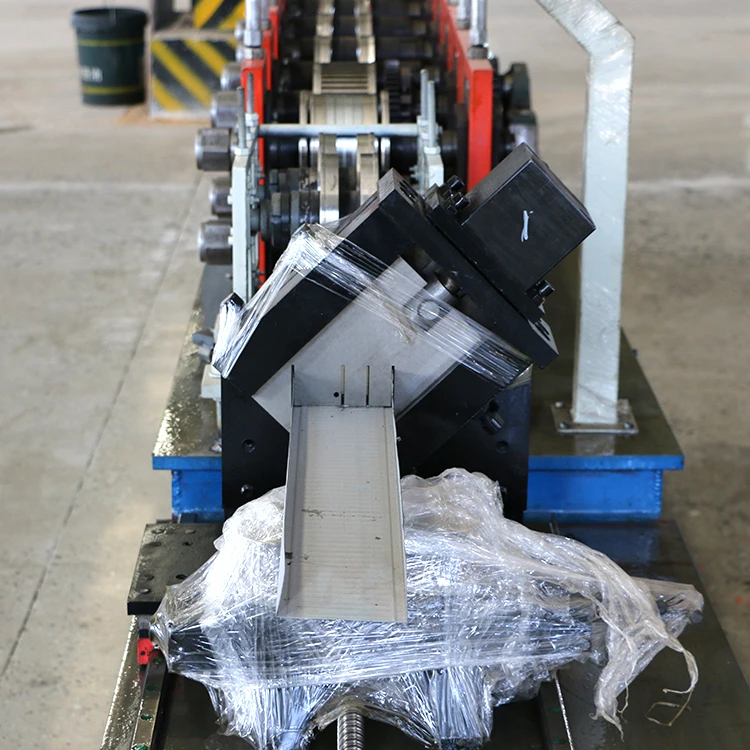

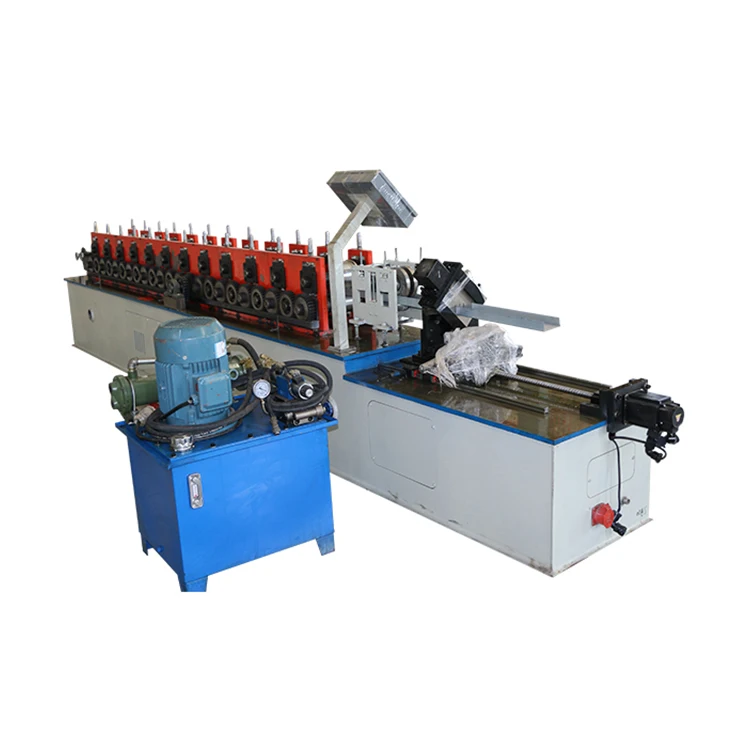

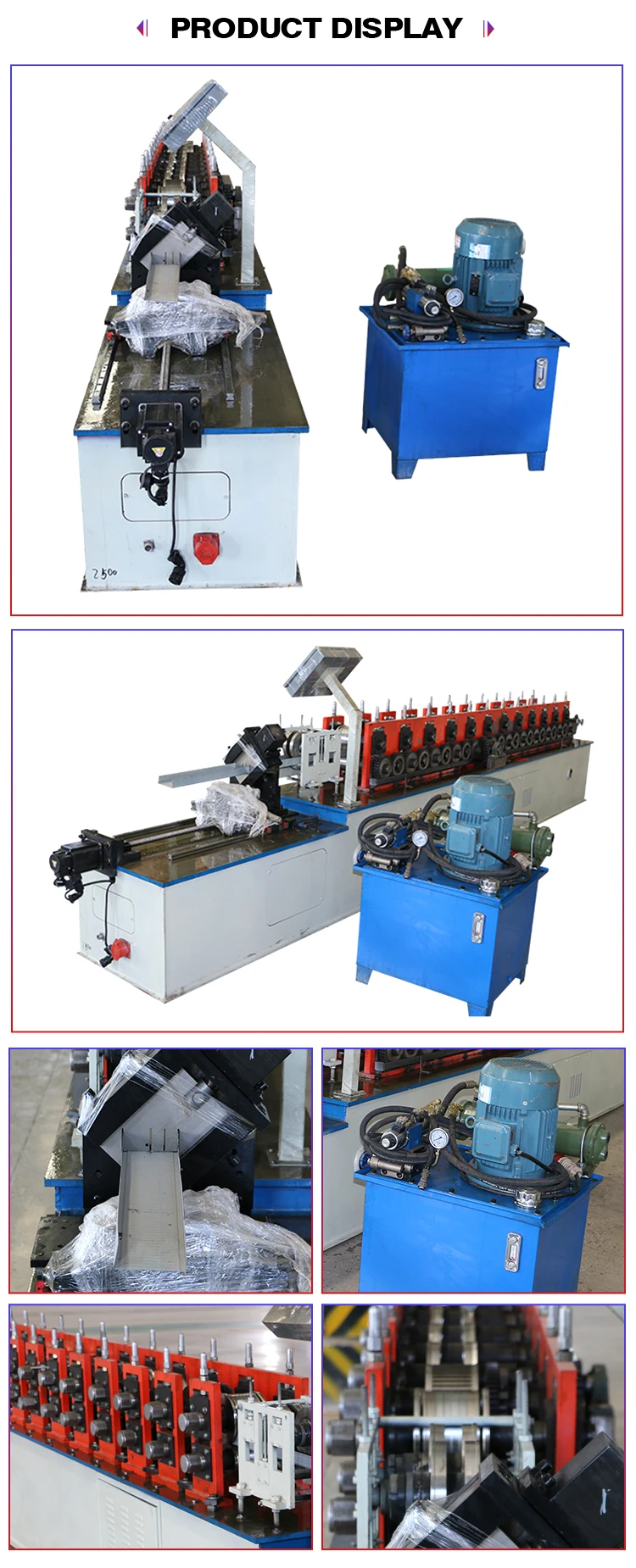

Omega Metal Profile Furring Channel Light Steel Keel Cold Roll Forming Machine
Product Description
| 1 | Suitable material | Galvanized steel coil |
| 2 | Thickness of coil sheet | 0.3-0.6mm |
| 3 | Coil width | As customer's profile drawing requirement |
| 4 | Effective width | As customer's profile drawing requirement |
| 5 | Material of main frame | Welded by square pip |
| 6 | Diameter of Soild shaft | 50mm, high grade 45# steel |
| 7 | Roller | Cr12 |
| 8 | Thickness of middle plate | Memorial archway |
| 9 | Forming station | 10 rows |
| 10 | Drive type | Gear |
| 11 | Power of main motor | 5.5 kw, Lichao, Shanghai, with reducer |
| 12 | Servo motor | 2.2KW Touch-win |
| 13 | Forming speed | About 25-30m/min |
| 14 | Hydraulic pump station | 5.5 kw, 46# hydraulic oil |
| 15 | PLC | Touch-win,Wuxi |
| 16 | Material of cutting blades | Cr 12 Mov, quenching 58-62°C |
| 17 | Frequency converter |
It has the advantage of slowing down before cutting, to ensure the length accuracy ±1mm, far better than industrial standard ±3mm. |
| 18 | Switch | CHNT |
| 19 | Frequency changer | Touch-win,Wuxi |
