Installed with one polishing roller with adjustable temperature of 100-200 degree. This product is applicable to all kinds of natural and chemical fiber fabric, knitted fabrics and tufted fabric finishing processing. Including polyester blankets, artificial fur, wool, warp knitting fabric, cashmere coats, super soft short plush, velour, velvet, velvet, hot light, flannel. After polishing, the surface of the fabric is soft and fluffy, and it has a clear luster.
Technical Data
Installed power
13.25 kw
Heating power
54 kw
Adjustable production speed
5-30 m/min
Working width
2000mm 2200mm 2500mm
Rotational speed
900 rpm
Polishing temperature
100-200 ℃
Machine weight
4500kg
Diameter of polishing roller
Φ420mm
Polishing roller groove
6 grooves, W-Shape
Feature
1.This machine is equipped with denserpolishing roller, containing 6 W-shaped groove, which greatly increase the area and time of the contact betweenheating roller and fabric pile.
2.Combined with both vertical and horizontal rubber supporting system, the machine structure becomes more scientific. Efficiently increases the cooling space.

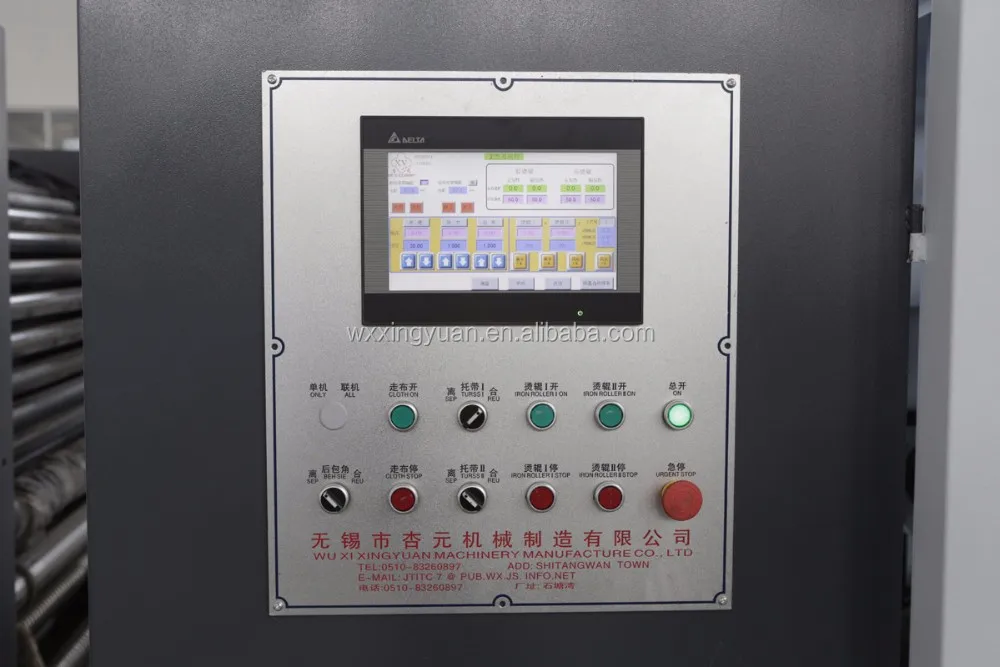

3.The pressure, tension of the rubber supporting system, speedand temperature ofheating roller are all controlled by inverters, easy to operate and control.
4.Equipped with automatic temperature controller, high temperature control precision, accurate to 2 ℃.
