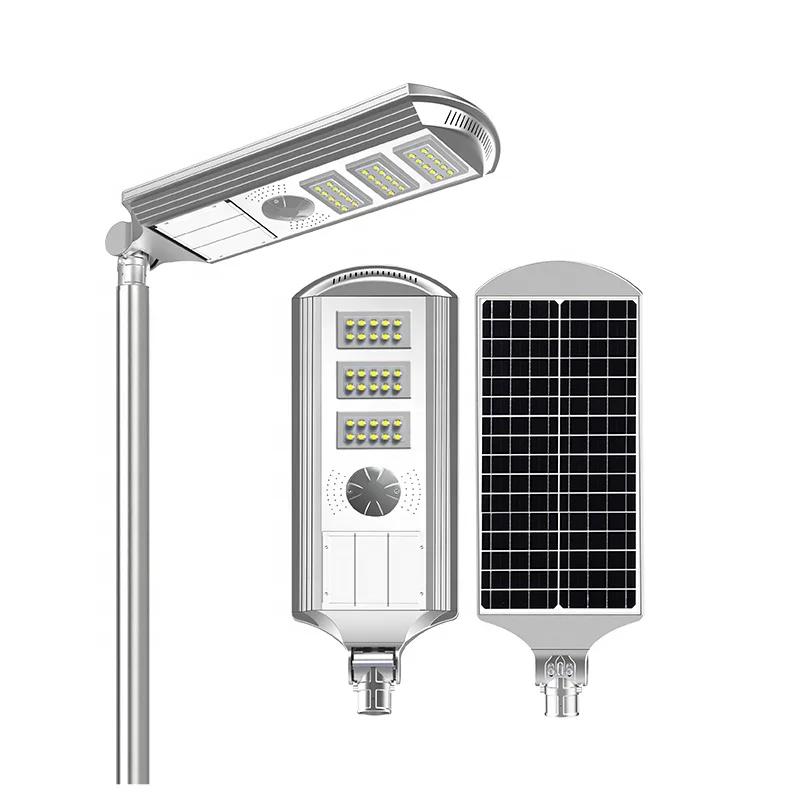

Sunti Solar all in one solar street light






Related Products






Our Advantages


1. Solar panel, batteries, controller and LED lamp are integrated into one body.
2. Direction of solar panel can be adjusted without influence on lighting angle of LED lamp.
3. Two energy output modes time-delay and half power controlled to LED lighting.
4. Dual power supplement mode, AC charging and solar charging both is selectable.
5. Water-proof and dust-proof (IP 65).


Character

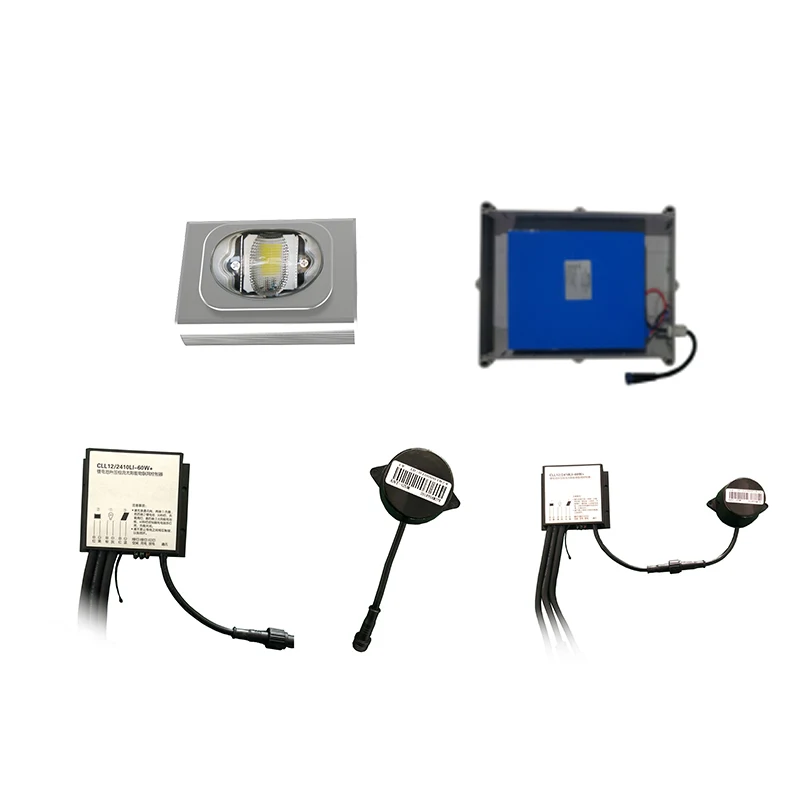

1. Battery
--We use Grade A Dynamic Lithium Battery which is exactly same as the battery used on Electric Car.
--The complete battery production process are made by ourselves, including cell sorting, aging, welding, battery module aging.
This is to guarantee the great performance of battery. But most other companies buy the battery module from others.
--Our light are designed to equip maximum 12.8V 144Ah battery. Other lights can not hold this big battery.
--Our battery are protected with single aluminum battery box to make it have real IP66 protection grade and easy replacement.
2. Led
--5050 LED Chip with maximum 220lm/W efficiency. Luminary efficiency is up to 180lm/W.
--Each Lens is composed of 8 pcs 5050 LED Chips, maximum working power is 8W, but we make the actual working power only around 1W
to 1.5W to extend the working lifetime of LED.
--Thick and Big aluminum radiator, guarantee good performance of LED Radiation, which decides the lifetime directly.
3. Aluminum Structure and Bracket
--Die Casting aluminum are largely used for brackets. Strong aluminum structure frame guarantee the safety.
--0.8mm thickness bracket plus double gear structure is unique to hold the complete light with pole.
--Reasonable wind ventilation design of whole system.
--Light installation angle is 90 degrees adjustable to match different application environment.
4. Wire
--Aviation grade silicone wire used to guarantee the safety under high temperate up to 125 degrees.
5. Warranty
--We offer the longest warranty 5 years for MnNico Ternary Lithium battery and 6 years warranty for LiFe PO4 Lithium battery.


Product Description


Technical Parameters
Package：
Model：
XT1050SELD30-D5
Net Weight（kg）：
10.0kg±5%
LED Quantity：
10 PCS 5050
Gross Weight（kg）：
21.5kg±5%(2pcs/box)
Module Quantity（pcs）：
3

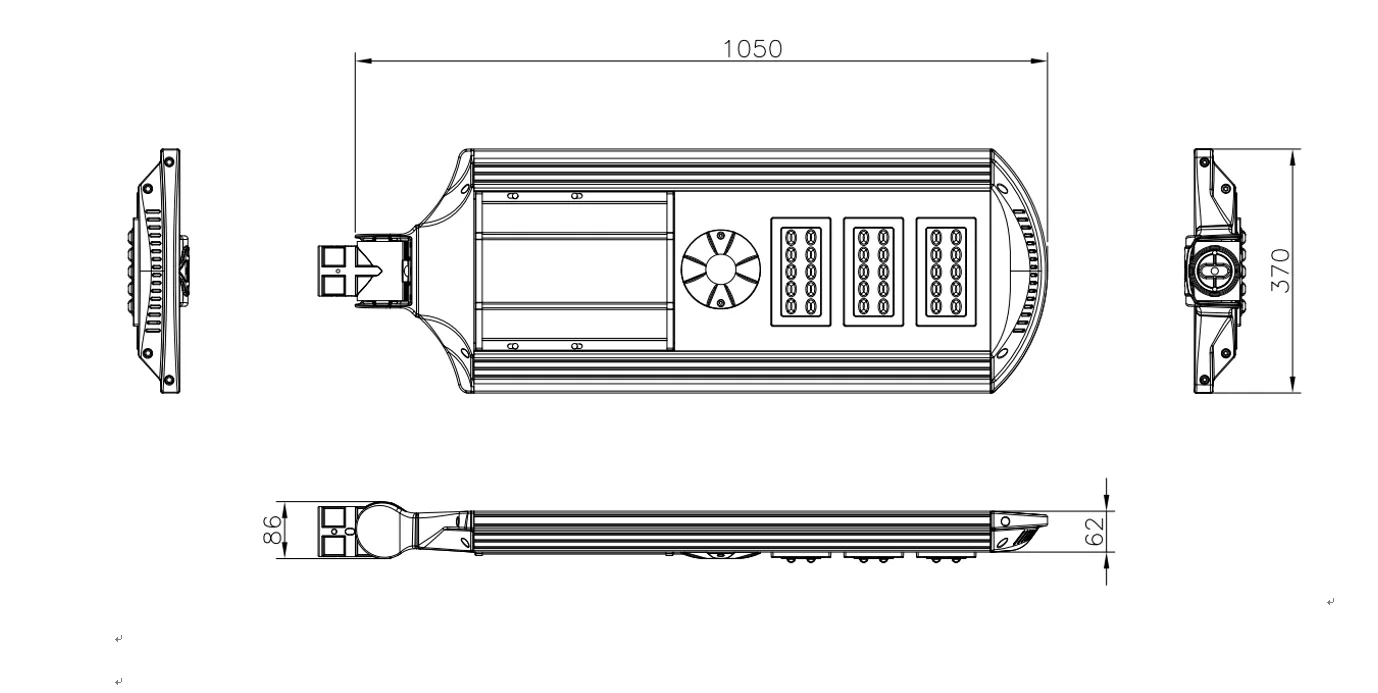

Product Dimension（mm）：
1050×370×86mm±5%
Power（W）：
30W
Package Dimension（mm）：
1070×225×445mm±5%
Solar Panel（Wp）：
Monocrystalline Silicon 18V/45W
Quantity in 20/40 Feet Container：（Pallet）
400/1100PCS
Battery（Ah）：
Grade A Lithium Ion Battery 20Ah/12V
Quantity in 20/40 Feet Container：（No Pallet）
500/1210PCS
Adjustable Angle of Module（±15°）：
Yes
Environmental Temperature：
Control Mode：
Light Control+Time Control
Discharging Temperature（℃）：
-20～60
Working time under full power（h）：
12h
Charging Temperature（℃）：
-20～60
Working time under intelligent power（h）：
36h
Storage Temperature（℃）：
0～45
Charging time（1000W/m2）
6h
Installing Parameter:
On-off threshold level（LUX）：
on≦8LUX，OFF≧10LUX
Diameter of Pole（mm）：
Ø60mm
Secondary lighting distribution：
PC
Screw Fixation：
Yes
Beam Angle（°）：
C0~180 140°/ T90~270 70°
Wind resistance level（km/h）：
209
Protection Grade：
IP65
Installation Height（m）：
5-6
Photoelectric Parameter：
Installation Distance（m）：
15-20
Color Temperature（K）：
3000-6500K
Irradiation Area（m2）：
120
CRI（Ra）：
70
Lumens（lm）：
3200-4200lm
Intelligent Mode:
Yes
Working under rainy days：
365 days

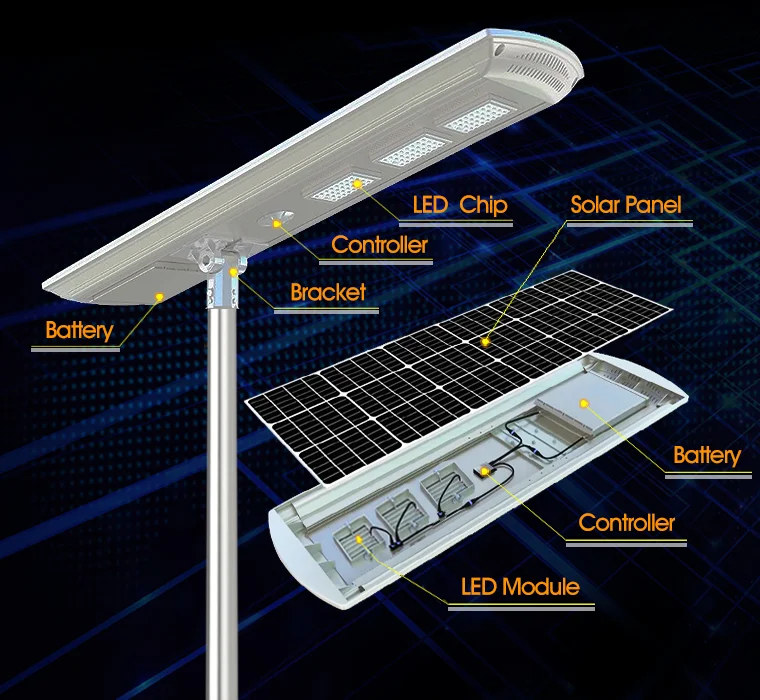

Product Exploded View

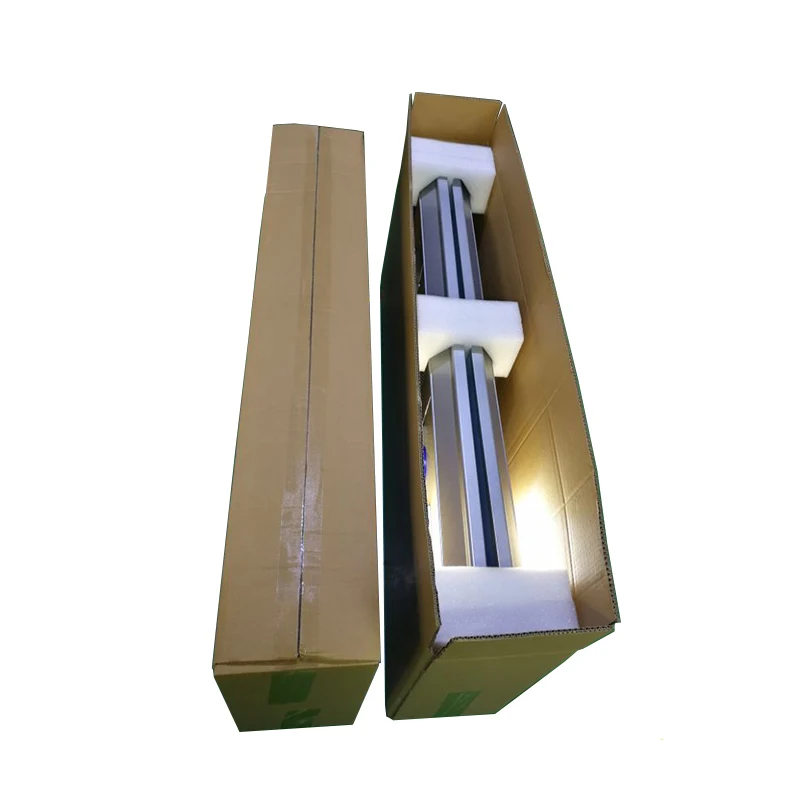

Packing




Company Profile

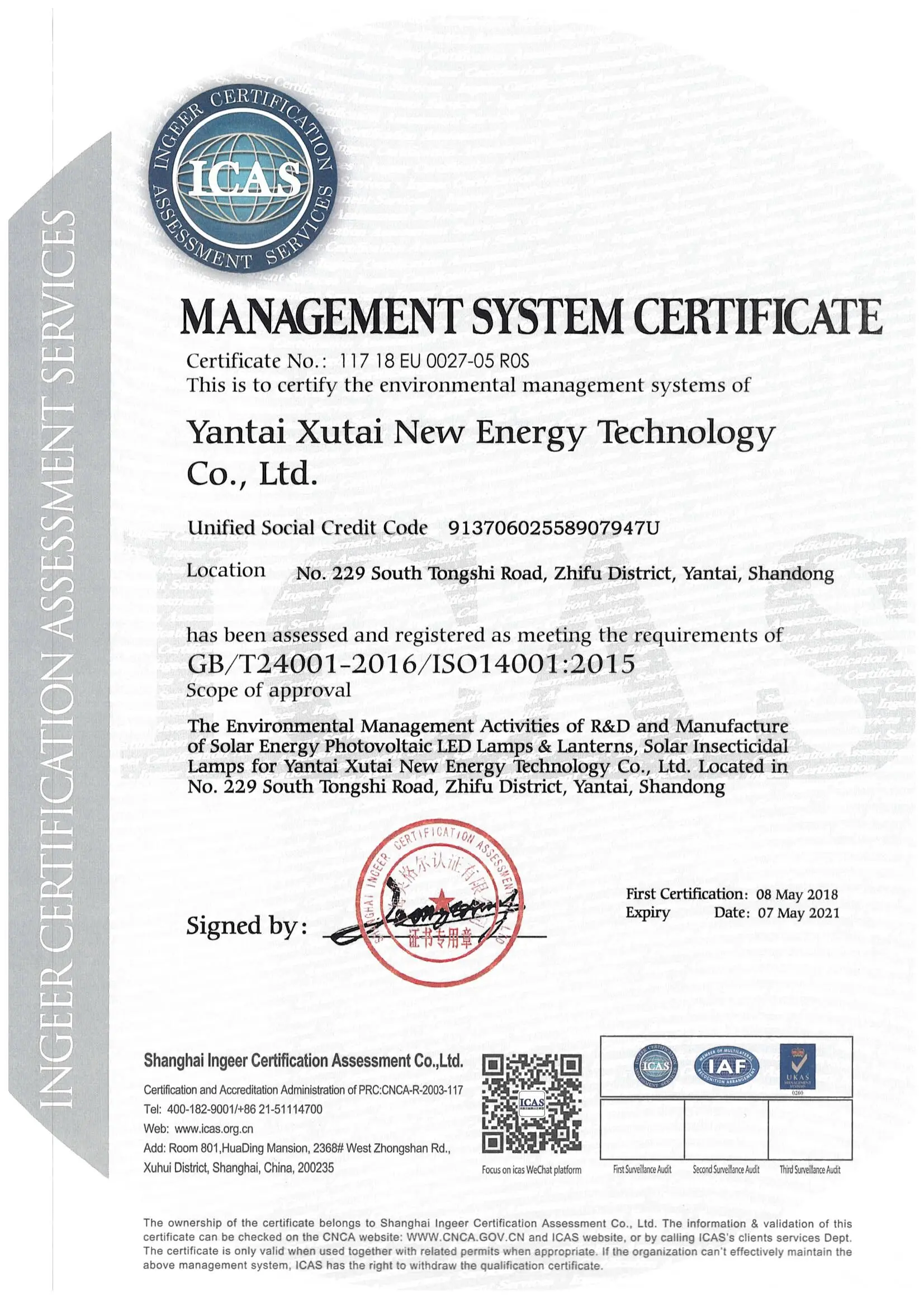

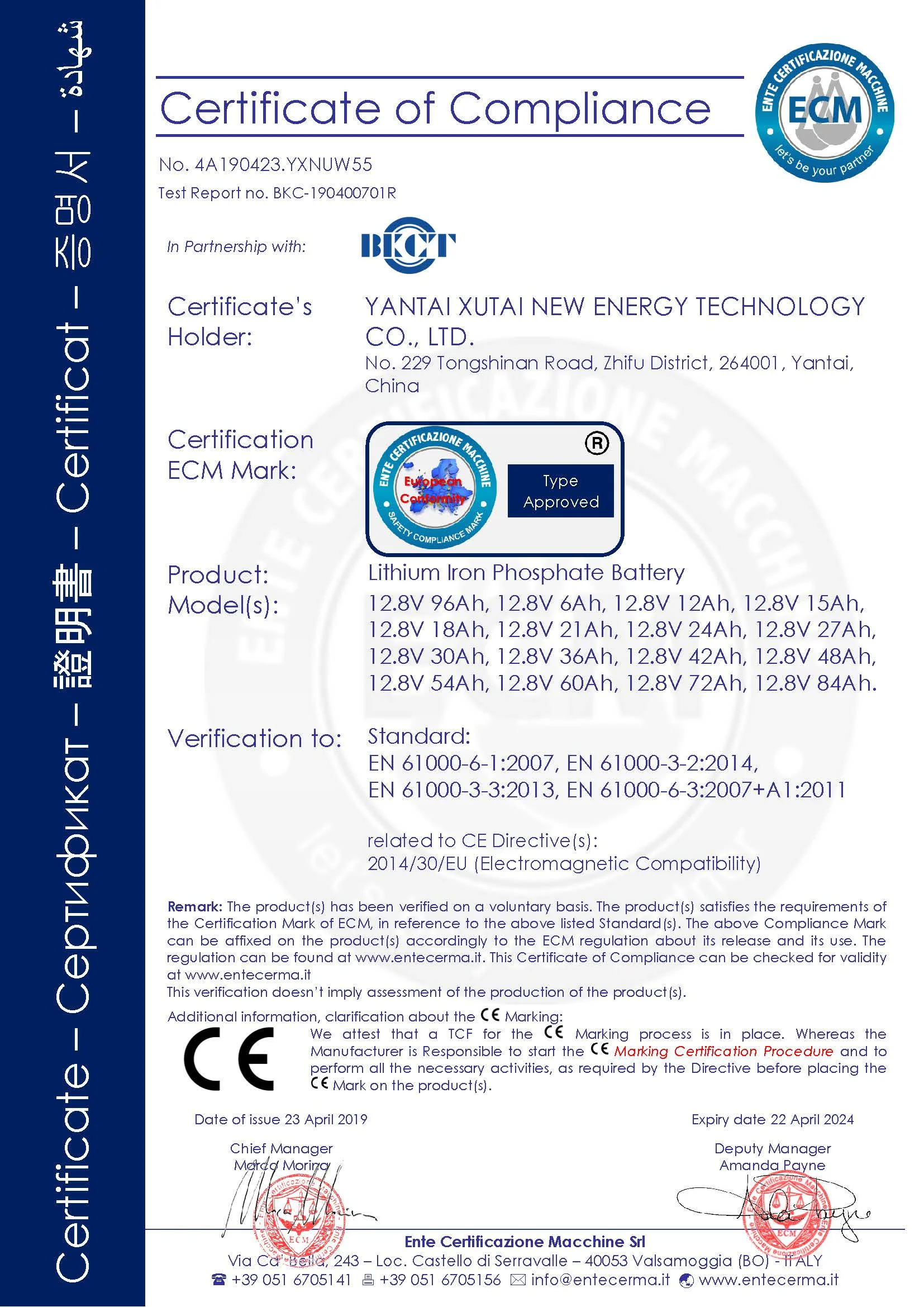

Certifications
