Navigation CXH1 3 marine signal lights single deck starboard light

Product Overview

Description

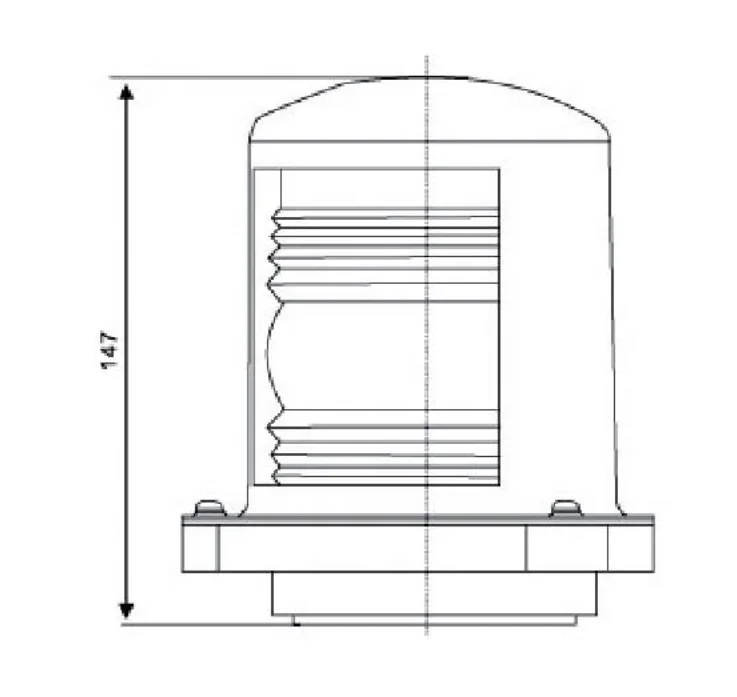

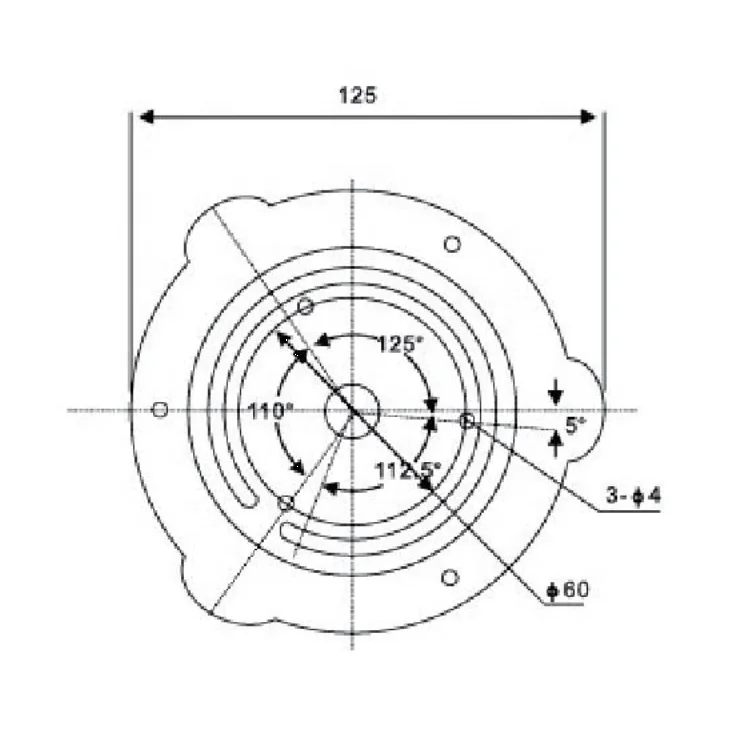

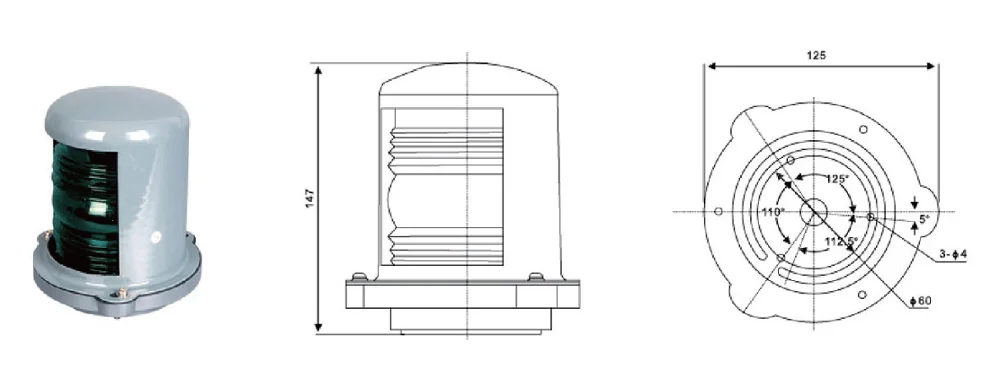

Navigation CXH1-3 marine signal lights single deck starboard light

The scope of application

Applied to the ships with the length less than 12m as lamp signal liaison when night navigation.

Products characteristic

1. It is convenient to install and replace the bulb,and there are automatic aleak holes in the bottom.

2. The shell adopts good quality metal material steel,the surface is painted the special mold-powder,has the feature of corrosion-resisting and shock resistance.

3.The lampshade adopts good quality glass,and it has good function of illumination.

Adopt standard

1. Conform to<< THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA,1972>>and <<GRAED ENTRY NORMS FOR STEEL SHIPS>>.

2. Conform to the standard of marine electric signal light's technical condition GB/T 3028-1995.

Production authentication

 Approved by CCS (China Classification Society),and ZY of China Fishery Inspection.



Specifications

Name	Type	Visibility	Level arc	Lamp holder	Protection class	Cable outside diameter	Color	Weight
starboard light	CXH1-3	1n.m	112.5	B15d	IP55	14	Green	1.05kg
port light	CXH2-3	1n.m	112.5				red	1.05kg
masthead light	CXH3-3	2n.m	225				Transparent	1kg
stern light	CXH4-3	2n.m	135				Transparent Yellow	1.05kg
All-round light	CXH6-3	2n.m	360				Red Green Transparent	0.85kg
