Product Overview
Description
50W fiber laser marking machine 1000*600mm XY Electric Working Platform 30W fiber laser marking machine for metal
Welcome to contact Lucy for product inquiries and technical support.
Mobile/ WhatsApp/Skype / WeChat: +86 13307107827
Product Description
What can 50W fiber laser marking machine 1000*600mm XY Electric Working Platform 30W fiber laser marking machine for metal do?
--- Can be used in marking of metallic and non-metallic materials, and can mark the time, date, text, serial , company logos, icons, symbols, barcodes and any letter you want on your product. and when the power is greater than 30w, the fiber laser can not only mark but also engrave and cut in depth a thin metal plate, whats's more,We also supply mopa type fiber laser to mark colors on stainless steel and titanium, mark black on anodized aluminum, stainless steel and some kinds of plastic.
About work area, we have different field lenses 70*70MM, 110*110MM to 300*300MM for choice. The smaller the field lens, the stronger the beam focusing energy; the smaller the spot diameter, the finer the marking effect; the faster the marking speed, the shorter the marking time.
Technical Parameters
| Model | SF-50 | Cooling Mode | Air Cooling | |||
| Power: | 20W/30W/50W/60W/100W/120W | Marking Speed | 7000mm/s | |||
| Laser Source | Raycus/ IPG/ JPT/MAX | Minumum Line Width | 0.015mm | |||
| Pulse Frequency | 20Khz-60Khz/50-100Khz /1-4000Khz | Minumum Character | 0.2mm | |||
| Field Lens Brands | Singapore Wavelength | Laser Wavelength | 1064μm | |||
| Marking Area: | 110mm*110mm, optional 70mmx70mm, 175mm×175mm 300*300mm or more | Operating Environment | 5℃-45℃, clean or dust-free | |||
| Control Card | JCZ Brand EZCAD | Power Supply | AC220V or 110V plug | |||
| Operating System | Win XP /7/ 8/ 10 (32 bit, 64bit) | Warranty | 3 years | |||

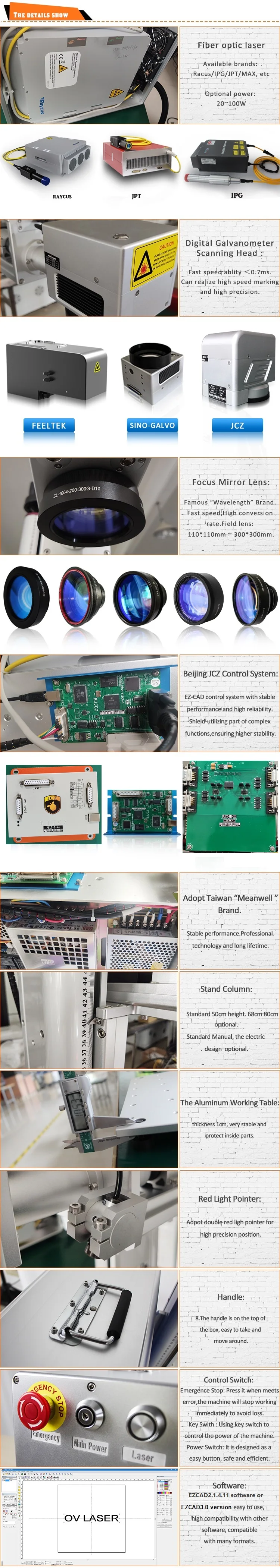

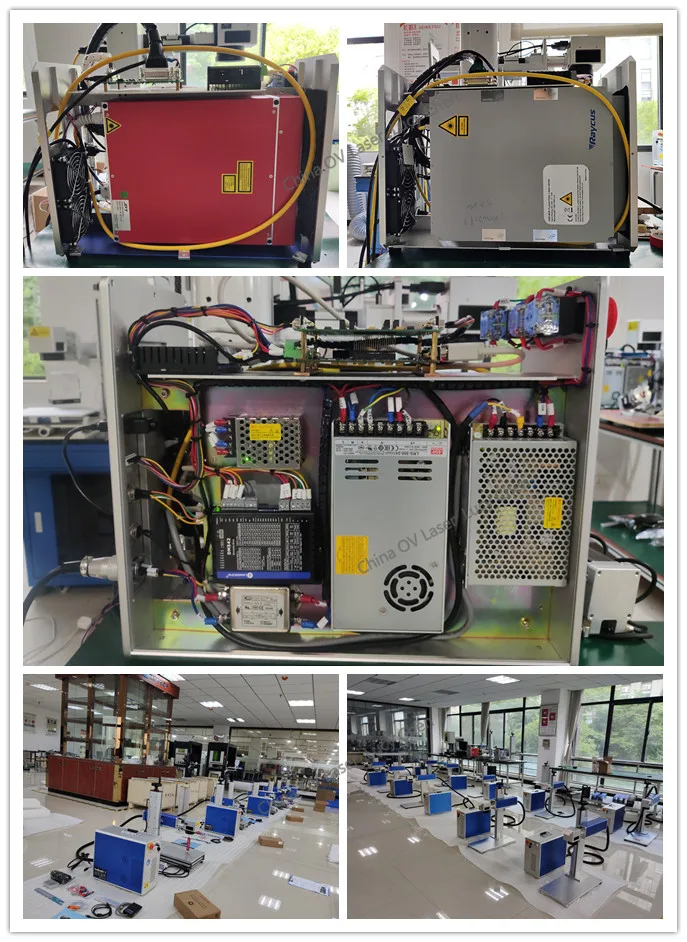

Machine main parts:
- Laser Source: Raycus / JPT / IPG / MAX brand.
- Control Card: Original EZCAD Card.
- Laser Power: 20W/30W/50W/60W/80W/100W
- Marking Area: 110*110mm / 150*150mm/ 175*175mm/200*200mm/300*300mm or more.
- Galvo Head: SG2206 or OV8810 or 3D Dynamic focus scanning head for choice
- Column Stand: Manual / Auto Focus / Motorized Z axis. size 50cm / 68cm / 80cm or more.

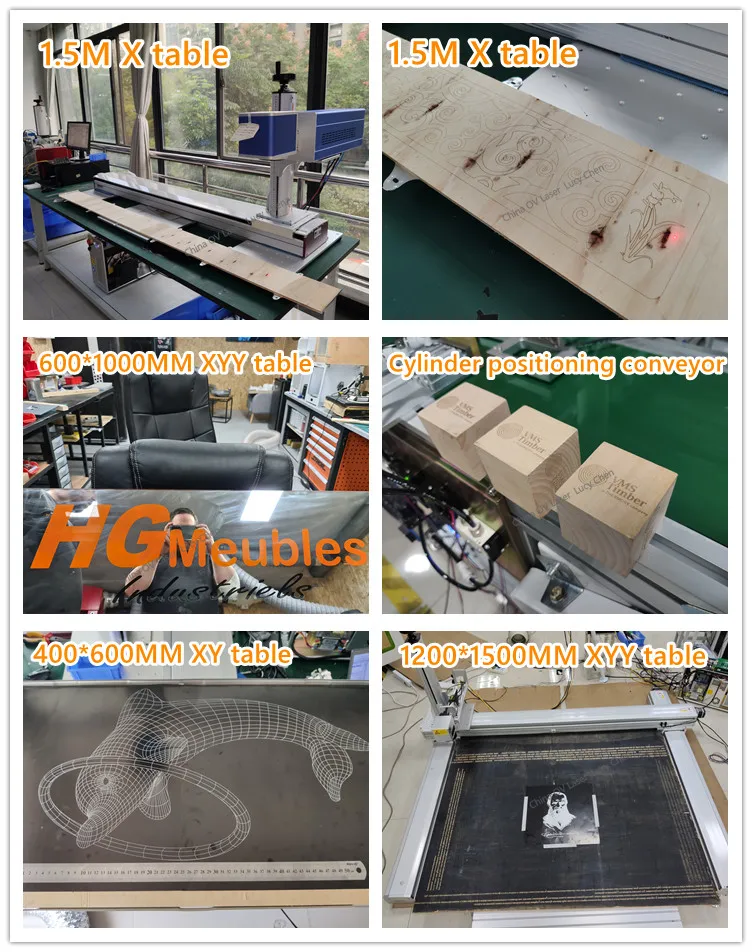

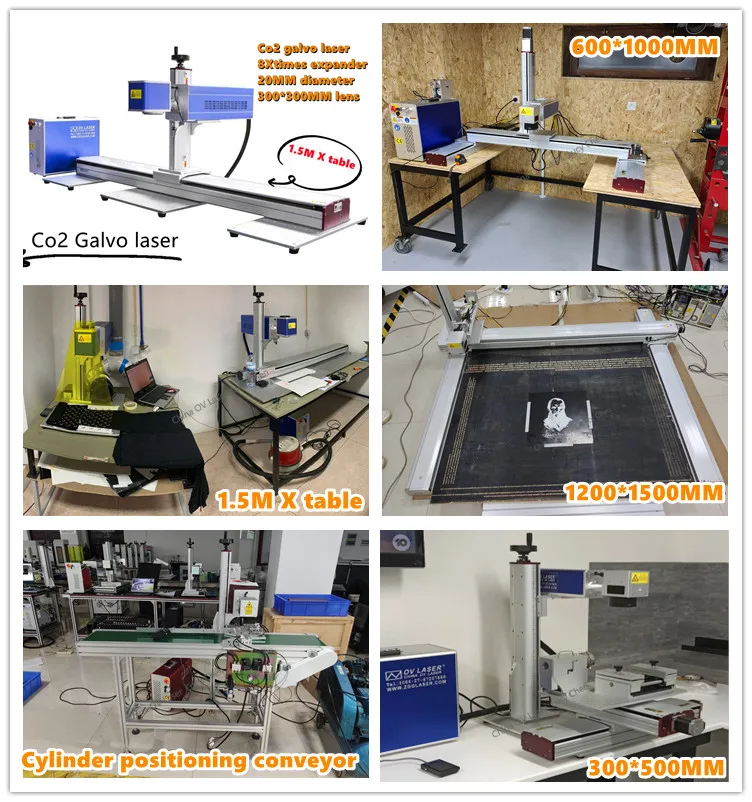

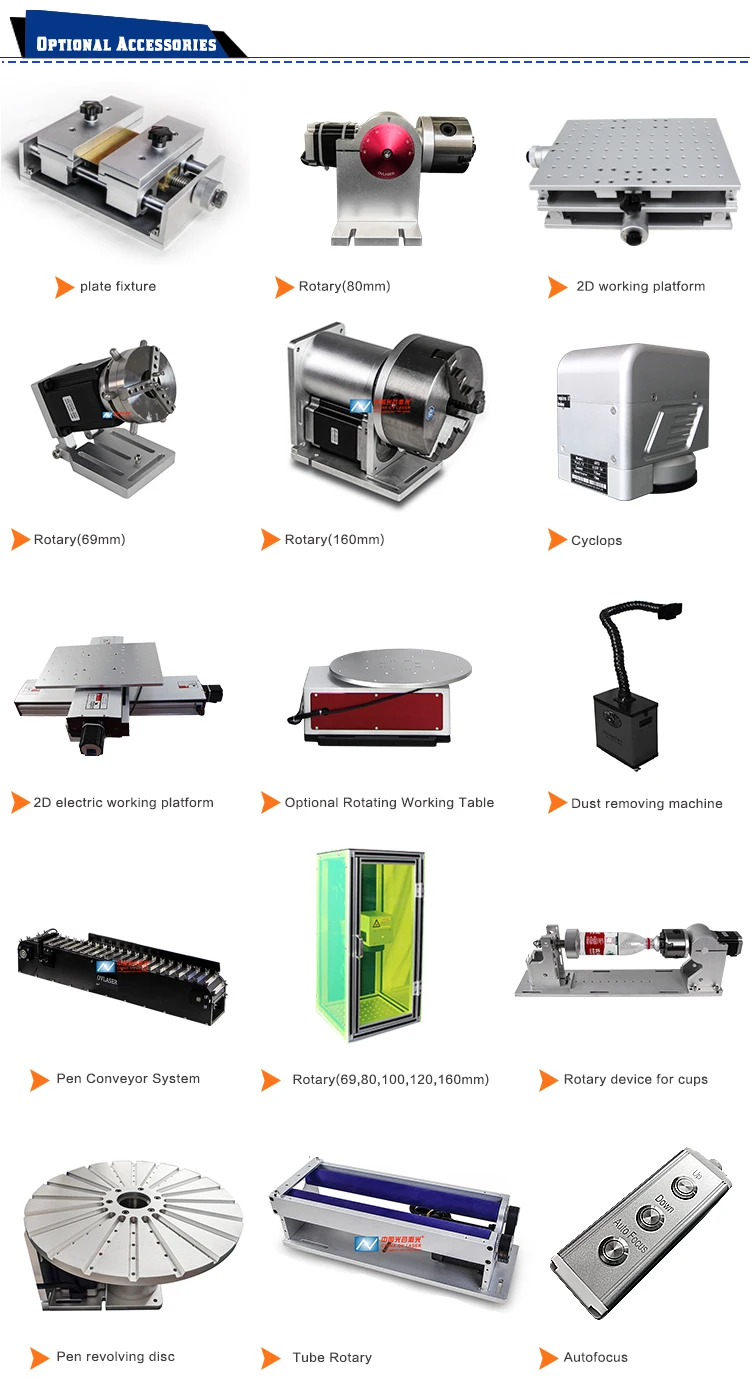

- More optional Parts: Rotary / Electric XY table /Metal Plate Fixture

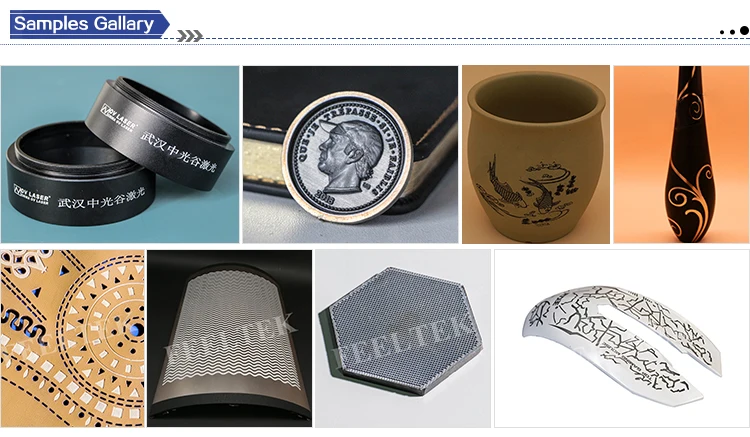

Sample show
Application Industry
- Electronics / Jewelry & Acessories /Electronic Components / Mechanical Parts
- Instrument / Hardware Tools / Automobile Parts /Handicrafts

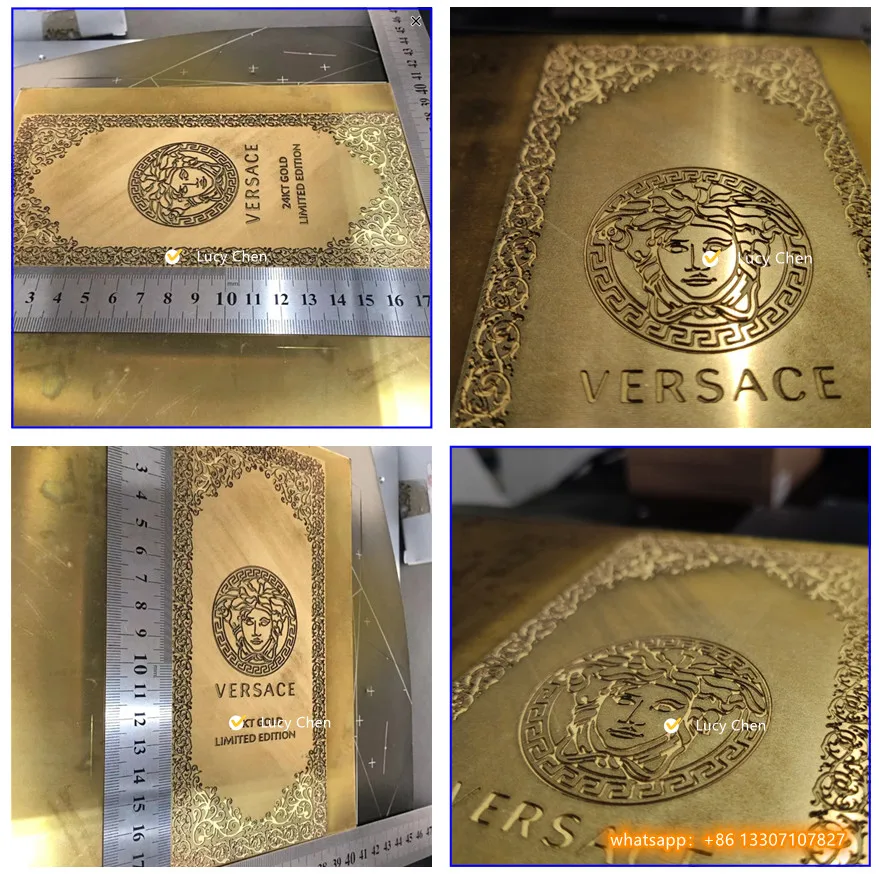

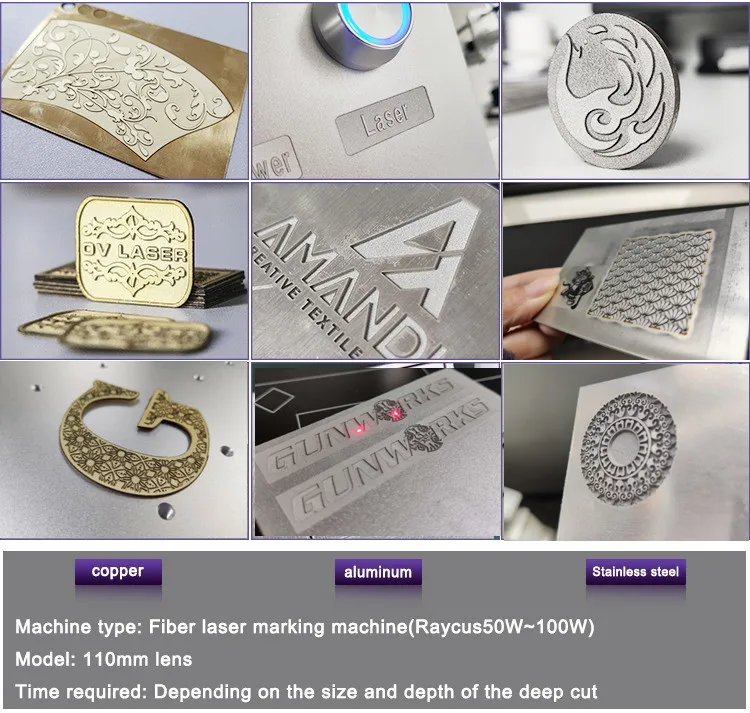

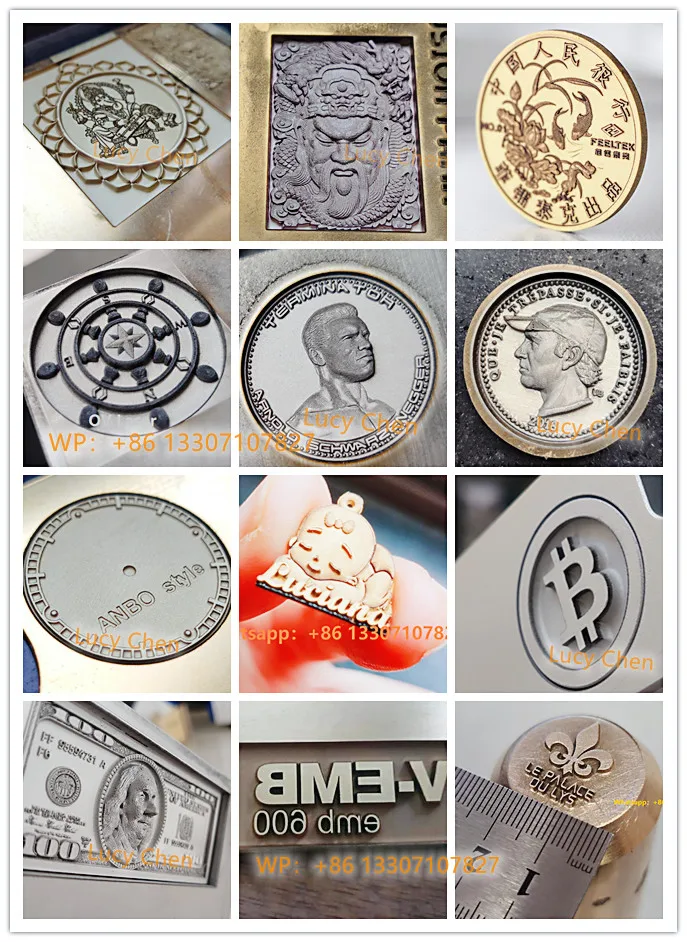

Metal deep engraving sample

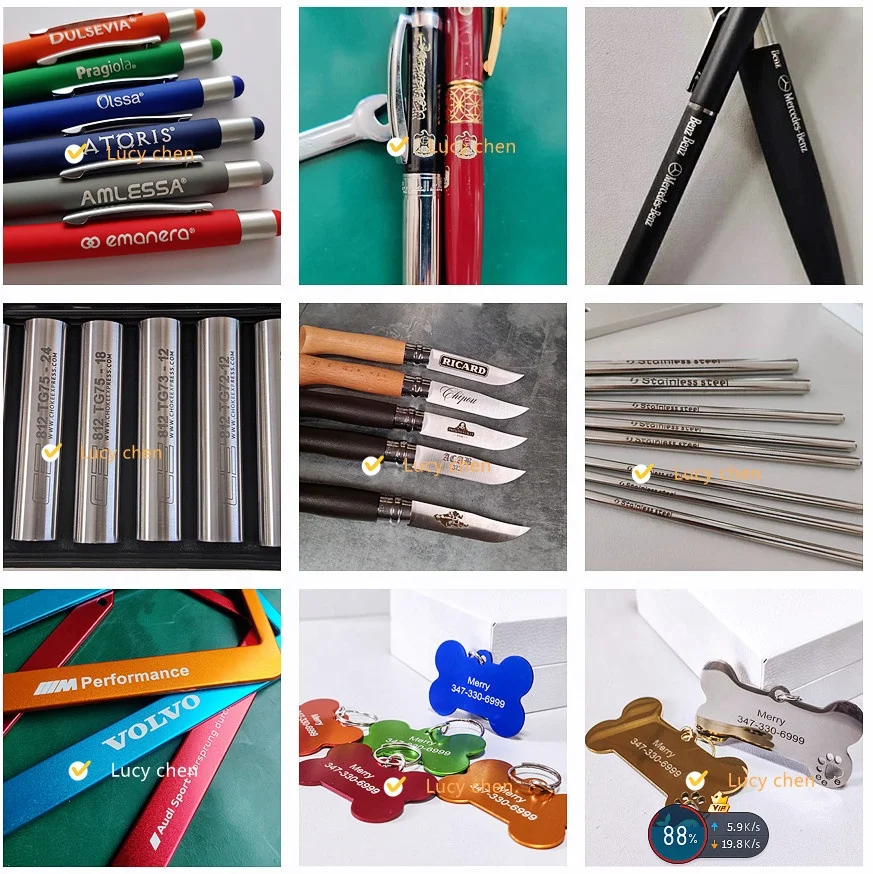

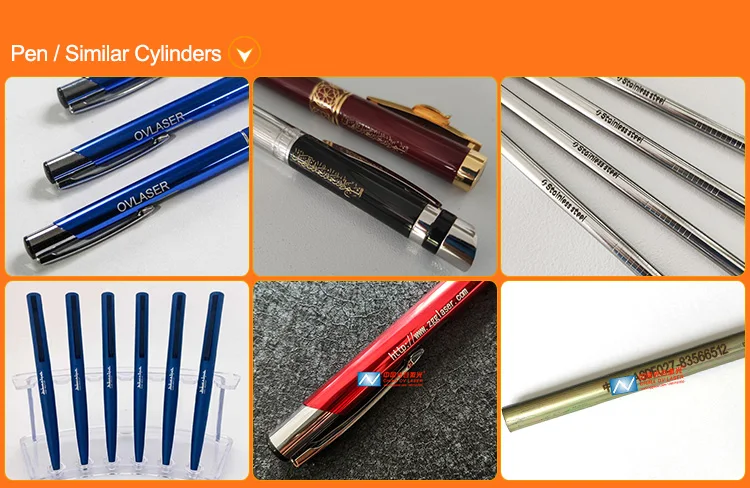

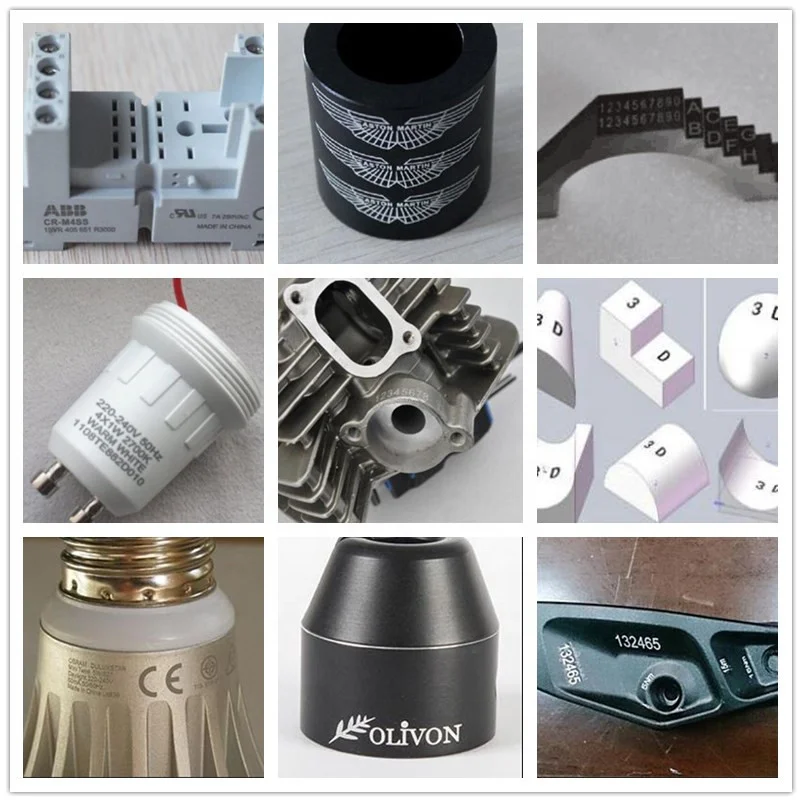

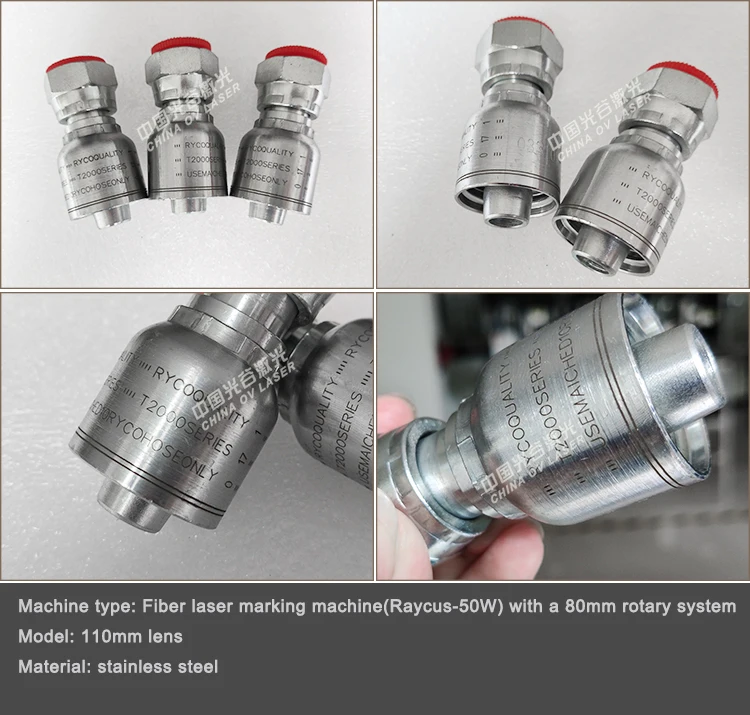

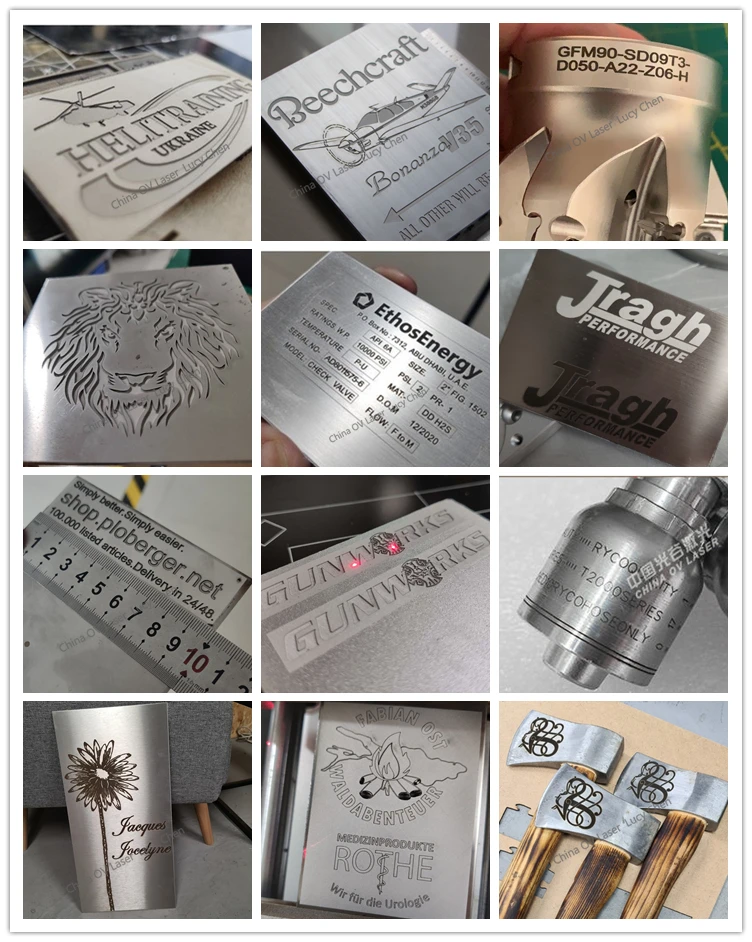

Metal surface marking samples

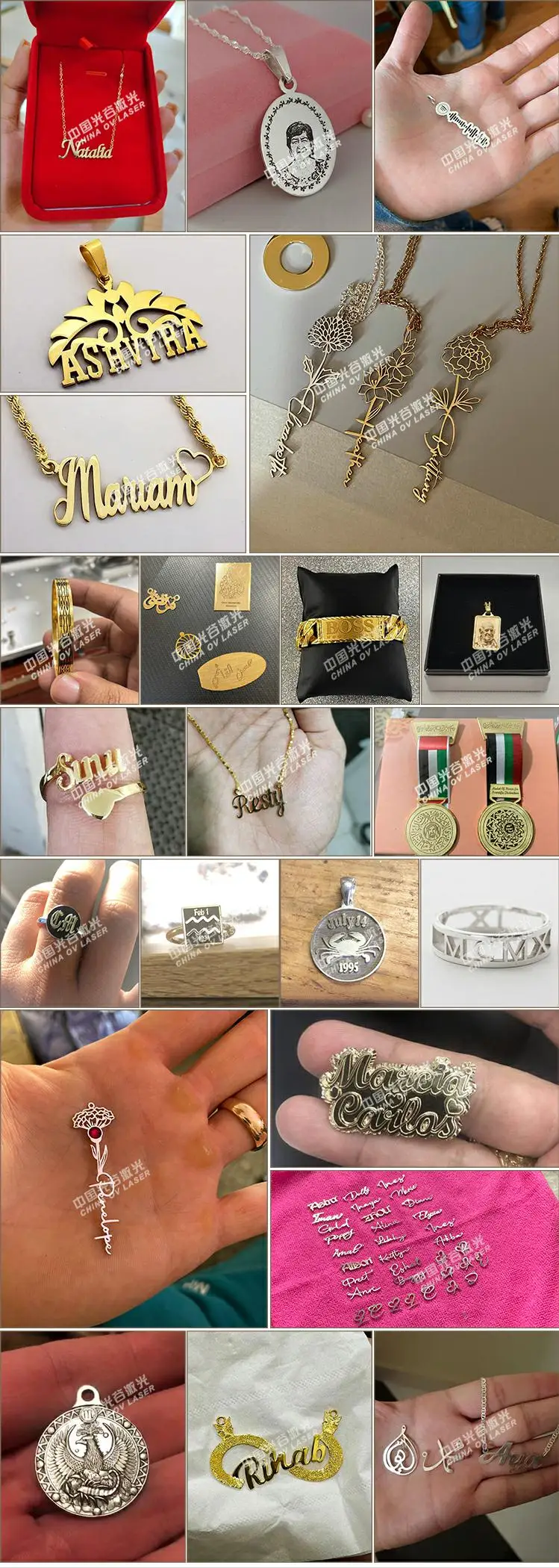

Jewelry engraving and cutting samples

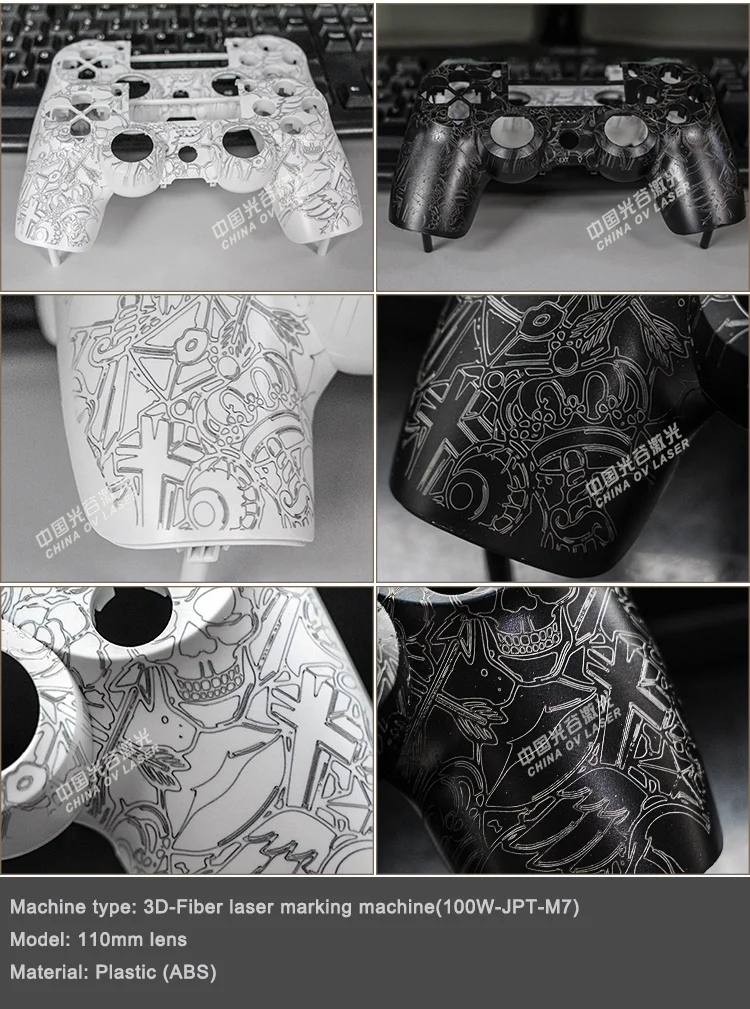

Plastic marking samples

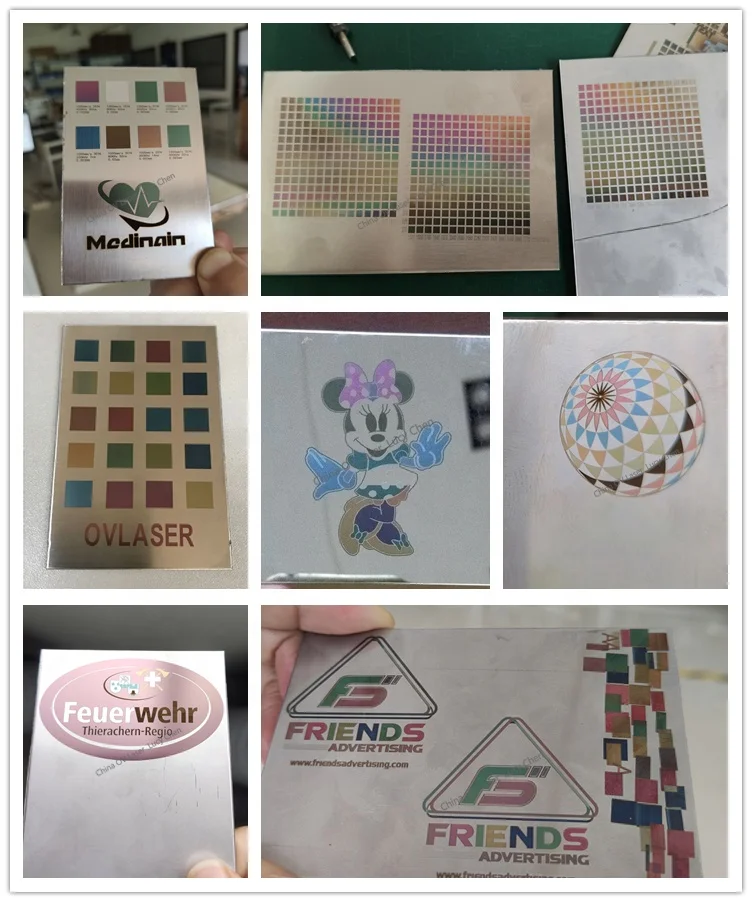

MOPA color laser engraving on metal and plastic
2.5D and 3D samples
The newest 2.5D machine is composed by the motorized Z axis and EZCAD 3.0 software, mainly used for coin relief engraving, metal mould deep engraving, metal sheet engraving and cutting etc, but cheaper than the 3D machine.

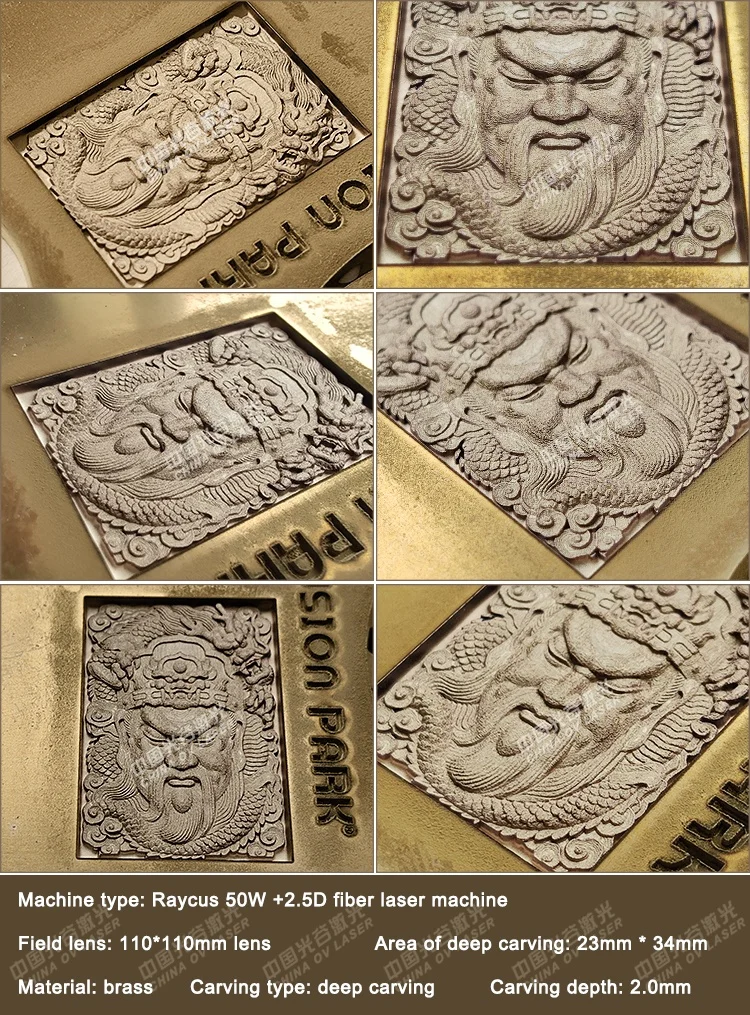

2.5D laser for jewelry & coin relief engraving, necklace cutting etc
2.5D laser forun knife metal relief engraving
Lastest 3D galvo laser machine for curved surface marking for choice

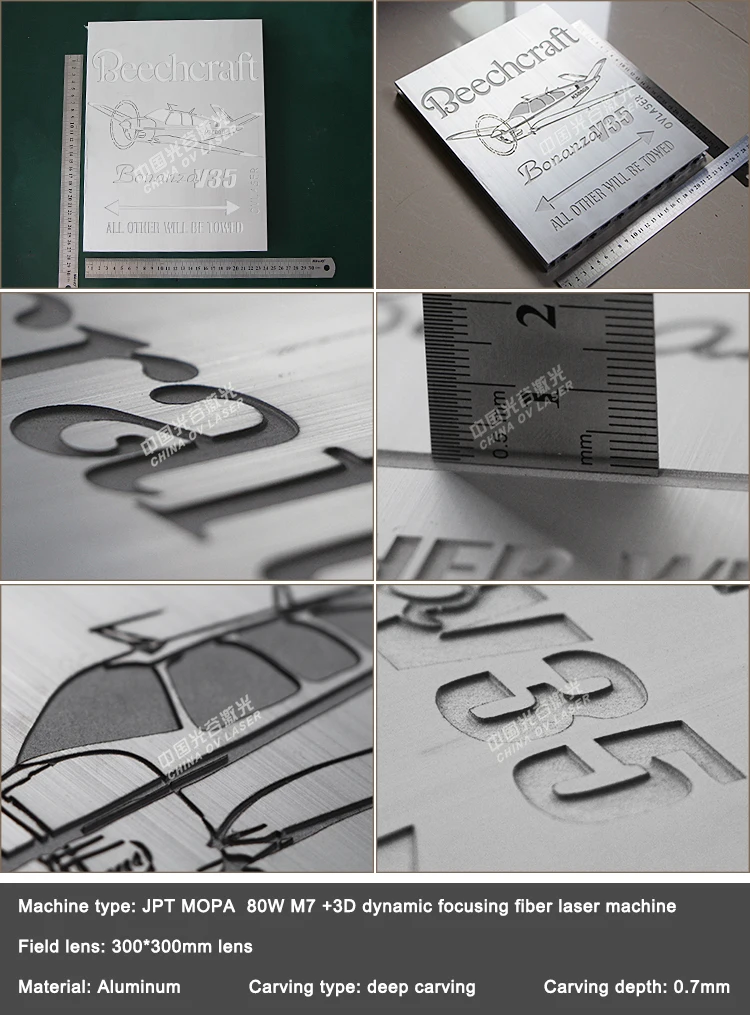

3D laser for large size metal deep engraving, max working area 300*300MM
Related Products

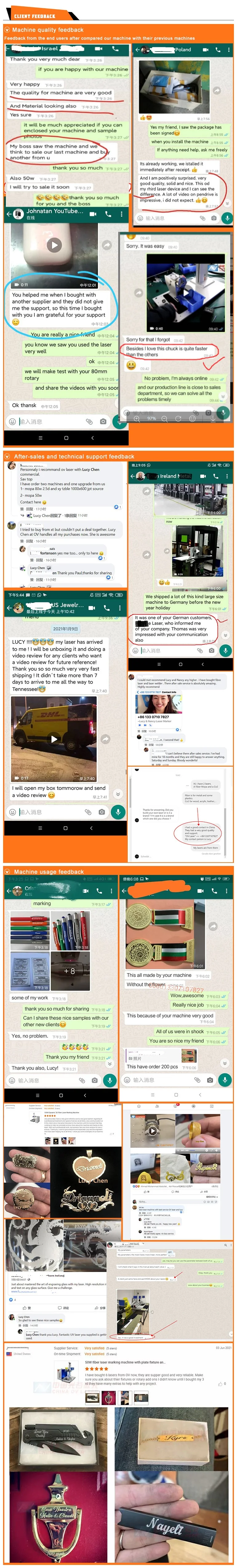

Buyer Feedback
