Introduction of Scrap Metal Crusher Shredder Recycling Machine
OUTPUT SIZE: Depends on the your requirement CAPACITY: 3-120TPH APPLICATIONS: Scrap metal recycling, Steel plant, etc. PROCESSED MATERIALS: Waste car body(excluding engine, gear box, tyre, etc.); Tinplate(Cans, etc.); Houshold appliances, iron sheet(excluding motor, compressor, shaft, etc.); Lightweight meterials and similar waste materials<=6mm; Empty cans(wash out thinner, paint); non sealed tank.

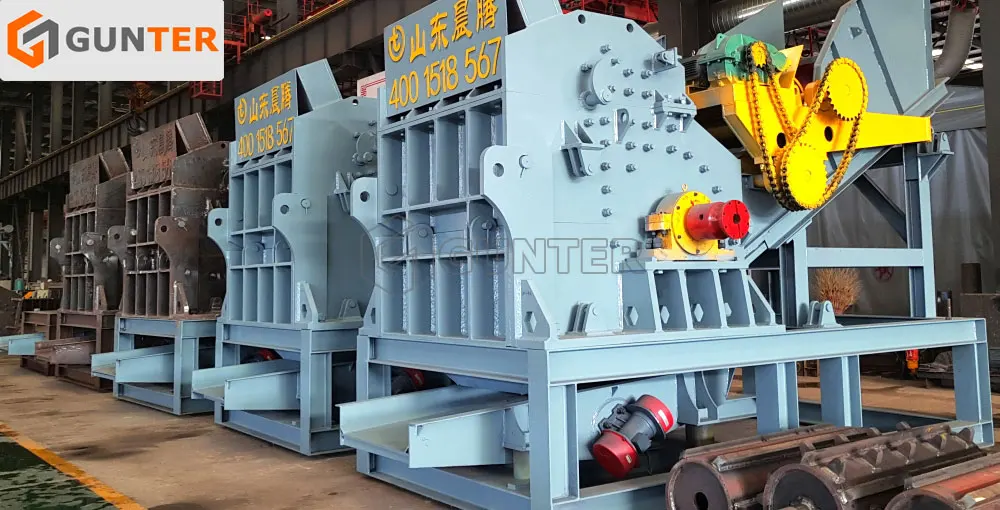

Scrap Metal Recycling Machine Steel Crusher Shredder Equipment

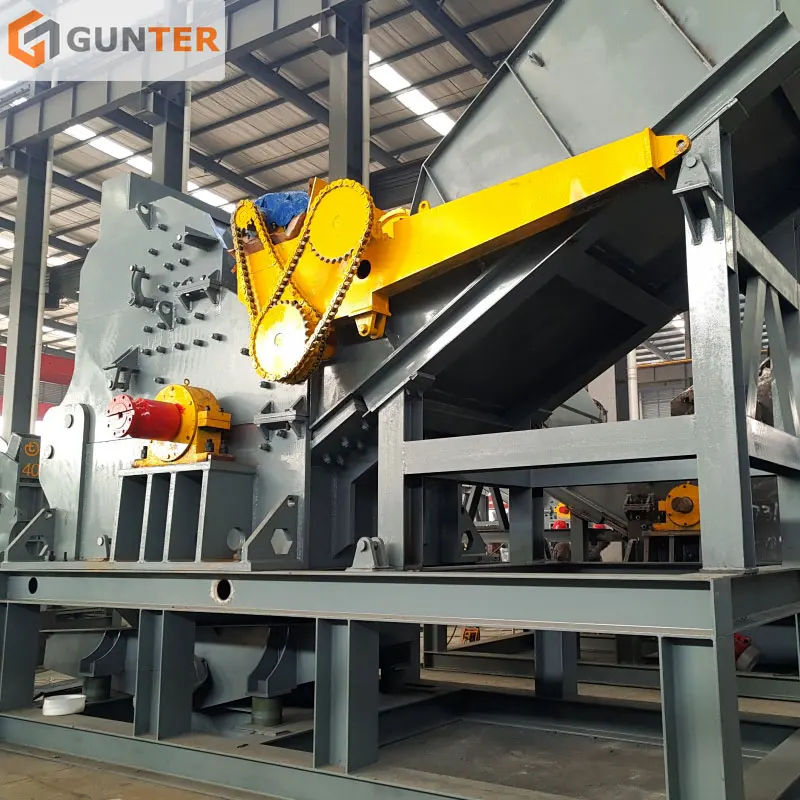

PSX Series China Steel Iron Scrap Crushing Machine Scrap Car Crusher Machine metal shredder is used to process waste car body, tinplate, houshold appliances, bicycles, iron sheet, lightweight meterials and similar waste materials<=6mm, empty cans and non sealed tank. So that all the scrap material become superior steel raw materials. The above mentioned materials by continuously smashed, removed the coating, and increased the volume proportion, it will prevent the explosion in the electric furnace and improve the productivity of liquid steel under certain conditions.
China Steel Iron Scrap Crushing Machine Scrap Car Crusher Machine working principle is to use the hammer to hit raw materials. Through the space between the lining and the hammer head, the broken material will be torn into a suitable fragments . And the suitable fragments can be discharged through the mesh. At the same time, the size of the mesh can be selected according to the size of the broken material.
Product Paramenters
NO.
Model
Input width
(mm)
Capacity
(t/h)
Main Power
(kW)
Transfomer
Occupation
(L*W*H m2)
1
PSX-200
1400
3-5
200
250KVA
313.5
(33*9.5*4.5)
2
PSX-250
1400
4-6
250
315KVA
313.5
(33*9.5*4.5)
3
PSX-280
1600
5-7
280
400KVA
313.5
(33*9.5*4.5)
4
PSX-315
1600
6-8
315
500KVA
350
(35*10*4.5)
5
PSX-450
1600
8-12
450
630KVA
576
(48*12*6)
6
PSX-750
1800
13-18
750
10KV
High Pressure
960
(60*16*6)
7
PSX-900
2200
18-25
900
10KV
High Pressure
1275
(75*17*7.2)
8
PSX-2000
2500
20-40
1600
10KV
High Pressure
1760
(80*22*7.5)
9
PSX-3000
2600
40-60
2250
10KV
High Pressure
1909
(83*23*8.3)
10
PSX-4000
2600
50-80
2950
10KV
High Pressure
2850
(95*30*10.2)
11
PSX-4500
2700
80-100
3300
10KV
High Pressure
3000
(1000*30*11)
12
PSX-6000
2800
90-120
4400
10KV
High Pressure
3000
(1000*30*11)
Note: Any change of China Steel Iron Scrap Crushing Machine Scrap Car Crusher Machine technical data shall not be advised additionally.

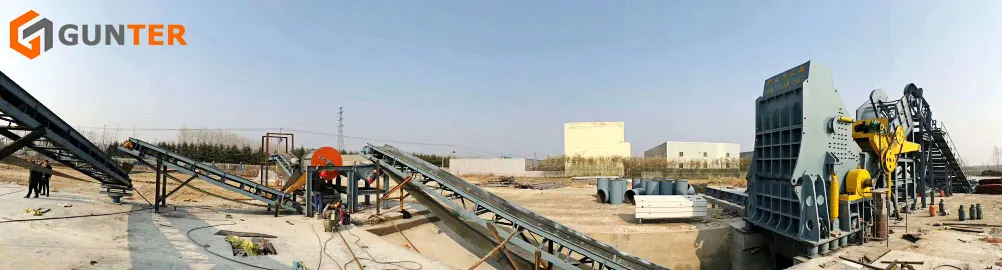

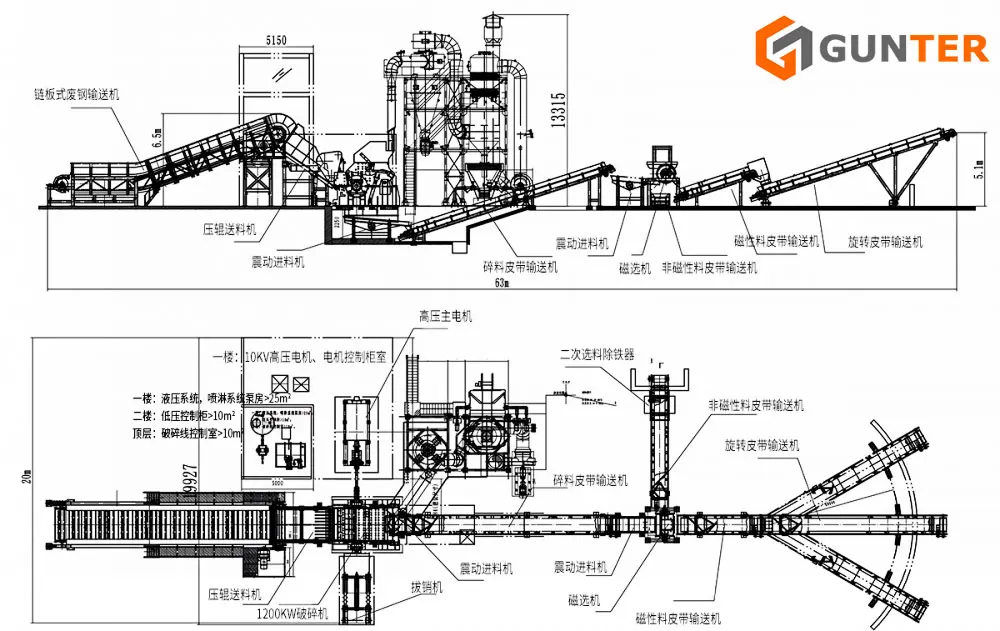

Production Flow

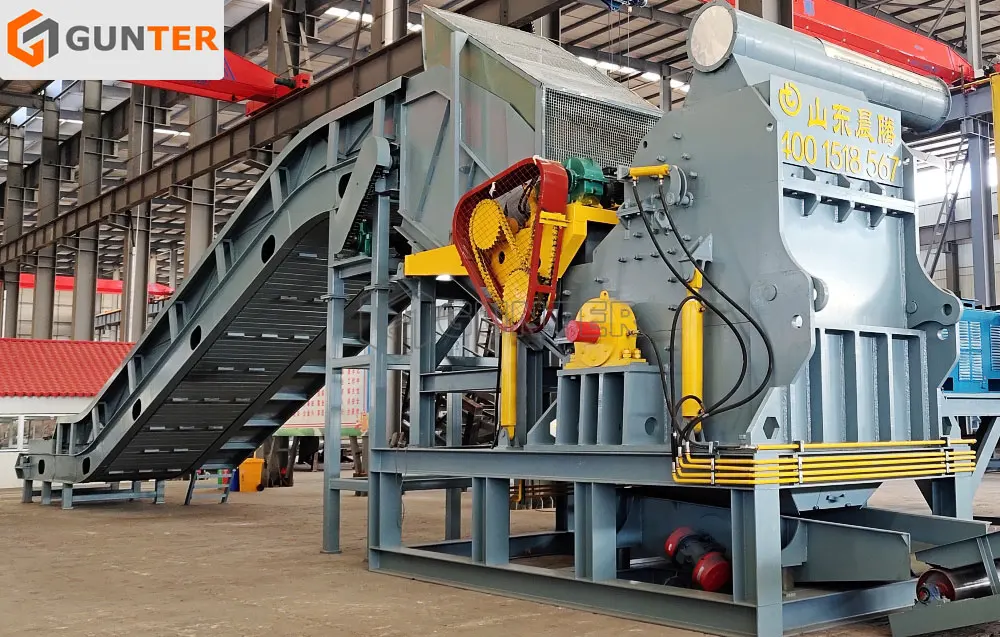

Scrap Metal Recycling Machine Steel Crusher Shredder Equipment Main Machine

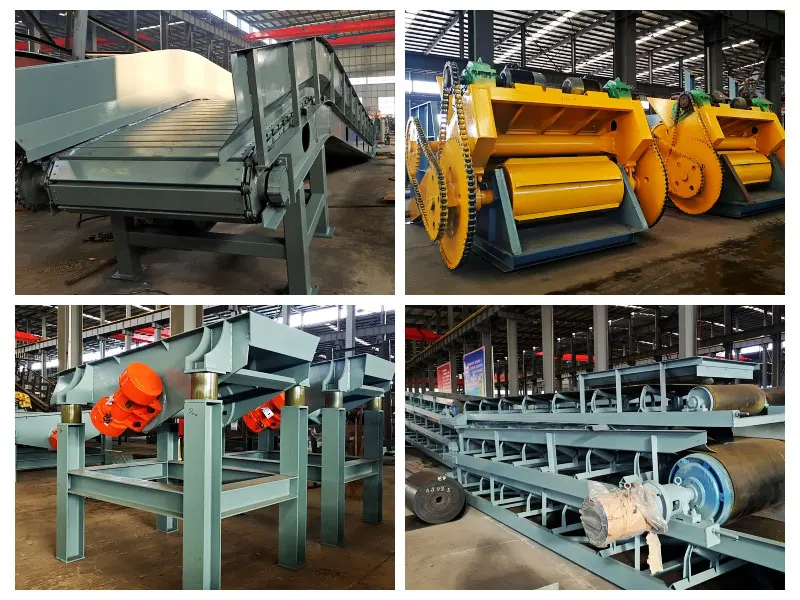

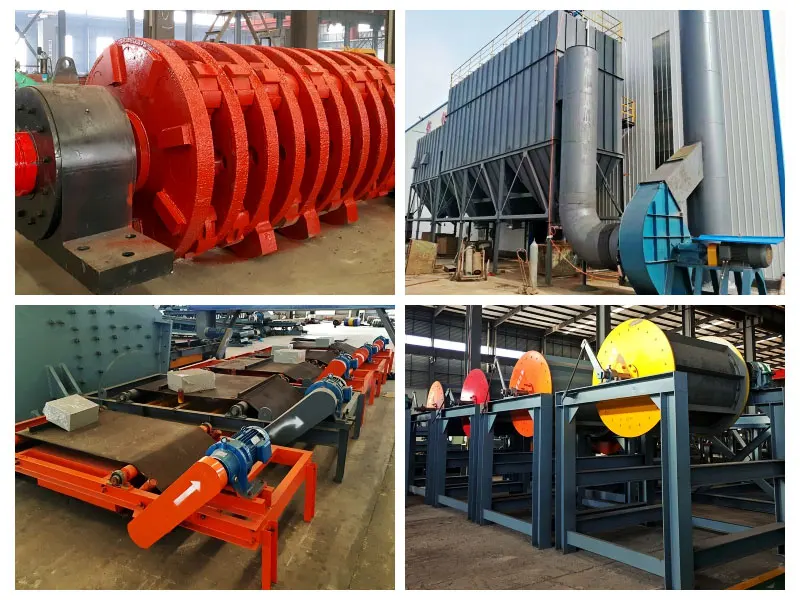

1. Feeding System mainly consists of Slat Chain Conveyor or Crawler Type Conveyor. Automatic feeding will be accomplished by assembling Pre-crusher or Steel Grabbing Machine. 2. Host Machine is the core component of Scrap Metal Shredder, and it mainly consists of Feeding Chute with hydraulic roller, Main Motor, Pin Puller, Principal Axis, High Voltage Motor Driver, etc. 3. Discharging System mainly composes of Vibration Feeder, Magnetics Belt Conveyor, Non-magnetics Belt Conveyor, Scrap Steel Piling Belt Conveyor, etc., and it achieves the separation, classification and pile of shredded steel and non-magnetic materials. 4. Magnetic Separation System mainly composes of upper Magnetic Separation Roller and armored Iron Separator, and it is used for separating magnetic and non-magnetic materials. 5. (optional) De-dusting System is mainly used to remove dust from crushing and magnetic separating and ensure the cleaner production of shredder, in order to meet environmental protection requirements.

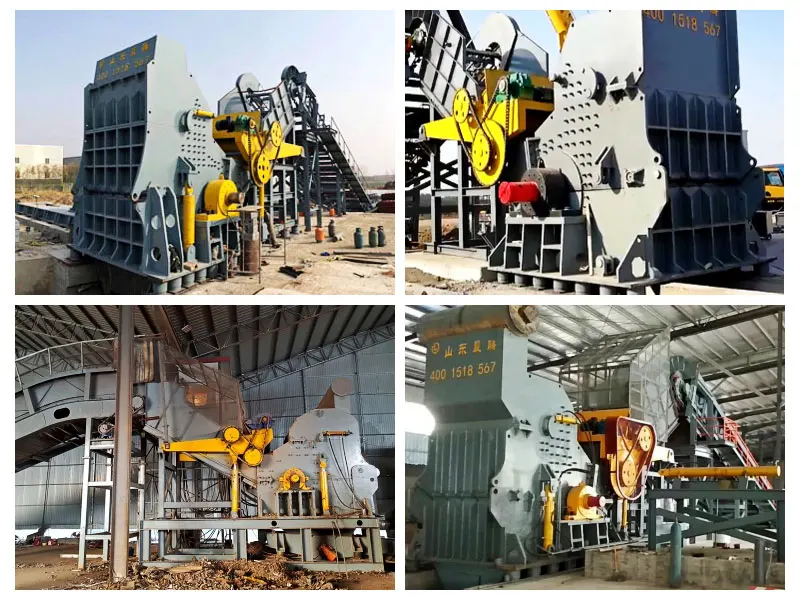

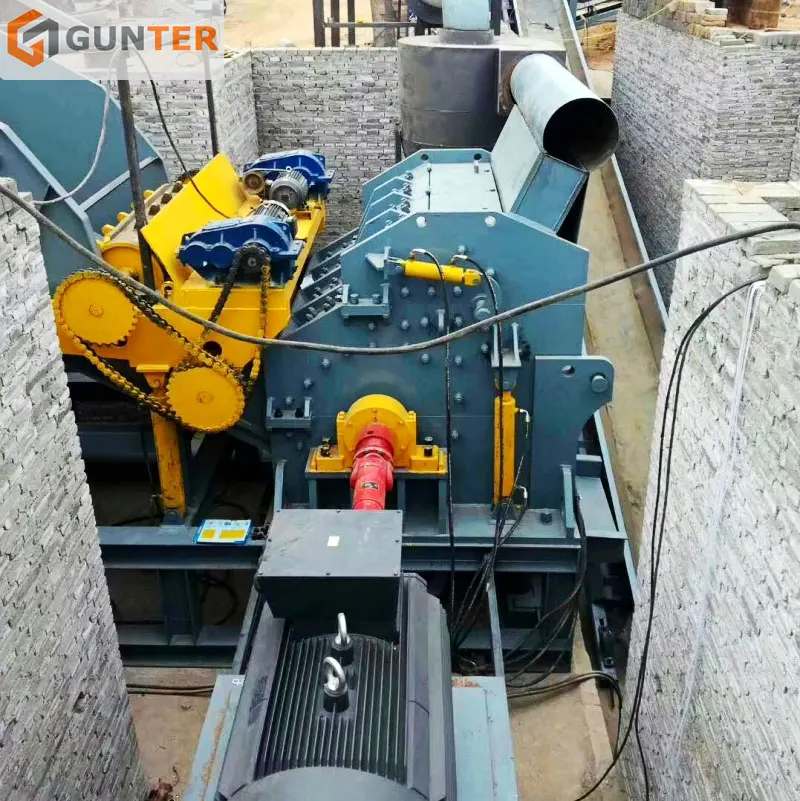

Project Cases

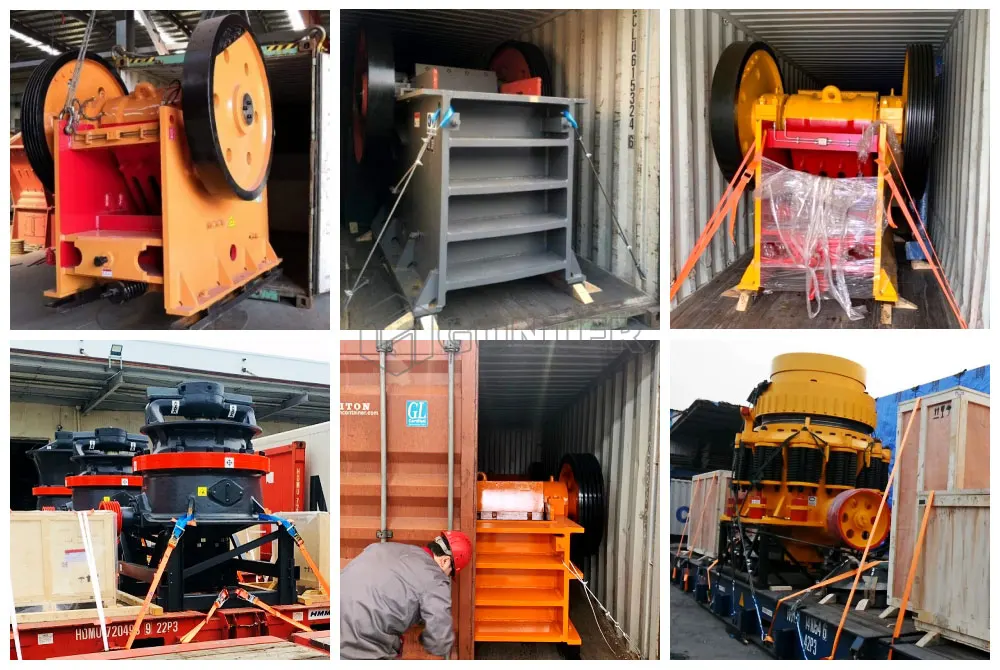

Packaging&Shipping
Standard Export Packaging and Shipping for Scrap Metal Crusher Shredder Recycling Machine
The products should be processed to be rustproof and moisture proof before delivery. The small parts are packed into wooden crates; the big parts are wrapped by plastic sheeting.
Company Profile
GUNTER INDUSTRY is an specialized in design, manufacture and sale of various crushing and screening machinery equipment provider in China. We provide our clients with a whole series of crushing and screening machinery equipment, including scrap metal crusher, metal shredder, hydraulic cone crusher, jaw crusher, impact crusher, hammer crusher, vertical shaft impact crusher, vibrating screening and all complete set of stone crushing and sand making production lines. Our products had passed the quality system certification of ISO, and the European CE certificate.We are able to offer products of high performance-price ratio as well as superb service backup and solutions to our clients. We have a complete after-sales service network. Our after-sales engineers who have received strict training always put clients first and are able to provide quick maintenance service to clients as needed. We have established offices around China. Besides constantly increasing our market share in China, we have also exported our products to different countries and regions all over the world, including Russia, Tajikistan, Kazakhstan, Mongolia, Vietnam, Indonesia, Malaysia, Philippines, Dominica, Brazil, Venezuela, Saudi Arabia, Jordan, Ghana, Nigeria, Algeria, Cameroon, Uganda, Namibia, Mozambique, Ethiopia and Kenya. Our products are well recognized by worldwide customers, because of our excellent quality, practical functions, and reasonable prices. We stick to innovation, constantly improve our product quality and reliability and strive to become a world renowned brand in the industry of crushing and screening machinery. We understand that our success relies on our clients' confidence.
Why Choose Us
We Make our customers successful
We value our relationships with customers as partnerships
We provide exceptional customer service-always
We give customers more than they expect to create the best value
We are flexible and adaptable to our customer's requirements
We deliver on time
We are problem solvers
We listen to, define and solve customer challenges
We demand continuous improvement
We pride ourselves on quality craftsmanship
We make decisions based on facts
Pre-sales Service
We can provide customers with scrap metal crusher plant and metal shredding system by our wide product range. Based on the customers' request and budget, our experts make out efficient and reliable solutions. We arrange the production strictly following customers' order. What’s more, every customer has the chances to visit the factory and working machine in the site before placing the order. We will arrange cars, hotels and translators for the visiting customers.
After-sales Service
Our experienced technicians is available on the phone and on the internet,customer can get instance guidance. Dispatch engineers to help customer installation and train local worker to operate and maintain the equipment. Well trained and professional engineers are at your service home and abroad.
