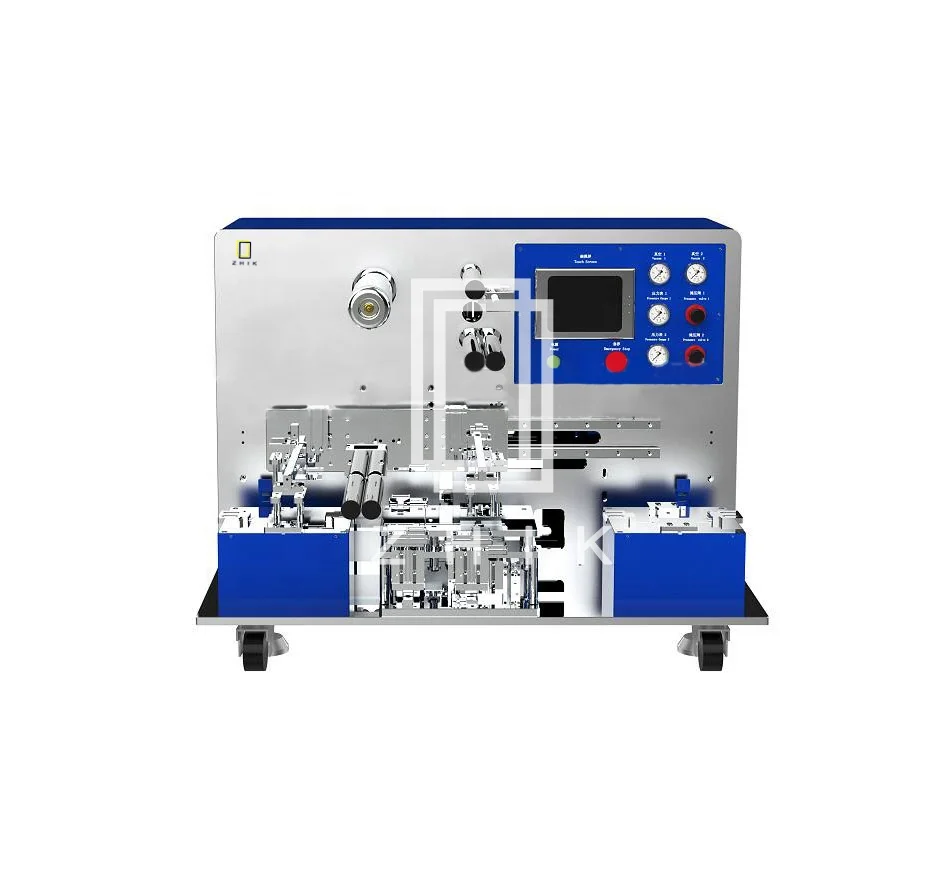

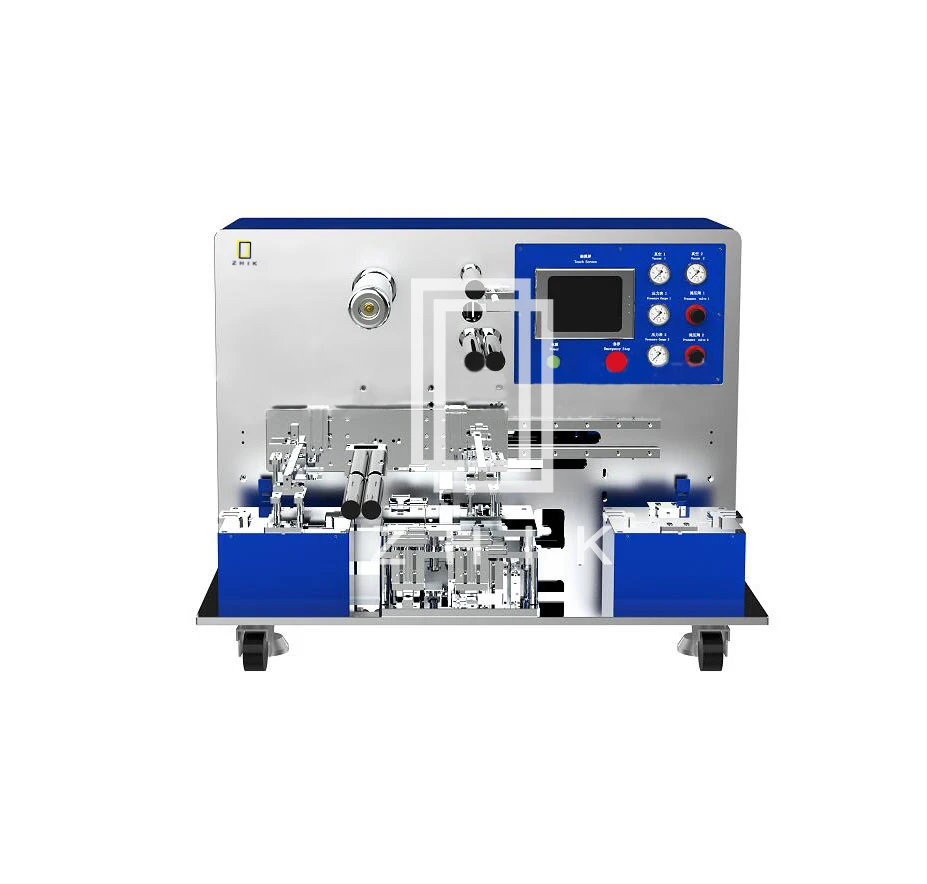

Battery electrode stacker
ZK-DP200L automatic laminator is a device that can be applied to the lamination process of lithium ion battery pole pieces. The manual loading, the subsequent pole position correction and the lamination process are completed automatically, which has the characteristics of high lamination efficiency and high lamination accuracy. The design of the equipment can stack 200 * 200mm batteries, and different sizes can be achieved by adjusting the jig. It is very suitable for the development and sample production of laminated lithium-ion batteries. The equipment adopts single cantilever structure design, automatic constant tension control and automatic correction control
technical parameter
1 | power supply | 220V / 50Hz; 220V mains power can be used directly |
2 | power | 0.6KW |
3 | Compressed air | ≥0.6MPa |
4 | Equipment weight | 300KG |
5 | Equipment size | length x width x height: 1100mmx790mmx755mm |
6 | Diameter of diaphragm roll | ＜250mm |
Stackable Size | * Min 62 mm L x 46 mm W * Max 200mm L x 200 mm W | |
Stackable Layers | Up to 500 layers | |
Stacking Speed | Up to 1 layer per 2 seconds | |
7 | Max. Electrode Thickness | Piled up thickness < 30 mm |
8 | Aligning Accuracy | ±0.3 mm for stacked electrodes |
