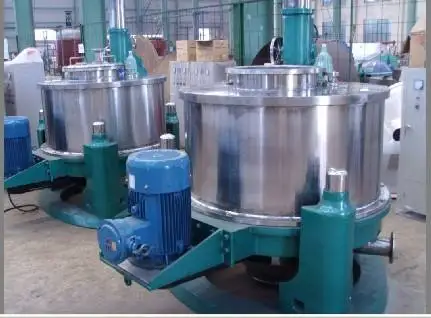

Tripod bottom discharge centrifuge Chemical centrifuge

Product Overview

Description

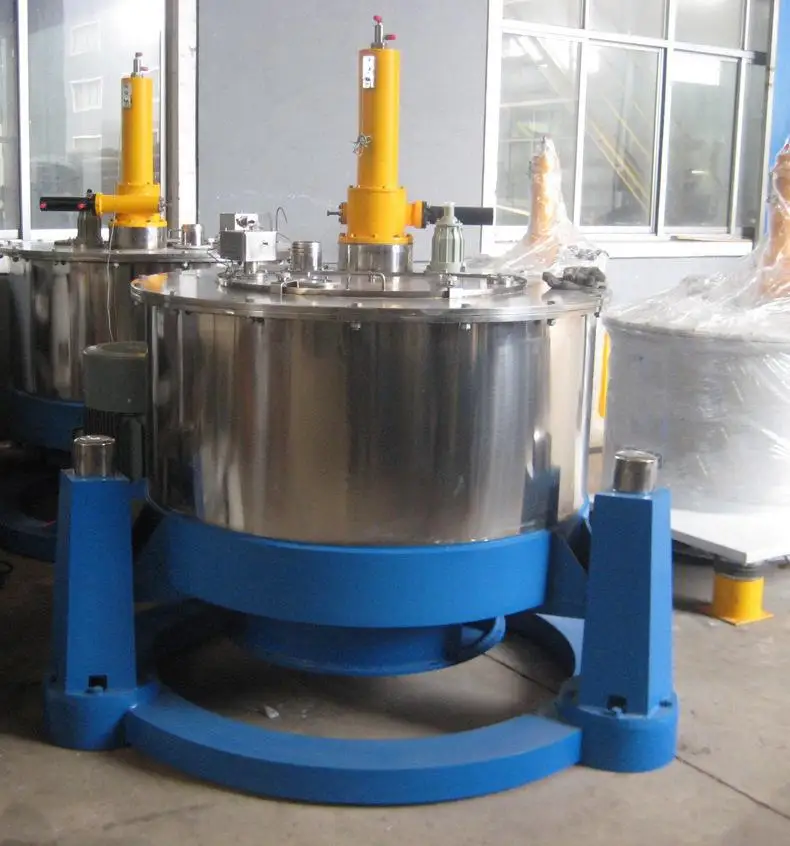

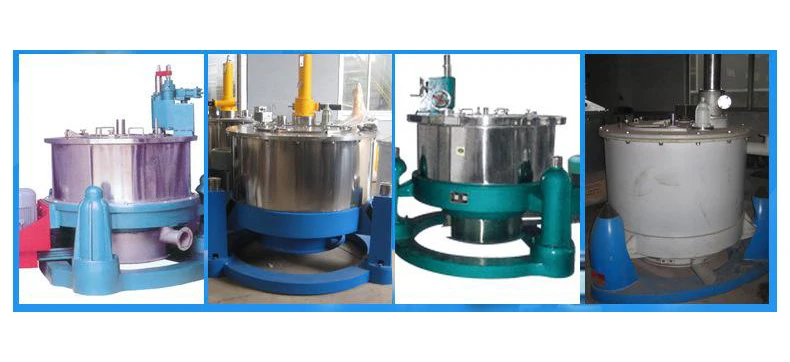

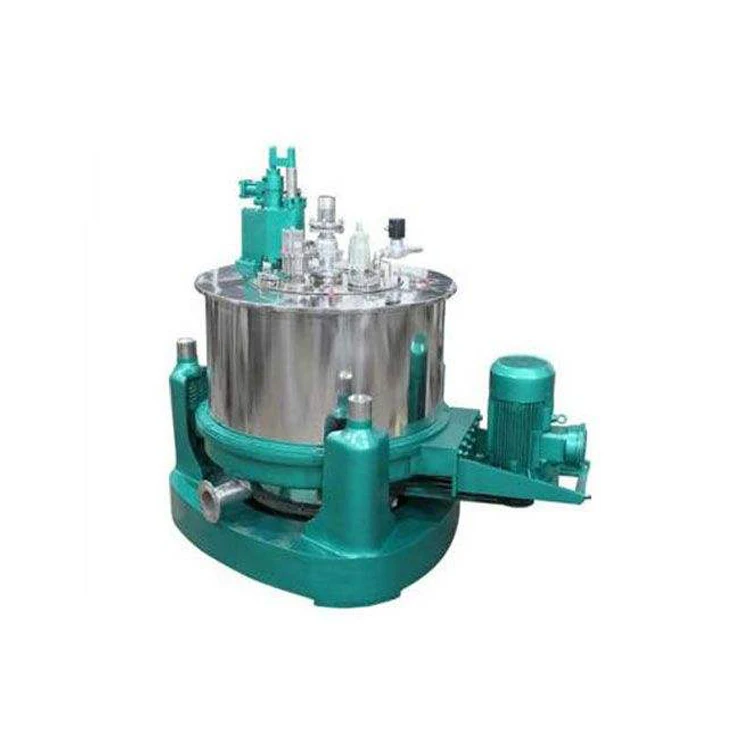

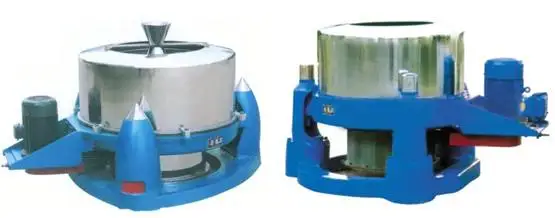

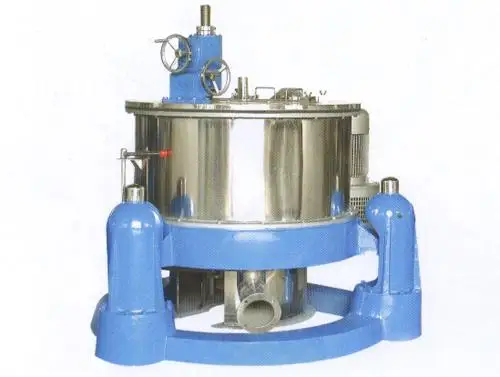

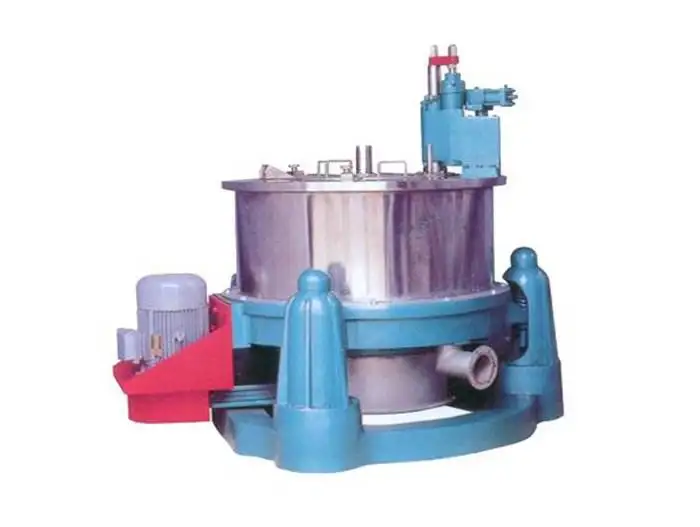

 Tripod bottom discharge centrifuge

Product features and uses

SSC is a kind of plate PSC style sedimentation centrifuge with manual upper discharge and clearance operation. Under the action of centrifugal force field, the heavier solid phase deposits on the drum wall to form a sediment layer, and the light phase forms an inner liquid ring. The clarified liquid phase can be led out of the drum through the skimming tube, and the suspension with a large proportion of solid and liquid is obtained. The particle size is high and the particle size is fine. Widely used in chemical industry, light industry, food, pharmaceutical, metallurgy and other industries.

SGC centrifuge is a three legged style, scraper lower discharge, clearance operation of the settlement equipment, adding a scraper device, unloading more convenient.

Technical Parameters

Model	Drum Dia.(mm)	Drum Volume(L)	Speed (r/min)	Separation factor	Loading Capacity (kgs)	Power (kw)	Weight (kg)	Dimension (mm)
SX(C)-800	800	90	1200	640	120	7.5	1500	1950x1380x1100
SX(C)-1000	1000	155	1000	560	210	11	2000	2150x1550x1050
SX(C)-1250	1250	280	900	566	350	18.5	4000	2550x1980x1600
