LPG centrifugal type atomizer disk Hydrolyzed fish animal protein collagen solution powder spray dryer manufacturer

1. Material Conditions

  Raw material:  Hydrolyzed fish protein solution

  Initial water content:    85%

  Final water content:    ≤3.5%

  Capacity:             38 kg/h

  Liquid Temp:          ambient temperature

2. Technology Conditions

  Atomizing type: centrifugal

  The way of the drops and hot air contact: co-current flow

  Heat source and the way of heating: LPG Natural gas hot air furnace

  Inlet temperature:    200℃

  Outlet temperature:  About 80℃

  Product  collecting: Main tower  + cyclone

3. Atmosphere Conditions

  Atmospheric pressure:     101.325KPa

  Ambient Temp:     20℃

  Relative Humidity:      80%

4. Public Facilities

  4.1 Electric power

     Electric power: 380V, 50HZ, 3phase,

     Power:   45 Kw

  4.2 .Compressed air

     Pressure: 0.6 MPa

     Consumption: 0.6m³ /min

  4.3  Water

     Consumption: for cleaning

  4.4 Field to be installed (L× W× H)m

     Length×Width×Height   8×8×11

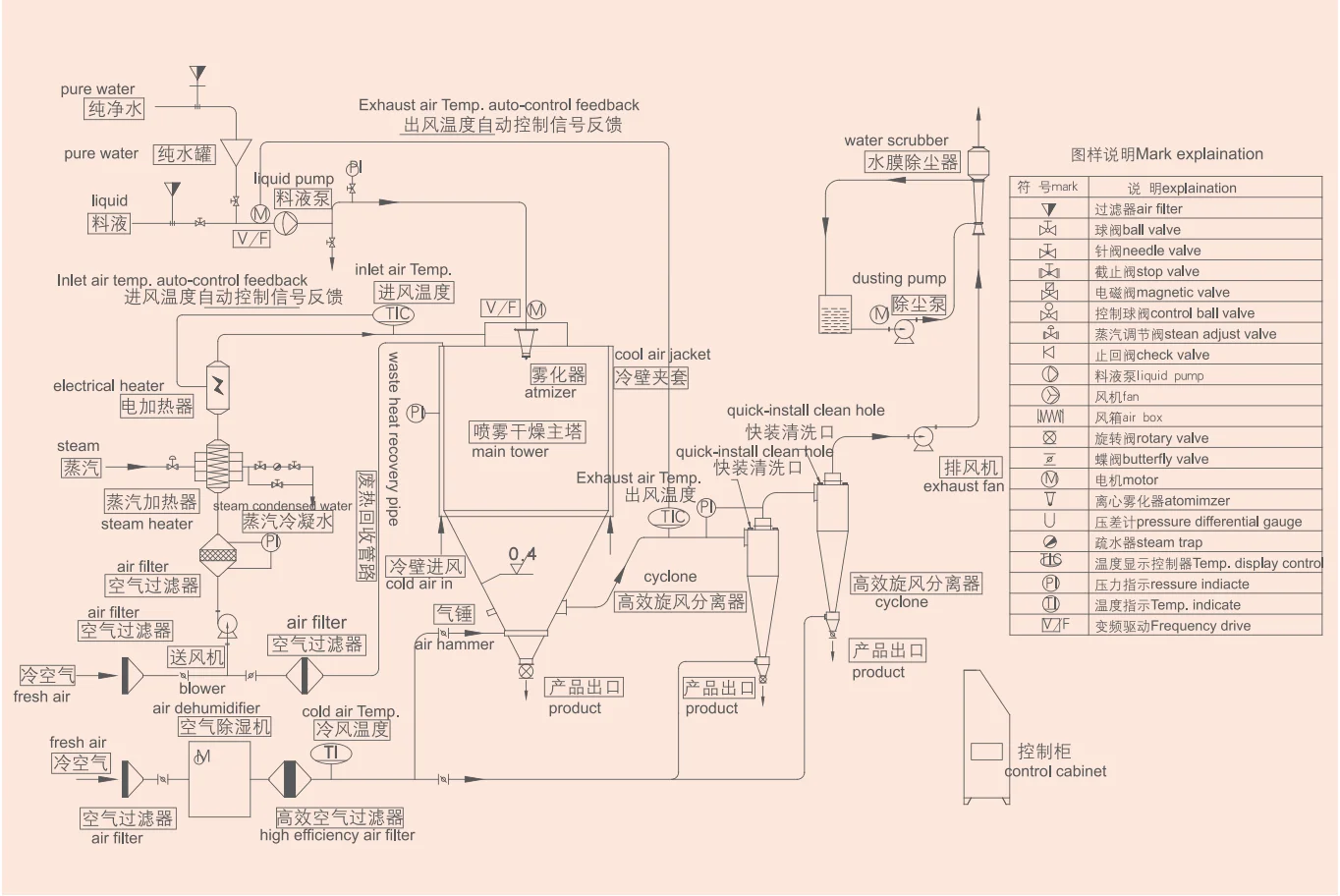

Ⅱ. System description

Primary Model Selection:

LPG-250 Model Spray Dryer (38kg/h capacity)

  Heating way:LPG Natural Gas Hot Air Furnace

  Dust collecting system:cyclone

  Circulatory system: Blast & suction fan opened

  Air - filtering system: Initial, Middle level air filter

  Feed System: High-pressure pump adjustable feeding (suggest 2 sets, one for reservation after commission)

  Controlling  system:  Digital  meter  show  the  temperature, pressure, differential pressure, Touch screen show the working flow, PLC controlling parameters etc.

Technical Parameters
