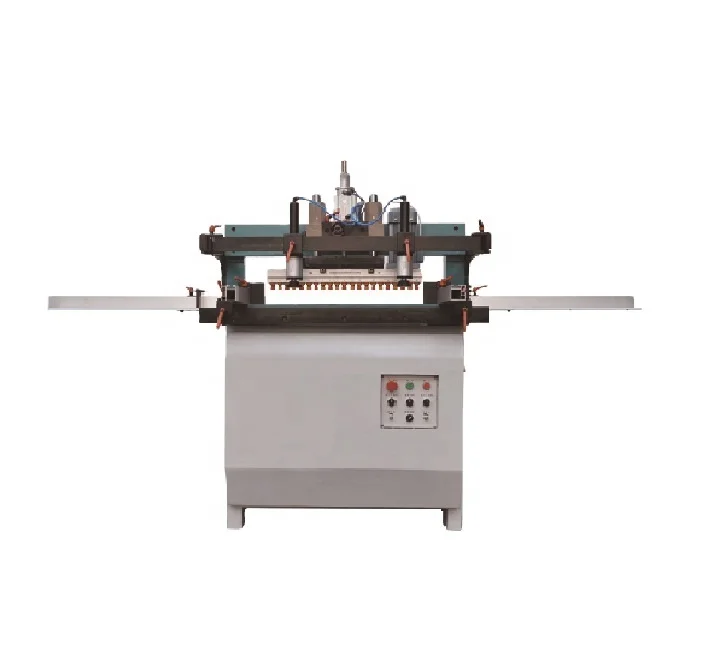

Woodworking double row multiple drilling machine

Share on (1600083607288):


Price:$2,600.00

Quantity:


Product Overview

Description


Wood horizontal drilling machine for panel furniture

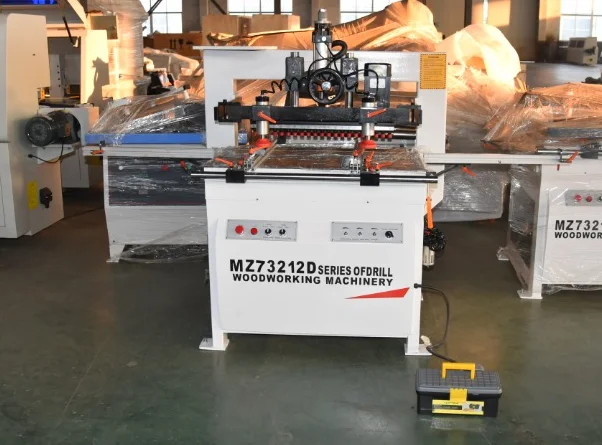

MZ73212DDouble rows woodworking drilling machine for panel furniture





Features:
1.Tablet made of high quality cast iron, to ensure the stability of the machine
Vertical box,horizontal seat,left and right panels,motor base and other key parts are also made of cast iron.
2.Body framework, solid and beautiful;
3.Horizontal drilling can be 0-90 ° free rotation, and can be hover at any angle to meet the needs of special angle drilling;

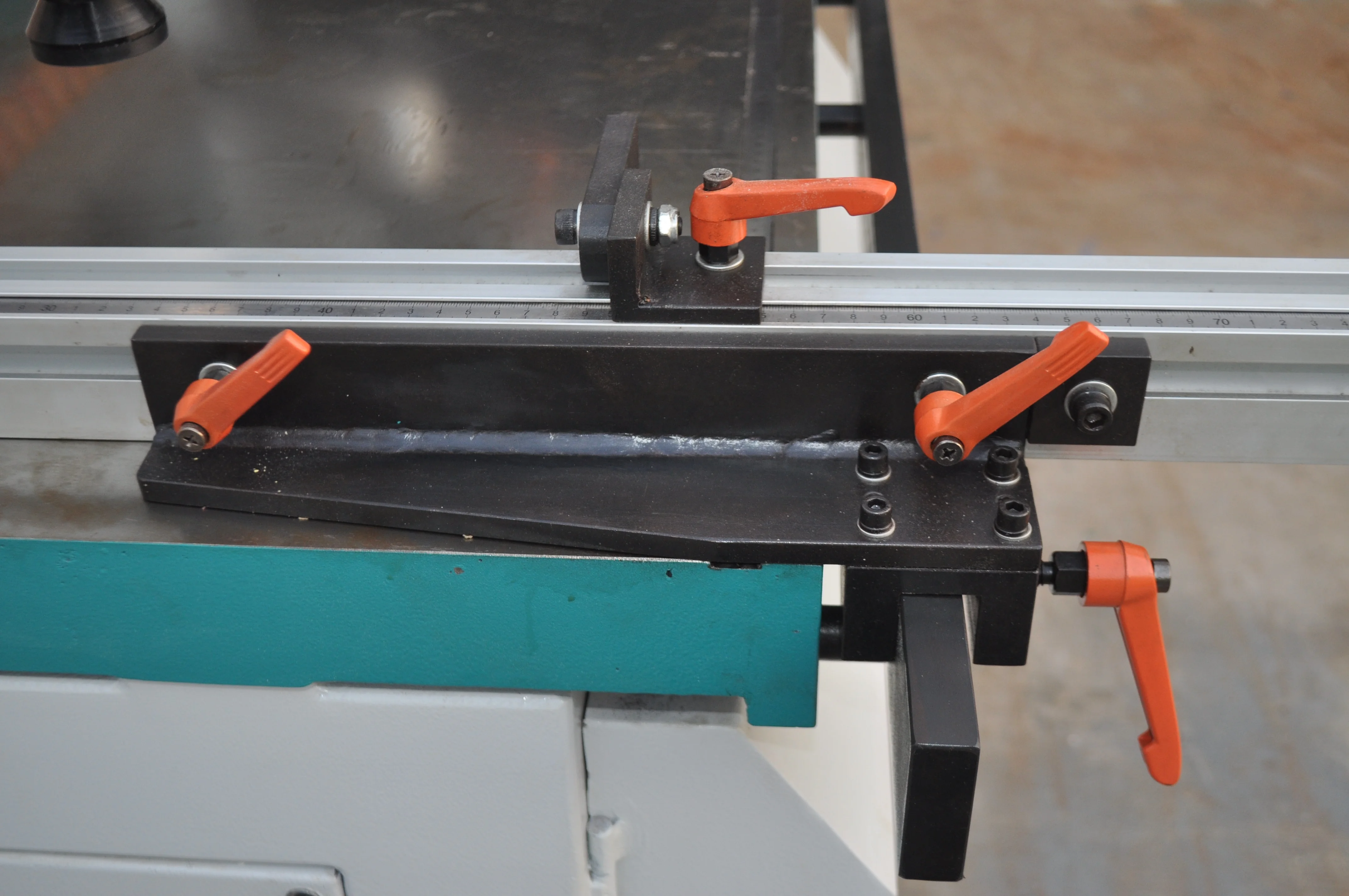

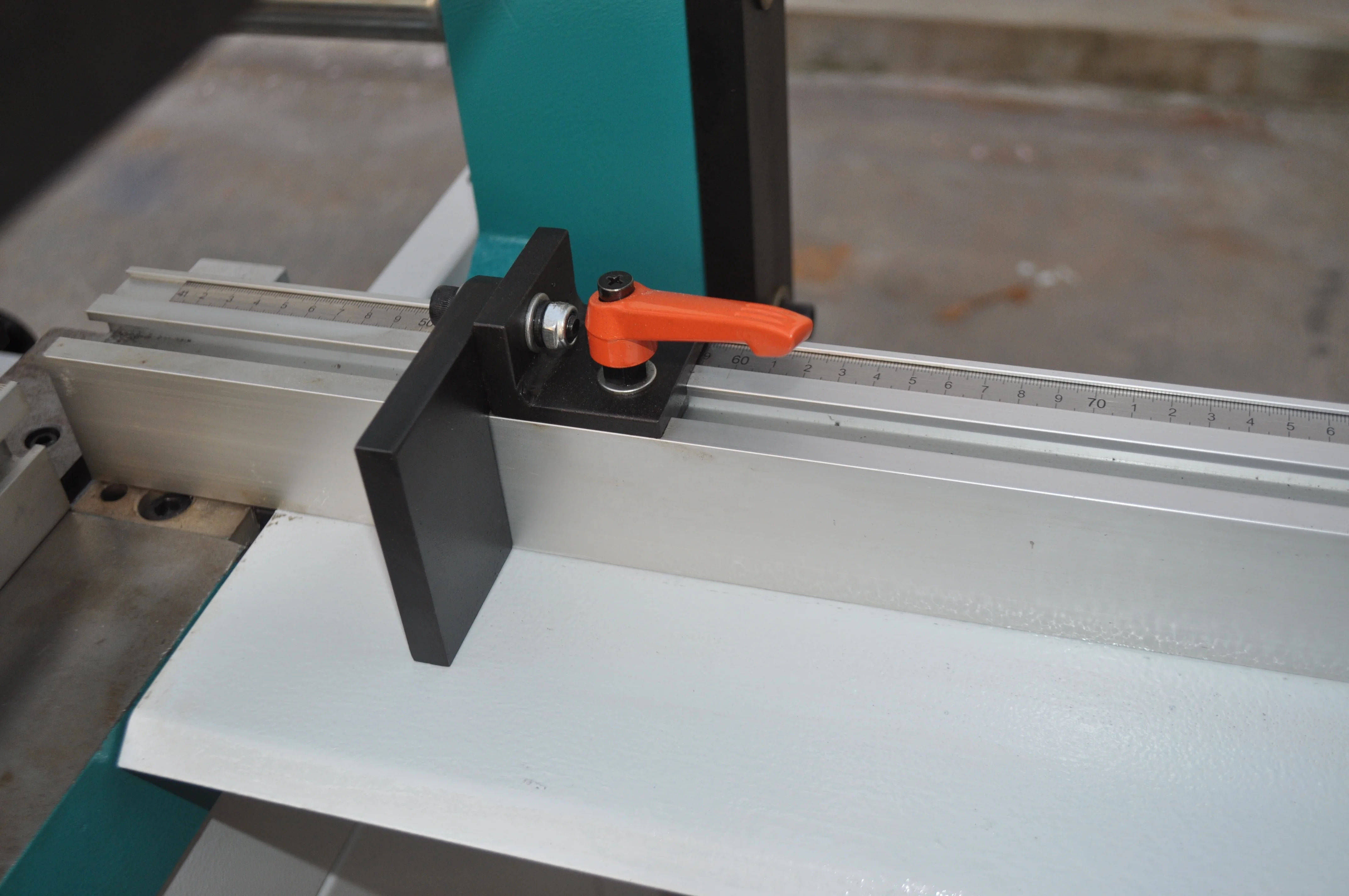

4.Widened machine body, lengthened rip fence, to position the plate horizontally and vertically
5.Key components used in Taiwan, South Korea and other well-known brands at home and abroad to ensure that the machine's life.
6.By adopting high precision guide rail and slider imported from Taiwan,drill row from HongKong, Omron electronic parts,PLC microcomputer control system from LG,making machine more stable and easier to operate.
7.All models can be equipped with electronic digital device from Italy






Technical specification:






















































Product Name


Double-Row Multiple Drilling machine


Number of spindles


21 * 2


Center distance between spindles


32mm


Maximum dimensions of piece to be drilled


2500*920*70mm


Max Drill Diameter


35mm


Max Working Depth


60mm


Vertical Spindle Heads


130-3500mm


Spindle Speed


2840 r/min


Motor Power


3kw


Air Pressure


0.6-0.8Mpa


Weight


650KG


Packing Size


1100*1300*1700mm
