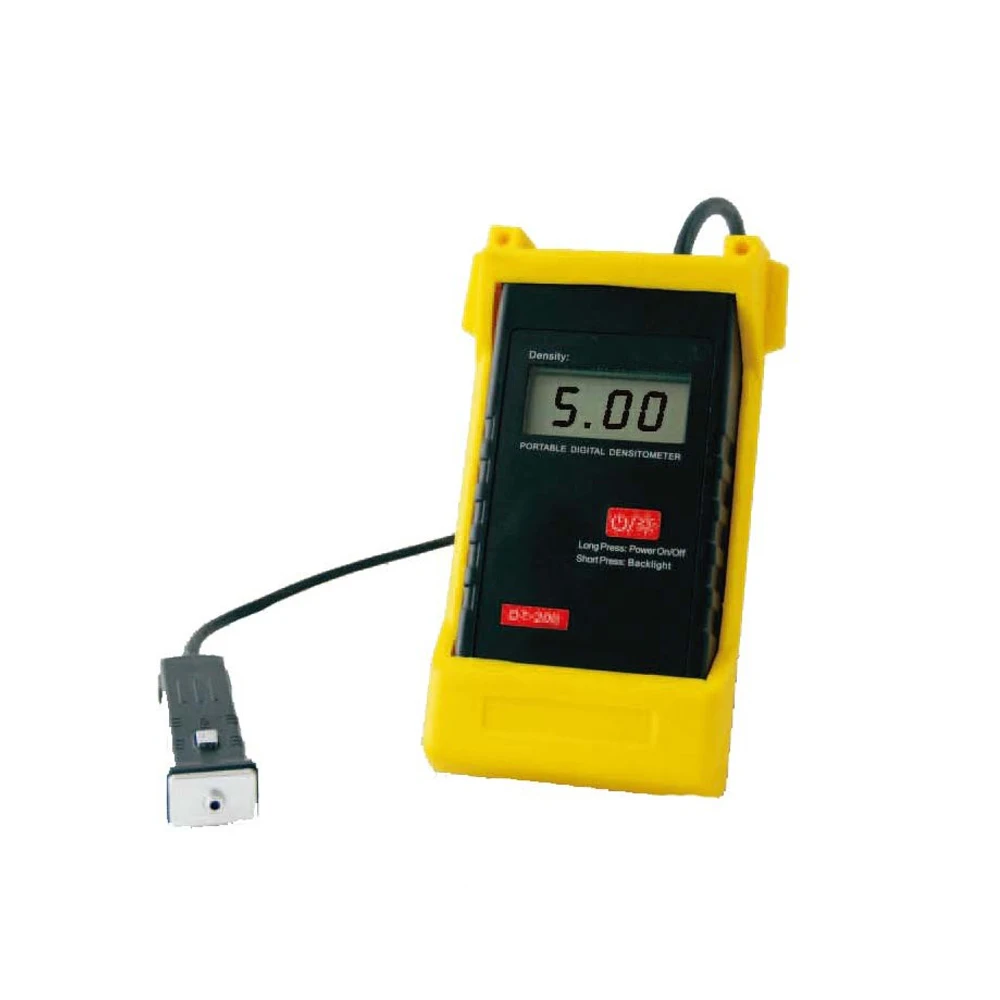

Portable Separate Probe Digital Black and White Density Meter DT-200 X-ray Film Densitometer

Product Application

DT-200 is a portable separable probe density meter with external light source. Its unique design and measurement method make it possible to measure the blackness of large size films such as 14X17 inches. And its ultra-high portability is very suitable for mobile workplaces.
DT-200 has innovatively established engineering mode, allowing users to calibrate themselves. Because the color temperature of the film viewers on the market is different, and the color of the film base used by the major film manufacturers is also different. This innovative design can make up for the congenital defects of previous densitometers, and DT-200 can be adapted to all film viewers and film types.

Characteristic:

* Ultra-portable, separate probe, more convenient to use
* High precision: ±0.02D, blackness range: 0.00-5.00D
* No warm-up time required
* Engineering mode, convenient for users to calibrate themselves
* Large linear range: 650Cd/m2-320 000 Cd/m2
* 4-digit LCD screen with white backlight and low battery prompt
* Long standby time, can work continuously for 1200 hours
* Rubber cover, anti-drop and durable






Specification


Portable Separate Probe Digital Black and White Density Meter DT-200
Linear brightness range:
650Cd/m2-320 000 Cd/m2 (5000Lux-1000 000Lux)
Blackness range:
 0.00-5.00D*
Light probe size:
Φ3mm
Probe type:
original American silicon diode
Display:
4-digit LCD screen (white backlight)
Accuracy
 ±0.02D
Resolution
0.01D
Repeatability
±0.02D
User calibration range
-0.05D ~ +0.05D
Power supply
two AA/1.5V batteries
Standby time
1200 hours (continuous work, the backlight is not turned on)
Dimensions
170X90X60mm
Weight
260g
