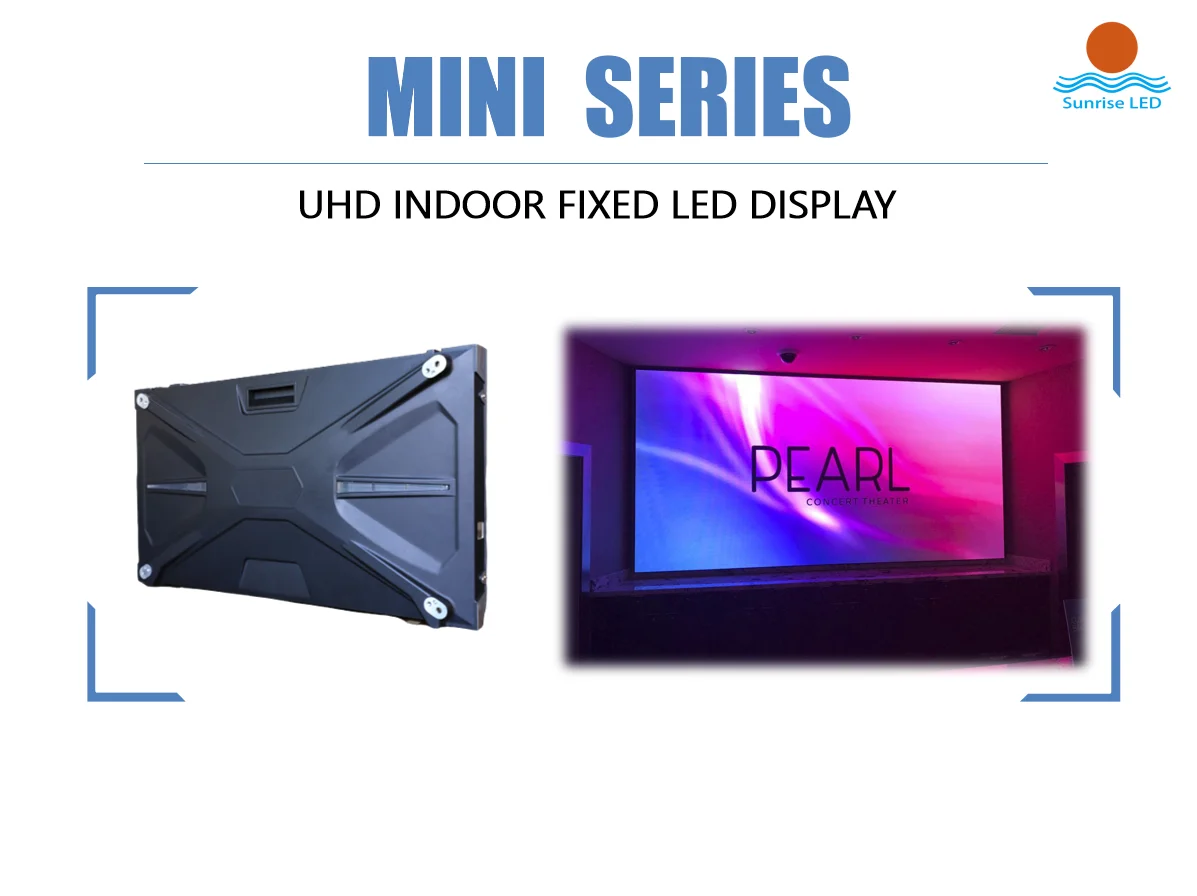

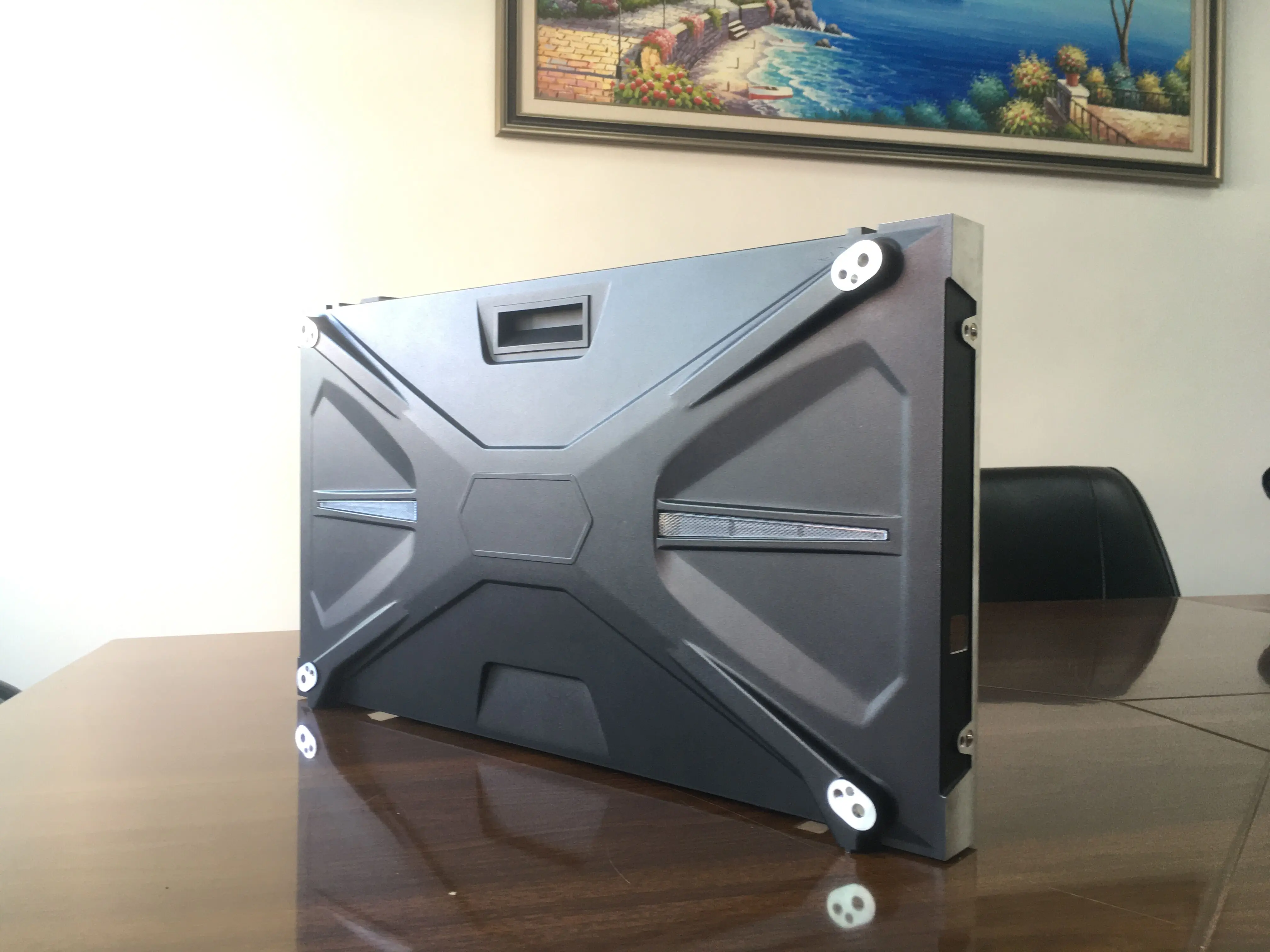

high quality outstanding performance indoor fixed led display uhd led billboard P1.25 P1.56 P1.87 indoor small pitch led signage
- Category: >>>
- Supplier: Shenzhen Sunrise Opto-Electronic Technology Co. Ltd.
Share on (1600083961111):
Product Overview
Description
Product Description

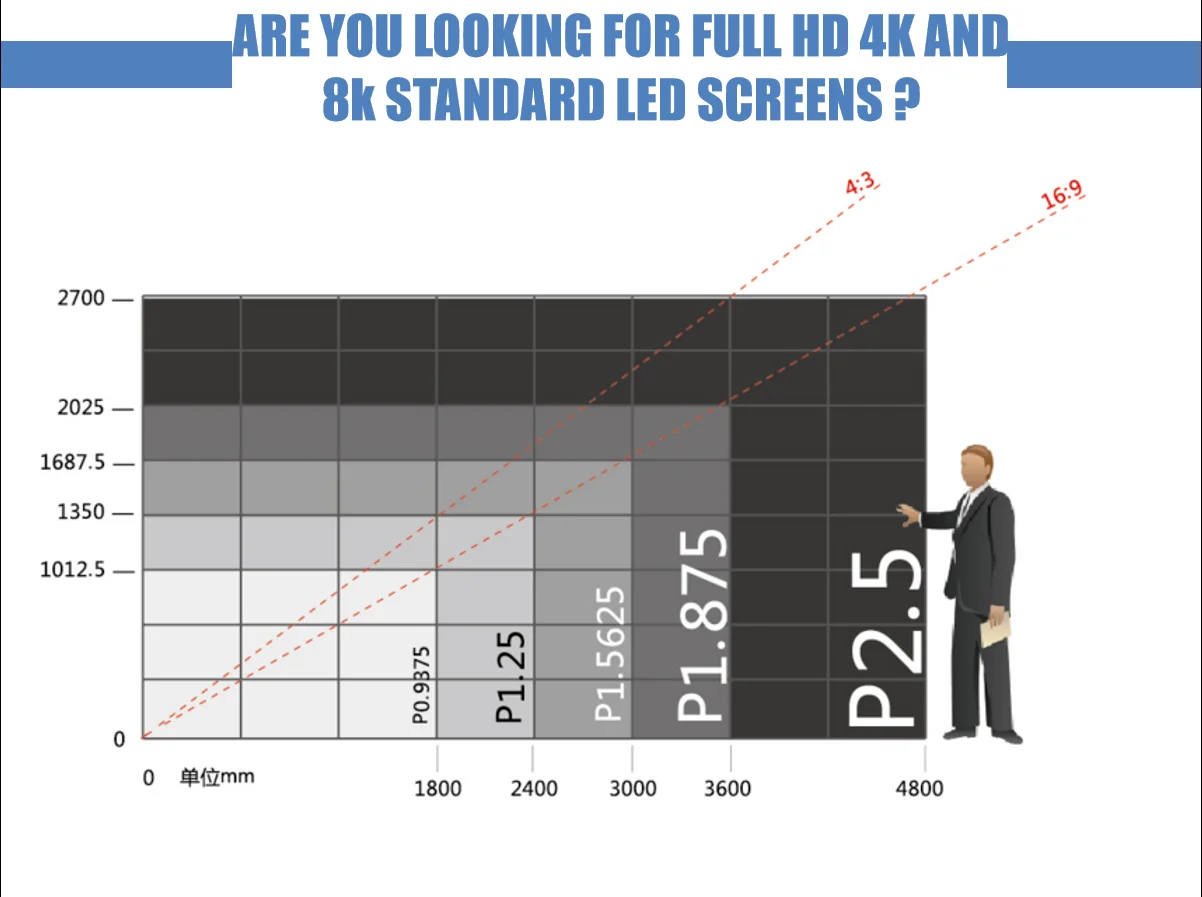

Model No. | MINI-I1.25 | MINI-I1.56 | MINI-I1.875 | ||

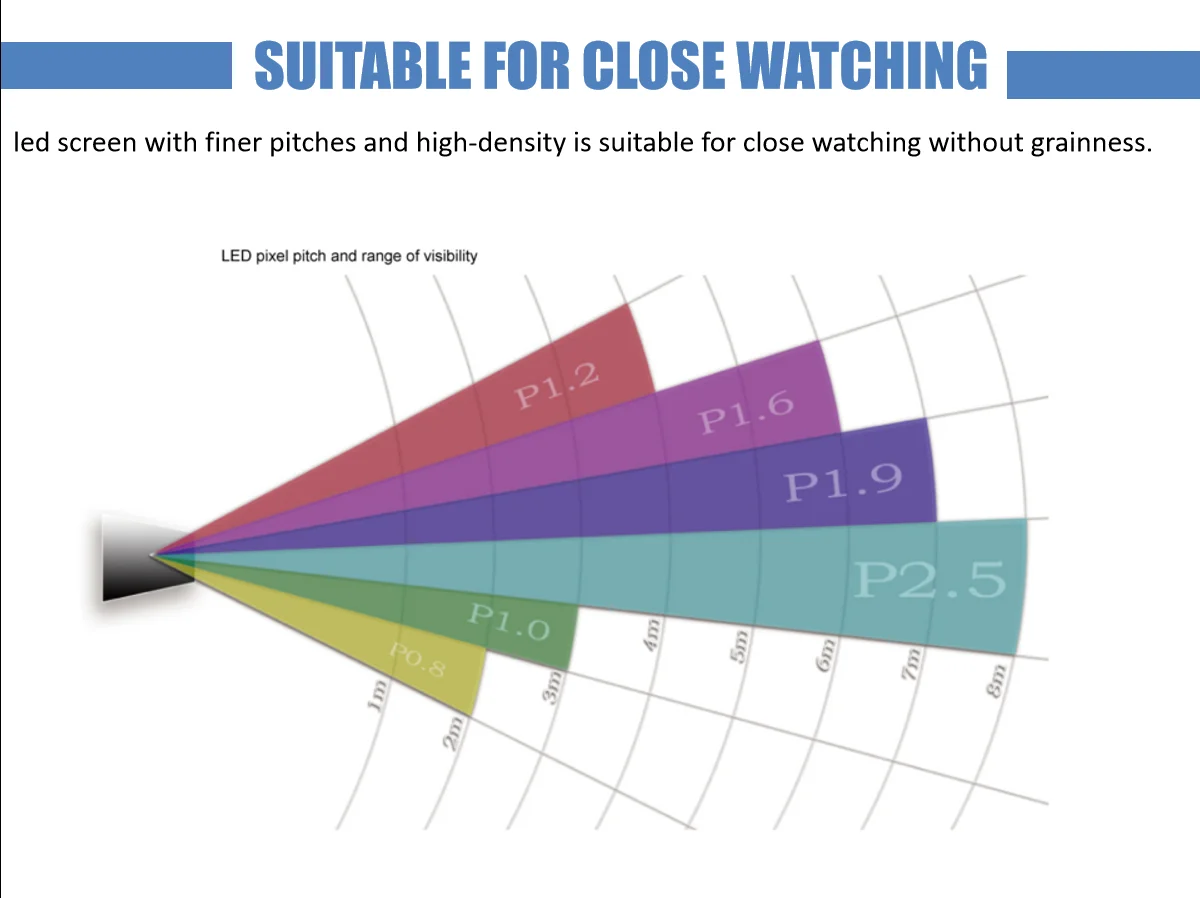

Pixel pitch | 1.25mm | 1.56mm | 1.875mm | ||
LED Type | SMD 1010 | SMD 1010 | SMD 1010 | ||
Pixel Density | 640000 pixel/㎡ | 1137778 pixel/㎡ | 640000 pixel/㎡ | ||
Scan | 1/60scan | 1/48 scan | 1/40 scan | ||

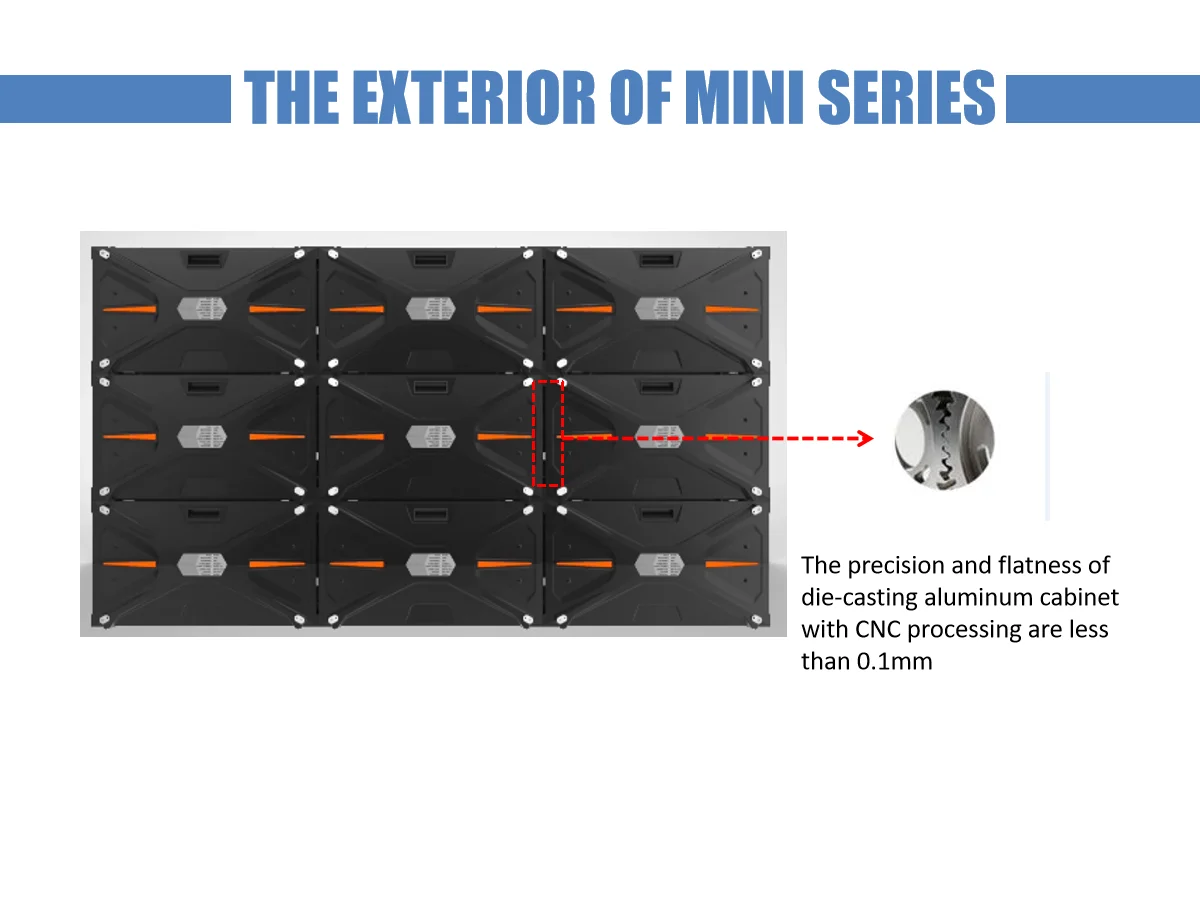

Cabinet Material | Die casting aluminum | Die casting aluminum | |||
Cabinet Dimension (W*H*D) | 600mm×337.5mm×38mm 23.6’’×13.3’’×1.5’’ | ||||
Cabinet Wight | 11kg | 11kg | 11kg | ||

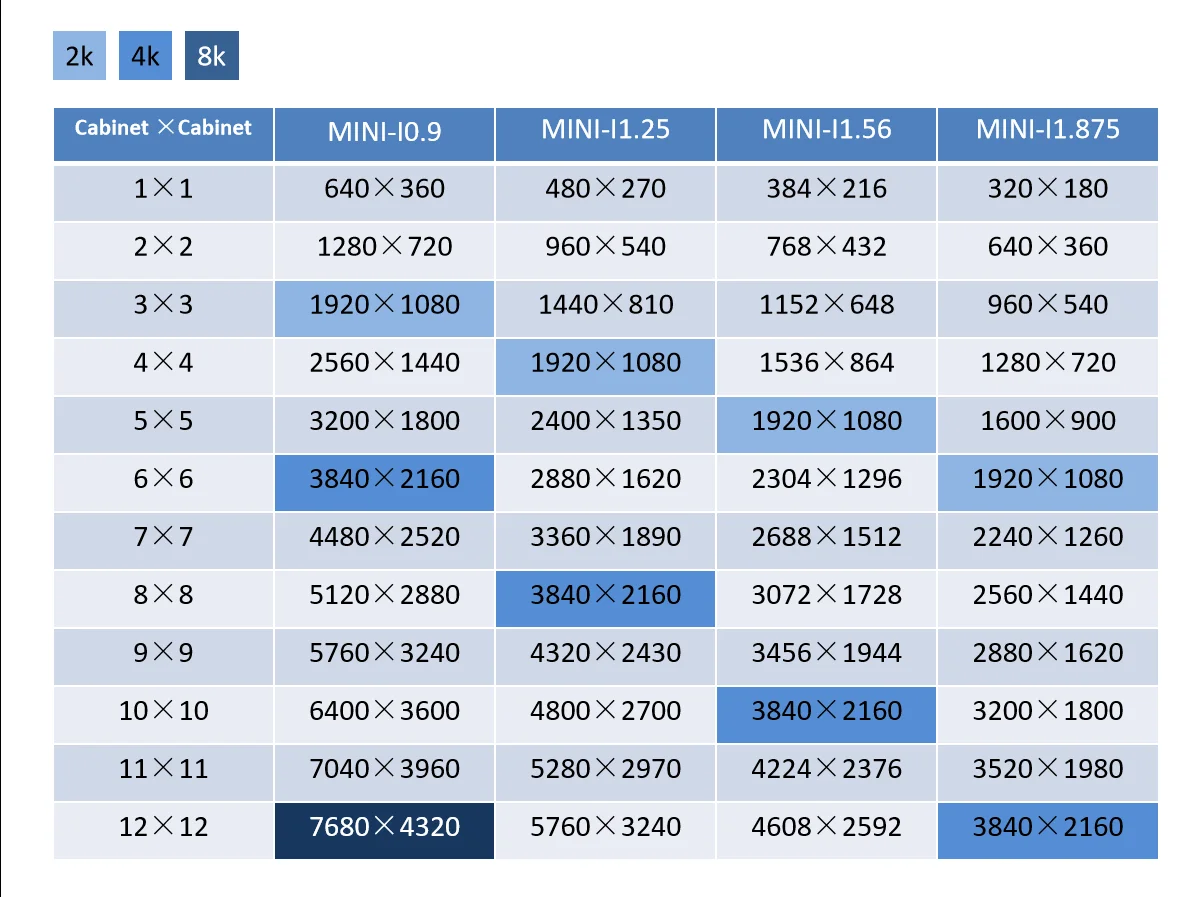

Cabinet Resolution | 480*270 dots | 384*216dots | 320*180dots | ||
Max power Consumption | ≤800w/㎡ | ≤800w/㎡ | ≤800w/㎡ | ||
Average power Consumption | 280w/㎡ | 100~300w/㎡ | |||
Brightness | 200-800cd/㎡ | ||||
Viewing Angle | H: 160° V:160° | H: 140° V:140° | |||
Refresh Rate | 3840hz | ||||
Gray Scale | 16 bits | 16bits | |||
High contrast | 6000:1 | 5000:1 | 5000:1 | ||
IP Rating | IP Rating | IP41 | IP41 | ||
Operating Temperature | Operating Temperature | -10℃~ +60 ℃ | |||
Lifetime | Lifetime | 100,000hrs | |||
FAQ
Q1. Is it your new led cabinet?

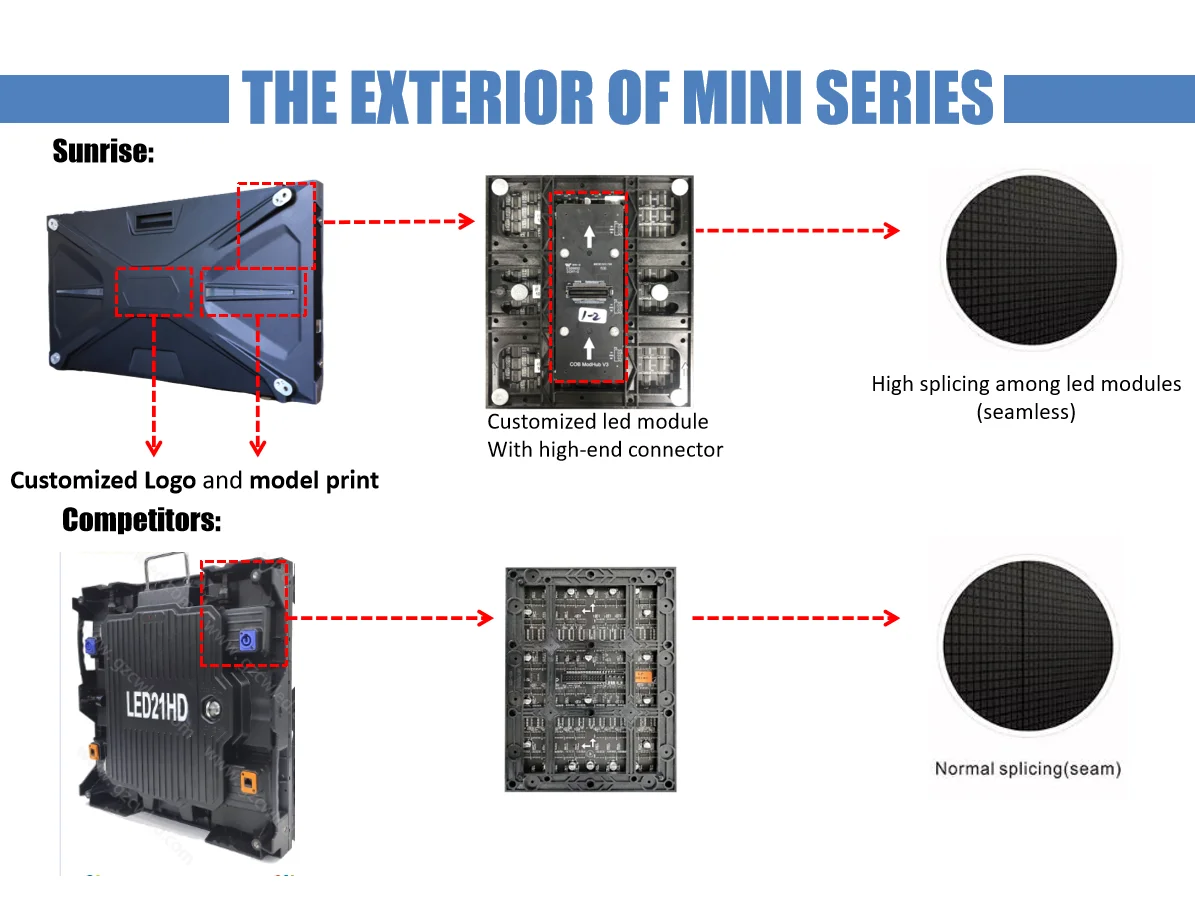

It is our own private led cabinet with unparalleled advantages .
Q2. What's delivery time?
The production can be controlled as fast as you need from 10 days to 25 days.
Q3. Can I just wait for the items at my door and no need to do others?
Yes, items can be delivery to your specific address and you just wait for receiving the items at your door and nothing to do.

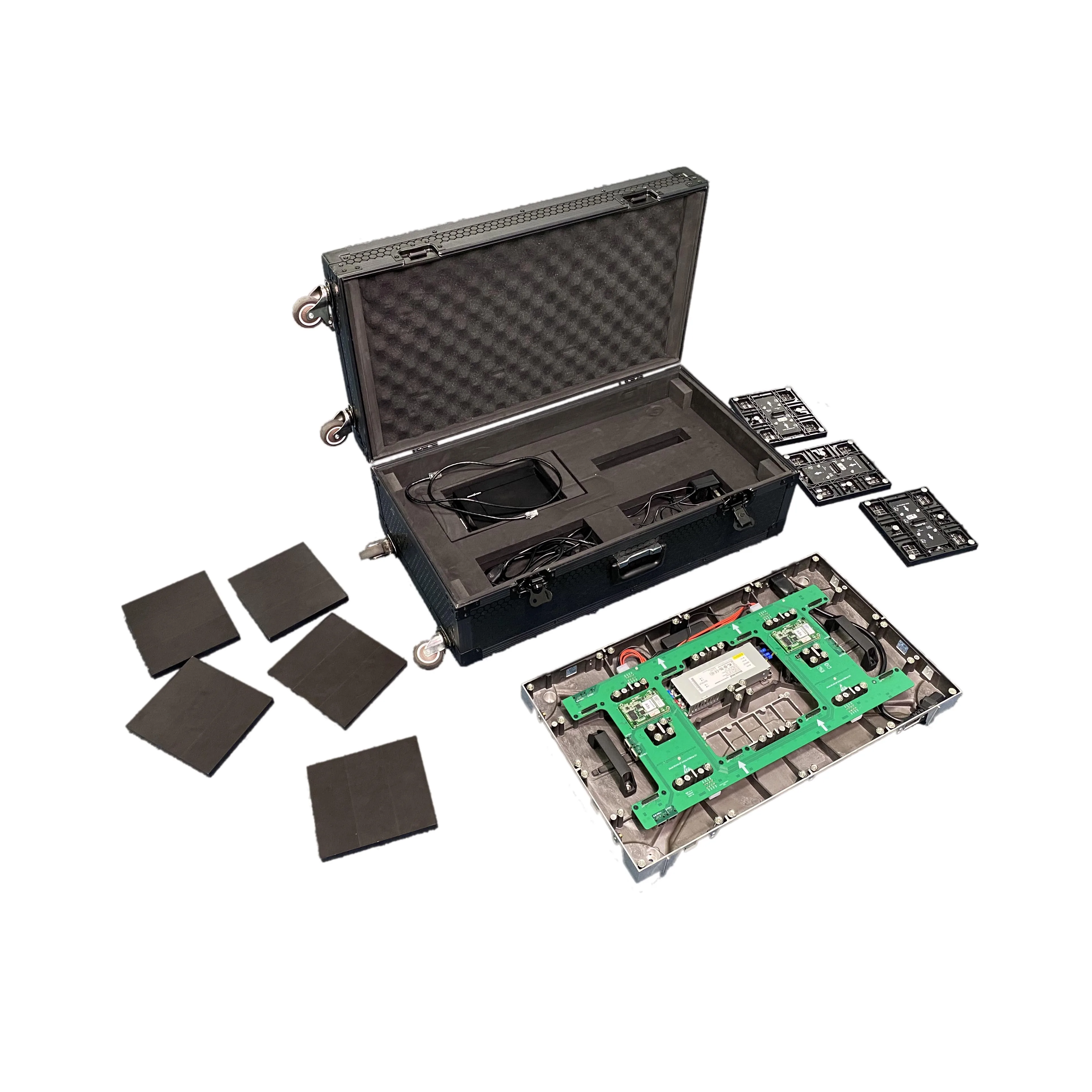

Q4. The display will come to me in parts? and i have to install each part together?
Yes, but it's quite easy. We will send you the instruction and also we can do Teamviewer to help you to adjust the software,
everything.
Q5. What's the function of video processor?
It can transfer the video source to make the screen performance clearer. Sometimes there is HD camera, so that the performance can show themselves on the screen as well. Video processor can control stage lights together.

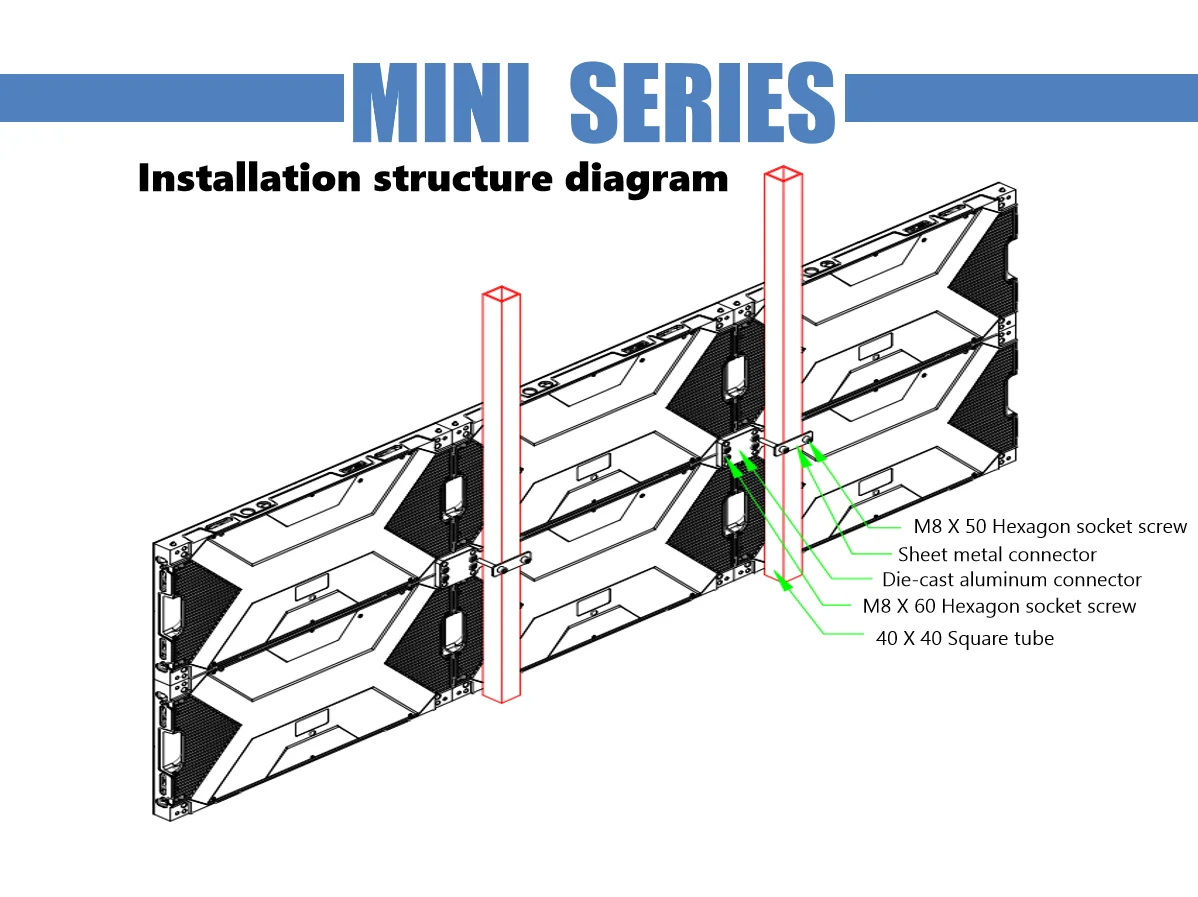

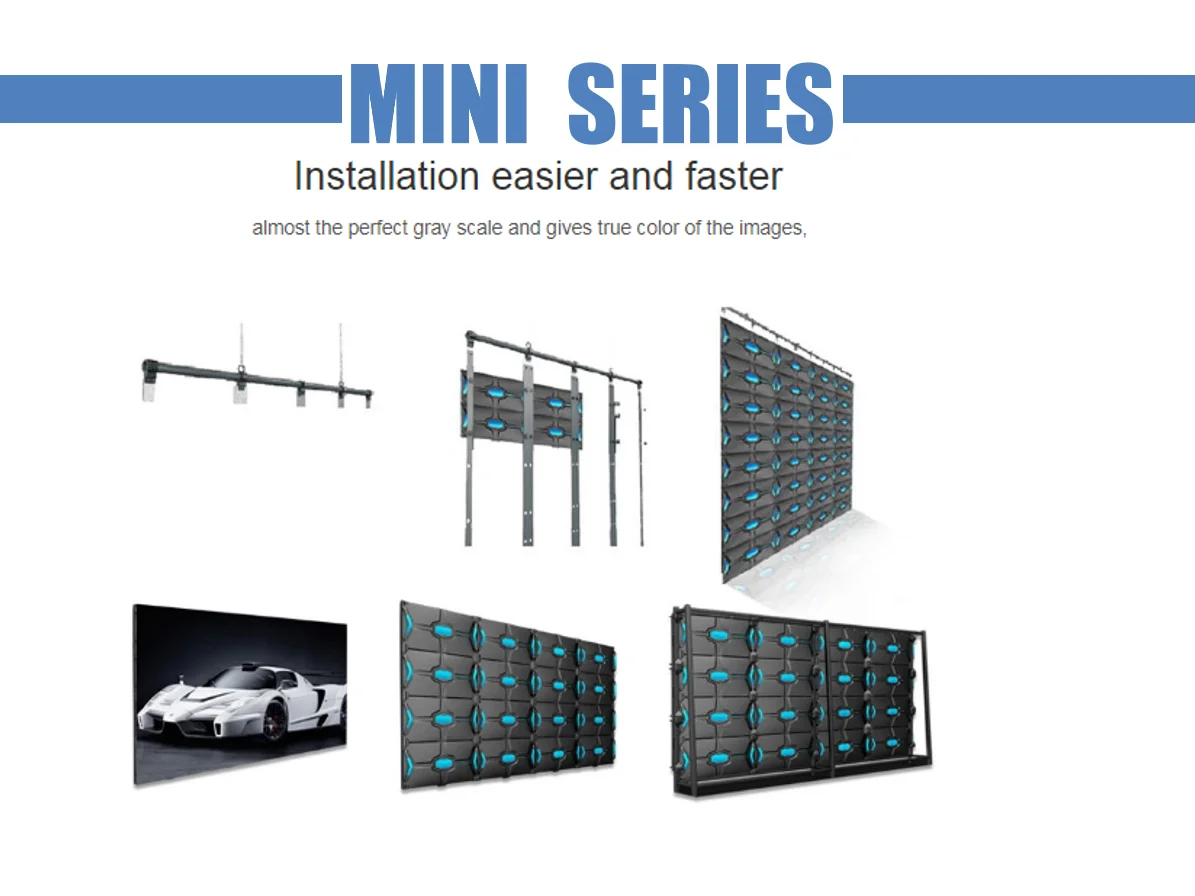

Q6. How can I install the led display?

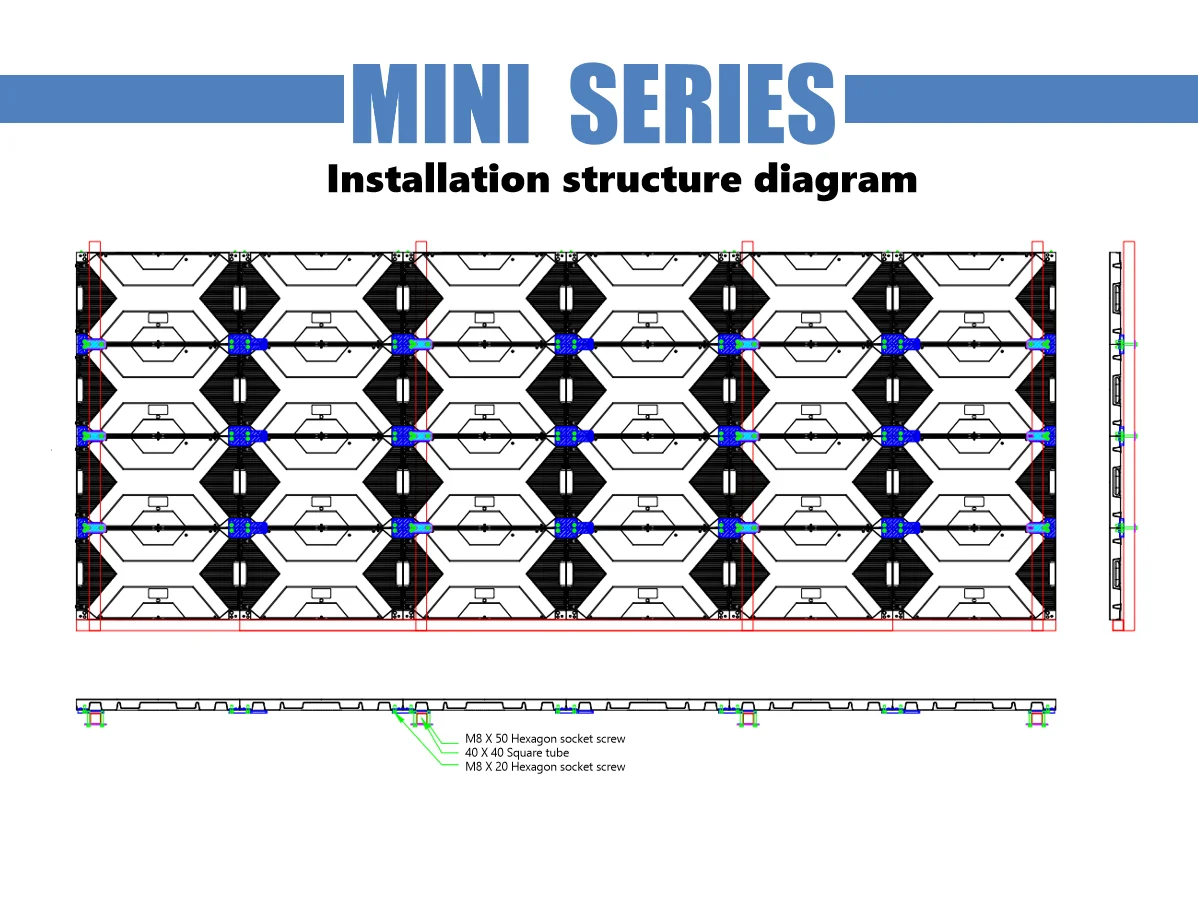

There are two options, one is hanging the display, the other is standing the display. Hanging bars and back stacking will be provided.
It is our own private led cabinet with unparalleled advantages .
Q2. What's delivery time?
The production can be controlled as fast as you need from 10 days to 25 days.
Q3. Can I just wait for the items at my door and no need to do others?
Yes, items can be delivery to your specific address and you just wait for receiving the items at your door and nothing to do.
Q4. The display will come to me in parts? and i have to install each part together?
Yes, but it's quite easy. We will send you the instruction and also we can do Teamviewer to help you to adjust the software,
everything.
Q5. What's the function of video processor?
It can transfer the video source to make the screen performance clearer. Sometimes there is HD camera, so that the performance can show themselves on the screen as well. Video processor can control stage lights together.
Q6. How can I install the led display?
There are two options, one is hanging the display, the other is standing the display. Hanging bars and back stacking will be provided.
