Sheet Metal V-grooving machine for Hotel and restaurant detailing
US $29800-$31000

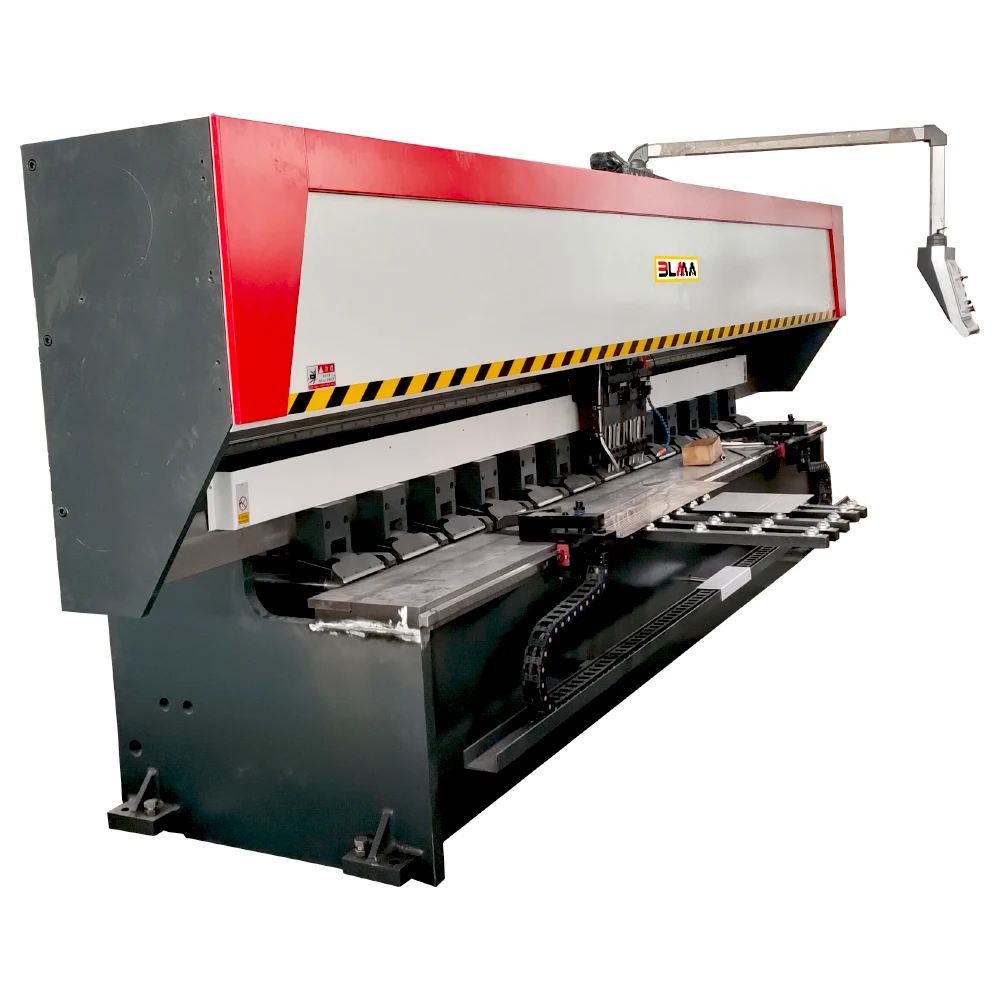

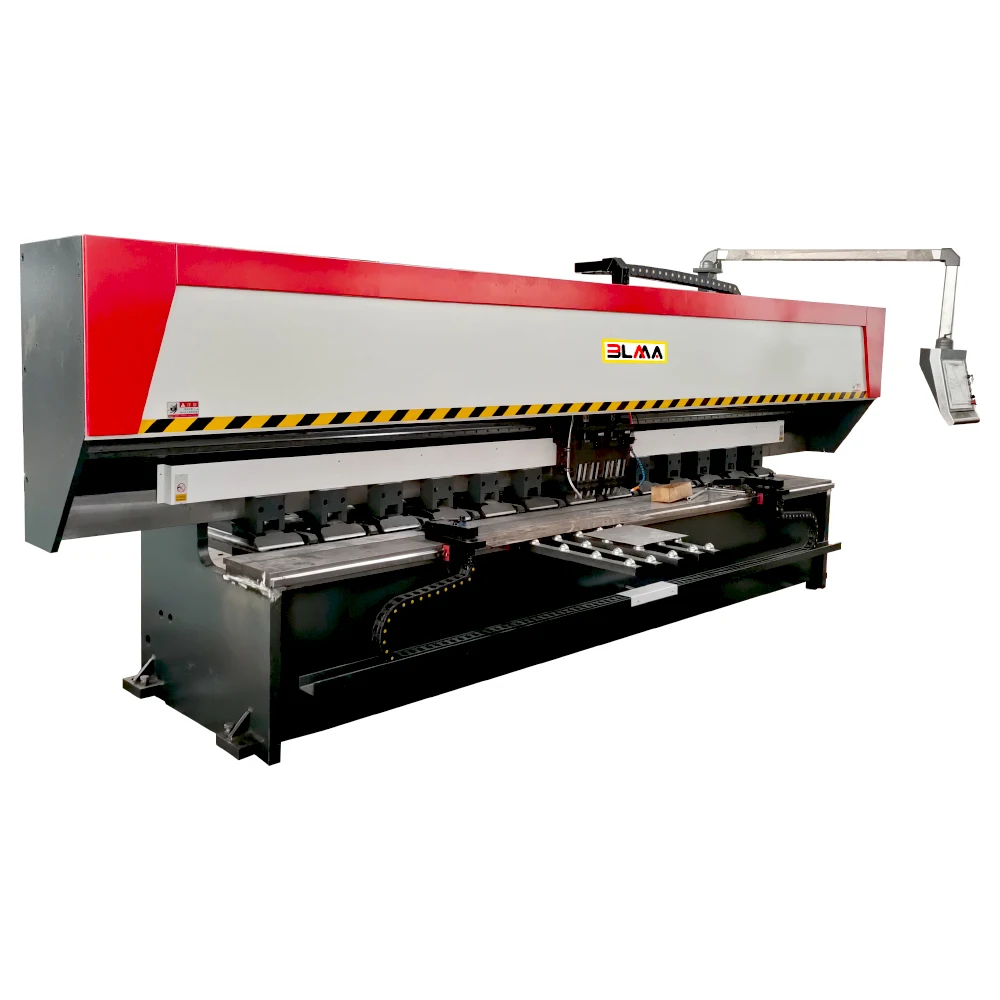

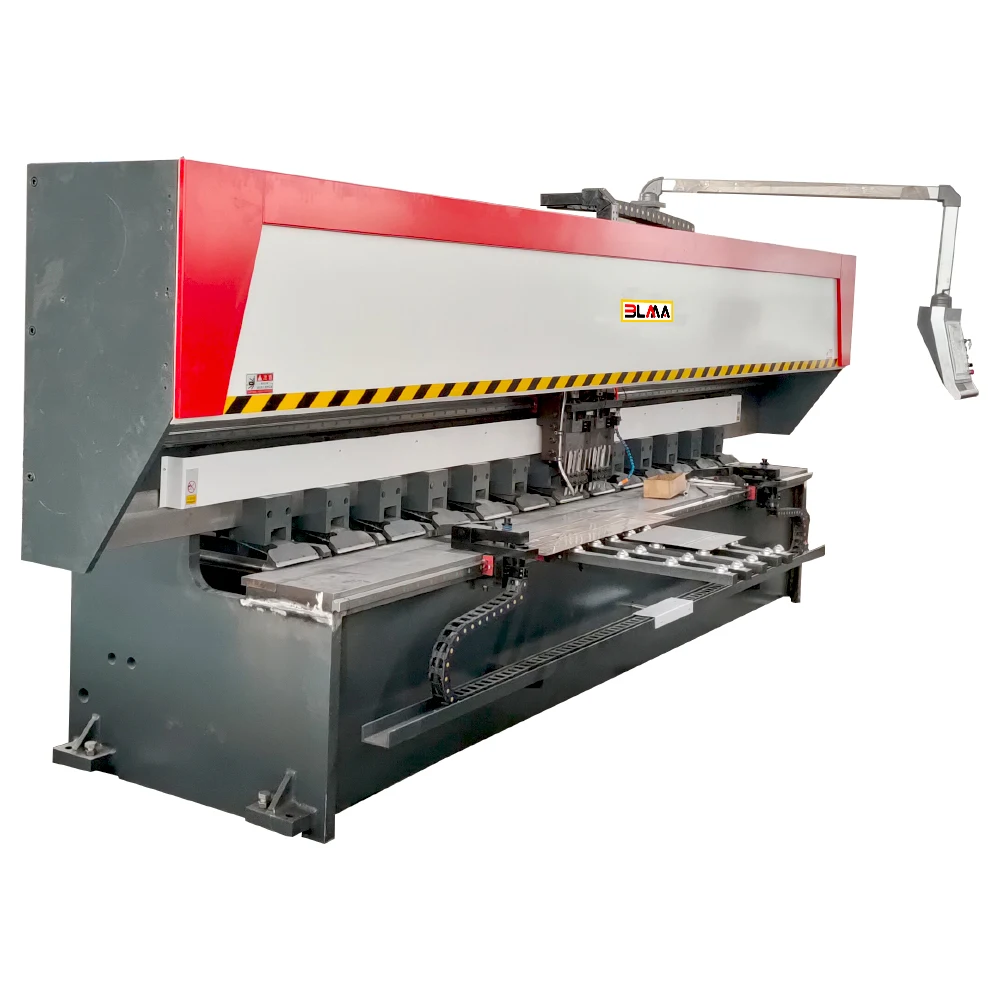

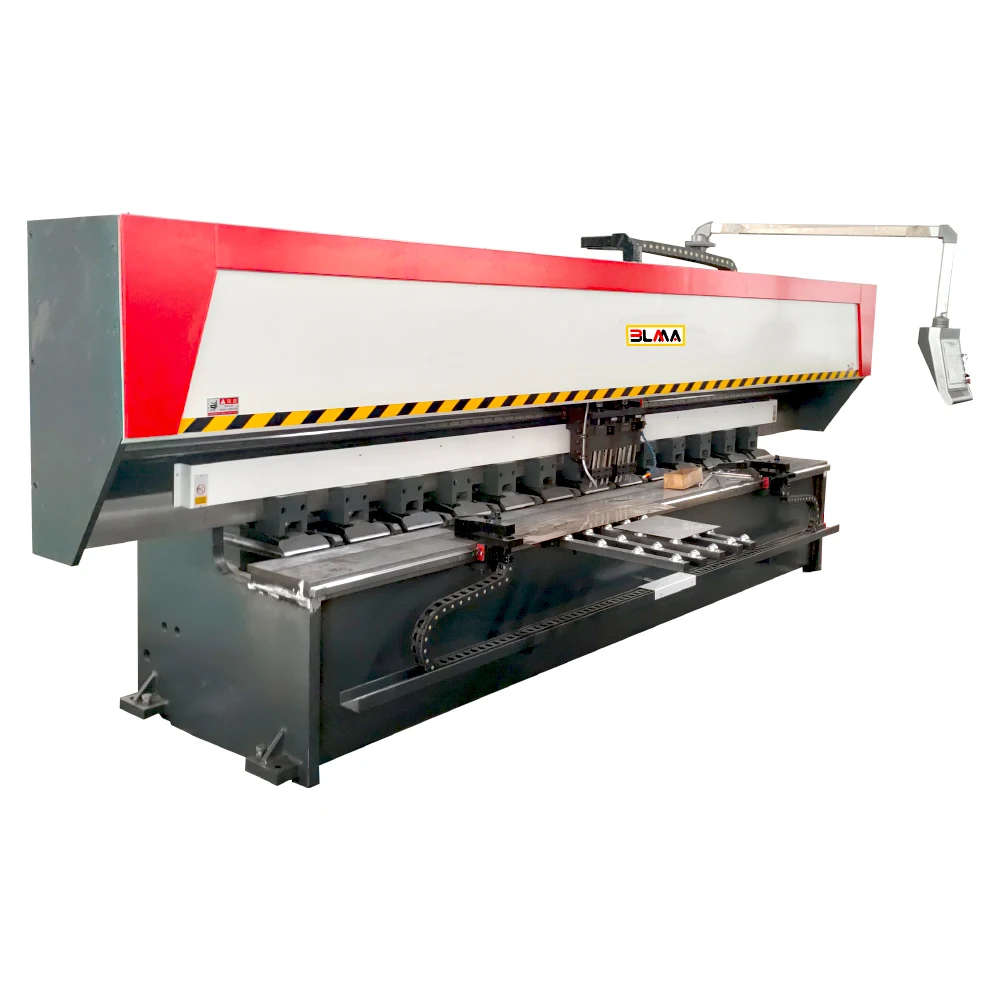

V groover machine broaching aluminum industrial metal sheet vertical plate cnc v groove cutter making machine
- Category: CNC Grooving Machine >>>
- Supplier: Maanshan Blma Technology Co. Ltd.
Share on (1600084401484):
Product Overview
Description
Product Description

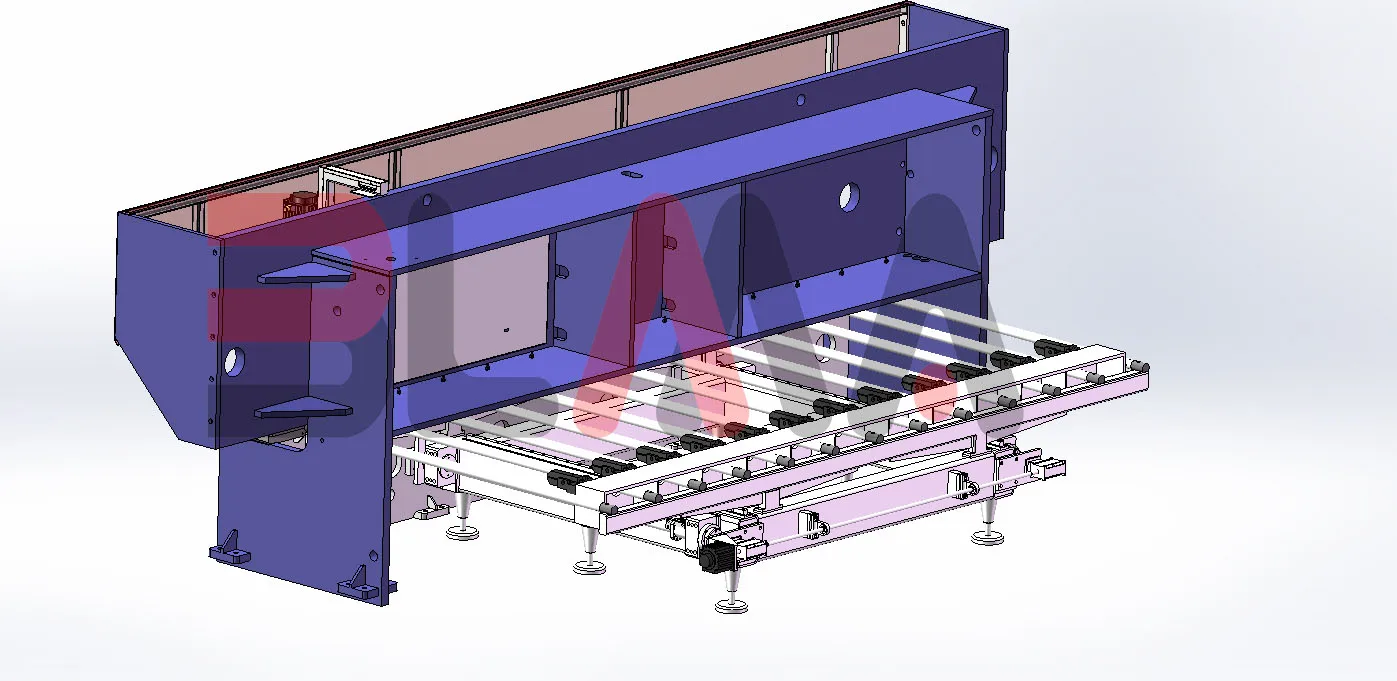

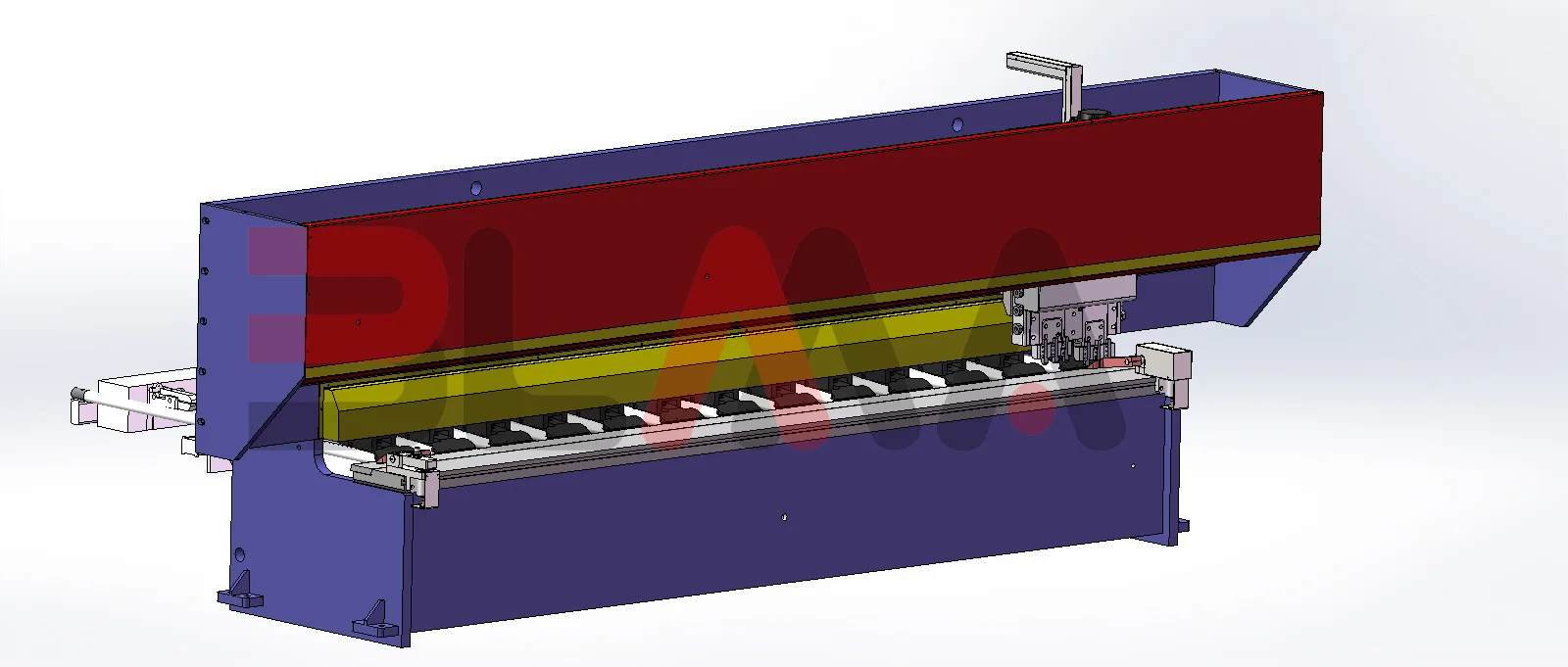

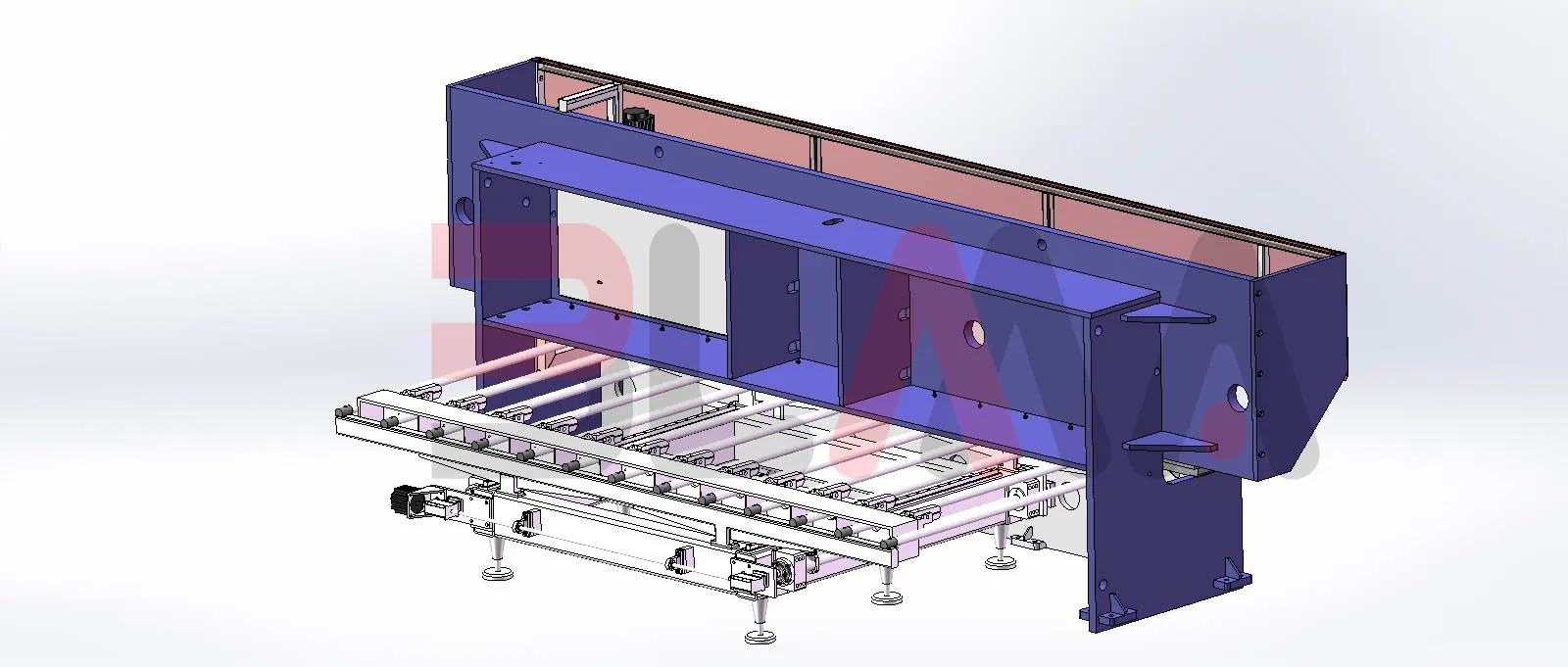

1. The fuselage adopts integral welding structure, which improve the stability of the whole machine. The deformation of the worktable and the cross beam of the tool holder is controlled in the optimum range through the finite element deisgn, which not only ensures the chip accuracy, but also makes the structural parts control within the reasonable weight.
2. The table panel adopts adjustable structure and surface quencing treatment, which improves chip accuracy and service life.
3. Internationalized Schneider electrical components, silver transmission and sliding compnents increase the performance-price ratio of the whole machine.
Product Paramenters
Model | BLMA-1500X4000 |
Max grooving width | 20-1500mm |
Max grooving length | 600-4000mm |
Grooving thickness range | 0.6~ 4mm |
Minimum grooving width to the side | 14mm |
X Axis moving speed | ≤100m/min |
Y Axis moving speed | ≤30m/min |
Z1 Z2 moving speed | ≤10m/min |
X Axis motor power | 5.5Kw |
Y1/Y2 Axis Servo motor power | 2.6Kw |
Z Axis Servo motor power | 0.75Kwx2 |
Y and Z Axis locating precision | ±0.020 |
Voltage | 3PHS 380V 13KVA |
Hydraulic pressure | 8MPa |

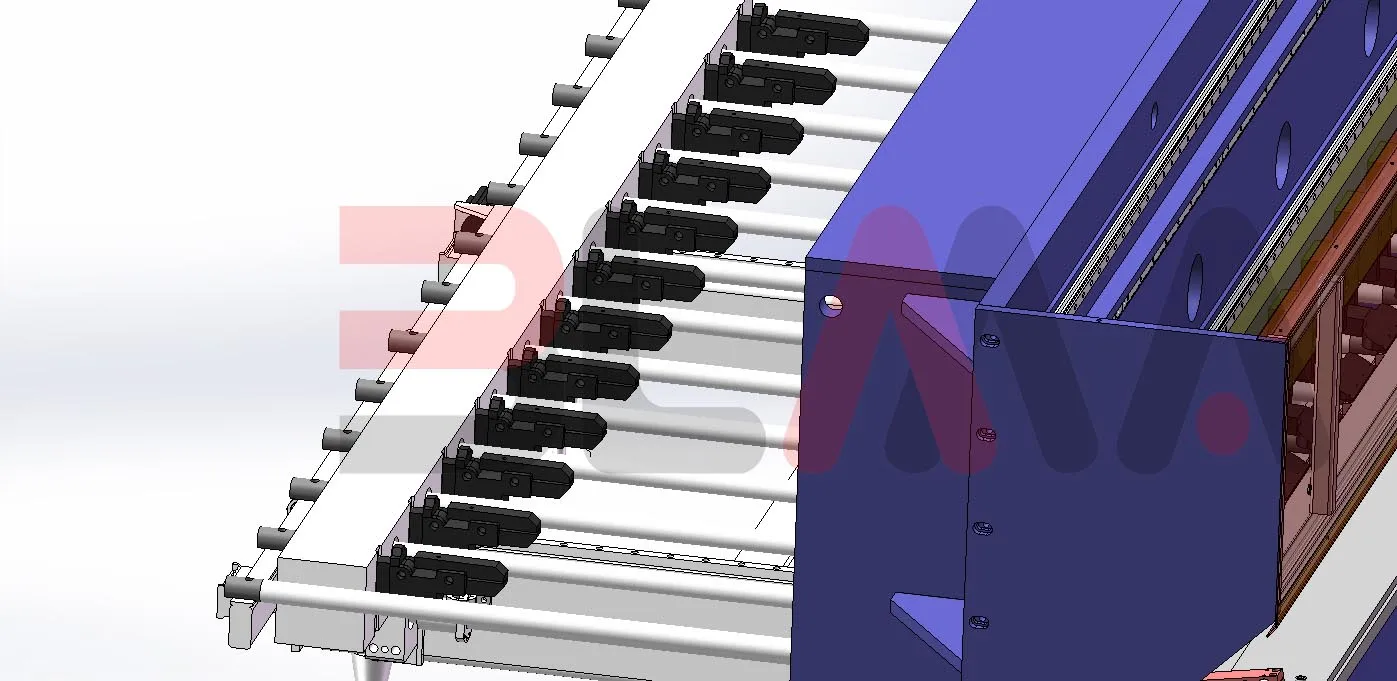

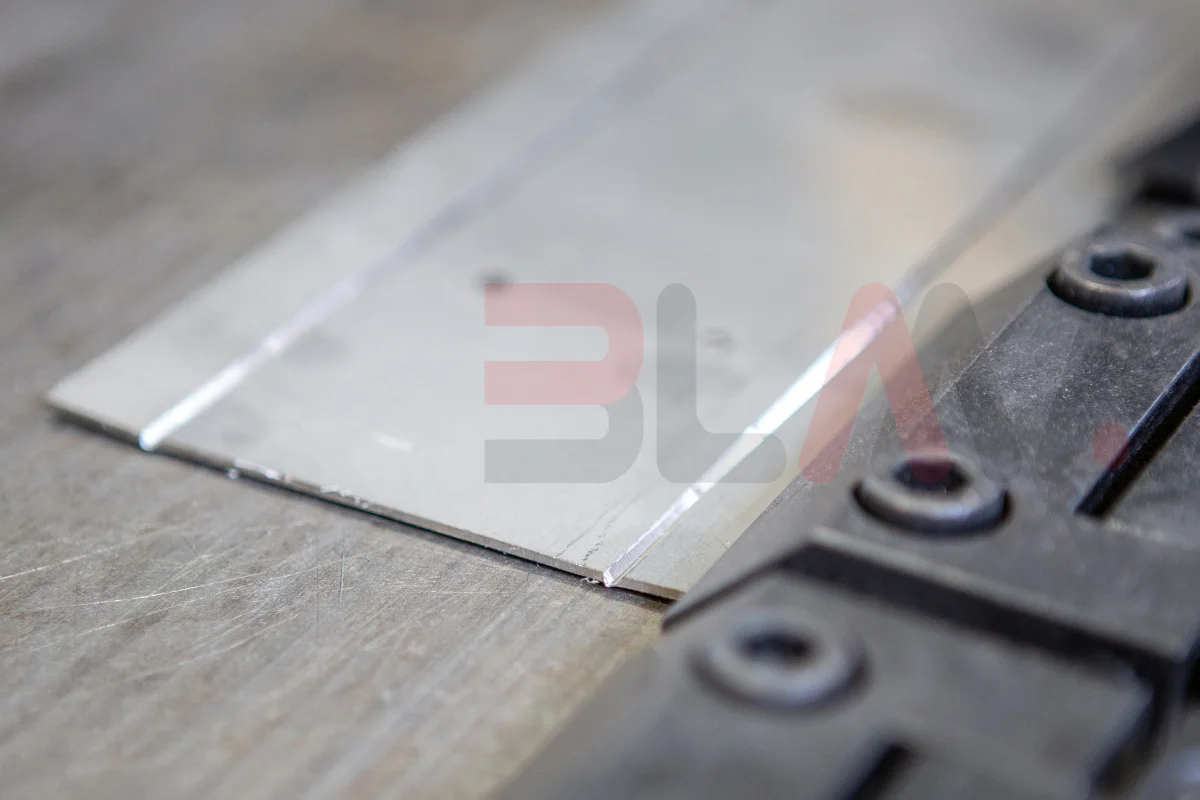

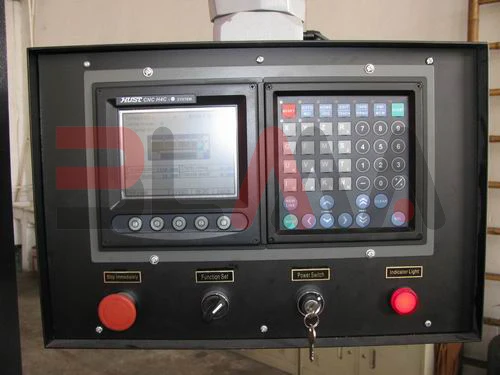

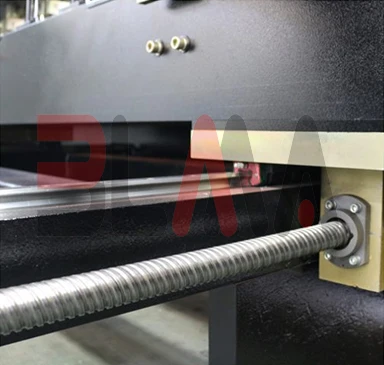

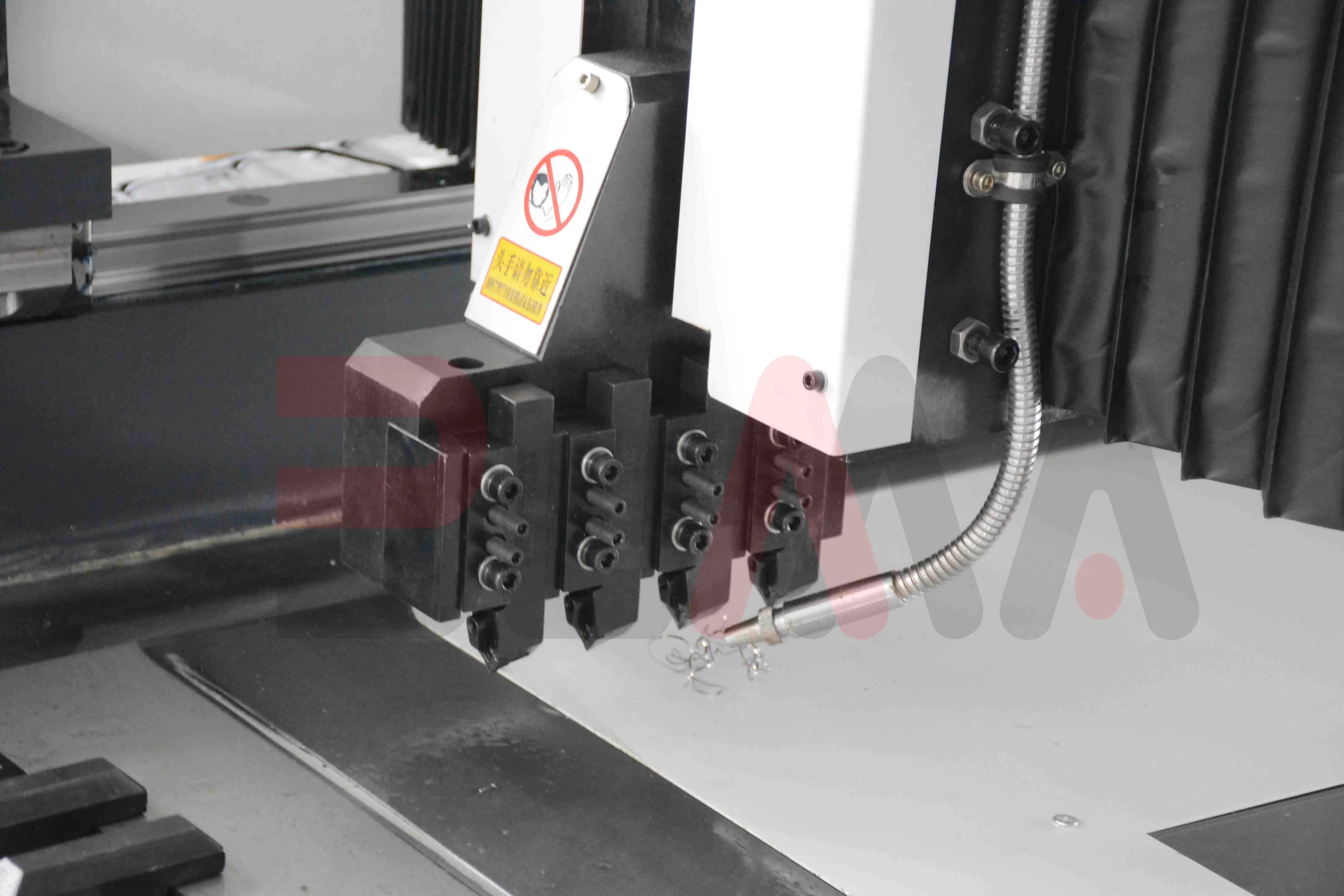

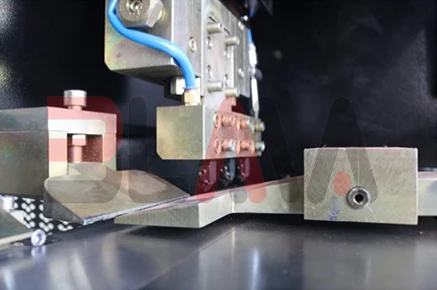

Details Images
Our Company
Maanshan BLMA Technology Co.,Ltd is a leading manufacturer & exporter of pipe and sheet metal processing machines, such as shearing machine, press brake, rolling machine, laser cutting machine, power punching machine, ironworker and pipe bending machine. We undertake to offer the best and most technologically advanced equipments that are directed to enhancing efficiency and productivity in your operations.
We not only supply the reliable and durable machines but also supply good service/technical support after sales. We will continue to endeavor to present products of international standard; we will never make compromises from what we had offered. If you want to do business with Chinese suppliers, come to us to get the most effective business.
