P25 Full Color 2R1G1B virtual LED Display Boards

Outdoor P25 RGB Display Parameter

To get best white balance, color ratio is designed to be R: G: B/3: 6: 1.

Pixel

Item

Parameter

Real Pixel pitch

25mm

Pixel composition

2  red, 1 green and 1 blue LED

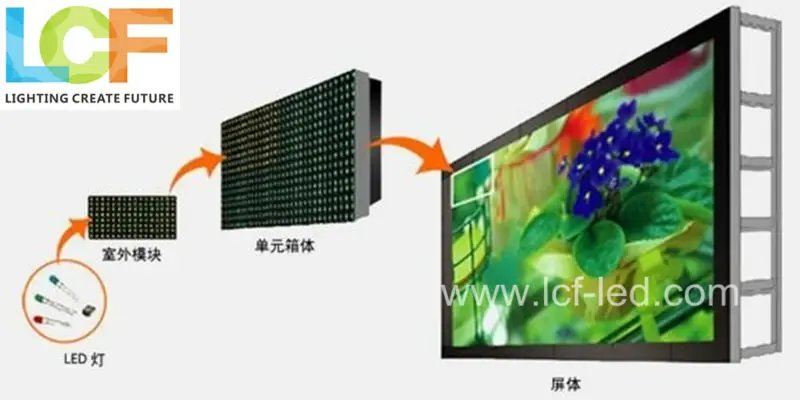

Module

Module resolution

8  x8 =64pixels

Module size

200MM x200MM

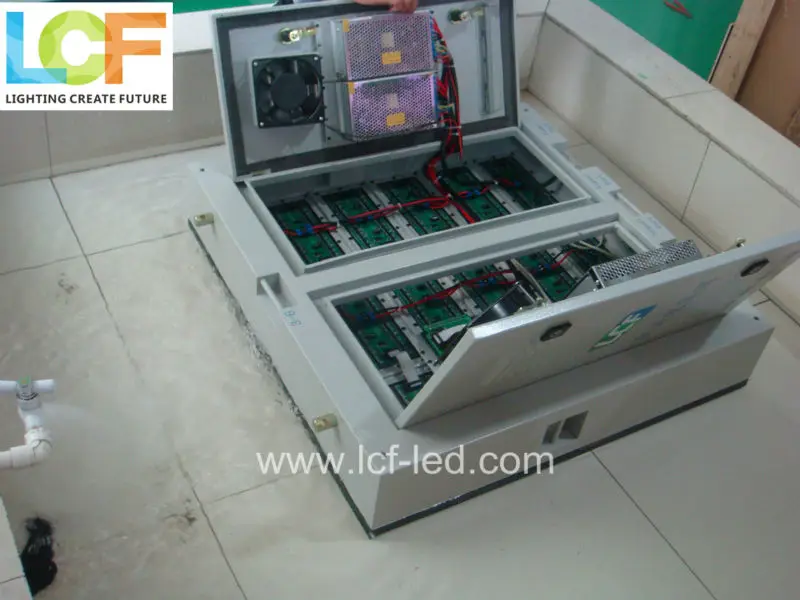

Cabinet

Cabinet size

1000MM x1000MM x 120MM

Cabinet resolution

Real pixel: 1600pixels

Cabinet materials

Cold rolled steel (mixed Iron & steel)

Screen

Physical Resolution /sqm

1600pixels/sqm

  Brightness

≥ 4000cd/sqm

Brightness adjustment

256 level automatically

Scanning method

physical  & Static

Drive methods

Constant current drive

Best Viewing angle

Horizontal: 120 degrees, vertical: 90 degrees,

Grey scale

16384 levels

Color processing

14bit

Display colors

4.4trillion

Contrast ratio

2000: 1

Frame rate

> 60 frames/sec

Refresh rate

300-3000HZ(no flickers whilecamcorder recording)

Control method

Synchronized with computer monitor

Lifetime

> 100, 000 hours

Defects rate

≤ 0.0001

Operating voltage

AC220V± 15%  50/60HZ

Screen power consumption

Max: 400w/sqm; Average: 150w/sqm

Color temperature

6500K± 500

Control distance.

100 m(no repeating) by net line; Optical fiber: 500m- 10km

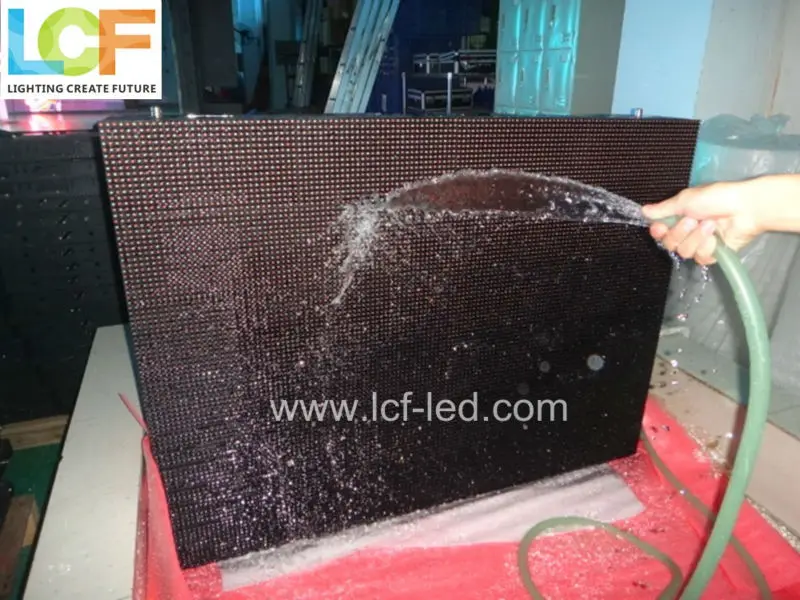

IP level

IP65 in the front, IP54 at the back

Operating temperature

— 20degree--+60degree

Operating ambient humidity

10%— 95%RH
