Diy Usa Alibaba Prefab Baroun Steel Houses Modular
- Category: >>>
- Supplier: Laizhou Dingrong Steel Structure Co. Ltd.
Share on (1600085085572):
Product Overview
Description
Product Description

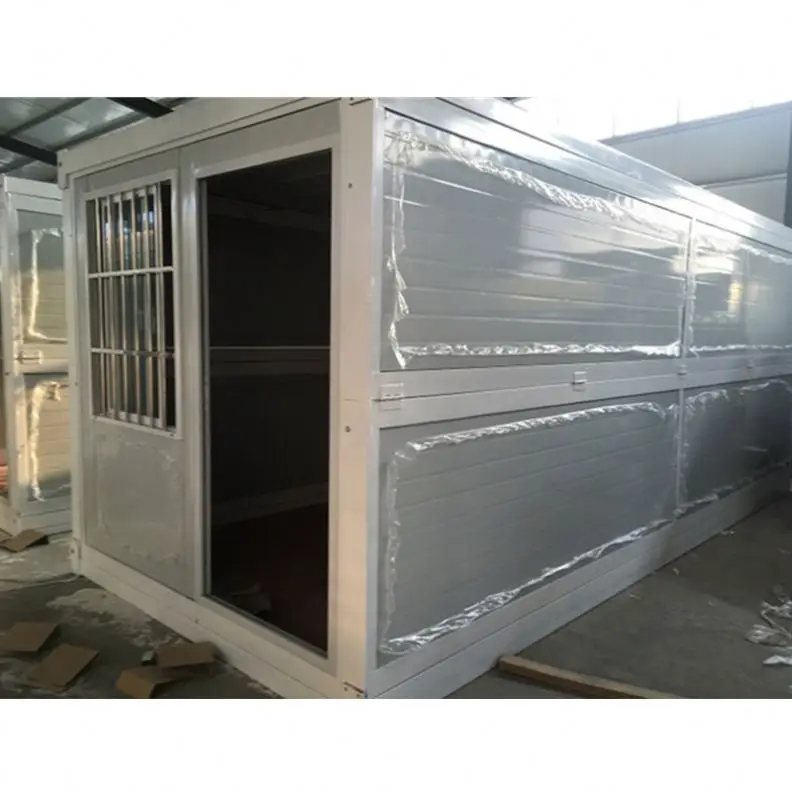

Diy Usa Alibaba Prefab Baroun Steel Houses Modular
1.install one house in 10 minutes

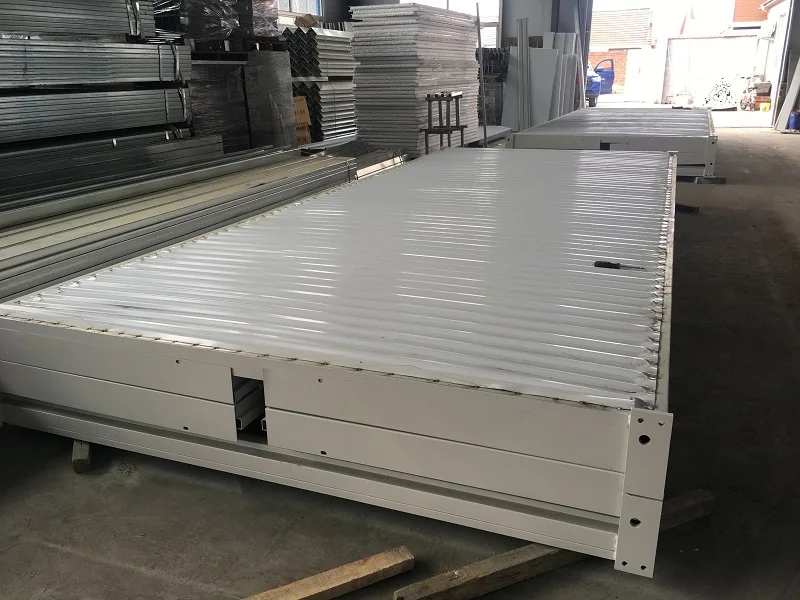

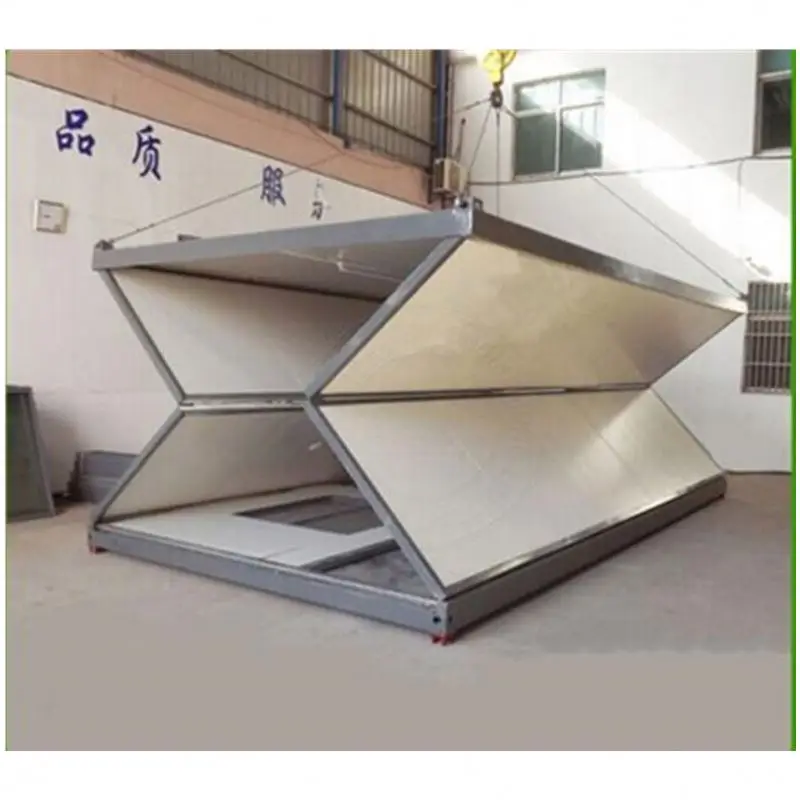

2.expand size:W2.48M*L5.8M*H2.5M(interior size W2.295*L5.6*H2.3m) folded size:W2.48*L5.8*H0.49M
3.one 40HC container can load 8 units
4.with insulation
5.galvanized frame+two layers painting,hard to get rusted
6.can be stacked two levels,and add veranda,canopy,railing,stair
7.one set frame around 650kg,one set house is around 1400kg
Diy Usa Alibaba Prefab Baroun Steel Houses Modular
specification of prefab 20ft foldable folding container house as follows
1.techincal specification
wind load:170km/h
snow load:20cm dry snow
seismic load:7 grade
bearing load:150-200kg/m2

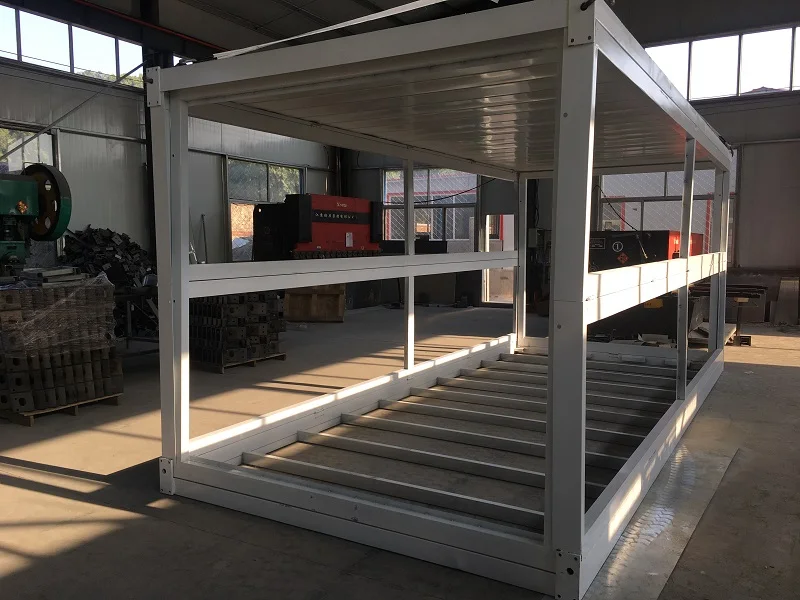

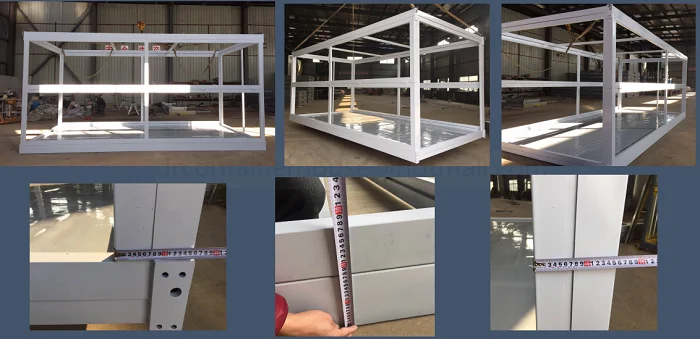

2.frame of prefab 20ft foldable folding container house
top :170*2.0mm thickness frame+two layers paint
bottom:270*2.5mm thickness frame+two layers paint
column:155*2mm thickness frame+two layers paint
3.wall&roof of collapsible container house
50mm rock wool sandwich panel is standard material for wall
optional thickness 75mm,100mm.optional insulation glass wool,EPS,polyuranthane
4.floor of prefab 20ft foldable folding container house
MGO board works as the bottom floor tile
and PVC tile,carpet or wood floor and be added on top of MGO board

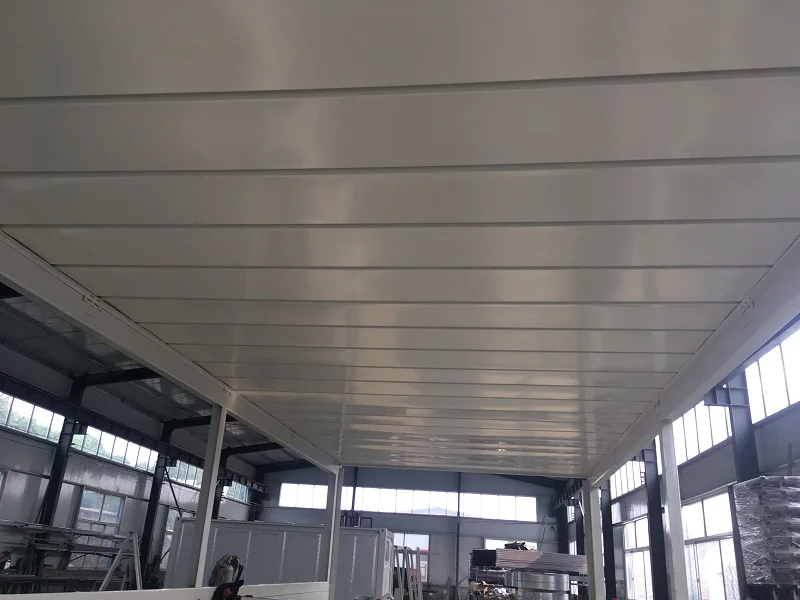

5.roof and ceiling of prefab 20ft foldable folding container house
steel plate+50mm glass wool insulation+steel ceiling
6.window and door
standard window:PVC sliding window single glazed
standard door:steel security door
5.electricity
installed on surface of the wall

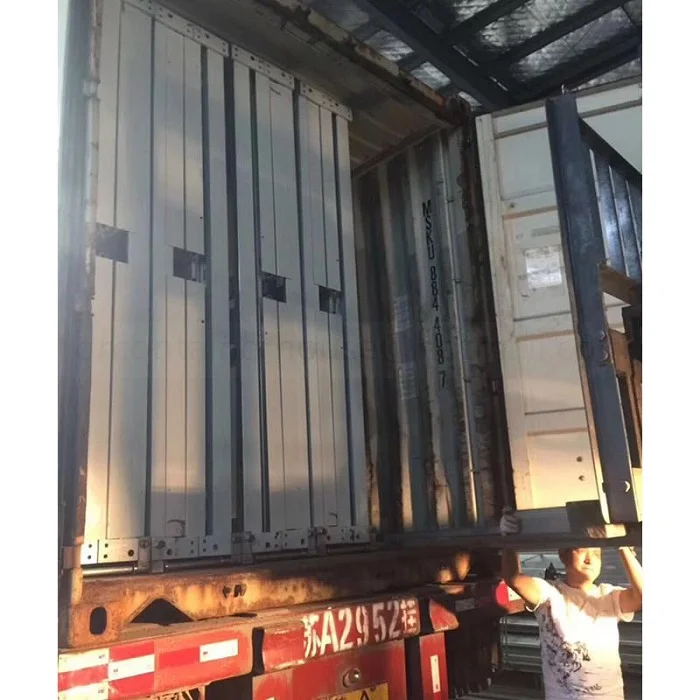

5.Loading
one 40HC container can load 8 units
FAQ
FAQ
♦ Q: What kind of company you are, factory or trade company?
A:We are professional steel structure building manufacturer, and our factory located in YANTAI, Shandong.
♦ Q: What could we provide for your steel structure building?
A: According to customers requirements, we could provide the main steel frame, roof floor decks, wall panels, doors and windows, sanitary appliance, tiles, ceiling and so on.
♦ Q: How can I get the quotation of the project?
A: If you have drawing, we can offer you our quotation according to your drawing.
If you have no design, please provide the details, such as location, wind speed, dimension, material or other requirements, we could make the design and quotation according to your specification.
♦ Q: How about your quality control?
A: We have got related quality control certificates. All the products processing including cutting, welding, bending, shot blasting, packing, storing, loading have strict quality control to ensure qualified products.
♦ Q: Is third party inspection available?
A: SGS, BV, ITS, etc. are available, it is according to client requirement.
♦ Q: What about the installation?
A: We would provide installation instruction for you, and technicians also could be sent to help you if it is necessary. However, the visa fee, air tickets, accommodation, and wages will be charged by the buyers.
♦ Q: What is your payment?
A: T/T, L/C, and Trade Assurance on Alibaba are available.
A:We are professional steel structure building manufacturer, and our factory located in YANTAI, Shandong.
♦ Q: What could we provide for your steel structure building?
A: According to customers requirements, we could provide the main steel frame, roof floor decks, wall panels, doors and windows, sanitary appliance, tiles, ceiling and so on.
♦ Q: How can I get the quotation of the project?
A: If you have drawing, we can offer you our quotation according to your drawing.
If you have no design, please provide the details, such as location, wind speed, dimension, material or other requirements, we could make the design and quotation according to your specification.
♦ Q: How about your quality control?
A: We have got related quality control certificates. All the products processing including cutting, welding, bending, shot blasting, packing, storing, loading have strict quality control to ensure qualified products.
♦ Q: Is third party inspection available?
A: SGS, BV, ITS, etc. are available, it is according to client requirement.
♦ Q: What about the installation?
A: We would provide installation instruction for you, and technicians also could be sent to help you if it is necessary. However, the visa fee, air tickets, accommodation, and wages will be charged by the buyers.
♦ Q: What is your payment?
A: T/T, L/C, and Trade Assurance on Alibaba are available.
Diy Usa Alibaba Prefab Baroun Steel Houses Modular
