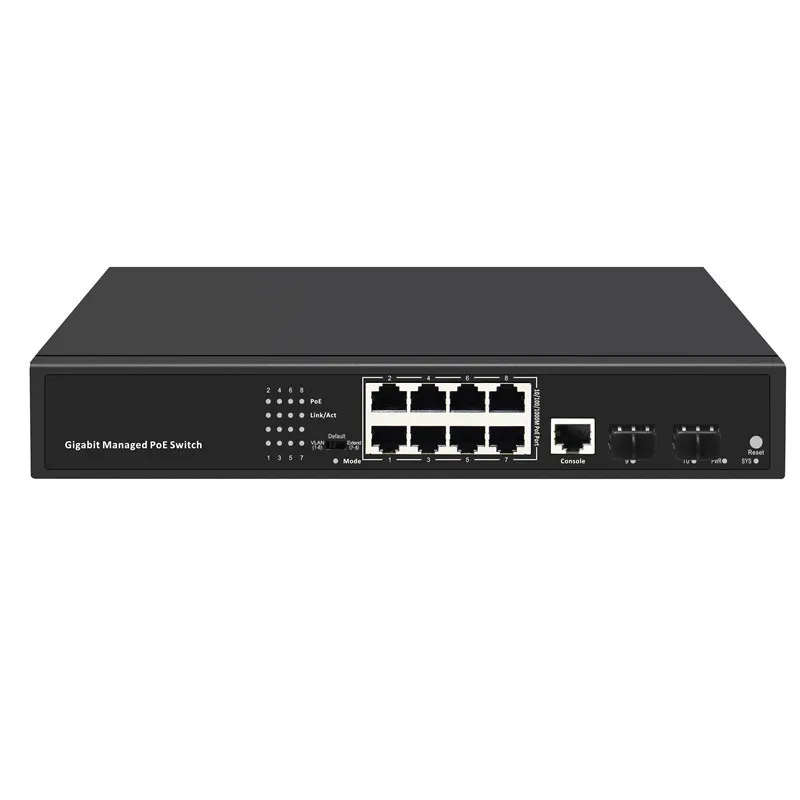

Sunsoont 8 Port Gigabit SNMP IGMP L2 POE Watchdog SFP Optical Fiber Management managed POE Switch
Product Description
SunSoont SST-P8ET-M 10 ports Gigabit-managed POE switch is a green energy-saving POE switch independently developed by SunSoont. It adopts high-quality and high-speed network IC and the most stable POE chip. The POE port meets the 802.3af or 802.3at standard. This model can provide seamless connection for 10/100/1000M Ethernet, and the POE power port can automatically detect and power the powered devices that comply with the IEEE802.3af or IEEE802.3at standards. The non-POE devices are forcibly powered and only transmit data.
This series of POE switches with 8*10/100/1000M POE ports + 2*1.25Gbps SFP ports + 1 Console port.
Specifications
General Performance Indicator | |
Product Name | 10 Port Gigabit Managed POE Switch |
Product Model | SST-P8ET-M |
Interface | 8*10/100/1000M POE ports + 2*1.25Gbps SFP ports +1 Console port |
Network Protocols | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3z IEEE 802.3af/at |
PoE Parameters
| PoE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w) |
| PoE compatibility: IEEE 802.3af/at adaptive | |
| POE port output: DC48-55V | |
| Power Pin Assignment: Power over spare pairs 1/2(+) and 3/6 (-) | |
Network Transmission Medium | 10BASE-T: Cat3, 4, 5 UTP (≤ 100 m) 100BASE-TX: UTP (≤100 m) above Cat5 |
Port Lightning Protection | General Mode 6KV |
Optical | Multimode fiber: 1310nm, 2Km Single mode fiber: 1310nm, 20/40km; 1550nm, 60/80/100/120km |

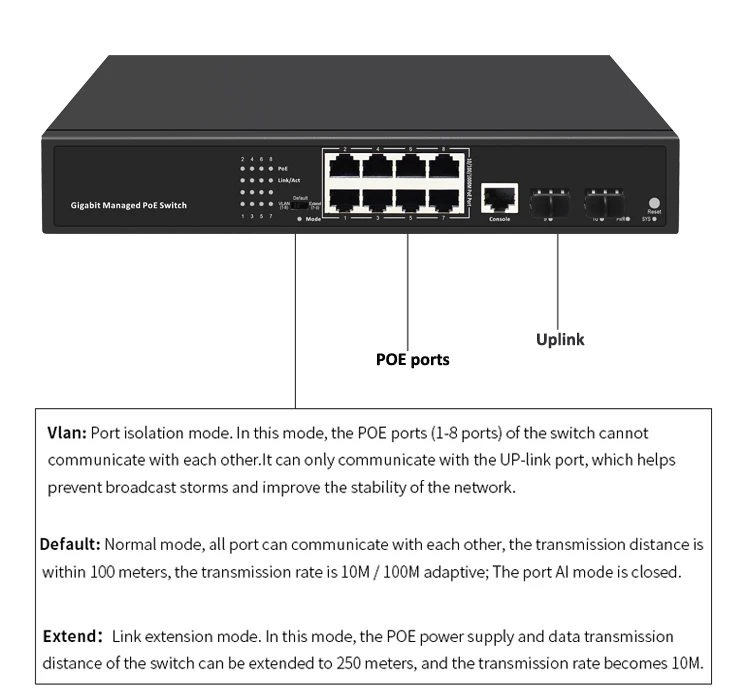

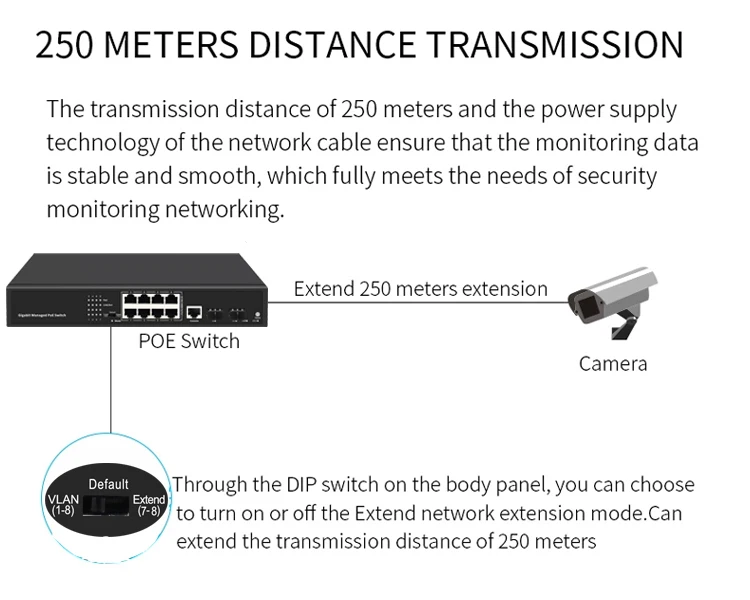

DIP Definition | VLAN: 1-8 ports are isolated from each other, and only connect Uplink with 9,10 Port; Default: 1-10 port is standard, all ports can communication; Extend: 7-8 port supports 250m link extension at a rate of 10M. |

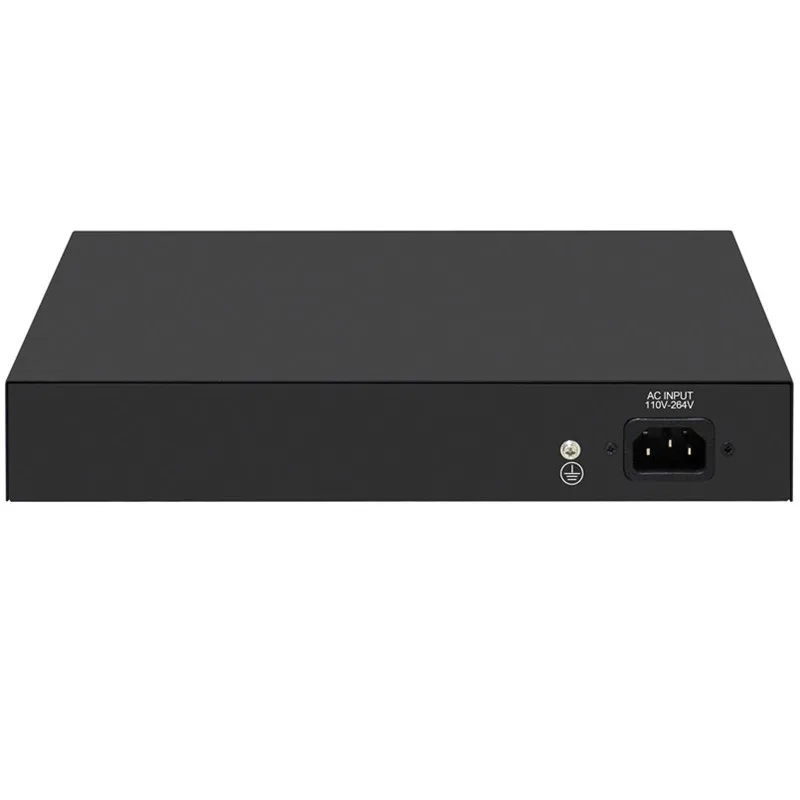

Power Supply | Input Voltage: DC110-264V; Output: DC52V 2A Total power: 104W |

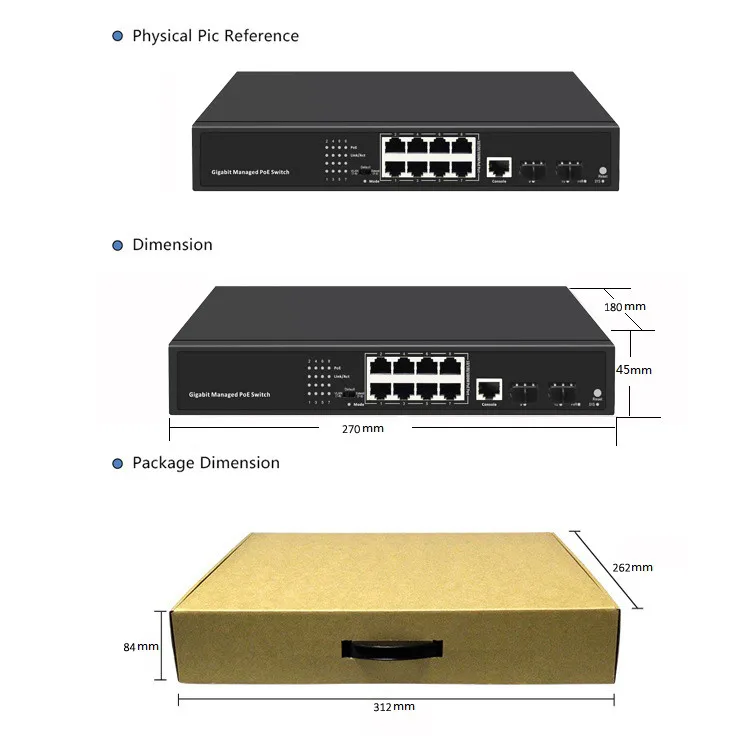

Physical Dimension | Product size (L×W×H): 270mm × 180mm × 45mm Package size (L × W × H): 312mm × 262mm × 84mm Product weight: 1.2kg Package weight: 1.7kg |

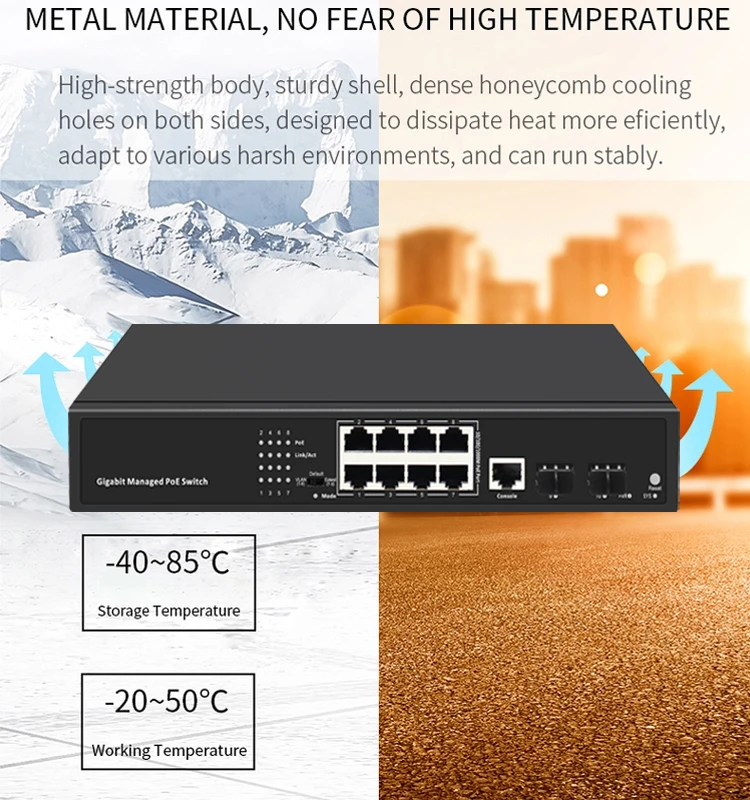

Working Environment | Operating Temperature:-20° ~ 55 ° C; Storage Temperature: -40 ° ~ 85 ° C; Operating Humidity: 10% ~ 95%, non-condensing Working height: up to 10,000 feet (3,000 meters) Storage height: up to 10,000 feet (3,000 meters) |
Certification | CE, FCC,ROHS,3C |
| MTBF: | 100,000 hours |
Package Contents | 1. Switch: 1 set 2. Instruction manual: 1 3. Certificate of conformity: 1 4. Warranty card: 1 5. AC power cord 1 6. A pair of hanging ears |
Warranty | 3 years |
| Technical Indicators | |
Bandwidth | 20Gbps (non-blocking) |
Packet Forwarding rate | 14.88Mpps |
Forwarding Mode | Store-And-Forward |
Flash Capacity | 16M |
Memory Capacity | 1024M(1G) |
MAC | 8K |

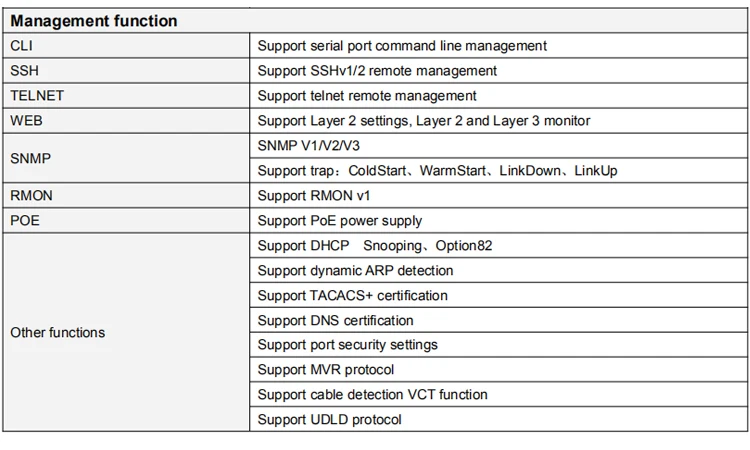

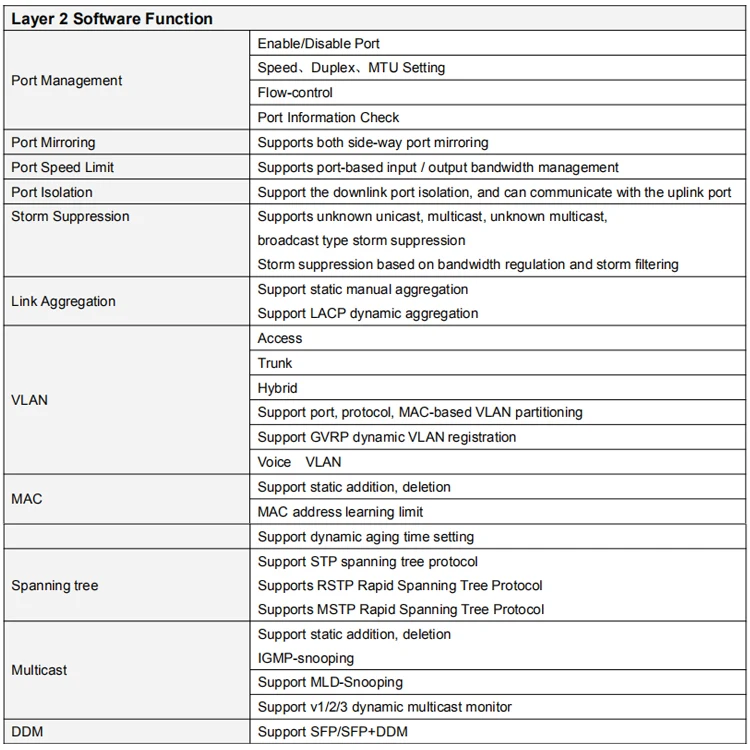

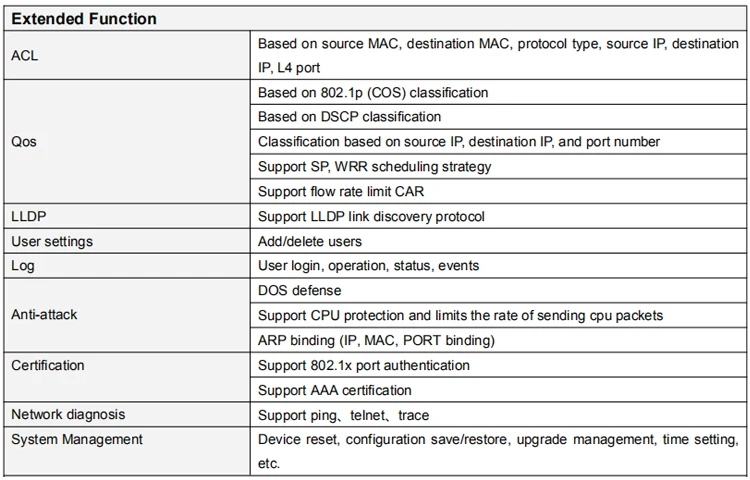

Management Function Details:
Product Avantages
1. Can transfer data for network surveillance cameras
2. 8x 10/100/1000Mbps auto-sensing POE ports, 2x 1.25Gbps SFP ports, 1 Console
3. Support IEEE802.3/IEEE802.3i/IEEE802.3uIEEE802.3ab/IEEE802.3z, IEEE802.3af/at, store-and-forward
4. Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w)
5. Ethernet port supports 10/100/1000M adaptive and POE functions
6. Panel indicator monitoring the status and help failure analysis
7. Fanless design, natural cooling, 1U rack mount
8. Support 802.1x port authentication, support AAA authentication, support TACACS+ authentication
9. Support WEB, TELNET, CLI, SSH, SNMP, RMON management
10. Support POE power management
11. Support port lightning protection Surge: General Mode 6KV, Differential Mode 4KV, ESD 15KV.
12. Support QOS, STP/RSTP/MSTP, IGMP, SNMP, WEB, VLAN, EtherChanne, IGMP Snooping, DHCPSnooping, DHCPRelayAgent, AAA, VoiceVlan, GMRP, EARP, RMON, ERPS, POE port configuration, ternary binding, ACL, 802.1 X authentication, port security, port isolation, log information, network management functions.
Detailed Images

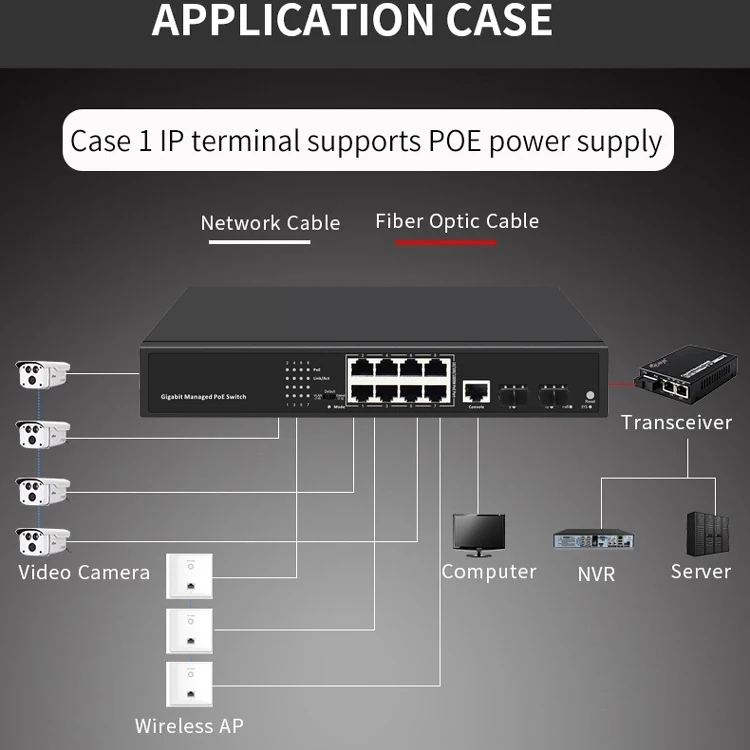

Product Application
Managed POE Switch Main Applications:
1.HD monitor transmission and power supply
2.Wireless AP layout transmission and power supply
3.Network telephone transmission , intelligent house and home system
4.Intelligent transportation supervisory system (ITS)
5. High-speed Way supervisory/Tele-Communication System
6. Security protection system, TV medical treatment
7. Long-distance Muti-media Schooling, Campus monitoring
8. Long-distance broadcast television transmission system
9. High-building Security Protection, Military Tele-Com projects
Packaging & Shipping
