• High brightness LED light source
• Low energy consumption
• Long life cycle - more than 80,000 working hours
• UV-resistant polycarbonate housing
• Modular design - easy installation and maintenance
• 100-240VAC universal voltage power input
• 12-24VDC voltage power input optional
• Compliance with CE, RoHS, EN12368, ISO9001

Specification:

• Working voltage:    100-240VAC or 12-24VDC
• Working temperature:    -50 to 80℃
• View angle:    L/R 30 degree
• IP grade:    IP54
• view distance:    100m
• Diameter:    100mm
• Quantity:    39 pcs
• Wavelength:        500-505 nm Green / 620-630nm Red / 590-595nm Yellow
• Power consumption:    <3W

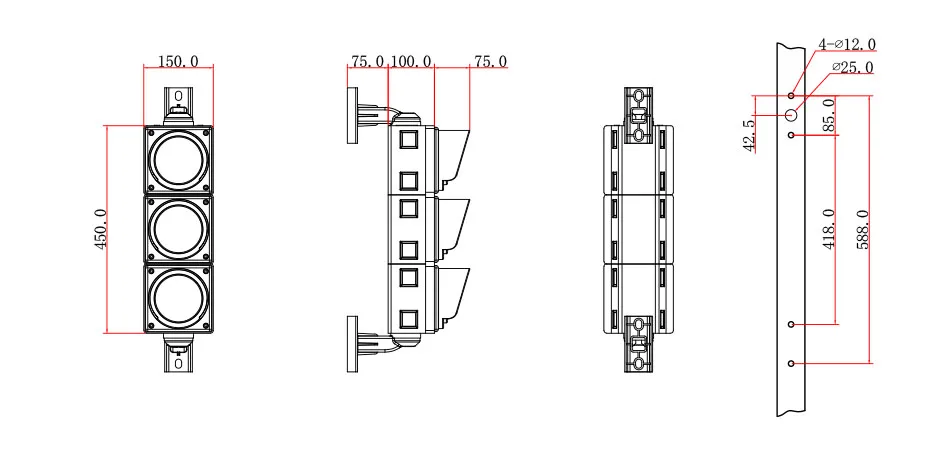

Dimension:

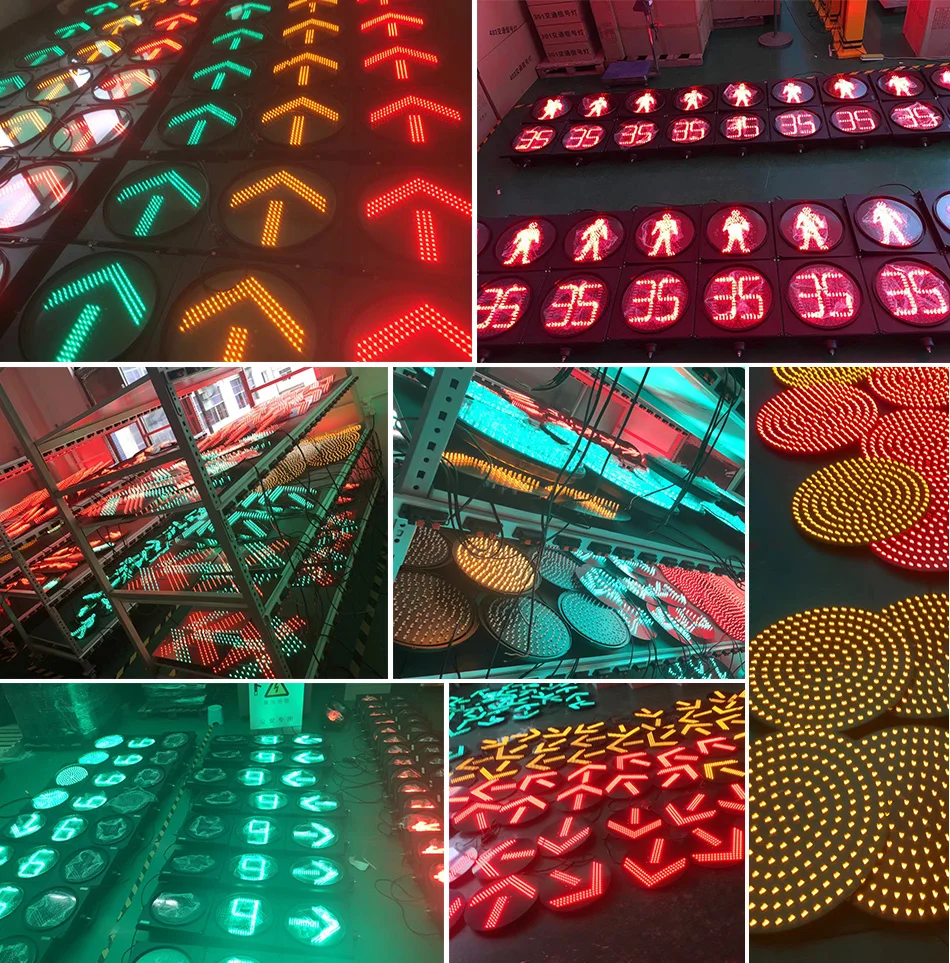

Detail pictures:

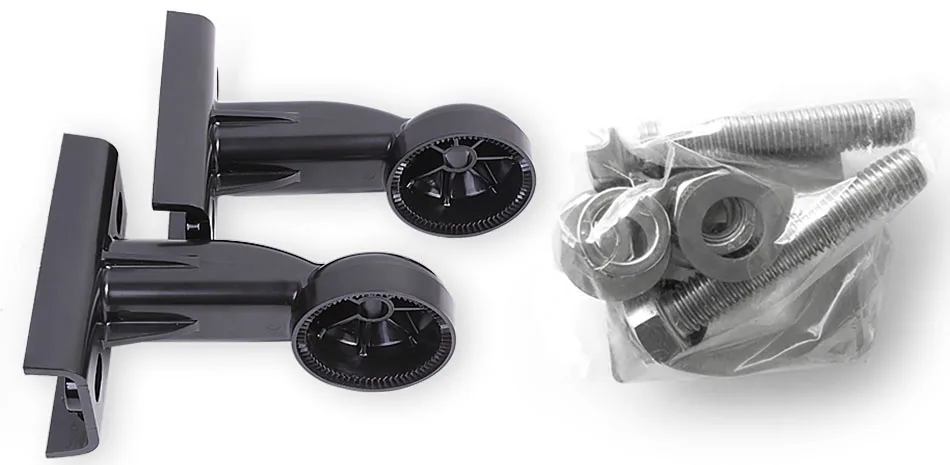

Accessories:

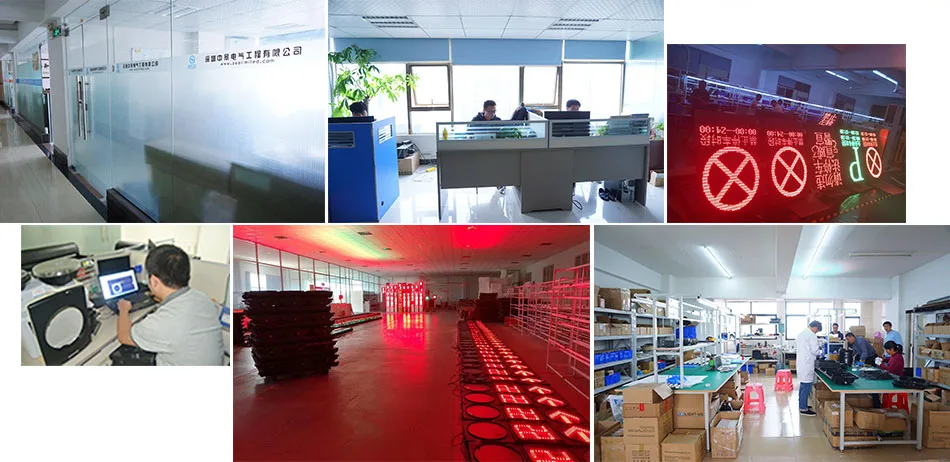

Factory pictures:
