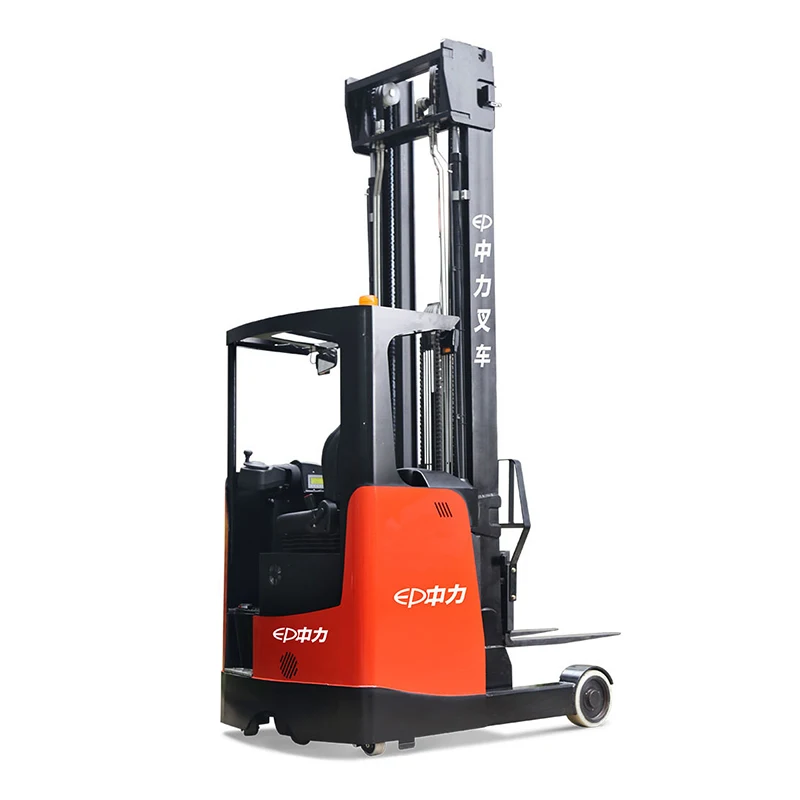

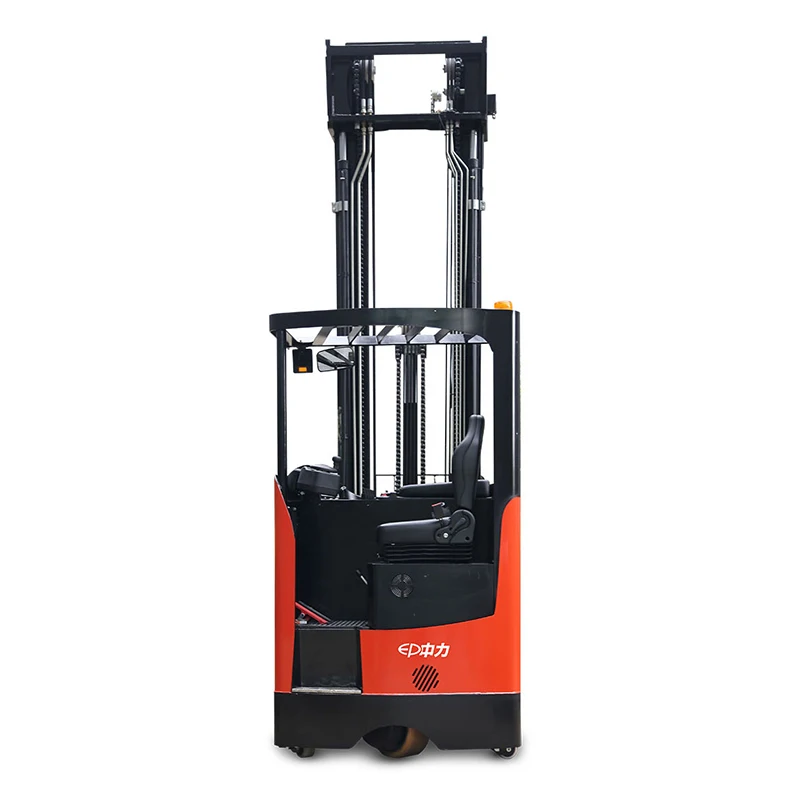

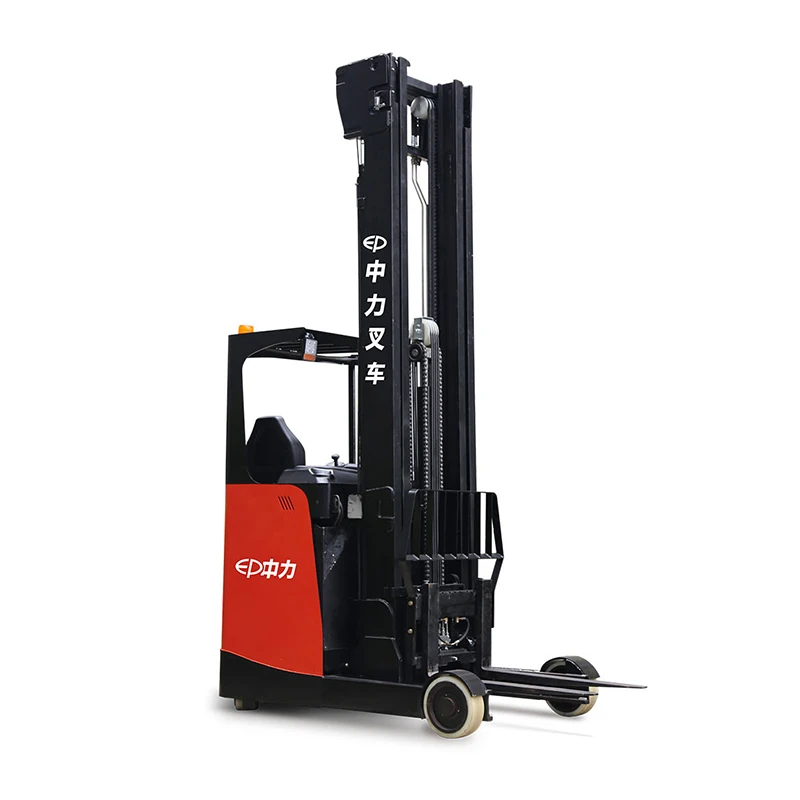

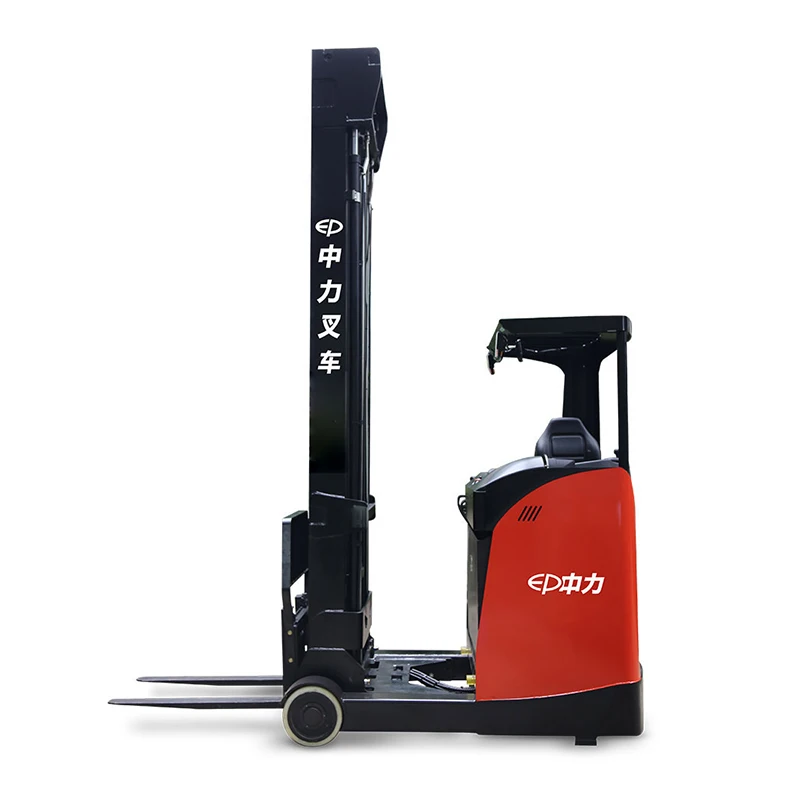

CQD20RVF 2 ton Load Capacity 5m 6m 8m 10m 12m Electric Reach Forklift Reach Stacker Truck
- Category: >>>
- Supplier: Foshan Haoanda Machinery Co. Ltd.
Share on (1600085501948):
Product Overview
Description
CQD20RVF 2 ton Load Capacity 5m 6m 8m 10m 12m Electric Reach Forklift Reach Stacker Truck
Features
-Narrow aisle design, space saving
-EPS system, steady and accurate control and high efficiency
-11 meter max. lifting height, high standard configuration
-AC controller
-Multifunctional indicator to show the height and with height positioning function.
-Curved deceleration, safe protection to operator
Other size: 3 meters to 11 meters
High configuration, high performance for your choice

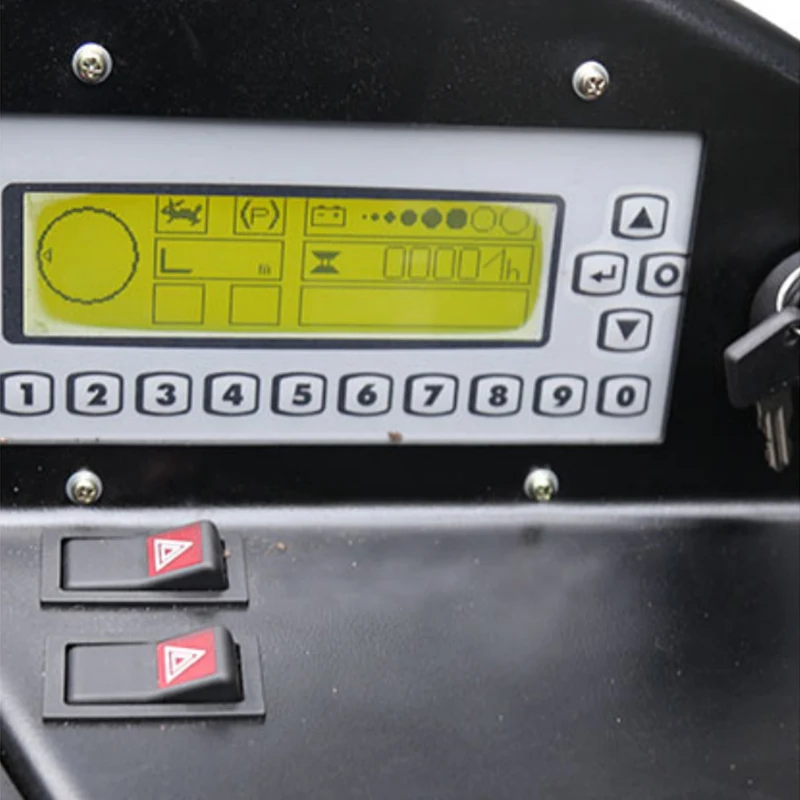

Operating Panel
Electric brake
Item Name/ Model No. | CQD20RVF | |
Load Capacity(kg) | 2000 | |
Max. Height Load Capacity(kg) | 2000 | |
Weight(kg) | 2945 | |
Loading Center(mm) | 600 | |
Tyre Material | Solid | |
Front Wheel Size(mm) | 310x118 | |
Rear Wheel Size(mm) | 343x140 | |
Balance Wheel Size(mm) | 102x51 | |
Lifting Height(mm) | 3000 | |
Lowered Height(mm) | 2070 | |
Mast Extended Height(mm) | 3940 | |
Overall Length/(mm) | 2535 | |
Overall Width(mm) | 1278 | |
Mast Angle | 2/4 | |
Fork Lowered Height(mm) | 50 | |
Fork Size(mm) | 40x100x1070 | |
Fork Adjustable Width(mm) | 240-770 | |
Reach Distance(mm) | 520 | |
Aisle Width 1000x1200mm Pallet | 2842 | |
Aisle Width 800x1200mm Pallet | 2893 | |
Turning Radius(mm) | 1770 | |
Travel Speed(km/h) | 9/9.5 | |
Lifting Speed(m/s) | 0.40/0.45 | |
Lowered Speed(m/s) | 0.44/0.40 | |
Reach Speed(m/s) | 0.1/0.1 | |
Gradeability | 10/15 | |
Drive Motor | 6.4kW | |
Lifting Motor | 13kW | |
Battery | 48V/500Ah | |
Contact Information for Copy
Contact Person: Jerry
Email: haoandamachinery at gmail.com
Tel: +86 757 85772616 Mob: +86 181 2352 4445
Whatsapp/ Wechat: +86 1812352 4445
Website: www.haoandajx.com
FAQ
1.\tWhat is the warranty time for our products?
Within 1 year or 2,000 working hours since the products are on board.
2.\tHow is the delivery time?
Normally the delivery time is 20 ~ 30 days after order confirmed and advanced deposit received. For the standard products, if we have stock, the delivery time would be shorter.
Port of Loading: Guangzhou, Shenzhen
3.\tHow is our MOQ?
For the standard products, we don't request any MOQ. If you need OEM service, MOQ is required. Please contact us for more details.
