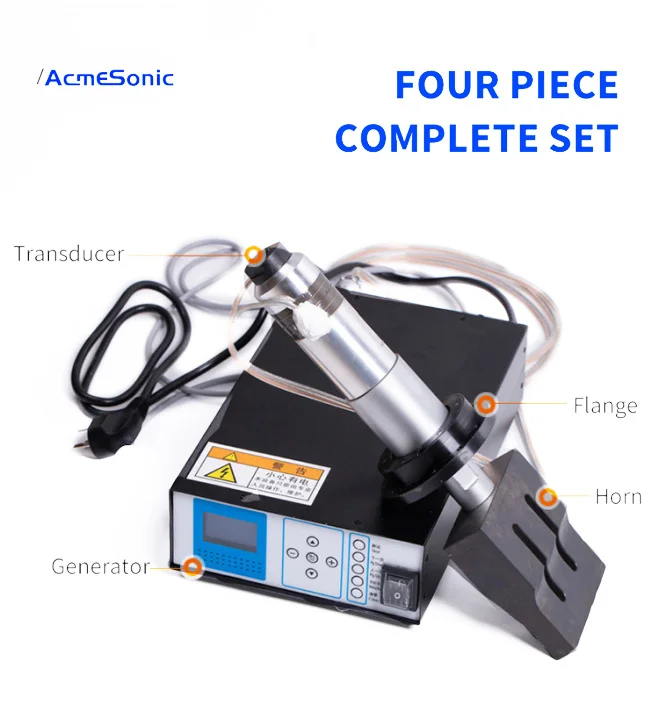

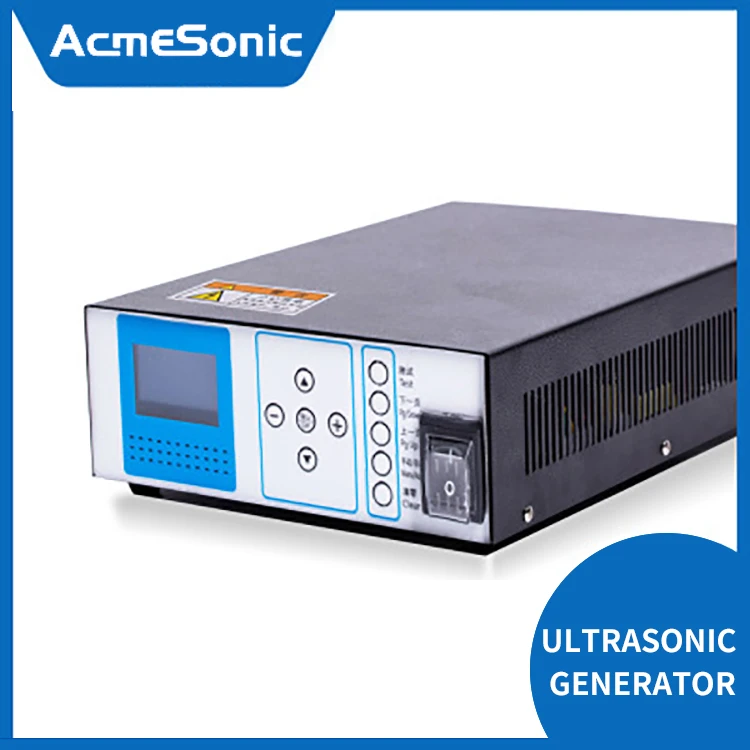

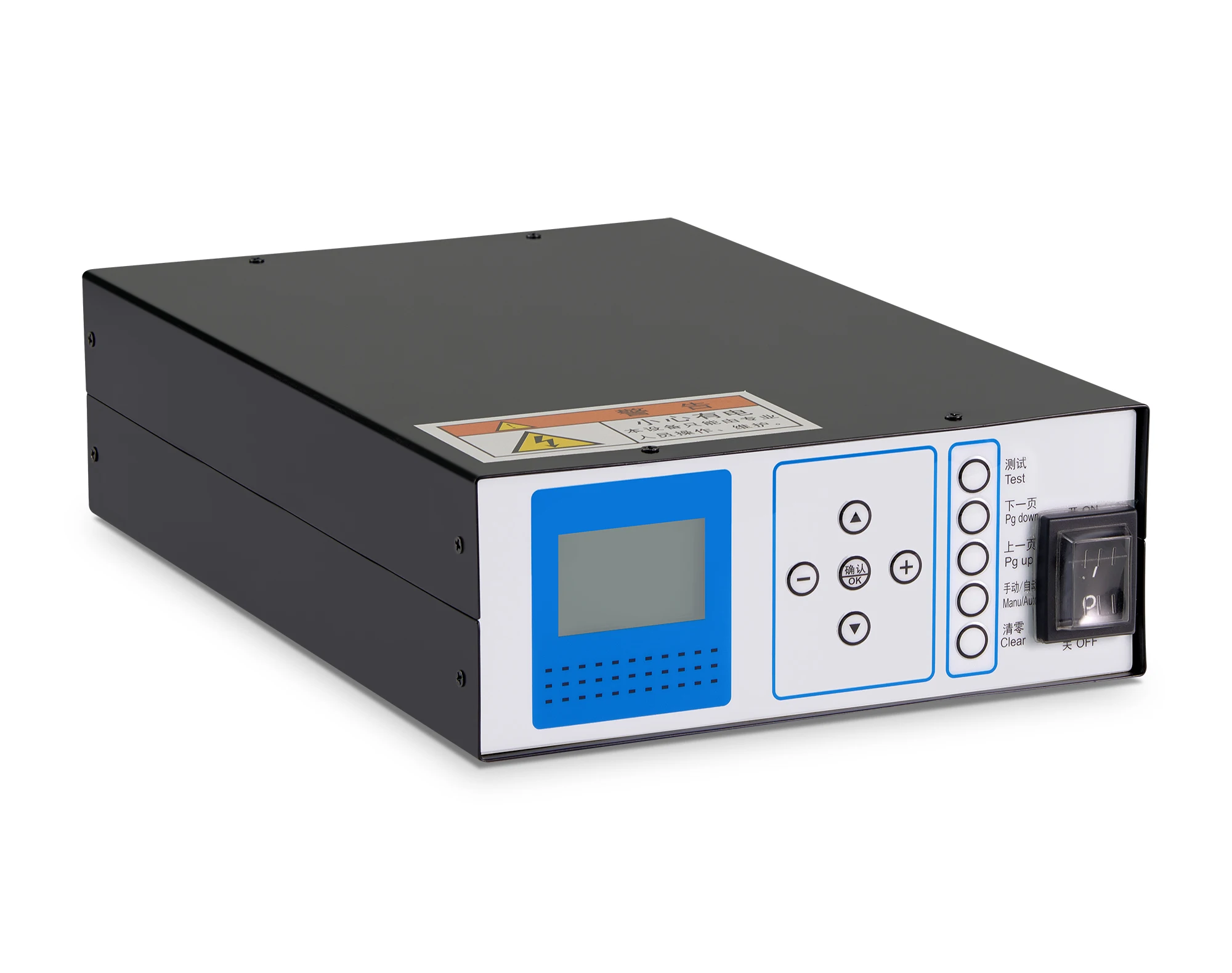

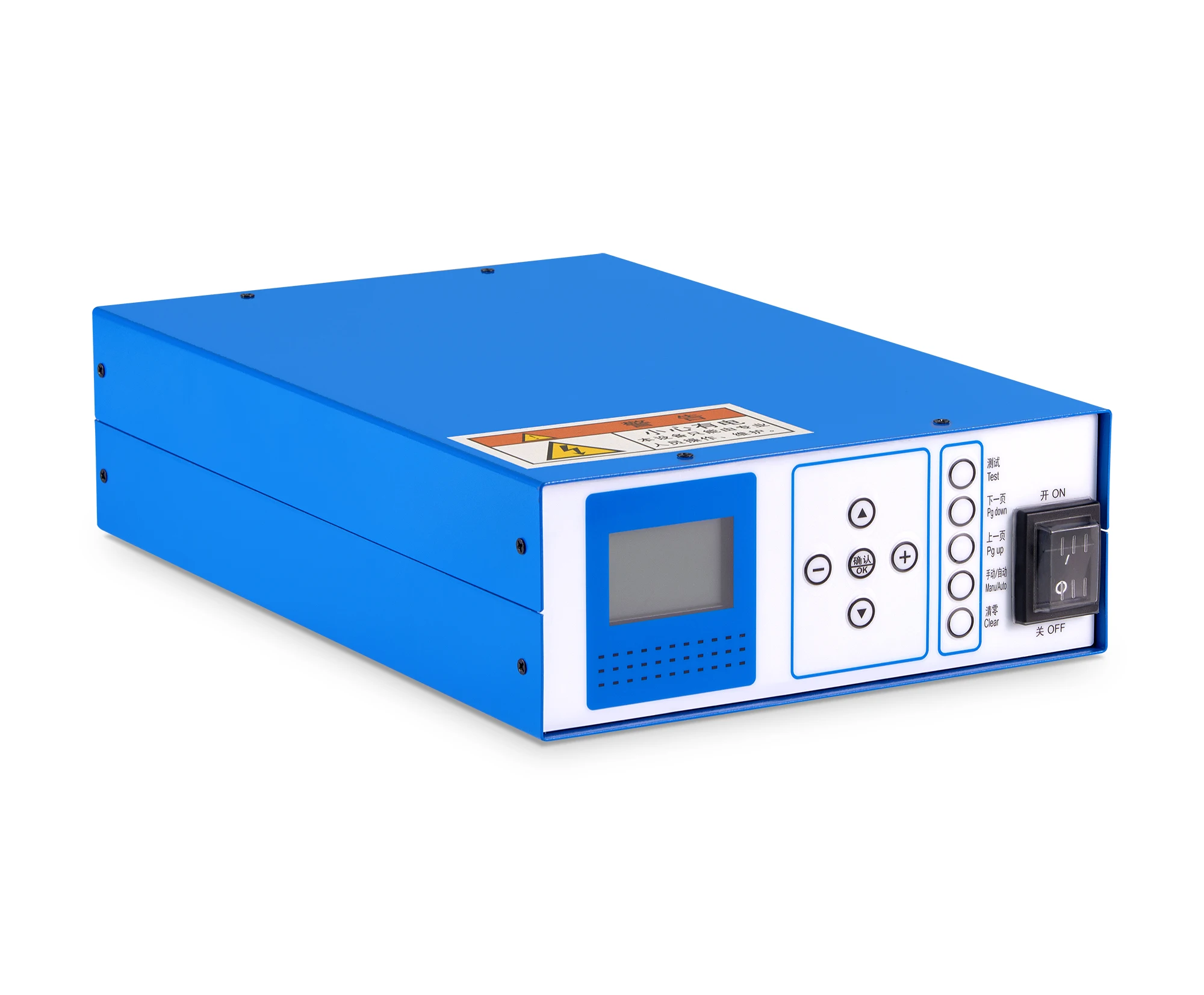

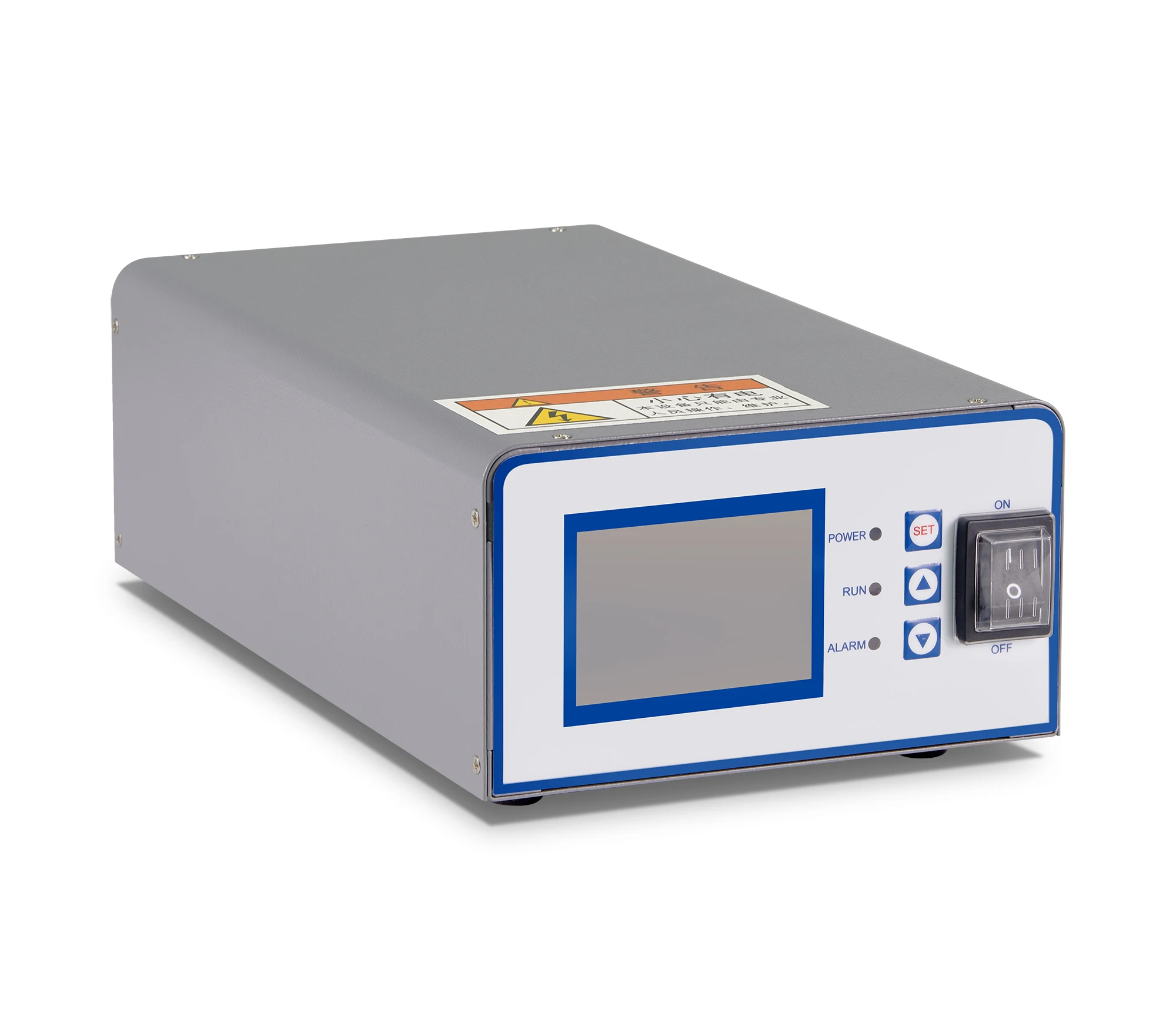

20k 2000W Intelligent Ultrasonic Generator for Ultrasonic Welding Machine & Cleaner
- Category: >>>
- Supplier: Acme(shenzhen)techonology Co. Ltd.
Share on (1600085526844):
Product Overview
Description
Product Description

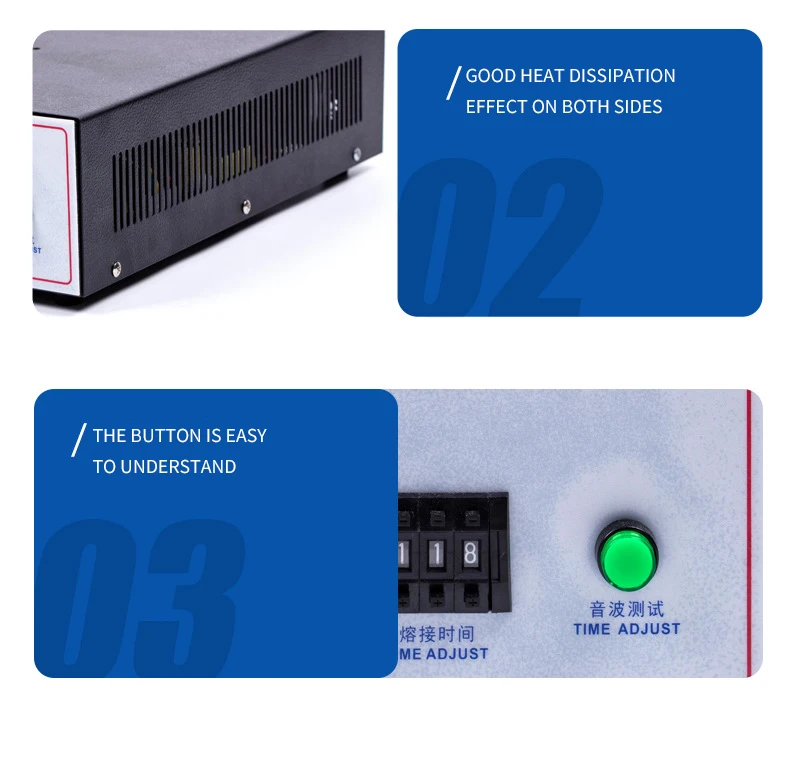

The Details Show
Parameters

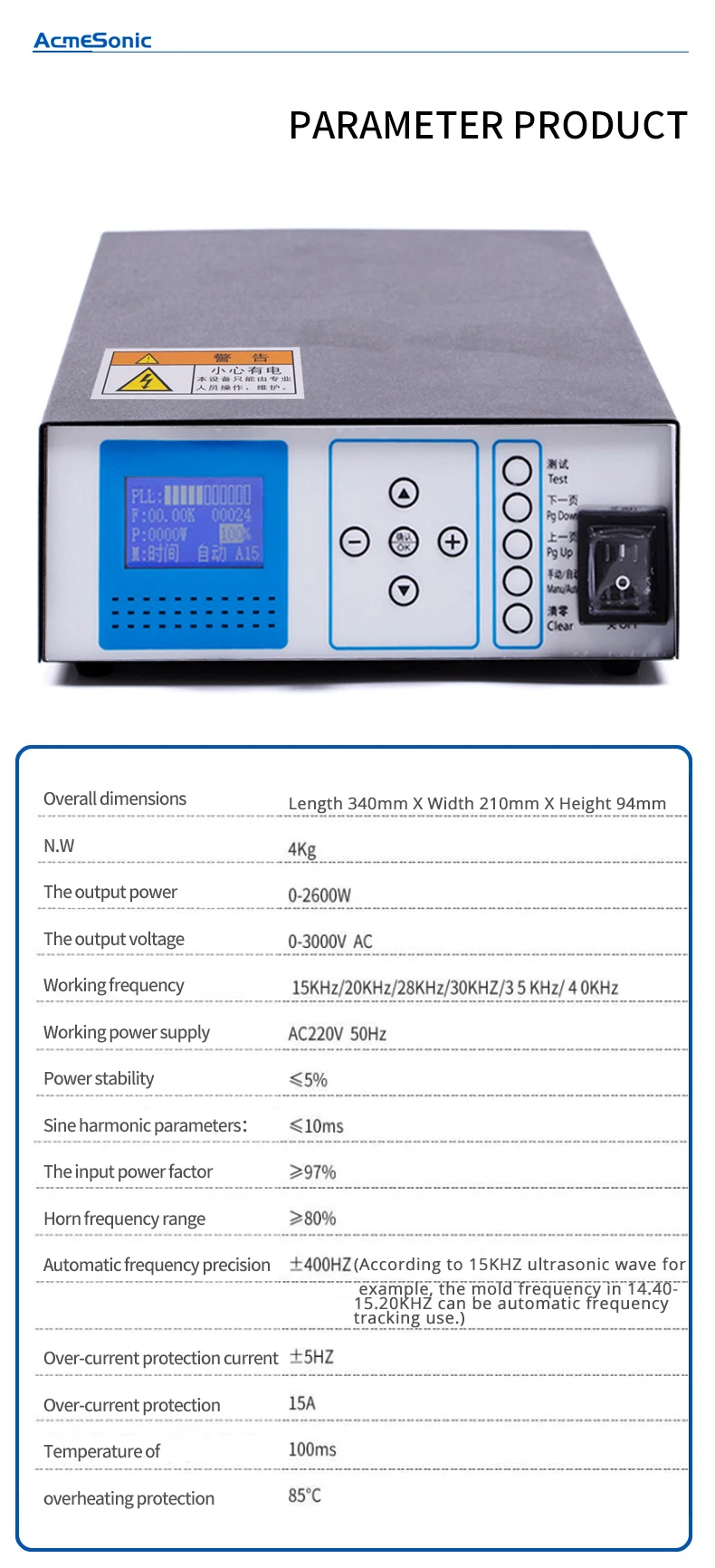

Ultrasonic generator main technical specifications size:
1、external dimensions: length 340mm × width 210mm × height 94mm
1、external dimensions: length 340mm × width 210mm × height 94mm
2、Net weight: 4Kg 3、Output power: 0-2600W 4、Output voltage: 0-3000V AC
5、The working environment temperature: +5 ℃ to +50 ℃
5、The working environment temperature: +5 ℃ to +50 ℃
6、sinusoidal harmonic parameter: ≥ 97
7、 input power factor: ≥ 80% 8、The working power supply: AC220V 50Hz
9、Operating frequency: 15KHz/20KHz/28KHz/30KHZ/35KHz/40KHz
10、Mold frequency range: ± 400HZ (according to the 15KHZ ultrasonic, for example, mold frequency in 14.40-15.20KHZ can be used automatically frequency tracking.)
11、 automatic frequency tracking accuracy: ± 5HZ 12、 Overcurrent protection current: 15A
13、 power stability: ≤ 5% 14、 overcurrent protection time: 100ms
15、Remote terminal dynamic response time: ≤ 10ms 16、Over-heating protection temperature: 85℃.
7、 input power factor: ≥ 80% 8、The working power supply: AC220V 50Hz
9、Operating frequency: 15KHz/20KHz/28KHz/30KHZ/35KHz/40KHz
10、Mold frequency range: ± 400HZ (according to the 15KHZ ultrasonic, for example, mold frequency in 14.40-15.20KHZ can be used automatically frequency tracking.)
11、 automatic frequency tracking accuracy: ± 5HZ 12、 Overcurrent protection current: 15A
13、 power stability: ≤ 5% 14、 overcurrent protection time: 100ms
15、Remote terminal dynamic response time: ≤ 10ms 16、Over-heating protection temperature: 85℃.

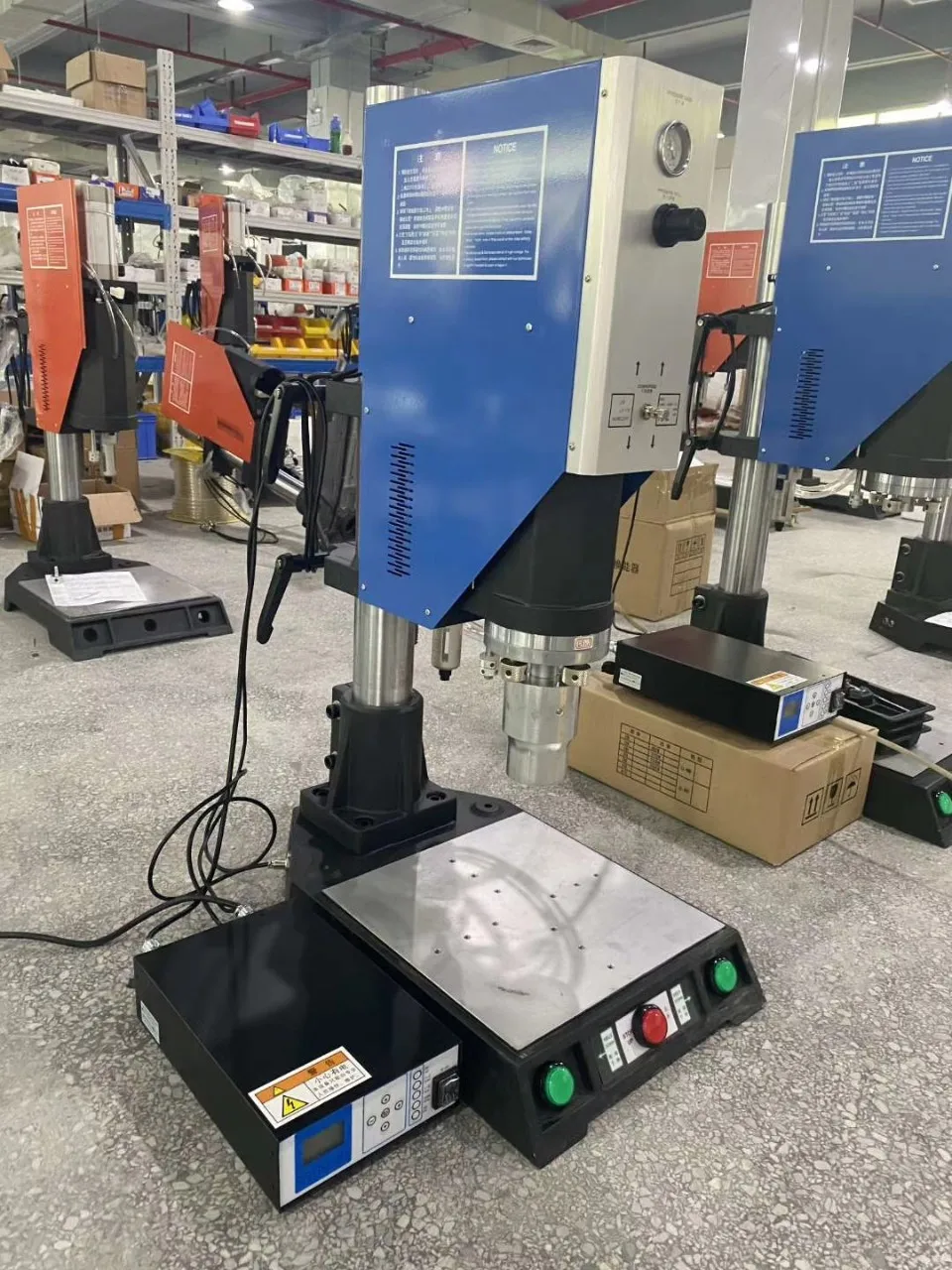

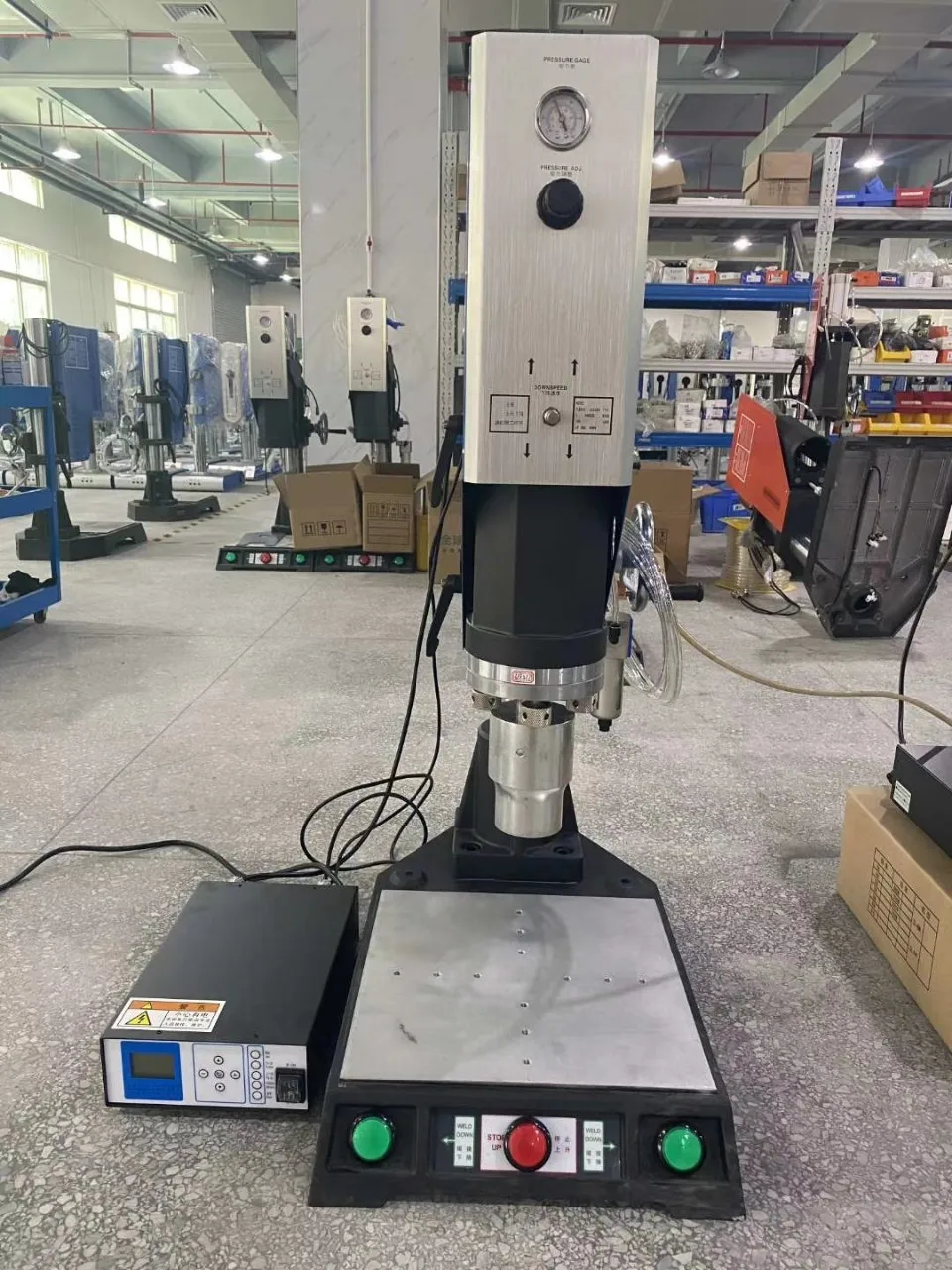

Application
