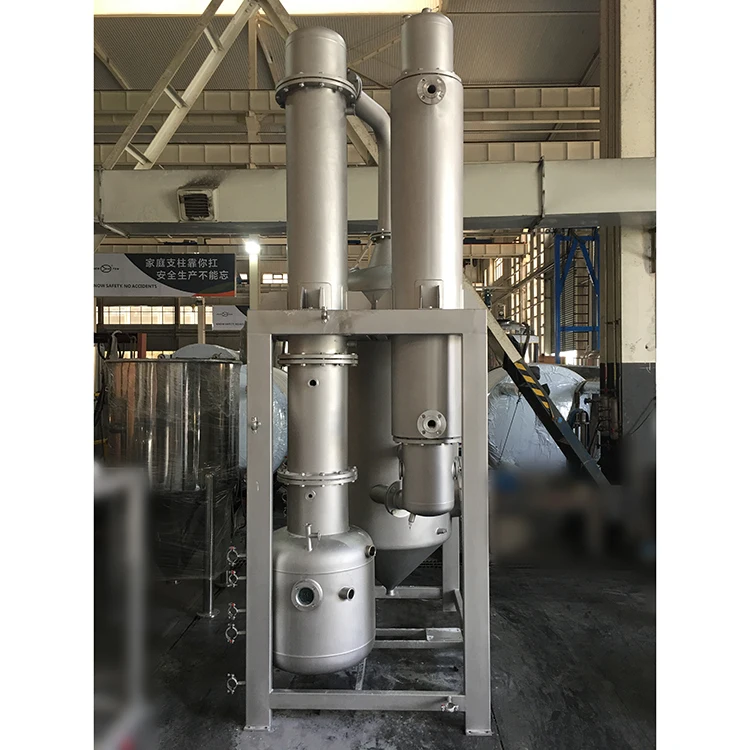

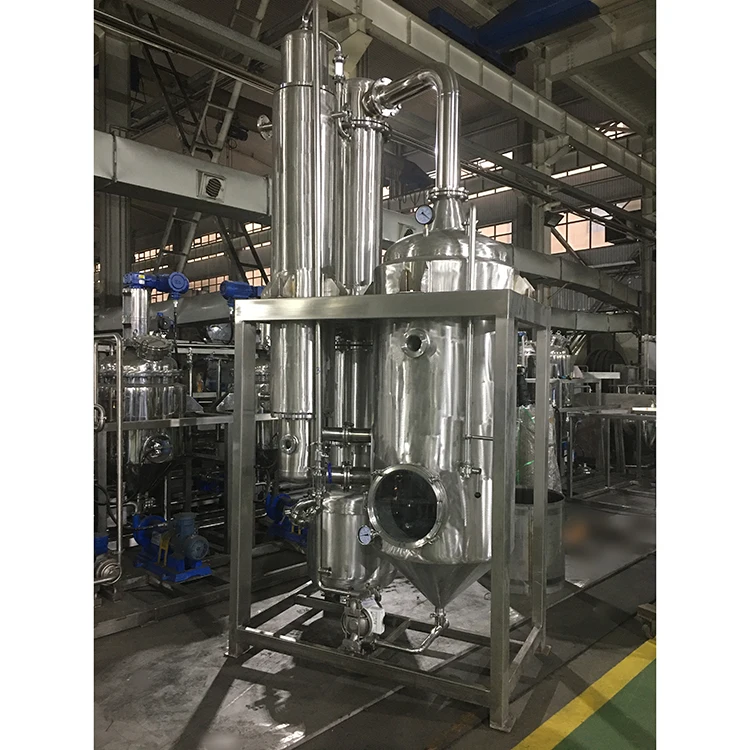

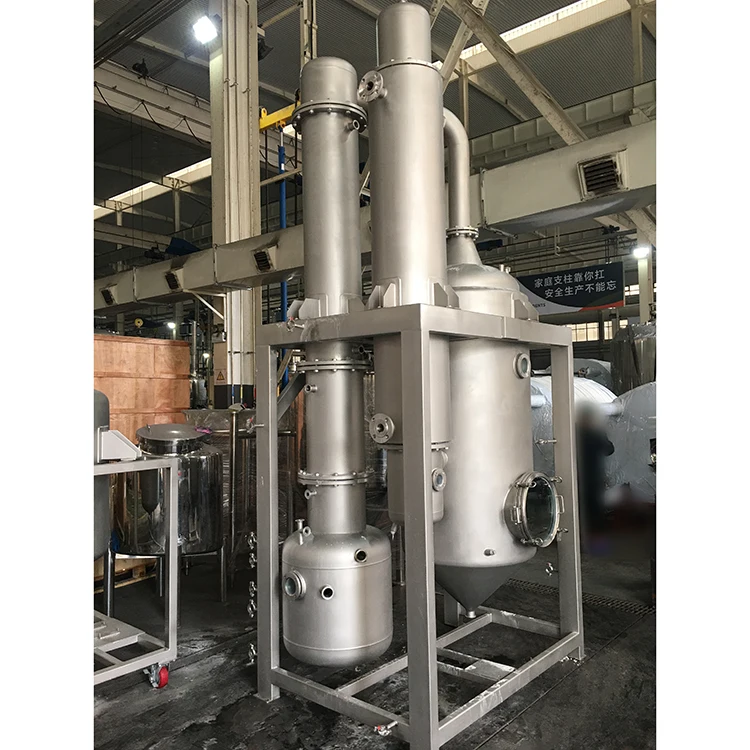

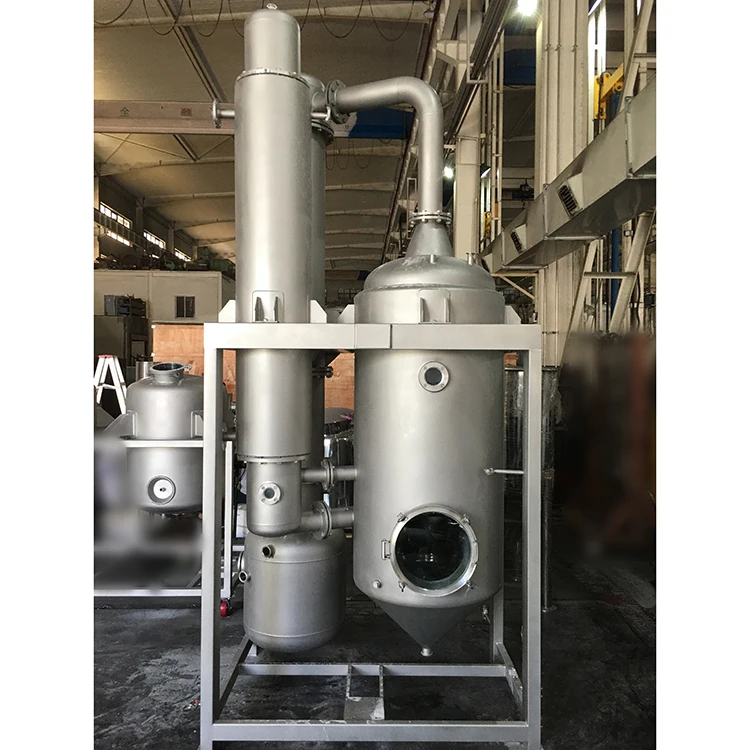

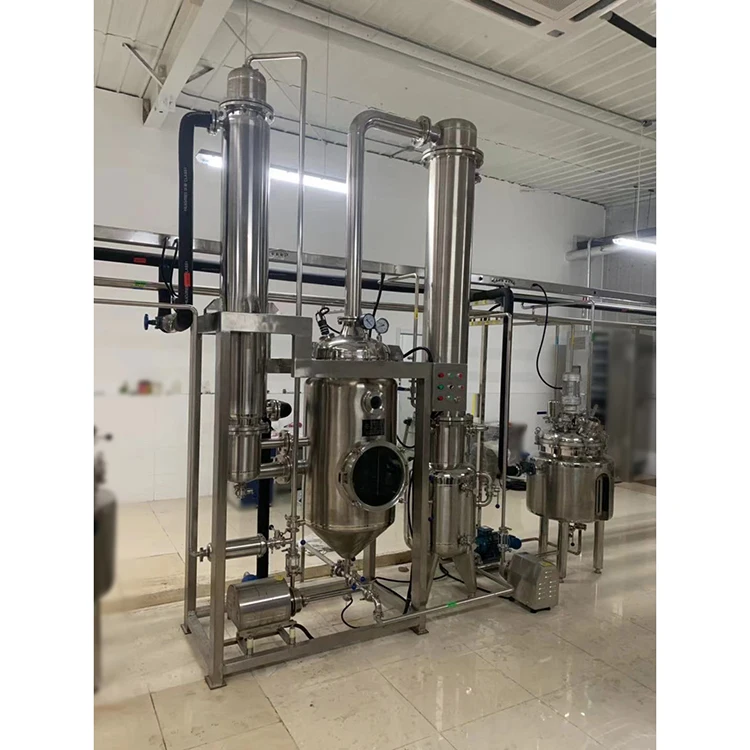

Ethanol FFE system vacuum falling film evaporator for extraction thin film evaporator
- Category: >>>
- Supplier: Zhejiang Jhen Ten Machinery Co. Ltd.
Share on (1600085546213):
Product Overview
Description
Products Description
Equipment composition
Heaters, separators, condensers, preheaters, vacuum systems, heat pumps, electrical meters, control cabinets, etc. 304 or 316L is
determined according to the material process requirements.
Features
1. The material has a short residence time in the heating tube, which is especially suitable for the concentration of heat
sensitive materials, and can be continuously fed and continuously discharged.
2. The evaporation temperature is low, and the efficiency and evaporation temperature can be selected according to customer
requirements.
3. Heating the evaporator top spray film device is unique, and the film formation is uniform.
4. The condenser has a unique structure. a large heat transfer coefficient and good effect.
5. The injection heat pump is adopted, and the energy saving effect is obvious.
6. According to customer requirements, both automatic control and manual control can be adopted.
Main parameters
Model | JTSJM-150 | JTSJM-250 | JTSJM-500 | JTSJM-1000 | JTSJM-1500 |
Capacity(Ethanol)(L/H) | 150 | 250 | 500 | 1000 | 1500 |
Evaporate temperature(℃) | 65-75 | 65-75 | 65-75 | 65-75 | 65-75 |
Heater Jacket pressure(Mpa) | <0.3 | ||||
Condenser Pressure(Mpa) | <0.3 | ||||
Heat trans surface(m²) | 6.5 | 30 | 30 | 55 | 80 |
Condenser surface(m²) | 9.5 | 35 | 35 | 65 | 100 |
Steam consumption(KJ/H) | 250000 | 795000 | 795000 | 1600000 | 2390000 |
Cooling capacity(Kcal/H) | 8200 | 23500 | 23500 | 4500 | 67000 |
Vacuum pump power(KW) | 3 | 7.5 | 7.5 | 11 | 15 |
Circle pump flow capacity(T/H) | 6 | 20 | 20 | 40 | 60 |
Dimension(mm) | 1600*1200* 3550 | 2600*1600* 5900 | 2600*1600* 5900 | 3200*1800*7800 | 3500*2200*9500 |
Company Profile
Certifications
FAQ
Q: CAN I HAVE SAMPLES TO TEST?
A: Yes, we are pleased to supply samples to test and check quality, miled sample order is available. Please note, free samples is not acceptable.
Q: DO YOU HAVE ANY MOQ LIMITED?
A: Our MOQ is 1PC to supply new customers.
Q: WHAT'S THE LEAD TIME?
A: Sample: 20-25days. Mass production: 25-30days depend on the order quantity.
Q: HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE?
A: We ususlly ship by sea. DHL, UPS, fedex TNT are also acceptable.
