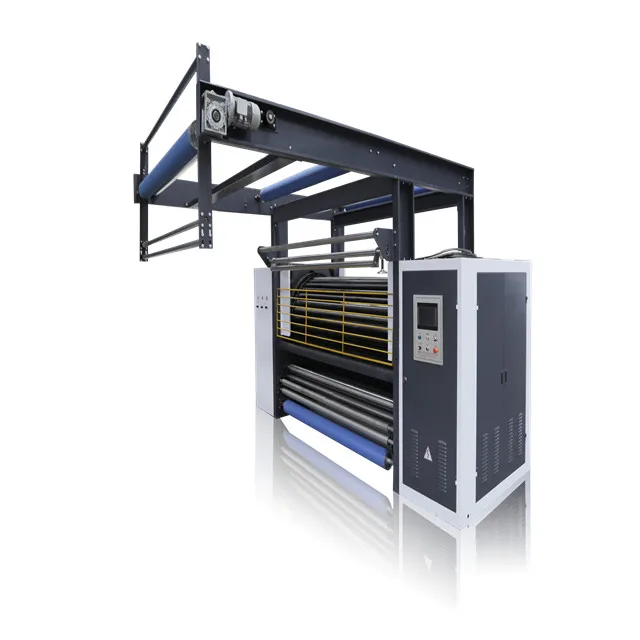

Suitable for sanding surfaces of high class knitted fabrics. Including chamois leather, spandex stretch fabric, elastic legging, lycra, sueded fabric. For fabrics used to make chamois leather shoes, swimming wear, elastic legging, and sofa surface, pants, sports car inner fabrics. This is the most popular type of vertical sanding machines in the field. With touch screen display and full automatic control, this machine is more stable and convenient when processing fabrics. The attach value of the fabric after sueded is greatly increased.
Technical Data
Installed power
58 kw
Production speed
6-70 m/min
Working width
1800-3400 mm
Compressed air pressure
6 bar
Air Cylinder
12
Machine weight
6000-8000kg
Diameter of sueding roller
φ210mm φ270mm
Touch Screen Control
Yes
Optional
Carbon Fiber Rollers 2000 mm (US Dupont)
Feature
1.Installed with 12 air cylinders controlled by touch screen, which enables full-automatic controls over all six sanding rollers, and enables internal synchronization.
2. Traverse motors installed on the side of sueding rollers, which enables 100% contact surface between fabric and sueding rollers, and that eliminates sueding trails left by traditional sueding machines.
3. The PLC controller allows 500 technical parameters storage.
4. Free combination of sanding paper and carbon fiber rollers.
