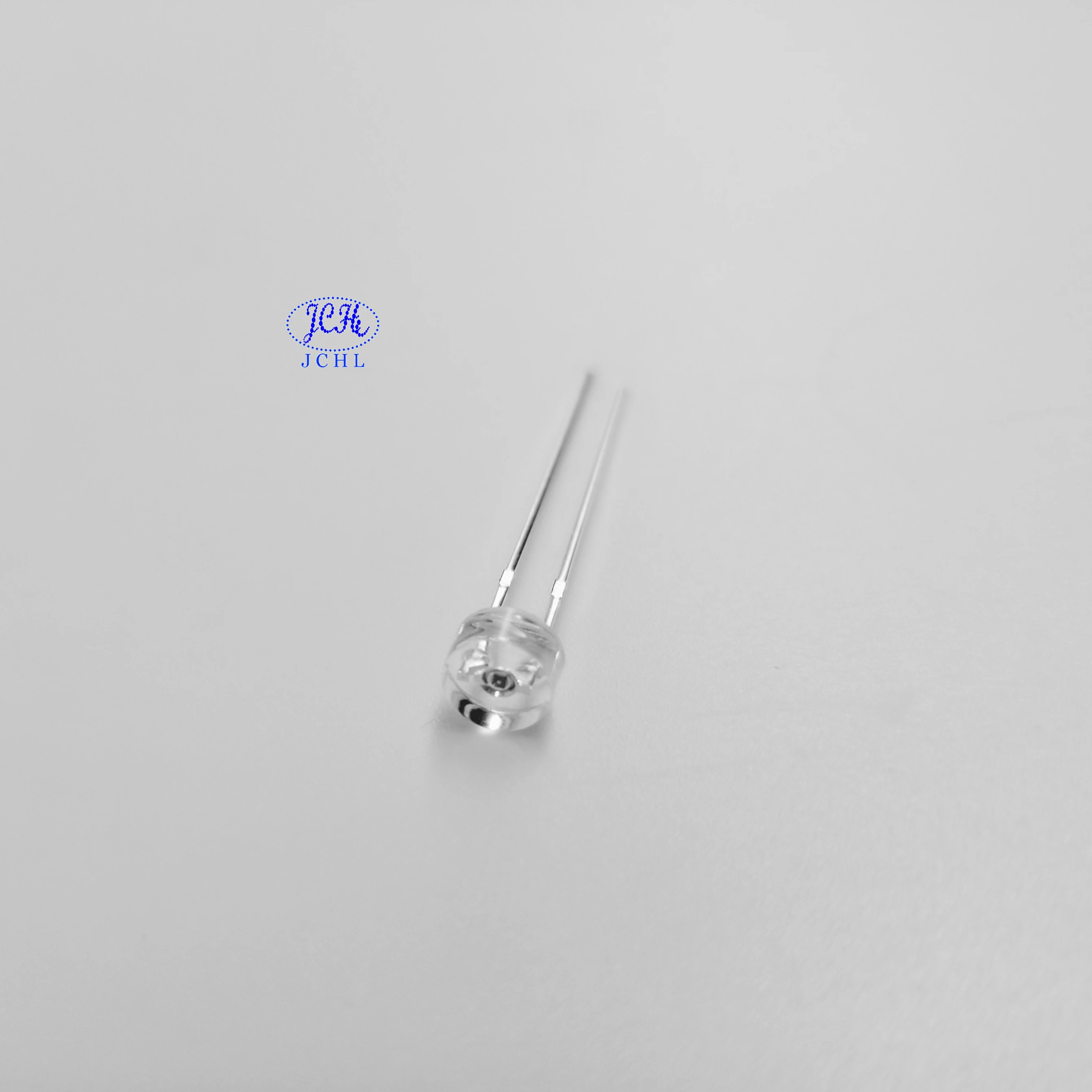

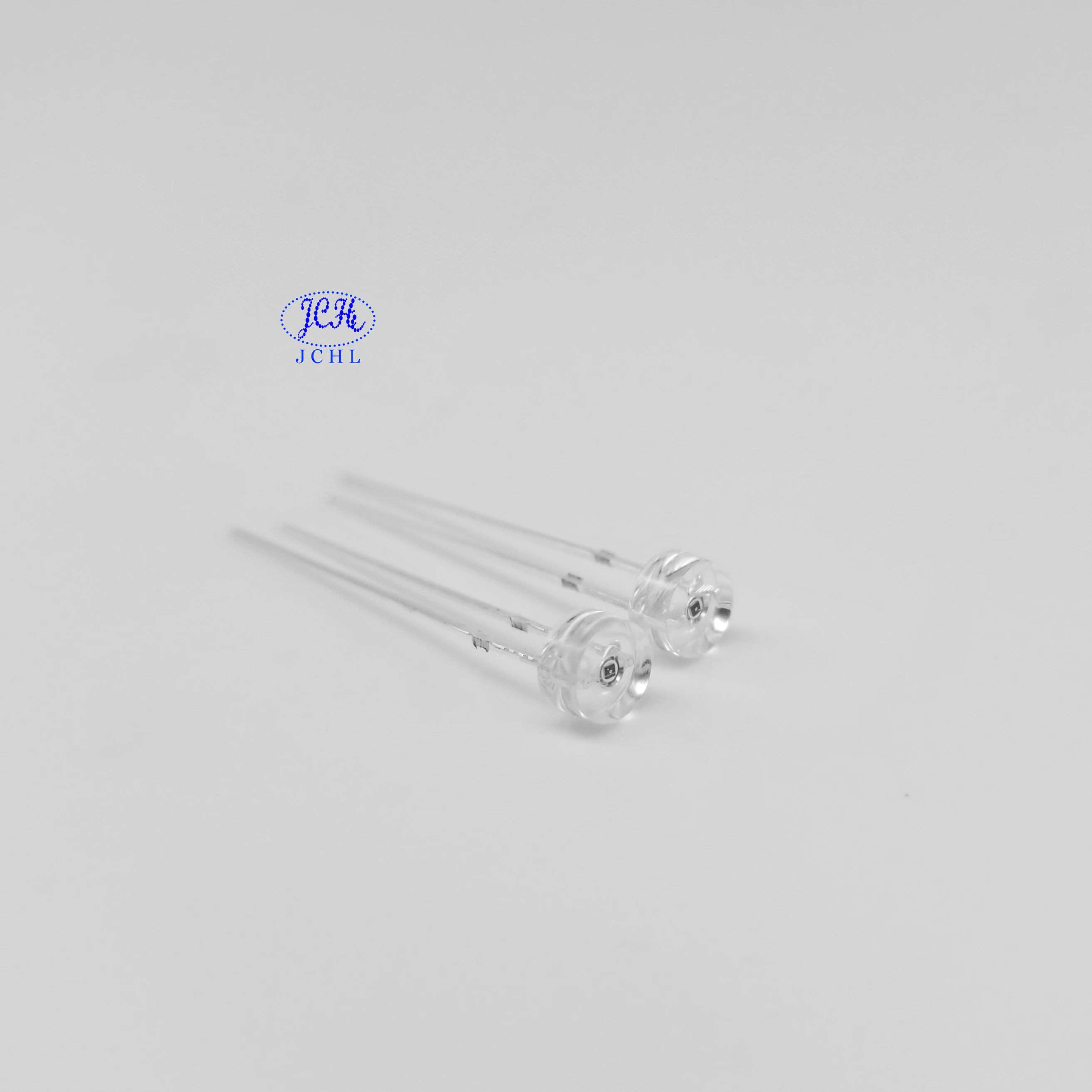

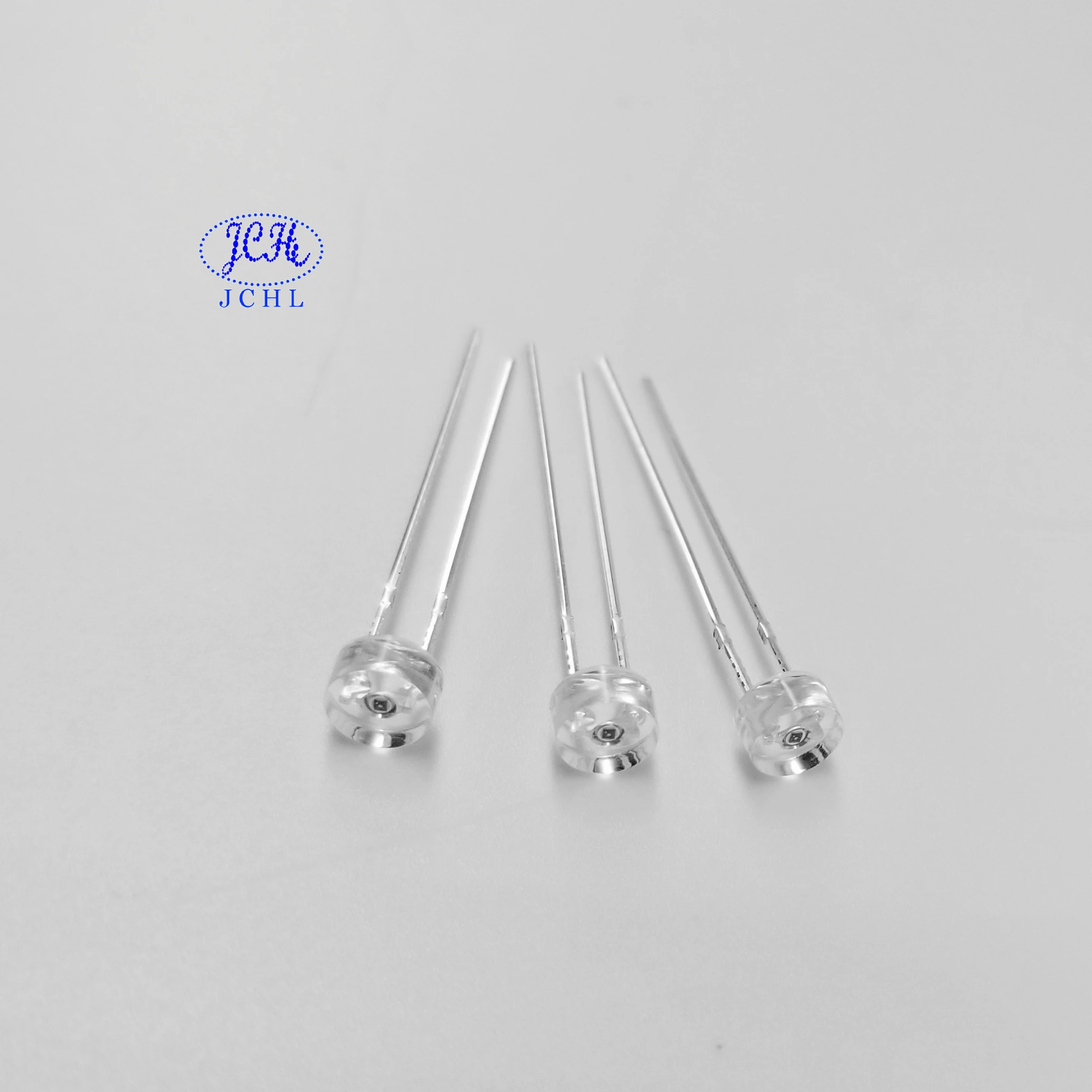

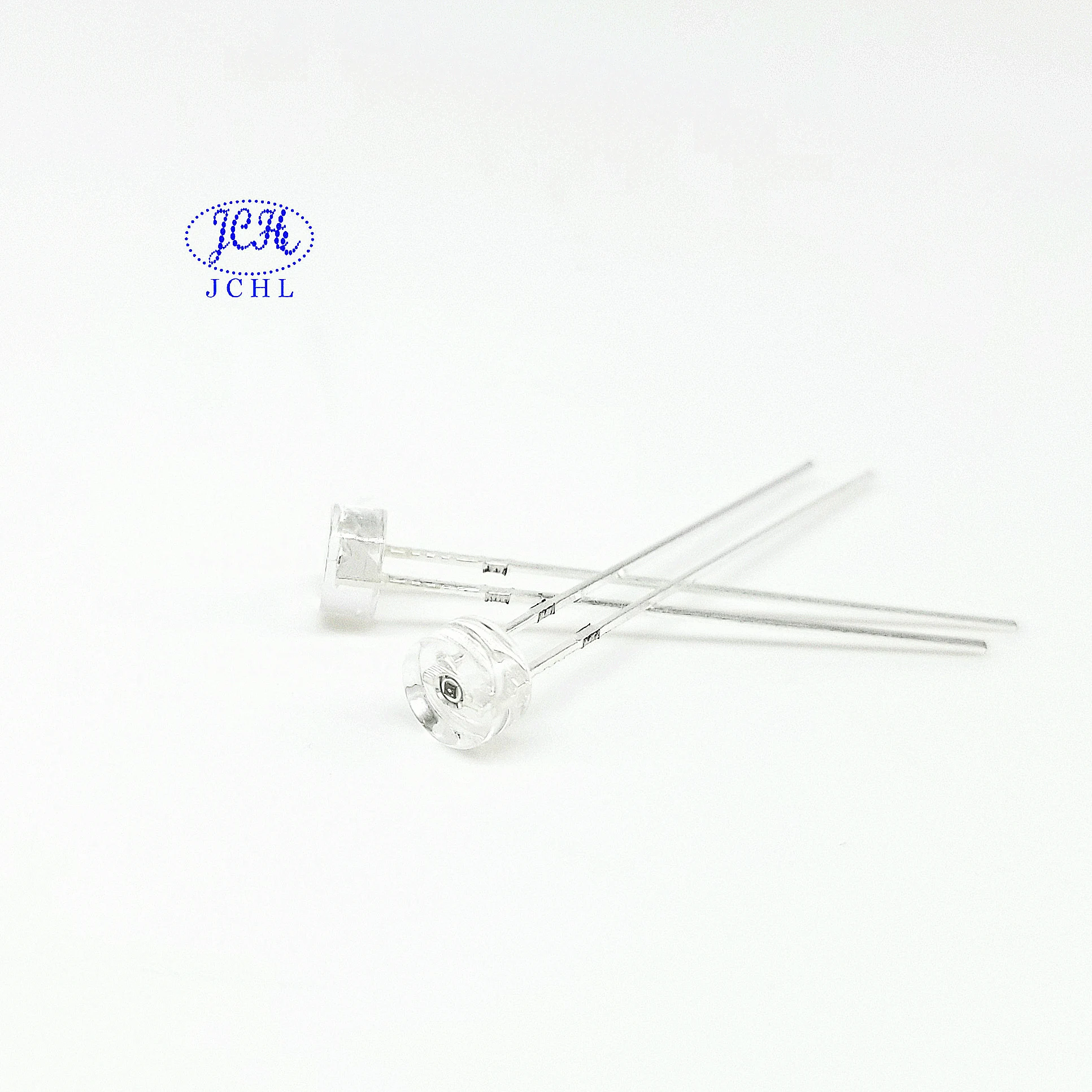

5 mm diameter high sensitivity, fast response, can replace CDS , environmental photosensitive sensor HL5I850HP25
- Category: >>>
- Supplier: Shenzhen Jingchuangheili Technology Co. Ltd.
Share on (1600085598724):
Product Overview
Description
Product Description
Features
Linear output conforming to illuminance.
Built-in optical filter for spectral response similar tothat of the human eye.
Temperature Stable.
Low dark current and Low working Lux.
RoHS Compliant / Pb-free / Cd-free.
Applications
Replacement of Photoresistor (CdS).
Control of backlight brightness for LCD Monitors,TV sets,
PDA ,Cameras and Mobile Phones.
Switch for lighting equipments and Toys.
Testing for daylight.
Photoelectric switch.
Absolute Maximum Ratings (Ta=25 °C)
|
Parameter |
Symbol |
Rated value |
Unit |
|
Collector Emitter Voltage |
VCEO |
12 |
V |
|
Emitter Collector Voltage |
VECO |
5 |
V |
|
Collector Power Dissipation |
PC |
70 |
mW |
|
Storage Temperature Range |
Tstg |
-40~+100 |
℃ |
|
Operating Temperature Range |
Topr |
-25~+85 |
℃ |
|
Soldering Temperature(≤5s) * |
Tsol |
260 |
℃ |
*At least 2mm from the component body
Opto-electrical Characteristics(Ta=25°C)
|
Parameter |
Symbol |
Test condition |
Min. |
Typ. |
Max. |
Unit |
|
Collector Emitter Voltage |
BVCEO |
IC=100μA Ee=0mW/cm2 |
12 |
|
|
V |
|
Emitter Collector Voltage |
BVECO |
Ie=100μA Ee=0mW/cm2 |
5 |
|
|
V |
|
Collector Emitter Saturation |
VCE(sat) |
IC=2mA Ee=1mW/cm2 |
|
|
0.4 |
V |
|
Dark Current |
ID |
EV=0LUX VDD=5V |
|
|
0.1 |
μA
|
|
Light Current |
IL(1) |
EV=10LUX VDD=5V |
5 |
7 |
10 |
μA
|
|
|
IL(2) |
EV=30LUX VDD=5V |
15 |
21 |
30 |
μA
|
|
|
IL(3) |
EV=100LUX VDD=5V |
50 |
70 |
100 |
μA
|
|
Peak Wave Length |
λp |
|
400 |
850 |
1100 |
nm |
|
Turn–On Time |
Tr |
VCE=5V,IC=1mA,RL=1000Ω |
|
15 |
|
μs |
|
Turn–Off Time |
Tf |
VCE=5V,IC=1mA,RL=1000Ω |
|
15 |
|
μs |

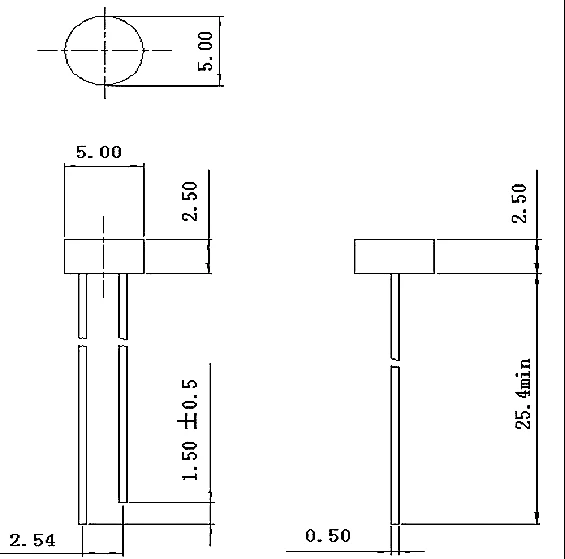

Dimensions
* Short foot —— collector, long foot —— emitter

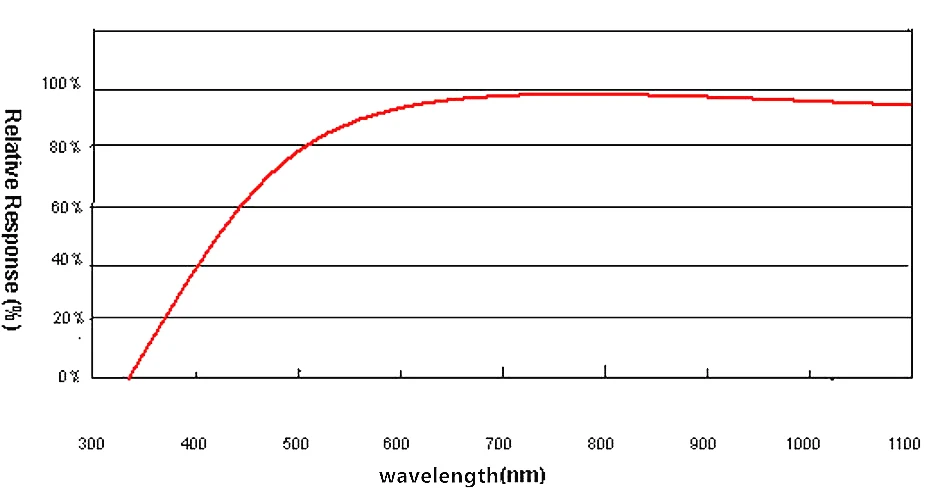

Sensitometric characteristic curve

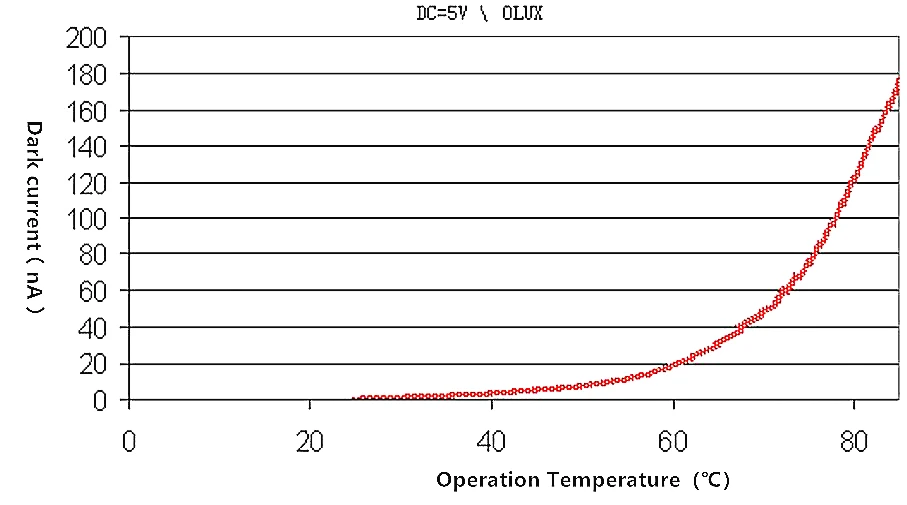

Ambient temperature VS dark current
