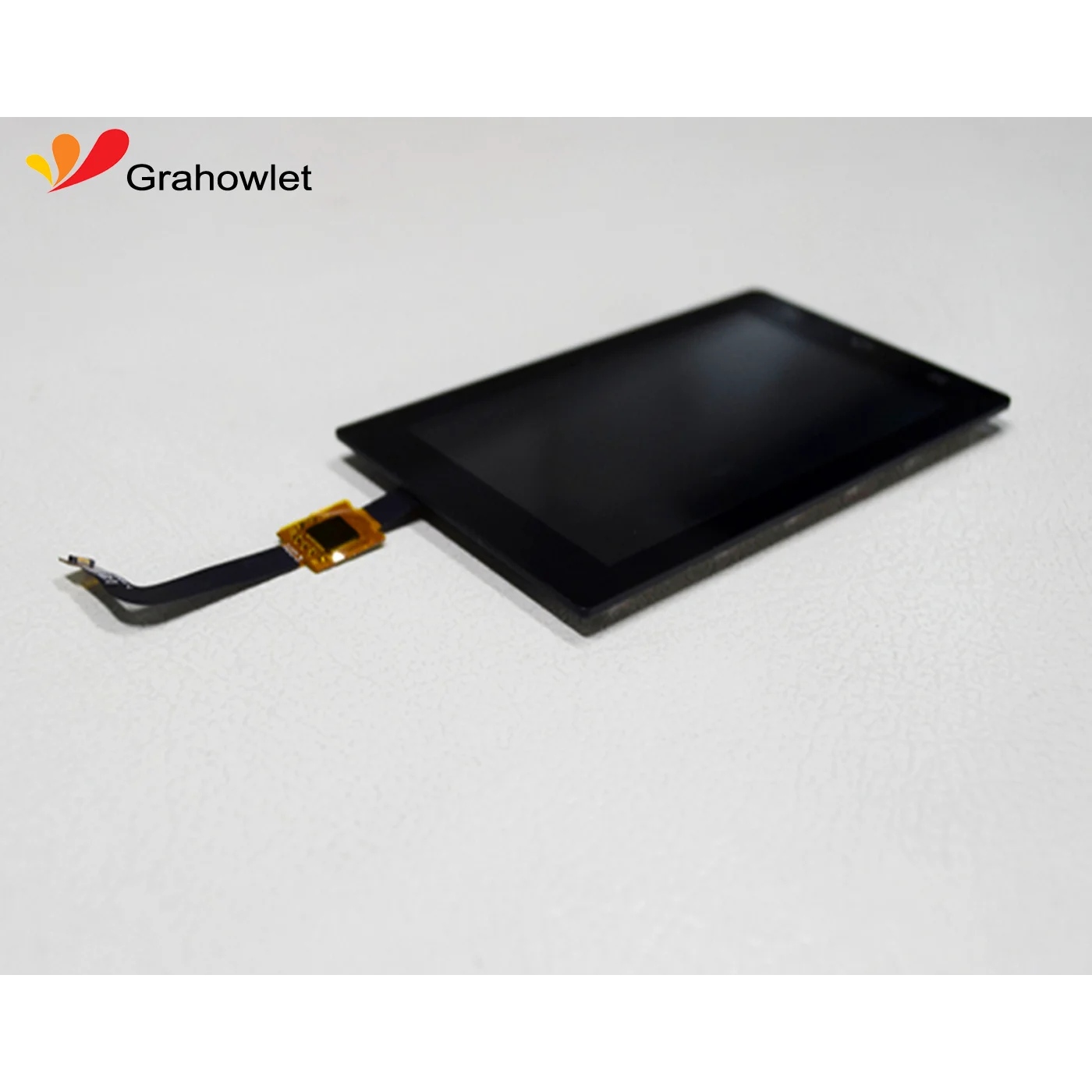

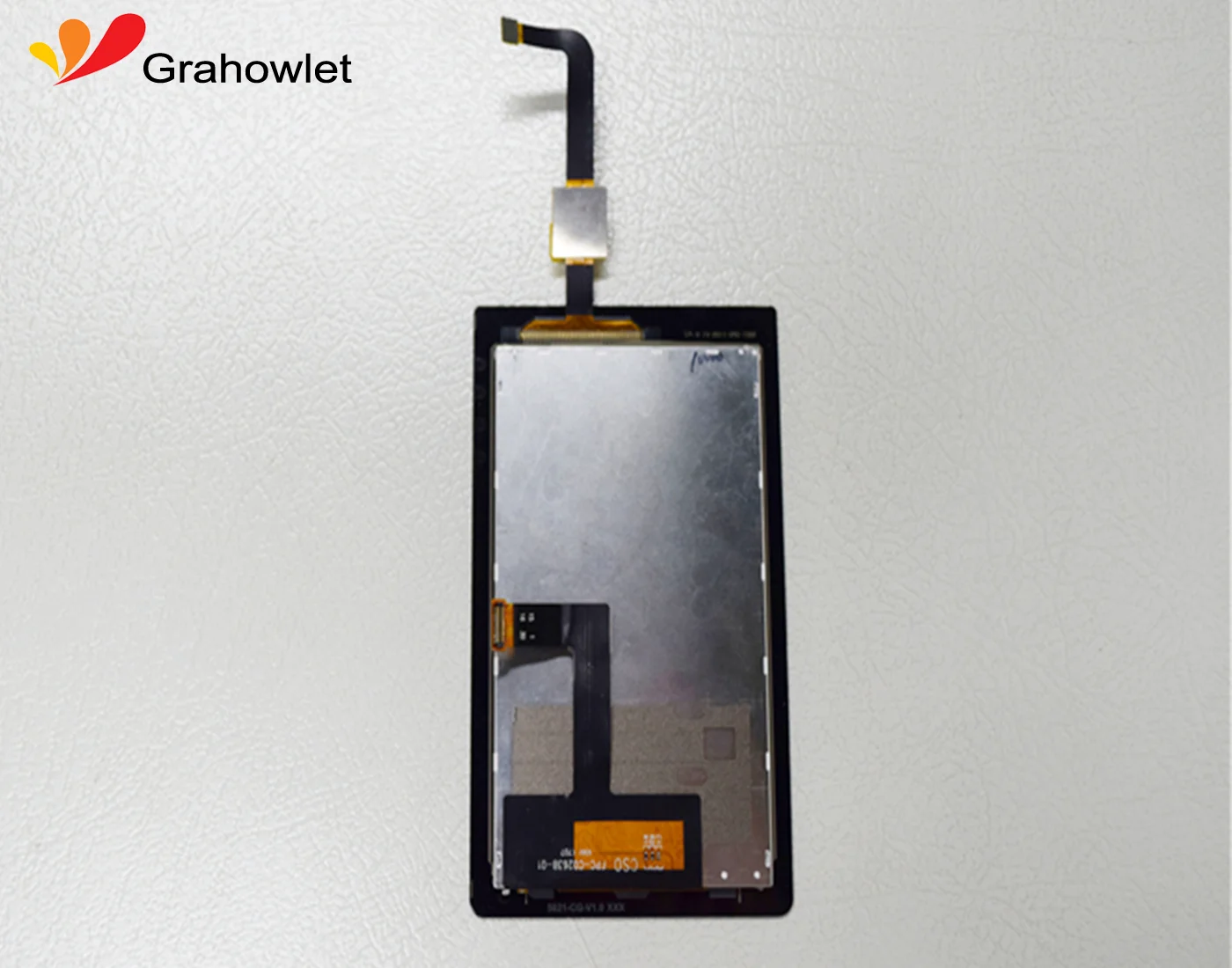

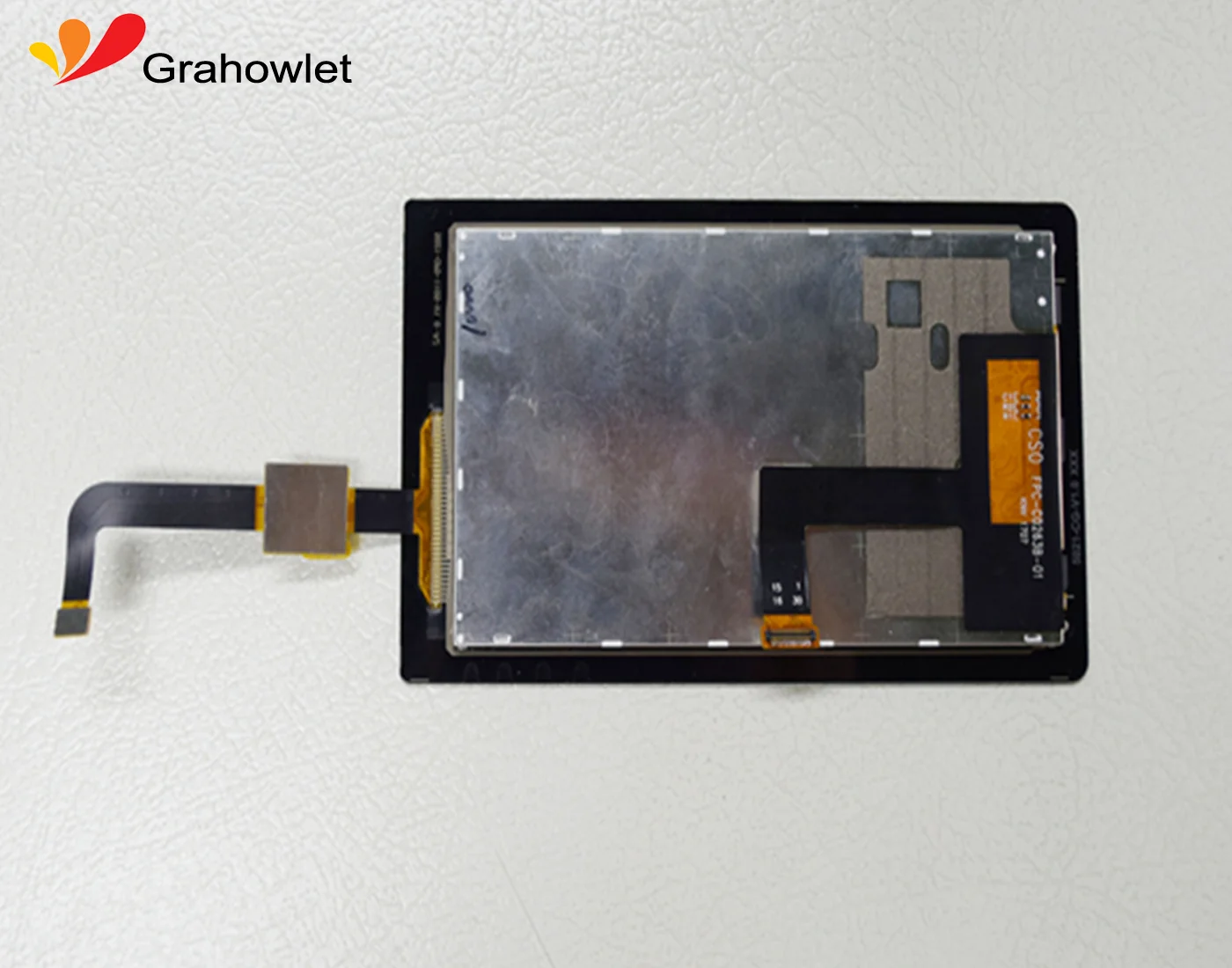

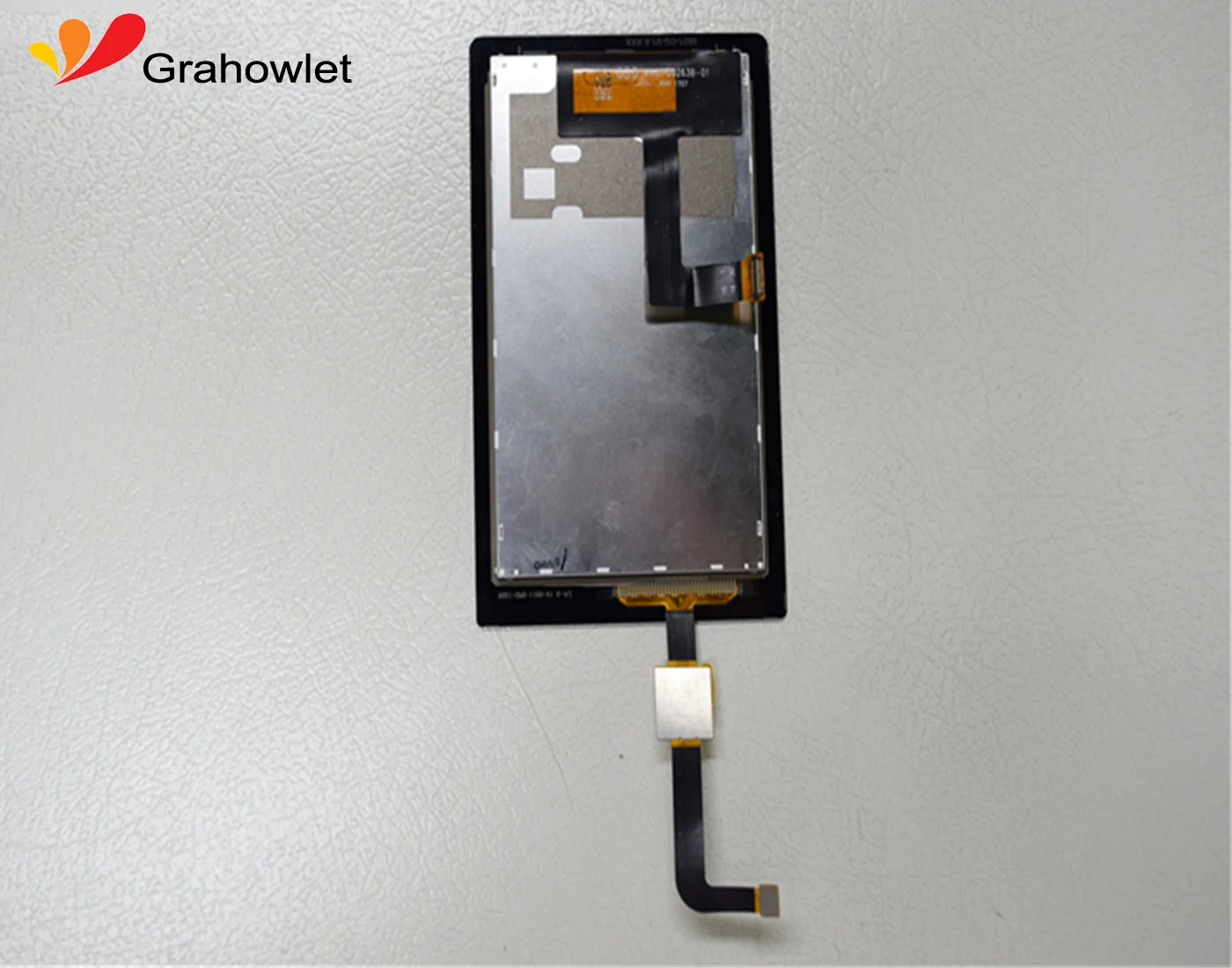

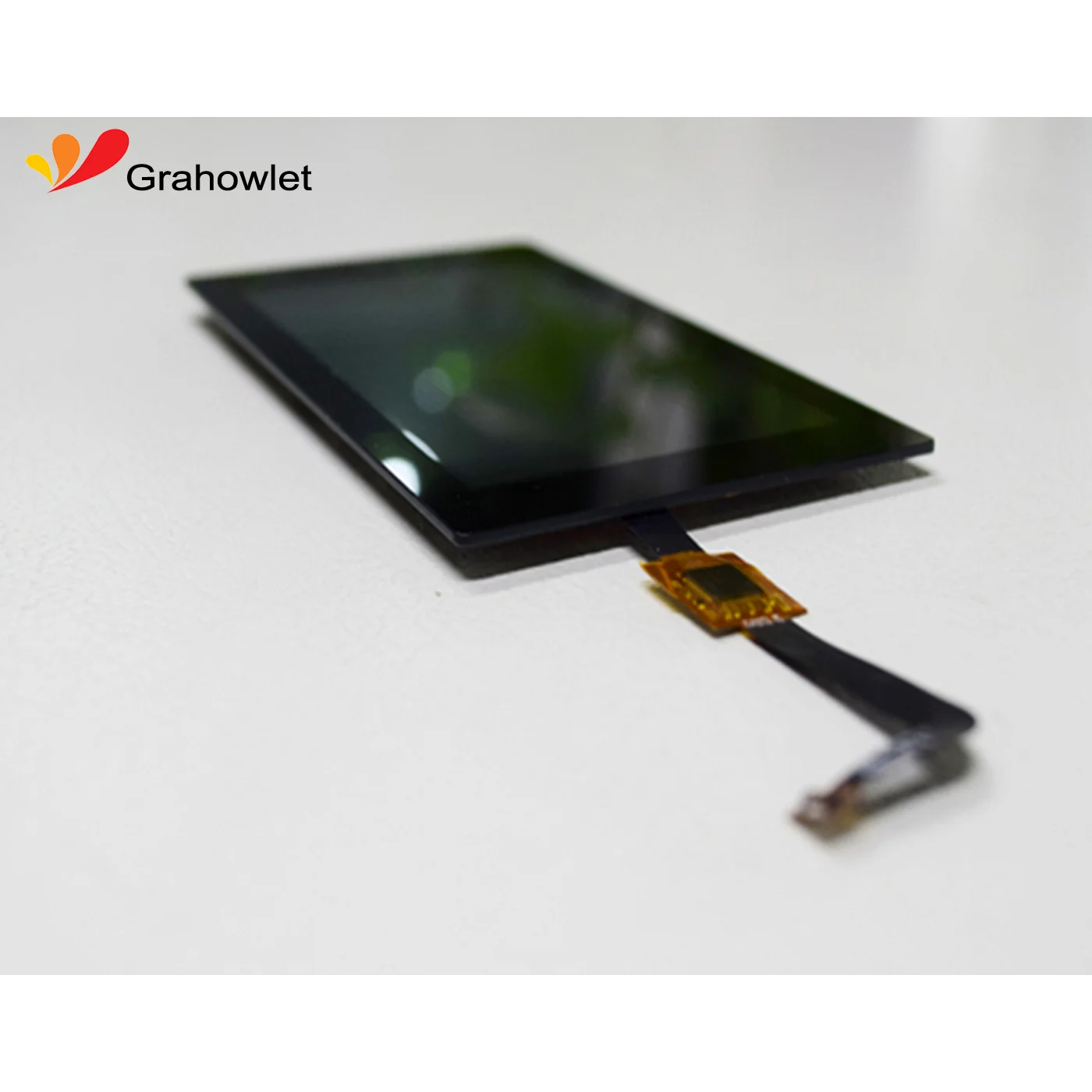

4 inch ips mipi tft lcd screens with capacitive touch dsi lcd touch screen module
- Category: >>>
- Supplier: Hangzhou Hongxiao Technology Co. Ltd.
Share on (1600085723050):
Product Overview
Description
4 inch ips mipi tft lcd screens with capacitive touch
Product Description
Customize CTP/CTP+ LCD DISPLAY 1.3-65 inch
Full range of standard product in stock (no need customization)
*Model Number | HX0401602 |
*Size | 4.0 inch |
*Operating Temperature | -20℃ ~ 60℃ |
*Storage Temperature | -20℃ ~ 70℃ |
*Outline Dimension | 65.70(W)x109.10(H)x4.60(D) mm |
*Viewing Area | 52.44(W)x87.00(H) mm |
*Active Area | 51.84(W)x86.40(H) mm |
*Support Systems | Windows/Android/Linux etc. |
*PCAP Interface Type | USB/IIC |
*Structure | G+F |
*PCAP Controller IC | FocalTech |
*Touch Points | Single Point |
*Power Supply Voltage | 2.8V ~ 3.3V |
*Resolution | 480*800 |
*DISPLAY Interface Type | MIPI |
*Luminance | 350 cd/m² |
*Viewing Angle | ALL |
*Warranty | 1 year |
Related Products
We can provide USB controller and HDMI/VGA driver board.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact us.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact us.
Application
If you want USB interface, we can supply IIC to USB Bridgeboard
1.Support Touch with glove of all materials and thickness with 6mm
2.Support Touch with water/brine
3.Cover glass Support -8mm thickness--explosion-proof
4.Cover glass surface treatment--AG, AR, AF
Anti Glare (AG) processing could eliminate screen surface mirror problem
through converting direct light to diffuse light on the touch screen.
Anti-Reflective(AR) processing means adding a type of coating that could reduce reflected
light on the cover glass,which dereases screen reflection and
increases visual effects significantly in the sun.

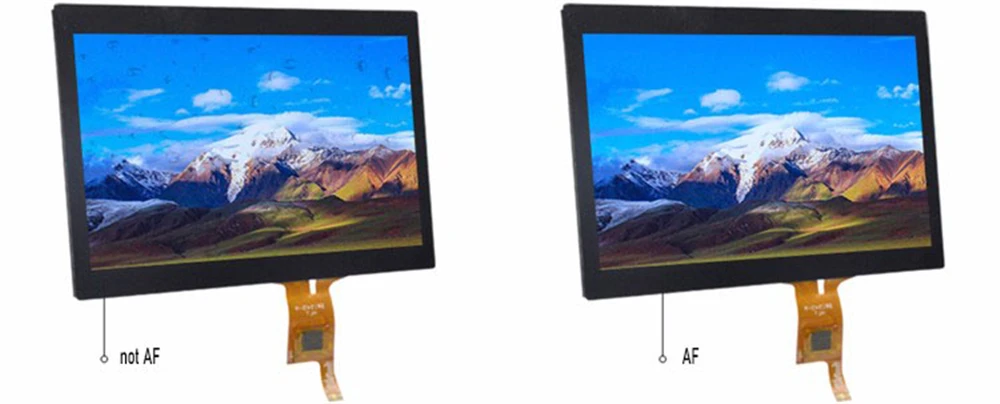

Anti-Fingerprint (AF) processing is adding on the cover glass a kind of coating that could increases surface smoothness,reduces surface aliding resistance,residual water and fingerprints on the surface significantly and improves touch feeling and clarity.
Our Service
programe evsluation | 1 to 2 morking days | |
Drawings | 2 to 3 working days | |
Customized products | 3 to 4 weeks(after drawings confirmed) | |
Mass Production delivery | 4.3 to 5 weeks | |
Software debugging | ||
Capacity | 100K per month(10.1 inches as a reference) | |
Process capability | G+G, G+F+F, shielding process, overall module joint process(Optical Bonding)(maximum 65 ") Cover glass surface treatment AR, AG, AF | |
Technical support | Engineers to provide door-to-door or remote access service within 24 hours | |
Stable supply chain for at least 3~5 years guarantee | ||
One year warranty time for all of our products | ||

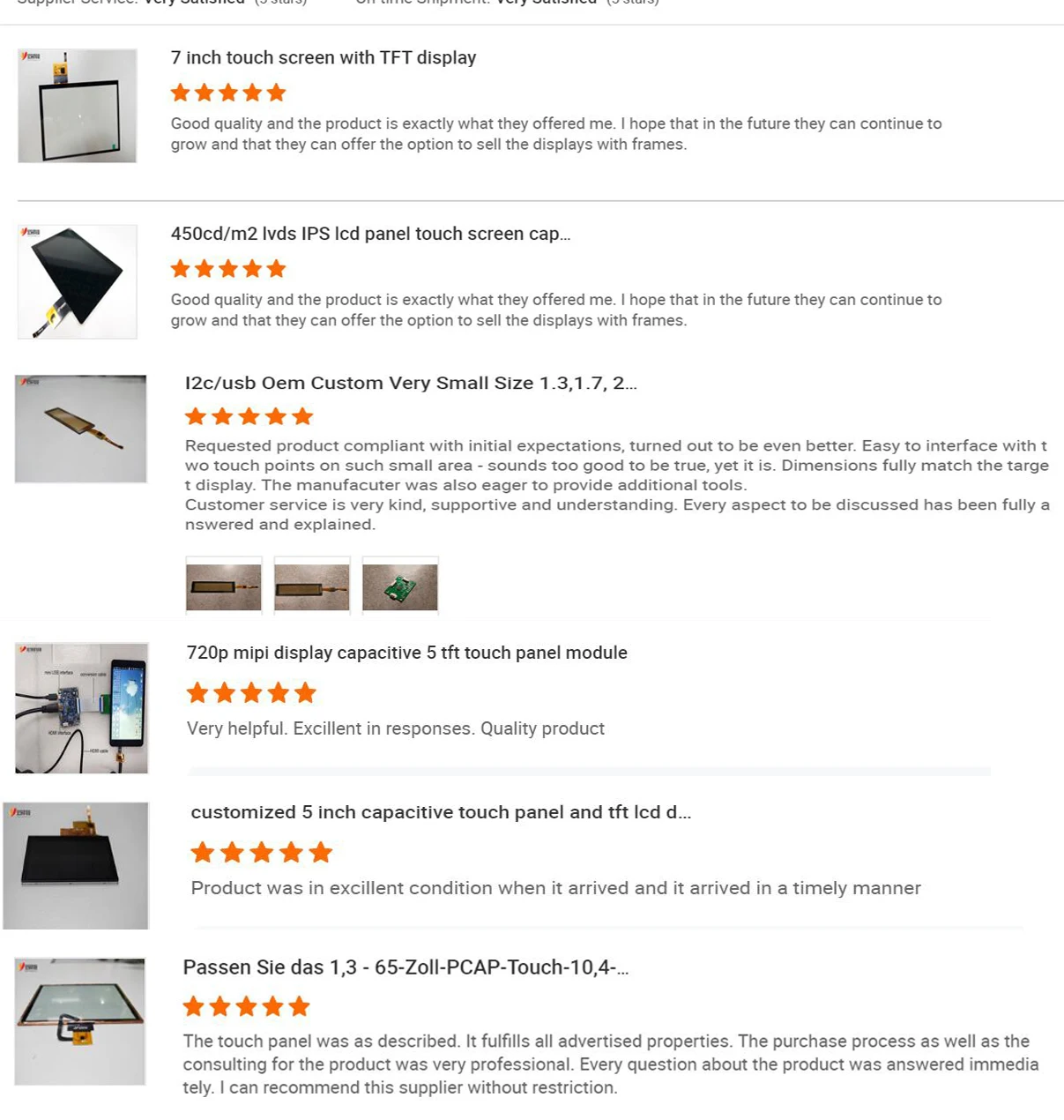

Feedback of customers
For more Ratings & Reviews, please Click here
Packing&Shipping
FAQ
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service，can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
