Product Overview
Description

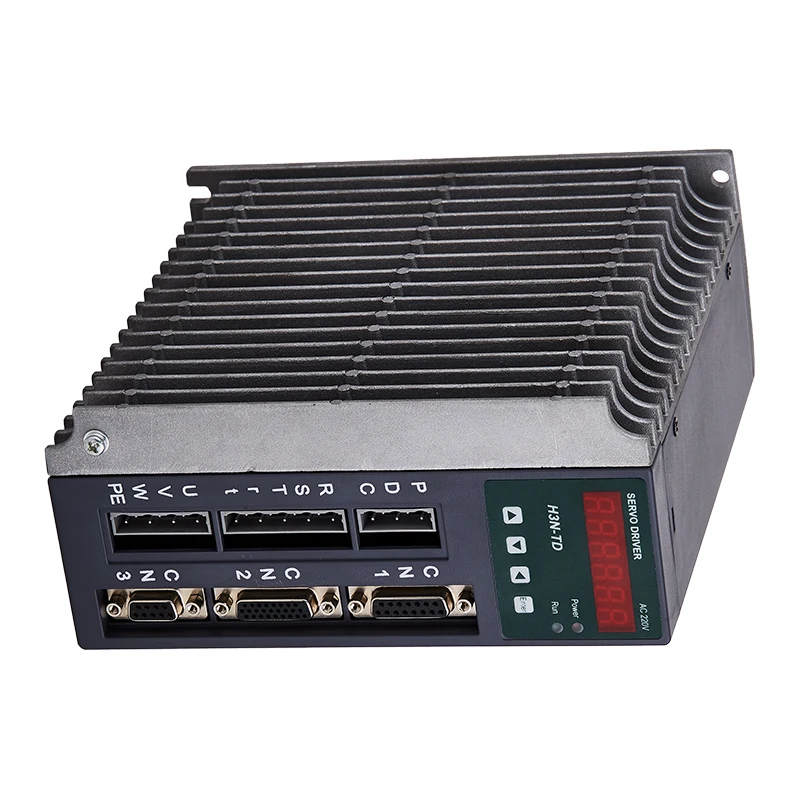

China supply 1KW-3.5KW Servo Motor Servo Driver
Product Description

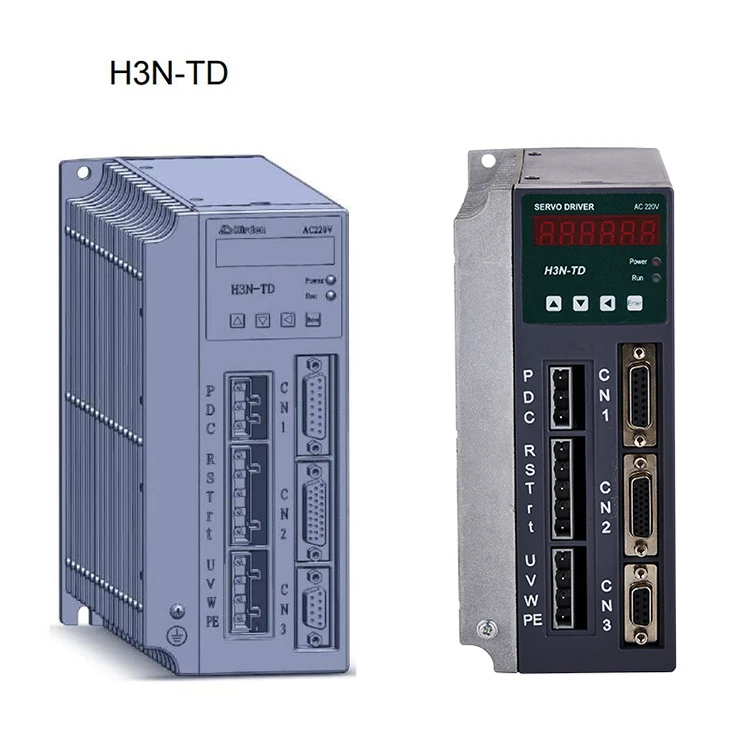

H3N-TD AC servo driver has advanced technique, stable performance, able to match with the power range from 200W to 1500W servo motor.
Parameter
Model of servo driver | H3N-DD | H3N-TD | H3N-ED | H3N-FD | H3N-GD |
Rated output power | 1KW | 1.5KW | 1.5KW | 2.3KW | 3.5KW |
Max output current | 12A | 17A | 17A | 25A | 25A |
Input current | 3PH/1PH 220VAC - 15%~+10% 50/60HZ | ||||
Environment | 0-40 ℃ humidity 40-80% no dew | ||||
Regenerative braking | internal/external | ||||
Matching motor | 4pairs | ||||
Matching encoder | Ordinary 2500 line Photoelectric incremental encoder | ||||
Control mode | position velocity torque | ||||
Digital input port | 4, functional programmable, photoelectric isolation | ||||
Digital output port | 3,functional programmable, photoelectric isolation | ||||
Monitoring functions | rotating speed,current position, pulse command,positional deviation,motor torque,output current,input voltage,fault code | ||||
Defensive function | input overvoltage/undervoltage,output overcurrent,motor overheating,driver overheating,encoder fault,position error,Speed response fault,abnormal braking | ||||
Acceleration features | 0-3000r/min no-load10ms | ||||
Velocity response frequency | 0-300HZ | ||||
Ratio speed | 1-10000 | ||||
Dimensions and mounting dimensions of AC Servo Drivers
Model | H3N-DD | H3N-TD | H3N-ED | H3N-FD | H3N-GD |
Installation length A(mm) | 160 | 175 | 208 | 189.3 | 203.5 |
Installation width B(mm) | 60 | 65 | 25 | 75 | 88 |
Exterior length A(mm) | 170 | 185 | 195 | 200 | 215 |
Exterior width B(mm) | 77 | 82 | 97 | 92 | 105 |
Exterior depth E(mm) | 172 | 182 | 155 | 186.2 | 207 |
Radiator thickness (mm) | 16 | 21 | 31 | 29.5 | 34 |

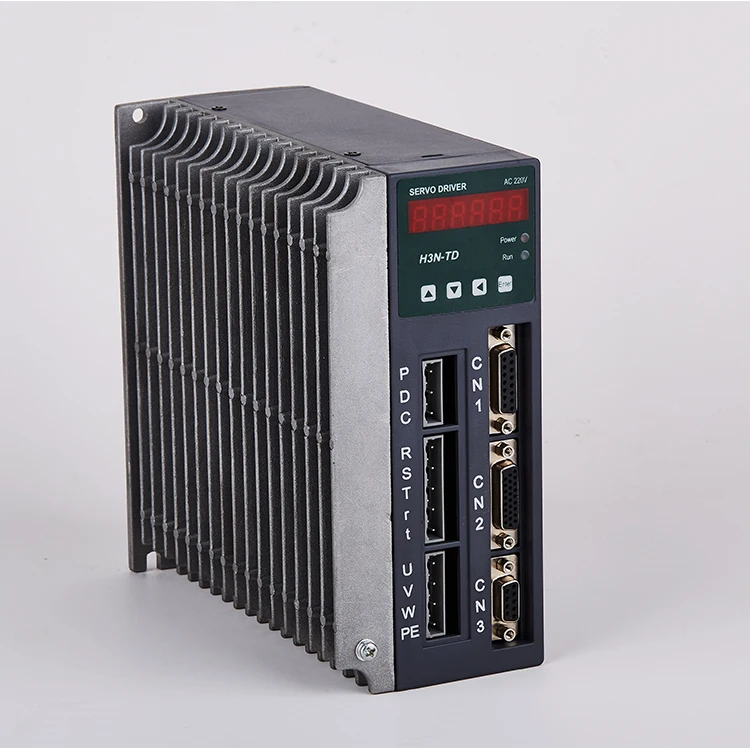

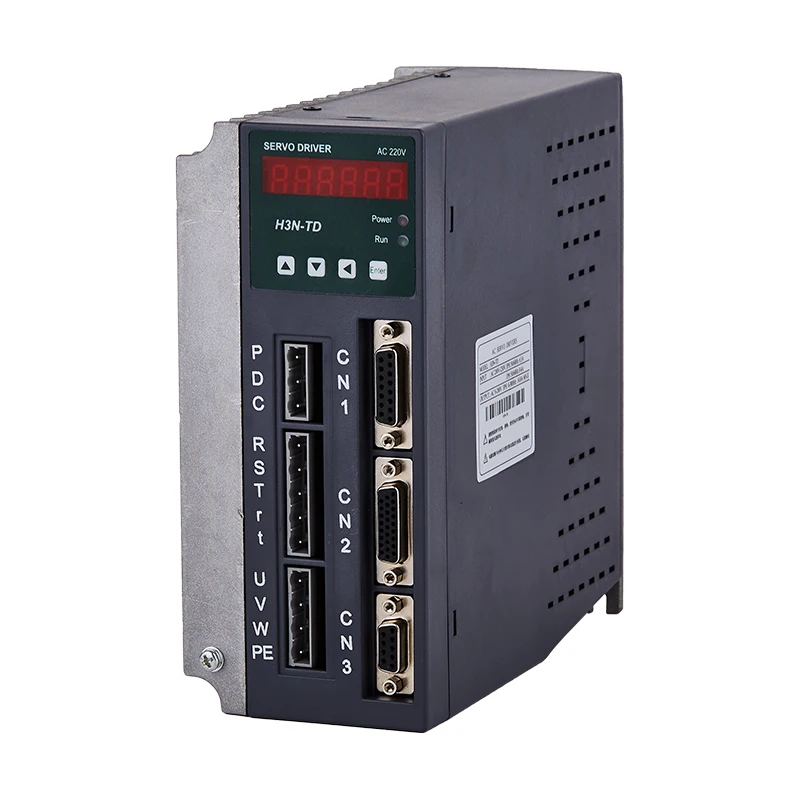

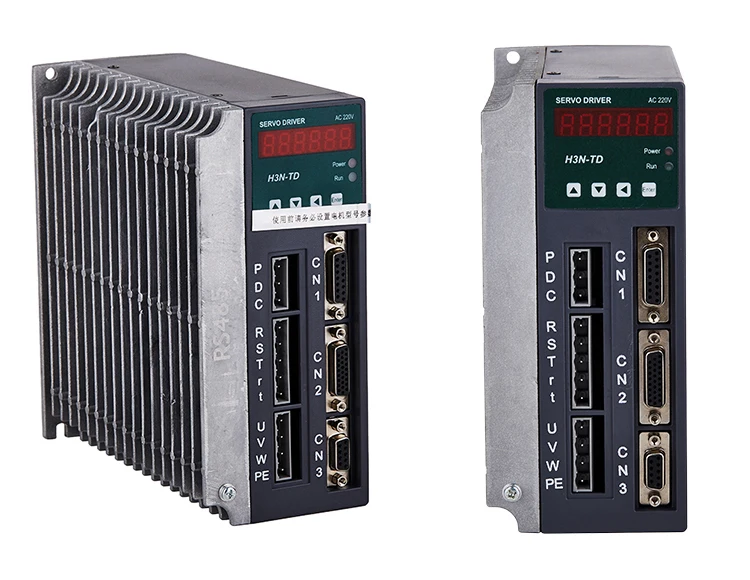

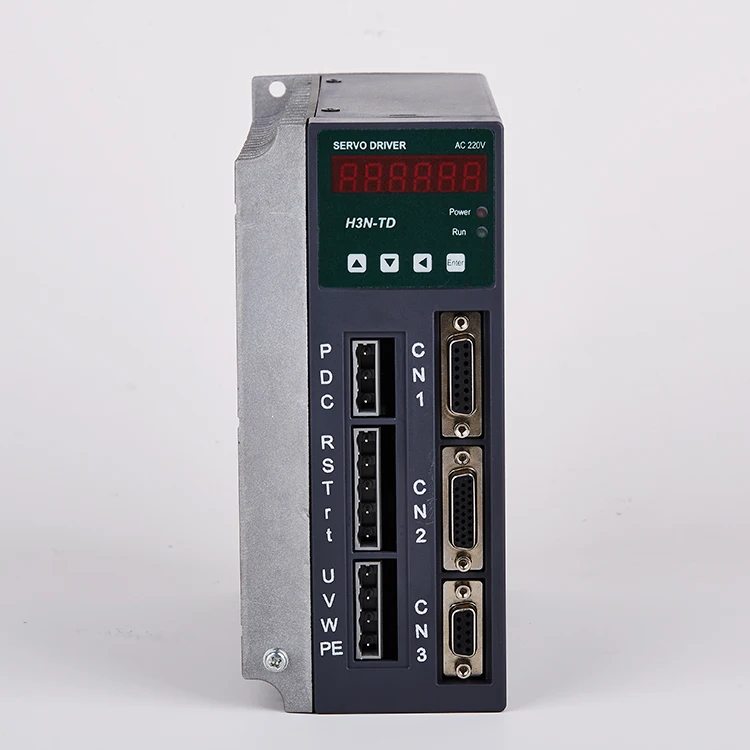

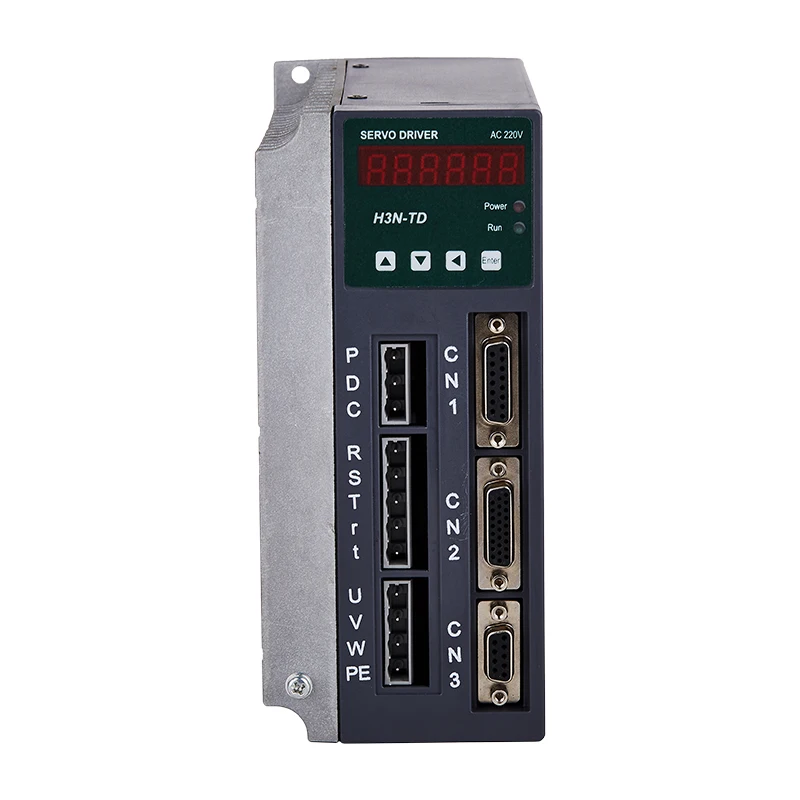

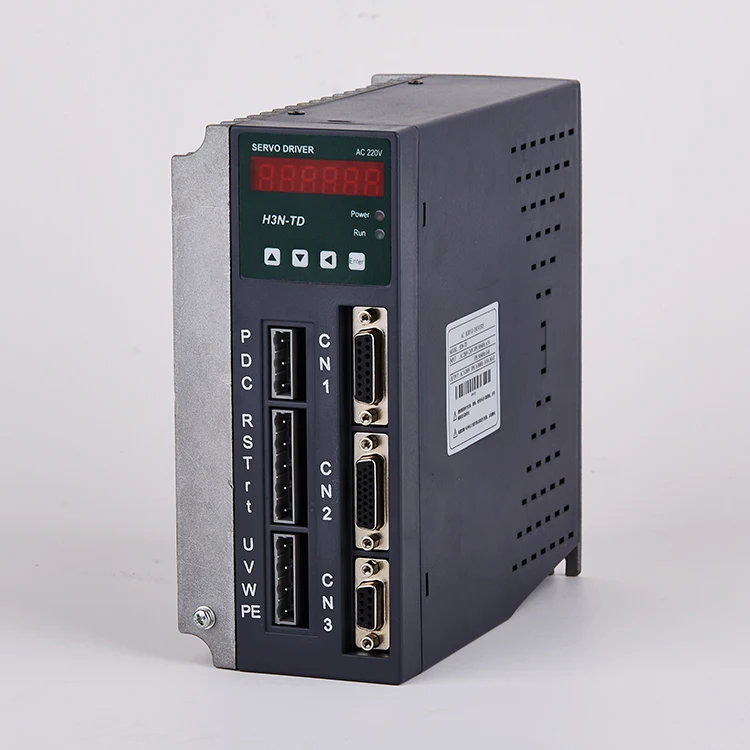

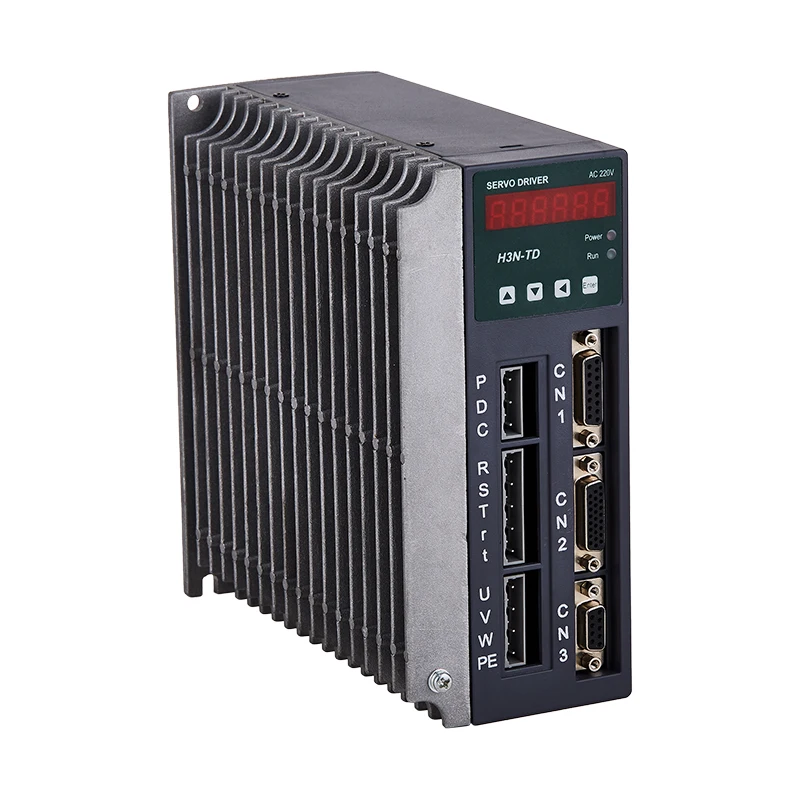

Detailed Images
Application
Packaging & Shipping
Our Services
1. We accept small order of AC servo driver;
2. Sample order delivery time is in 5 days, mass quantity order lead time is 7-10 days;
3. We can accept payment via paypal, T/T and L/C;
4.Quality assurance of our AC Servo motor is 1 year, and we can provide you professional technical support;
5. We accept products customize.
6. We provide free software wand training how to use the products. Engineers are available for technical support.
