Product Overview
Description
Product Description

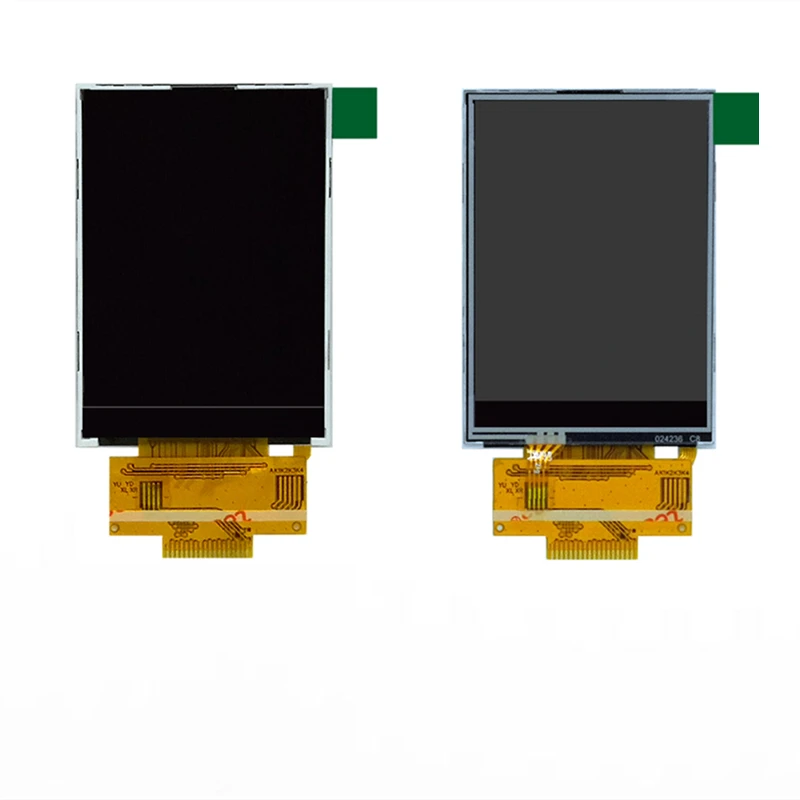

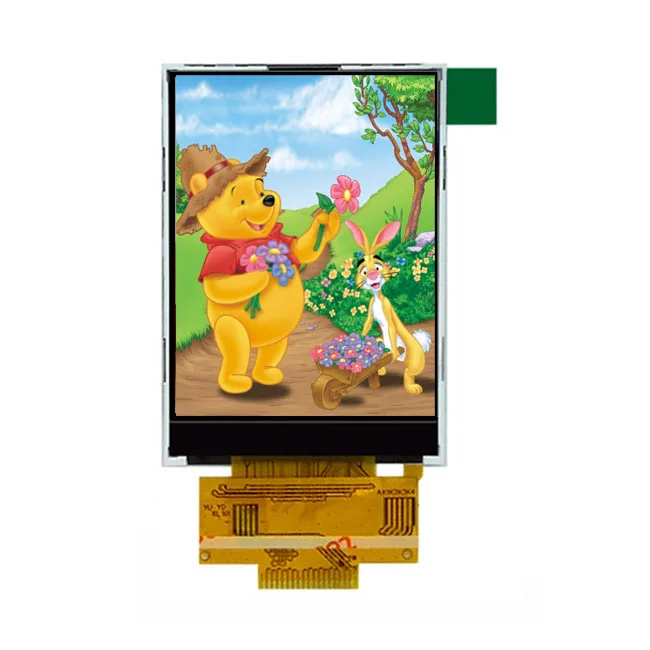

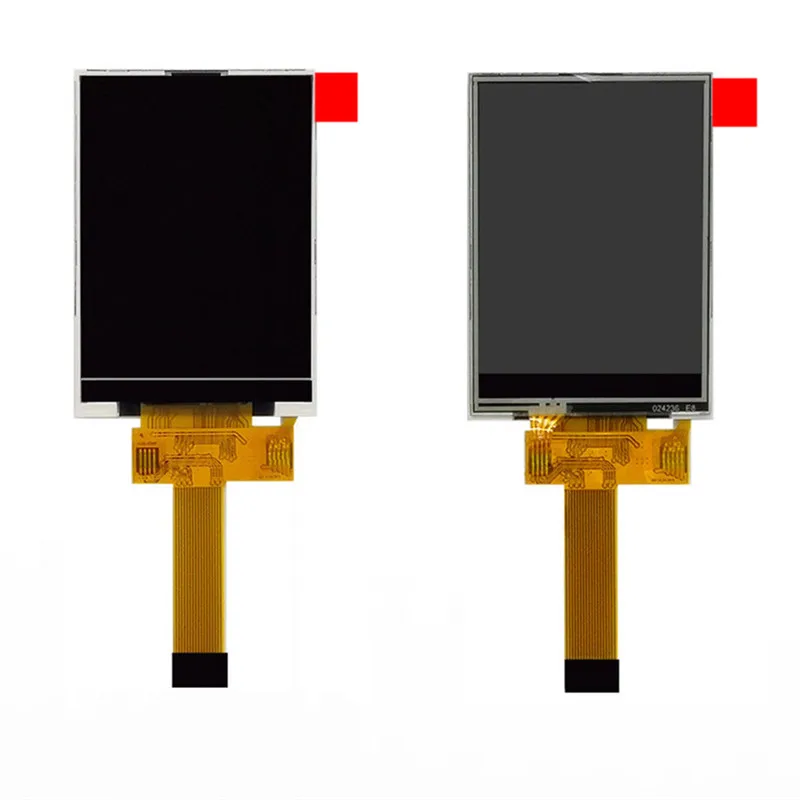

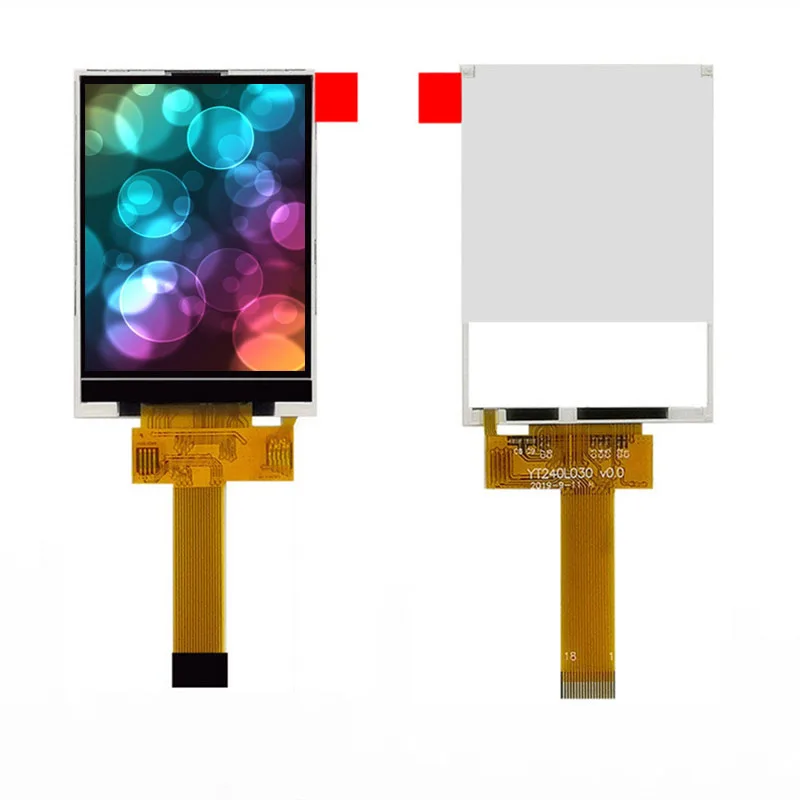

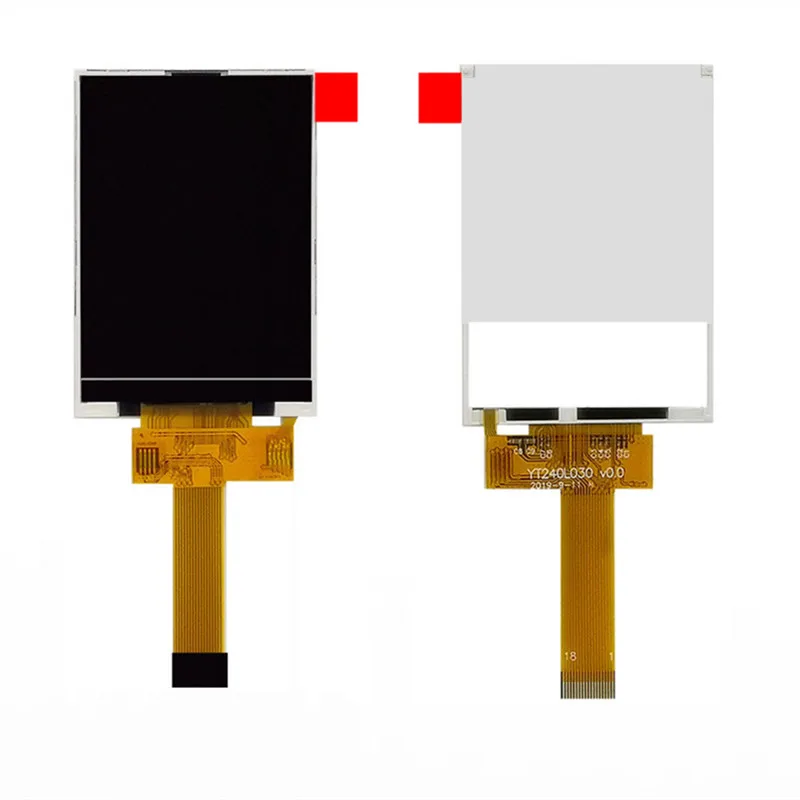

Price 240x320 ST7789 ILI9341 Touch Panel SPI 2.4 TFT LCD Screen Display
| Diagonal Screen Size | 2.4inch |
| Model number | GMT024-02T |
| Resolutions | 240x320 |
| Outline dimension | 42.72x60.26x3.75mm |
| Active area | 36.72x48.96mm |
| Working voltage | 2.8V-3.3V |
| Driver IC | ILI9341/ST7789V |
| Interface | 4-bit SPI Serial port |
| Operating temperature | -20~70℃ |
| Storge Temperature | -30~80℃ |
| Assemble | Soldering/Connector |
| Touch Panel | Yes(or no) |
| Pins | 18P |

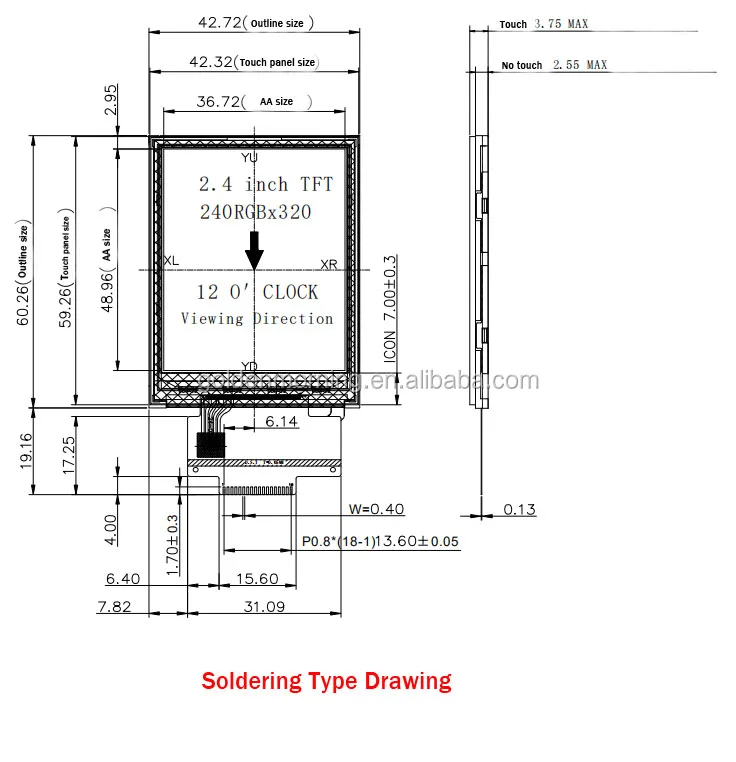

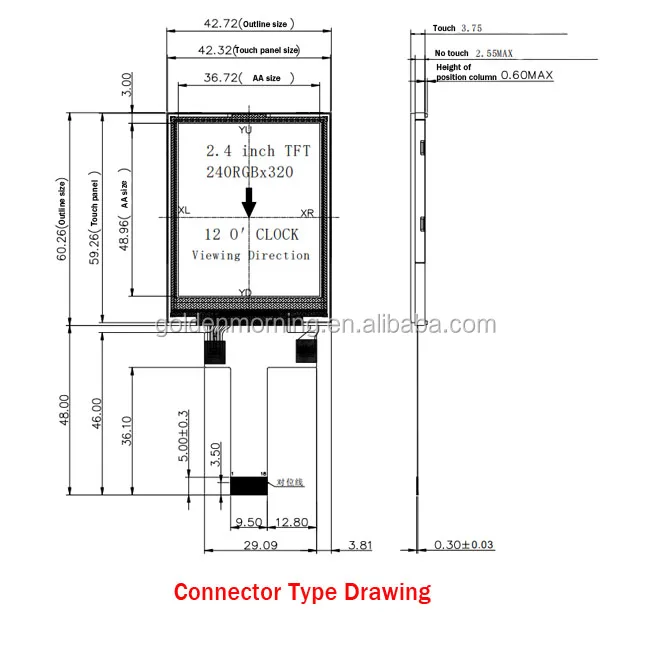

Drawing(2.4" TFT)

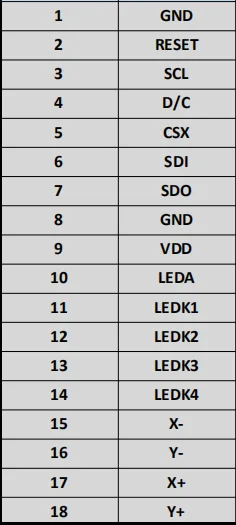

Pin Assignment(2.4"TFT,Pins:18P)
