This machine is fabric and sneakers pressure for binding processing of hot-pressing lining small desktop fusing machine,apply to all kinds of clothing brought lining,placket and sports shoes and other leather adhesive processing.
The corresponding agglutinate product flat quite washing,not easy corrugate,applicable to all kinds of resin brought lining,non-woven lining addlutinate,with simple structure,beautiful appearance generous,low noise,change with convenient.
Technical Parameter
Model
HT-NHJ600
HT-NHJ900
HT-NHJ1200
HT-NHJ1400
Electric power
9.6KW
9.6kw
9.6kw
9.6kw
Motor Power
380v/90w
380v/90w
380v/90w
380v/90w
Fusing width
0-600mm
0-900mm
0-1200mm
0-1400mm
Working speed
1.037-10.37m/min
1.037-10.37m/min
1.037-10.37m/min
1.037-10.37m/min
Max pressure
0.4Mpa
0.4Mpa
0.4Mpa
0.4Mpa
Temperature
0-200℃
0-200℃
0-200℃
0-200℃
Fusing time
6-30sec
6-30sec
6-30sec
6-30sec
Dimension (mm)
3350*1207*1210
3350*1507*1210
3350*1807*1210
3350*2107*1210

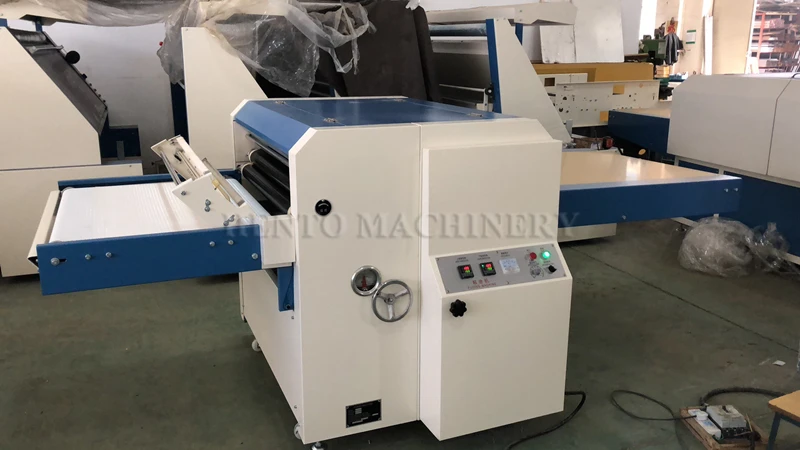

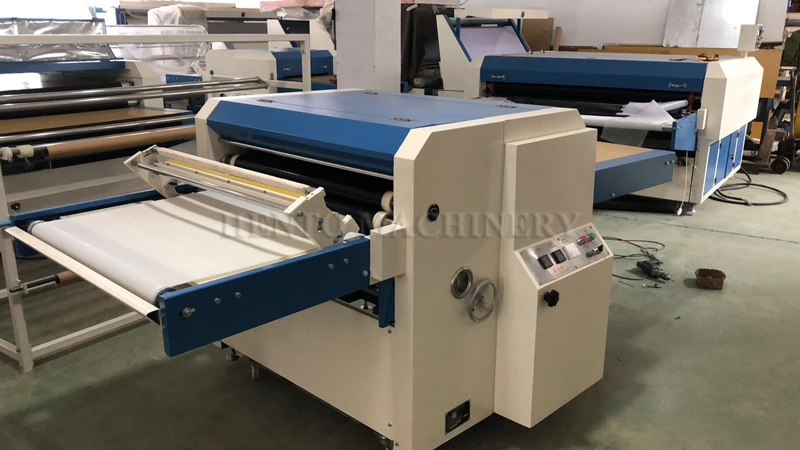

Pictures
