LINK MI 4K 2x2 Video Wall Controller Support PIP 2x2 1x2 1x3 1x4 2x1 3x1 4x1 HDMI DP Multiple Inputs 4 Channels TV Wall
- Category: >>>
- Supplier: Shenzhen LINK-MI Technology Co. Ltd.
Share on (1600086646906):
Product Overview
Description
Description

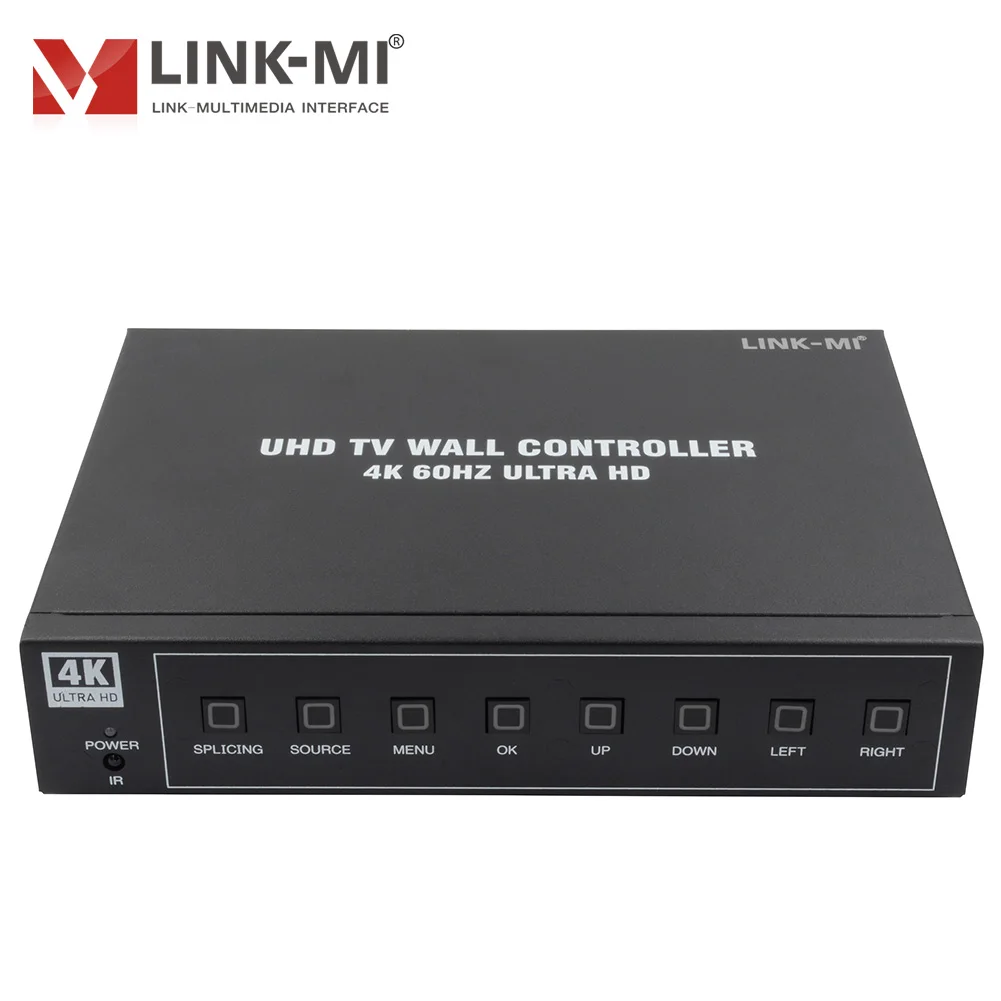

LINK-MI LM-TV04P 4-channel video wall controller is designed to distribute video signal to multiple display units (like LCD TV, Ultra Narrow Edge LCD Screen, Projector...etc) for splicing display. It comes with HDMI 1.4, HDMI 2.0 and DP 1.2 inputs; 4 HDMI outputs; It supports input resolution up to 3840*2160@60Hz; and each output resolution supports 1920*1080P@60Hz.
User can choose 1 or multiple input sources to display synchronously. This device supports all splicing modes for 4 TVs, such as 2x2, 1x2, 1x3, 1x4, 2x1, 3x1, 4x1. It can be controlled via panel buttons and IR remote.
Features
1. High Resolution
Max resolution up to 4K@60Hz 4:4:4, HDCP 2.2, DP 1.2 max 4K@60Hz

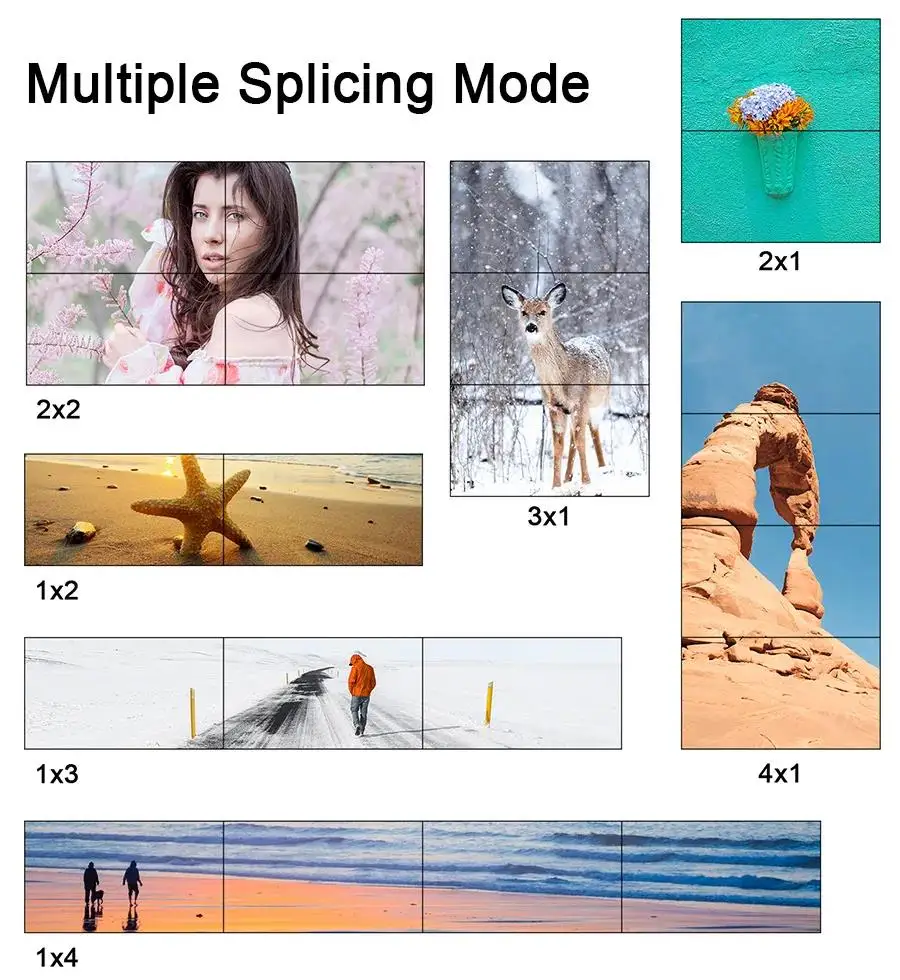

2. Multiple Splicing Mode
Supports all splicing modes for 4 TVs, such as 2x2, 1x2, 1x3, 1x4, 2x1, 3x1, 4x1
3. Cascade Splicing
Supports cascade connection to achieve max. 4x5 (20) video wall display. (Need more controllers)

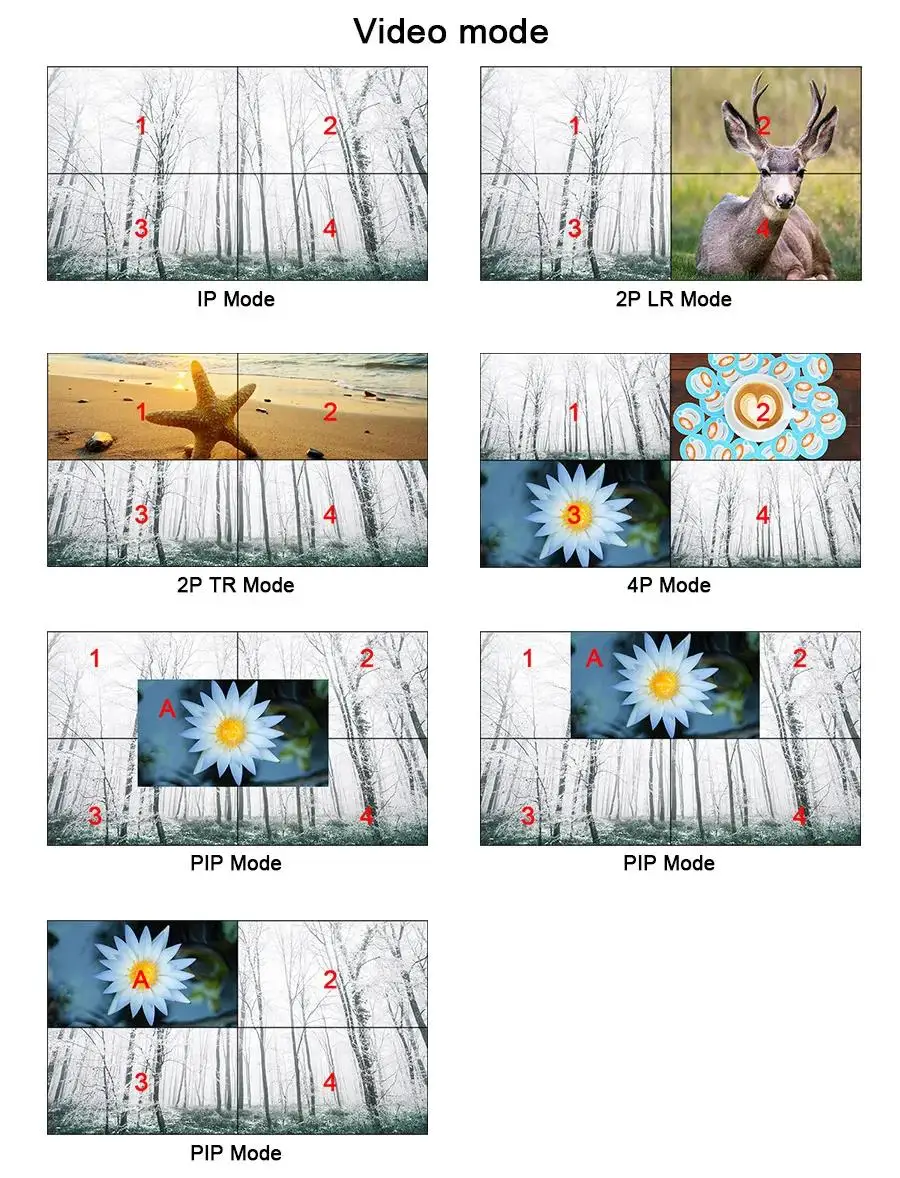

4. Support Multiple Display Modes: 1P, 2P LR, 2P TB, 4P, PIP
With HDMI 1.4, HDMI 2.0 and DP 1.2 inputs, it can support 1P (1 picture display), 2P LR (2 pictures left and right display), 2P TB (2 pictures top and bottom display), 4P (4 pictures display), PIP (picture in picture display).
Roaming Window - Support roaming window and support input of the splicer can be resized and positioned at any position.
5. Rotation/Border Ajustment/Mirror Function
Support image rotation 90°, 180°, 270° and Mirror left and right, flip up and down.
Support automatically adjust border function and crop image function, Display without black edges.
6. Intelligent Temperature Control
Support intelligent temperature control protection technology, making the product's heat dissipation performance more stable, reliable and durable.
7. No noise
Silent smart fan, no noise at work.

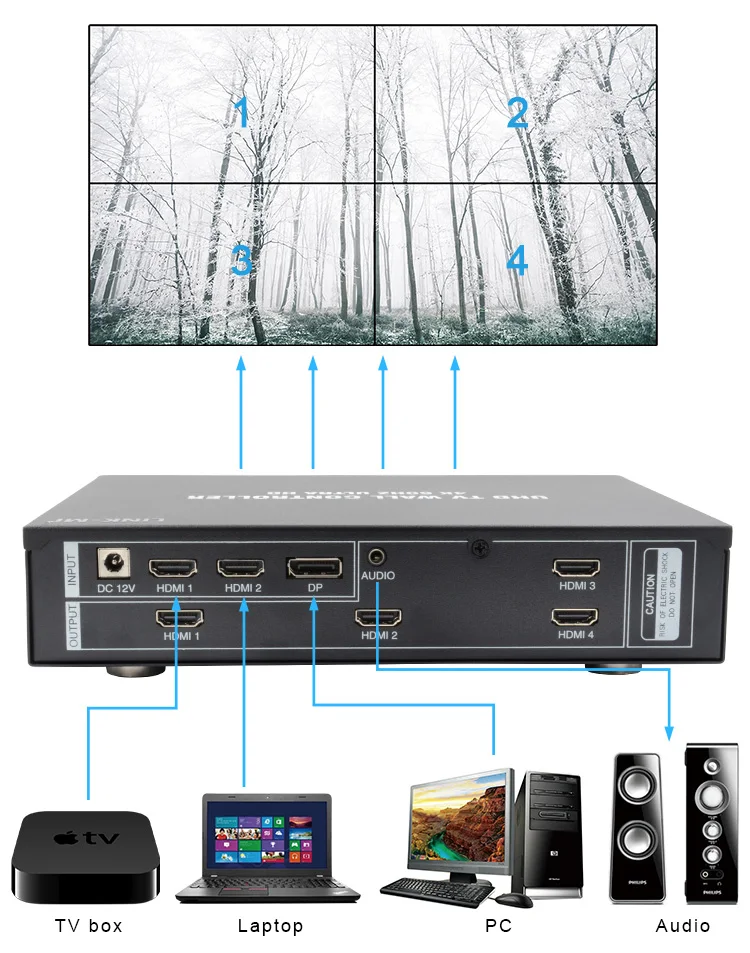

Connection

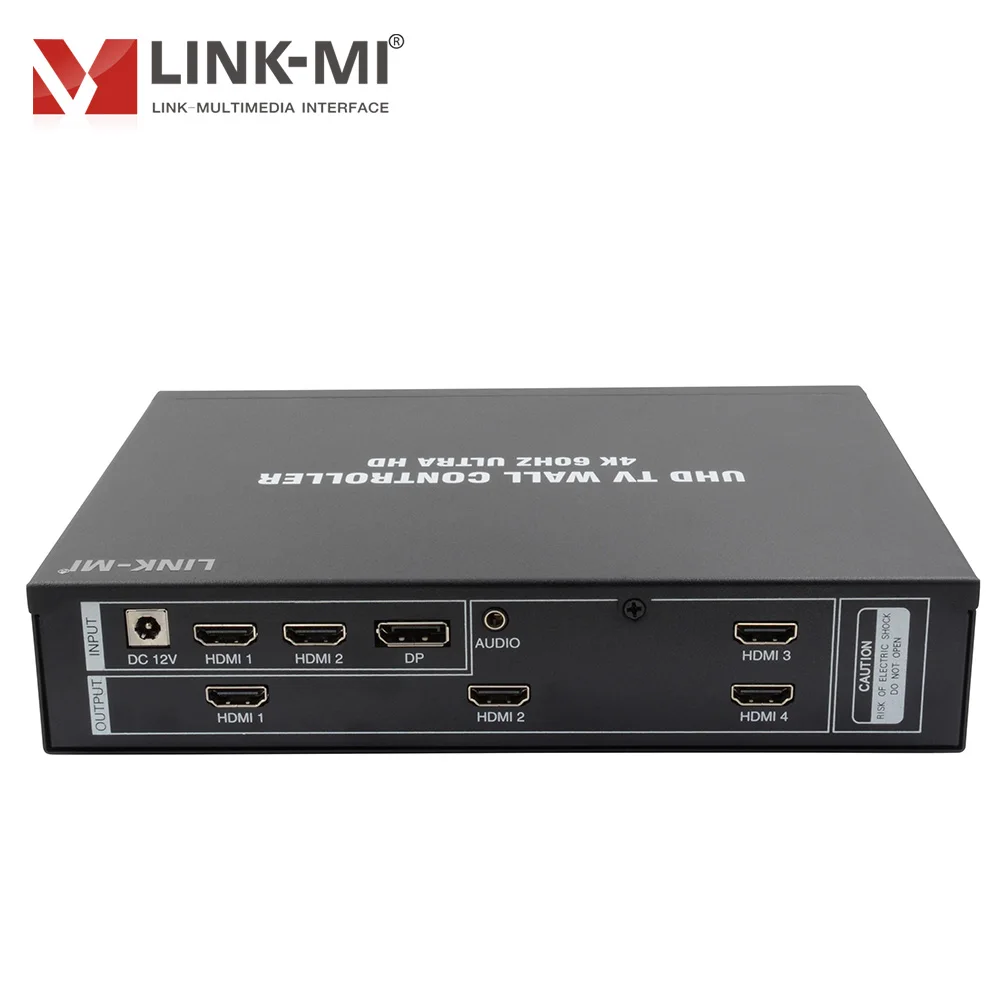

Interfaces
Specification
| Model No. | LINK-MI LM-TV04P |
| Inputs | |
| HDMI 1 | HDMI 1.4, built-in audio, 640*480 to 3840*2160@30Hz resolution |
| HDMI 2 | HDMI 2.0, built-in audio, 640*480 to 3840*2160@60Hz resolution |
| DP | DP 1.2, built-in audio, 640*480 to 3840*2160@60Hz resolution |
| Outputs | |
| HDMI Output 1-4 | 4 channels HDMI outputs, each channel supports 1920*1080P@60Hz (Note: HDMI output is NOT with audio, need to connect audio output port) |
| Audio Output | 3.5mm audio output port, left and right channel stereo, sync with video |
| Display Function | |
| Splicing Mode | 2x2, 1x2, 2x1, 1x3, 3x1, 1x4, 4x1.... max. 4x5 (need more controllers) |
| Display Mode | 1P, 2P LR, 2P TB, 4P, PIP |
| Rotating Mode | 90, 180, 270 degree rotation |
| Other Functions | image cropping; edge adjustment; Mirror; automatic detect signal source; intelligent temperature control... |
| Others | |
| Control Methods | Panel buttons, IR Remote |
| Power Supply | DC 12V 3A |
| Power Consumption | 30W |
| Size (L*W*H) | 210mm*160mm*45mm |
| Weight | 1.2kg |
Accessories
1) 1x Main Unit (4K 4 Channels Video Wall Controller with PIP)
2) 1x Power Adapter
3) 1x Remote
4) 2x Mouting Ears Kits
5) 1x User Manual
