It is the low molecular liquid crystal and the prepolymer mixed, under certain conditions by polymerization reaction, the formation of micron-level liquid crystal droplets evenly dispersed in the polymer network, and then use the liquid crystal molecules dielectric anisotropy to obtain a light Response material.

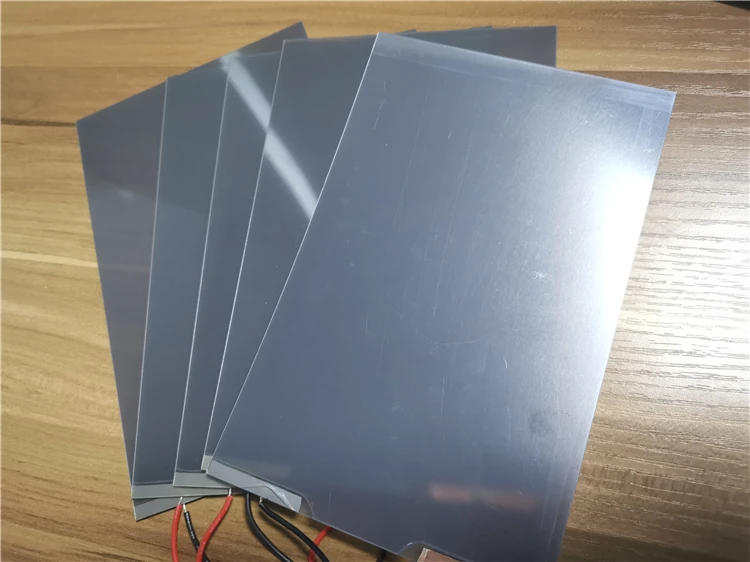

Product: Intelligent liquid crystal dimming film
It is a liquid crystal display function film
It is in the PDLC dimming film coated with AB glue, affixed to the glass surface;
Can achieve dimming film glass penetration and privacy protection .
It uses a polymer dispersion liquid crystal (PDLC) as a display structure
It is a two-layer flexible transparent conductive film as an electrode
Able to adjust the voltage under the moment to achieve a transparent and opaque switch
Working Principle
1.The optical function of the film is realized by the optical characteristics of the liquid crystal ;
2.Electronically controlled dimmable glass inside the liquid crystal molecules will show irregular distribution ;
3.At this point, the electronic control glass presents a translucent and opaque appearance ;
4.After power, inside the liquid crystal molecules appear neatly arranged ;
5.The light can be free to penetrate, then electronically controlled liquid crystal glass showed a transparent state .
Working principle diagram:
Performance Parameters
The liquid crystal dimming film (PL) technical standards
Project
Power mode
Parameter
Optical parameters
Visible light transmittance
ON
≥82%
OFF
≤4.7%
Parallel light transmittance
ON
>82%
OFF
<3.5%
Haze
ON
≤3.5%
OFF
≥96%
Viewing angle
ON
140°
Electrical parameters
Operating Voltage
ON
48V/60V (±2) AC
Saturation voltage
ON
<36V
Response time
OFF-ON
<45ms
ON-OFF
<45ms
Power consumption
ON
<4w/m2
Physical parameters
Thickness
0.4mm
The biggest size
1800*6000mm
Bonding force
100gf
Environmental parameters
Operating temperature
-30ºC-70ºC
Storage temperature
-30ºC-70ºC
Years of use
≥50000h
Number of switches
>10 million times

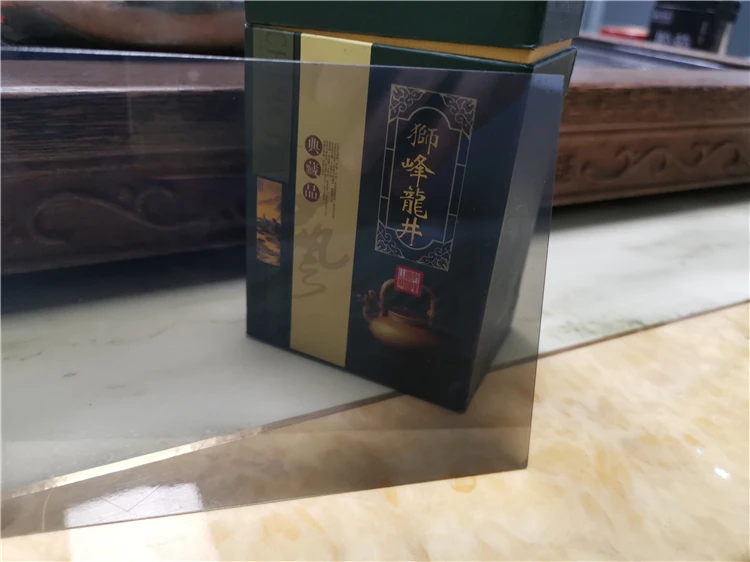

Example
Installation Steps
Packing&Shipping
Company Introduction
Shenzhen Sunwotech Technology Co., Ltd is located in Shenzhen Special Economic Zone. We are a new and high technology company with producing and sales together. The new material technology we developed has obtained many patents in China. Our products are sold worldwide and the main market is European countries and North America.
We are the only company who has the third generation technology of Ultra Clear Electronic smart Film. And we have intellectual property on the PDLC product ingredients and production procedures. Because of our outstanding R&D team, we are the leading company of PDLC smart film manufactures in China.
With our advanced producing procedures and high quality material imported from Europe, we exert our effort providing the clearest, the purist and the longest service life PDLC smart film for the in building and car.
