CM V Портативный трубки конденсатора очиститель для кондиционера воздуха
- Category: Other Refrigeration & Heat Exchange Equipment >>>
- Supplier: Nanjing,Wonfulay,Precision,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

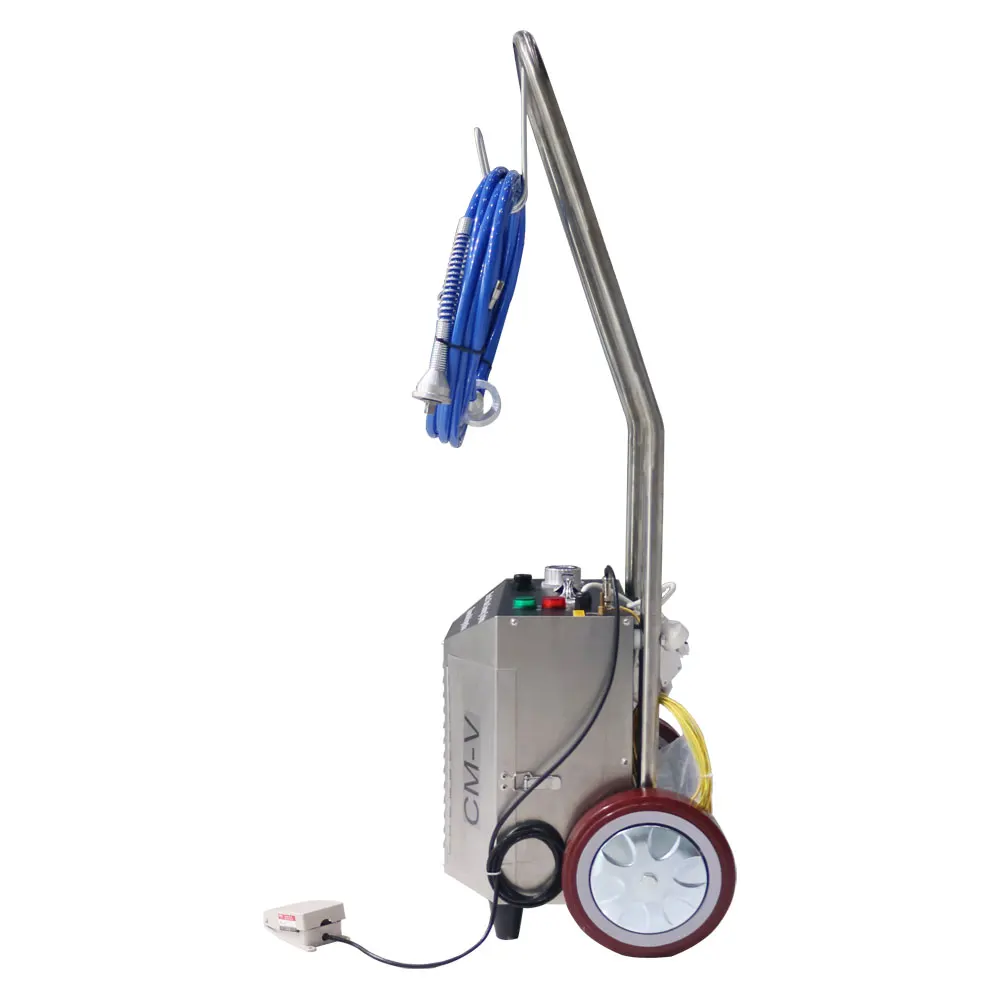

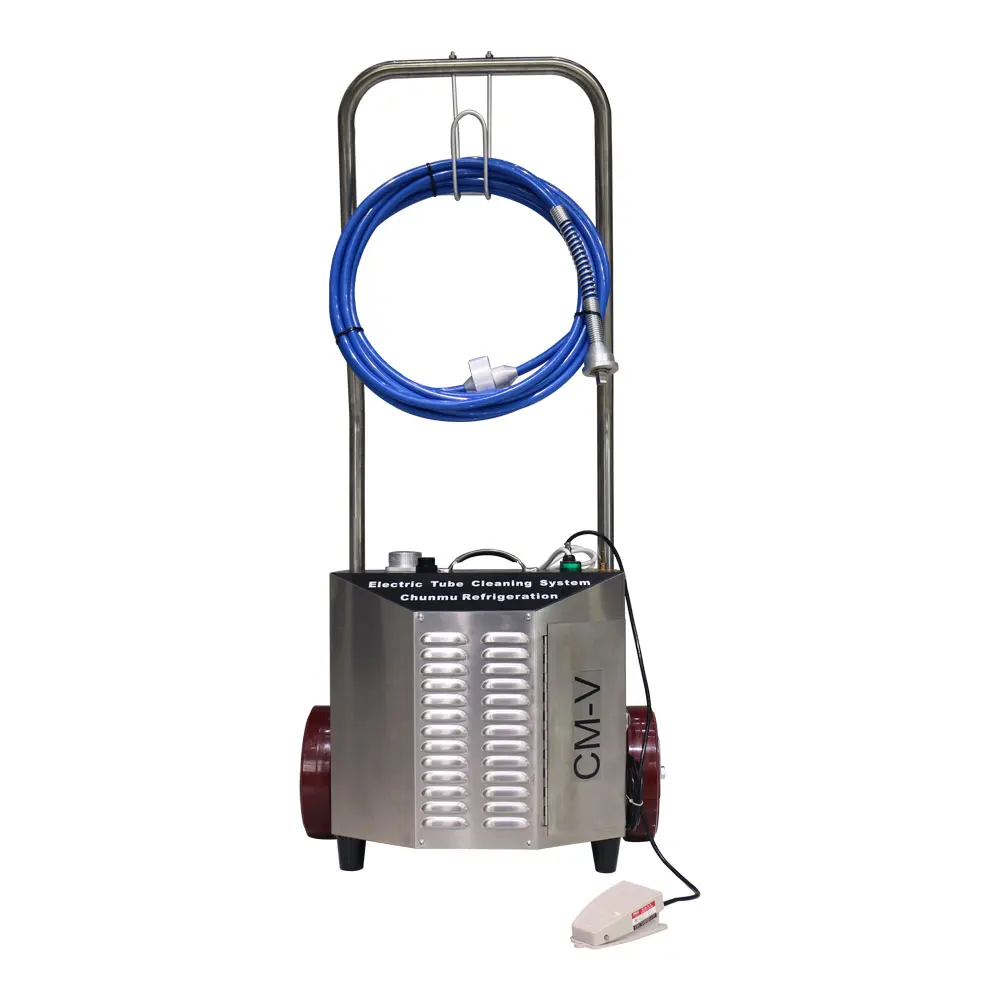

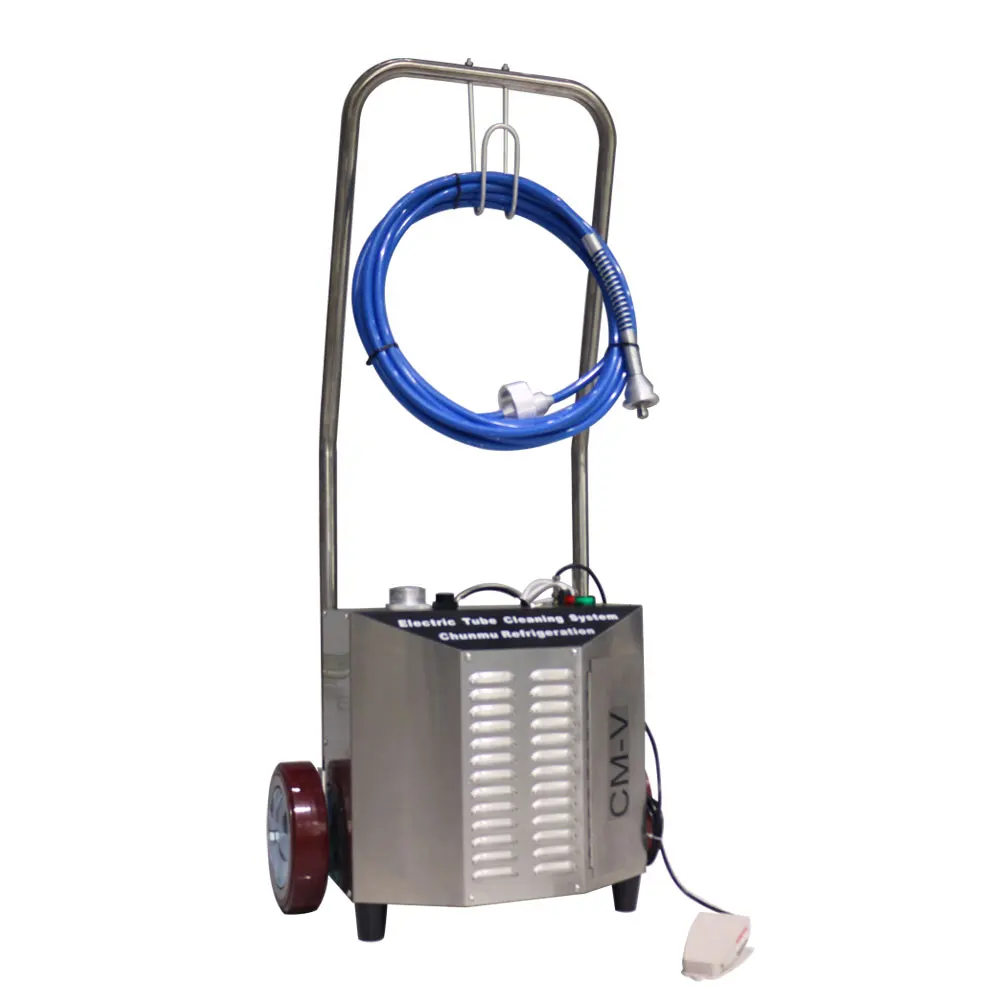

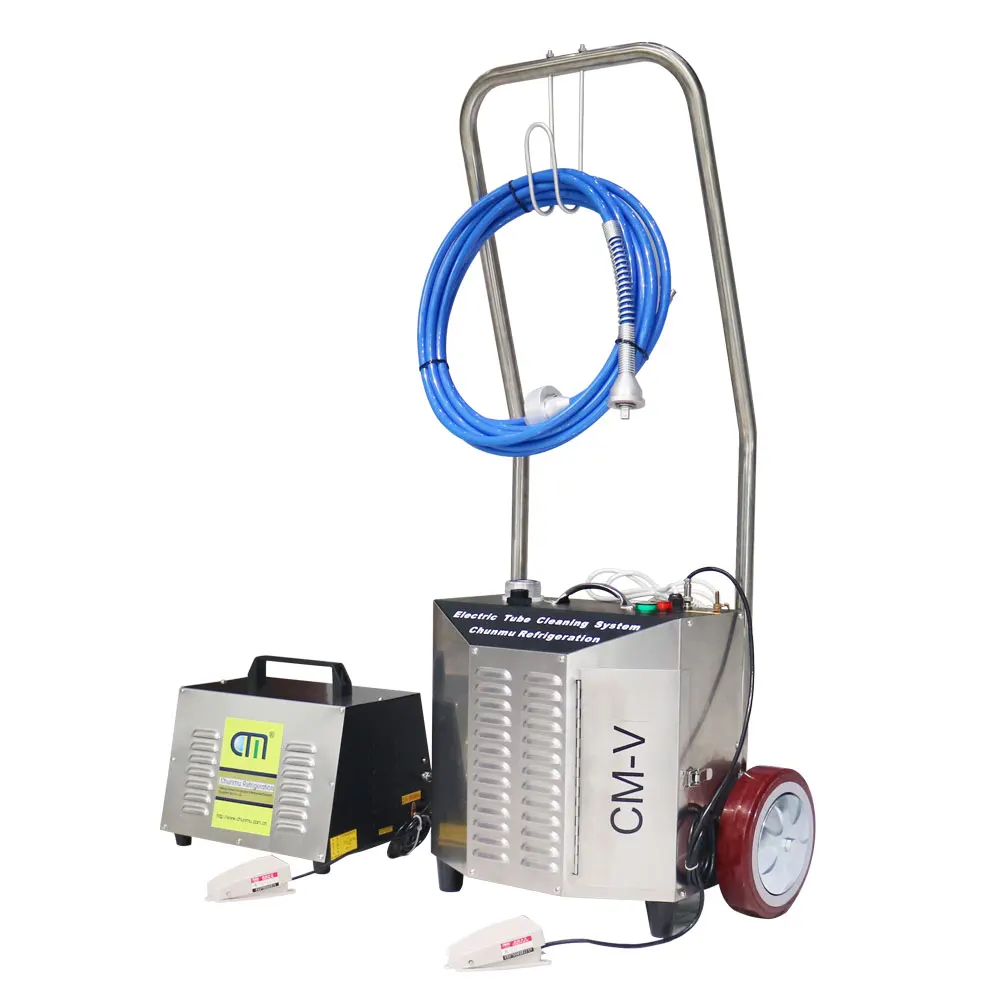

The CM-V is the third generation of the original rotary tube cleaner. All our rotary tube cleaning machines make tough tube cleaning a simple, one-person operation. It is the ideal unit to clean the tubes which diameter is between 6.35mm and 25.4mm (1/4'' to 1'') in chillers, condenser, evaporator and heat exchanger etc.

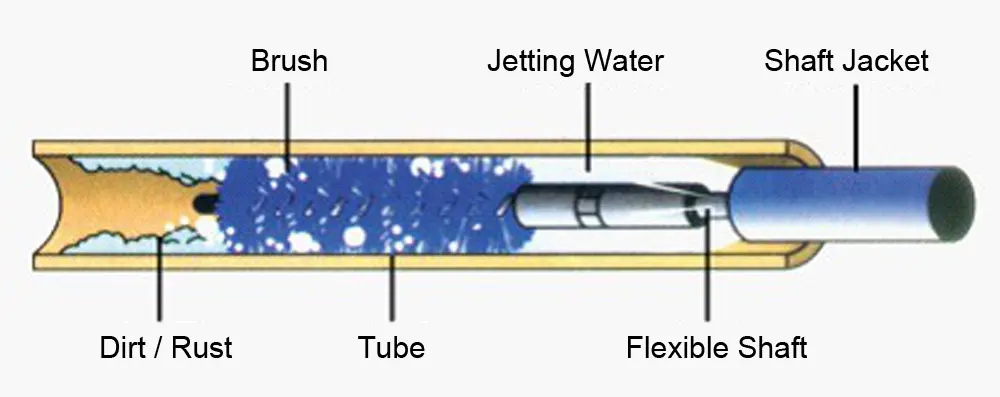

The CM-V condenser Tube Cleaner uses a cleaning tool mounted to the tip of a flexible shaft, which is available in different lengths and diameters to fit the size of the tube to be cleaned. As the shaft rotates inside its watertight nylon casing, the unit feeds water through the casing to the cleaning tool. A foot switch controls shaft rotation and water flow. While the operator feeds the rotating shaft assembly through the tube, the water flow flushes out deposits as they are loosened.
The CM-V condenser Tube Cleaner uses a cleaning tool mounted to the tip of a flexible shaft, which is available in different lengths and diameters to fit the size of the tube to be cleaned. As the shaft rotates inside its watertight nylon casing, the unit feeds water through the casing to the cleaning tool. A foot switch controls shaft rotation and water flow. While the operator feeds the rotating shaft assembly through the tube, the water flow flushes out deposits as they are loosened.
FEATURES
> Professional equipment- no damage to pipe.
> Simple to operate- minimal training required.
> Reversing available
> Stainless steel construction-long life.
> Quickly connect and disconnect the flexible
shaft- no tools required.
> Interchangeable cleaning tool- versatile.
Product Paramenters
Model | CM-V | CM-II/III |
Compressor Power | 1/2 HP | 1/2 HP |
Rotate Speed | 1420 RPM | 1420 RPM |
Flexible Shaft Length | 3.7m - 22.9m | 3.7m - 22.9m |
Applicable Pipe Diameter | 1/4'' - 1'' | 21 |
Operating Temperature | 0 to 40 C | 0 to 40 C |
Shipping Weight | 30 KG | 21 KG |
Packing Size | 550*360*540 mm | 440*320*380 mm |
Difference | Portable design with the movable casters and SS304 hand rail; Freely assembled at anywhere, | Light weight and easy carrying; Direct use without any assembly process. |

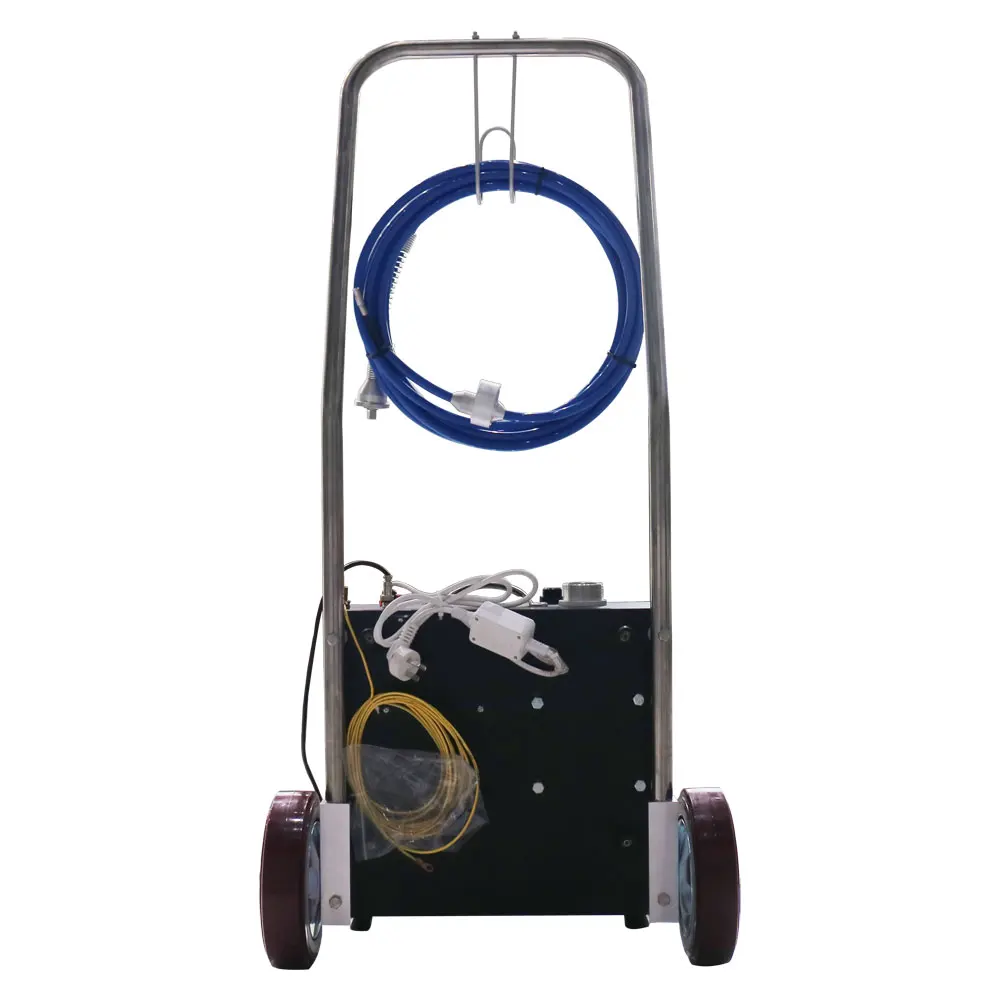

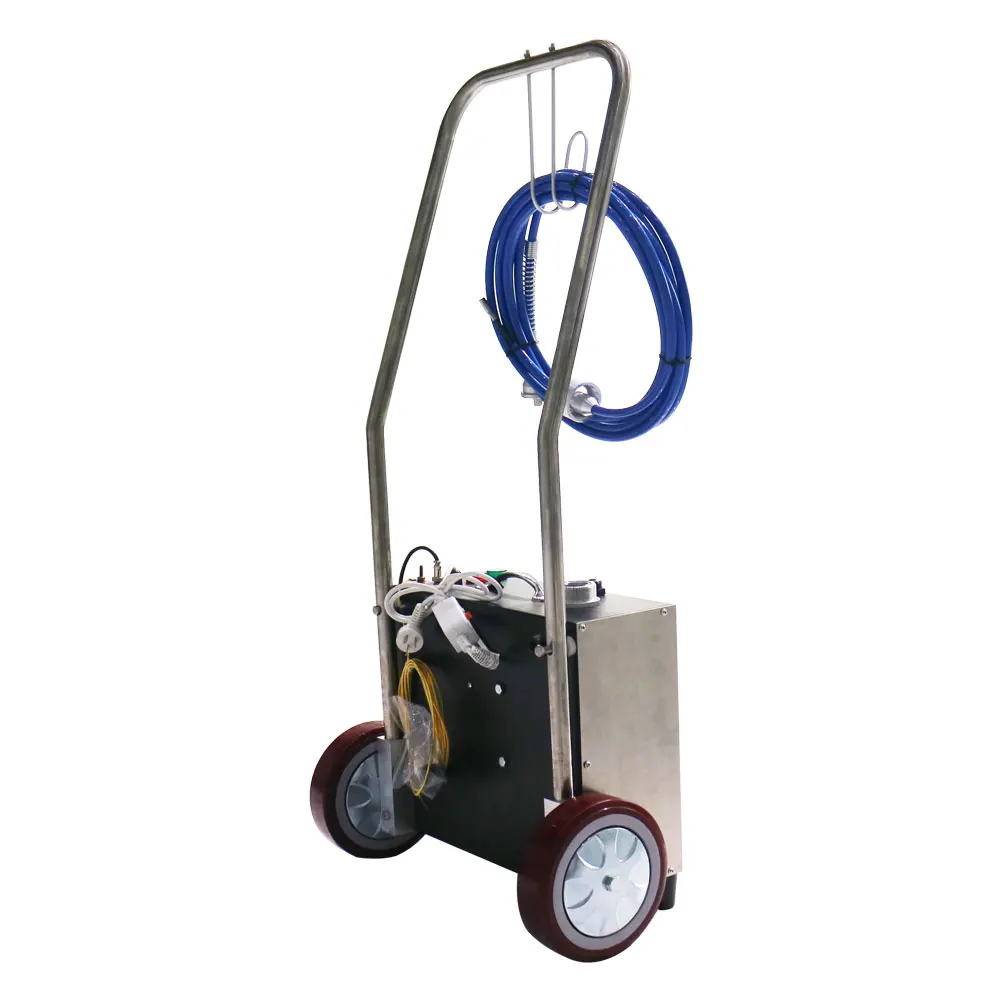

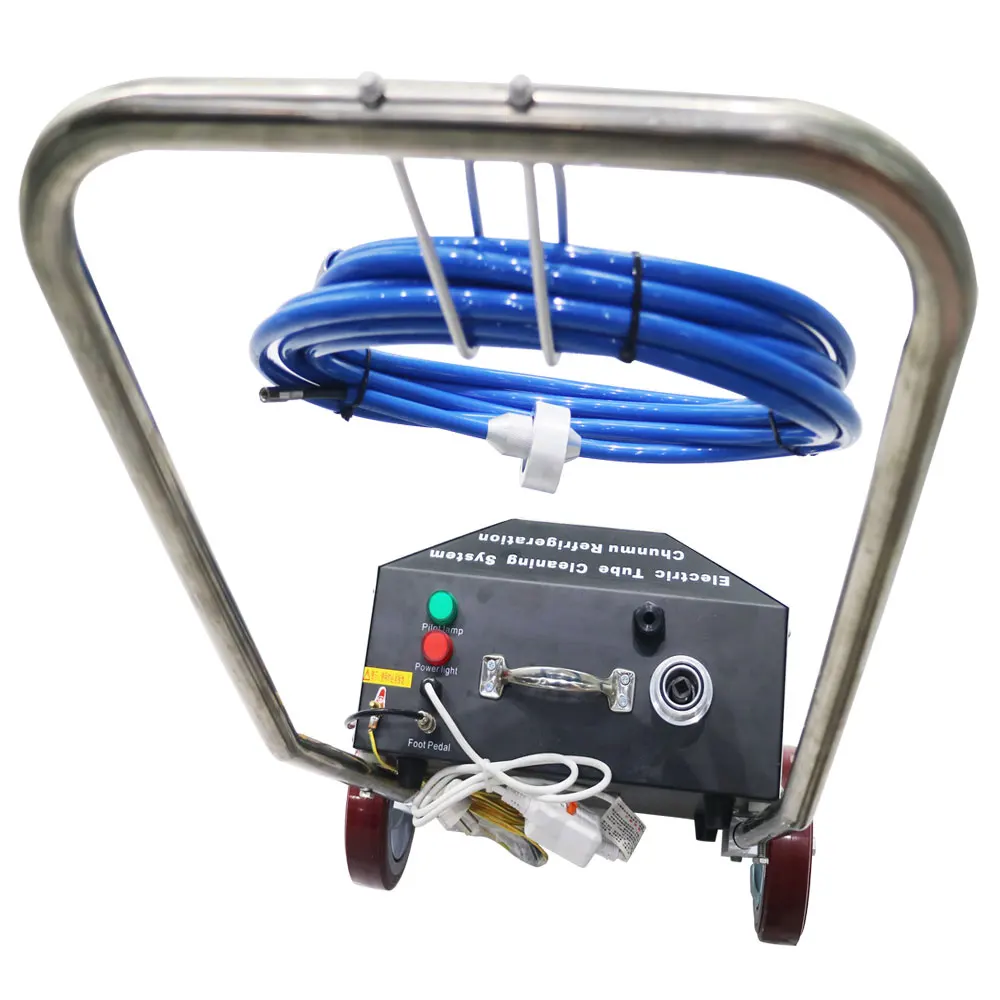

Details Images
STANDARD CONFIGURATION
> Flexible shaft(1 piece) Φ=13mm, long=7.6m
> Nylon brush(10 pieces), each diameter
> 12.7mm*3, 15.9mm*3, 19.1mm*4
> Foot switch(1 piece)
> Connector plug(1 piece)
> Instruction manual
> Foot switch(1 piece)
> Connector plug(1 piece)
> Instruction manual

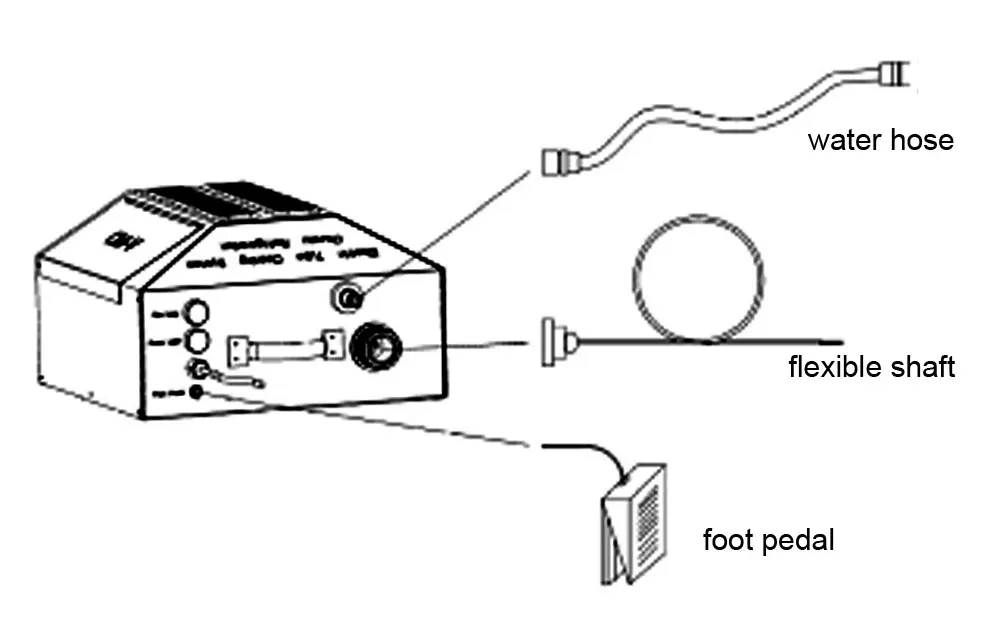

Water Pipe
Foot Switch
Flexible Shaft
6mm flexible shaft(standard length 3.7m) is suitable for pipe diameter 6.4mm-9.5mm
10mm flexible shaft(standard length7.6m) is suitable for pipe diameter 11.1mm-25.4mm
12mm flexible shaft(standard length 7.6m) is suitable for pipe diameter 12.7mm-25.4mm
10mm flexible shaft(standard length7.6m) is suitable for pipe diameter 11.1mm-25.4mm
12mm flexible shaft(standard length 7.6m) is suitable for pipe diameter 12.7mm-25.4mm
Nylon Brush
6.4mm, 7.9mm,9.5mm, 12.7mm, 14.3mm, 15.9mm, 17.5mm, 19.1mm, 20.6mm, 22.2mm, 23.8mm, 25.4mm
Cooperation Partner & Cases
WELL-KNOWN CLIENT LISTS
CM Refrigeration had cooperated with global well-known refrigeration equipment manufacturer for many years, especially for the cooperation with YORK Air Conditioning, the deep cooperation of the parties had lasted for 12 years, some other partners also build deep and continuous cooperation.
No. | Partner Name | Main Product Type | Cooperation Time |
1. | YORK Air Conditioning | Refrigerant recovery machine | 11 years |
2. | CARRIER Air Conditioning | Refrigerant recovery/recharge machine | 06 years |
3. | MCQUAY Air Conditioning | Refrigerant recovery/recharge machine | 09 years |
4. | CLIMAVENETA Air Conditioning | Refrigerant recovery/recharge machine | 04 years |
5. | TICA Air Conditioning | Refrigerant recovery/recharge machine | 08 years |
APPLICATION SITES
SPECIAL UNITS
Packing&Shipping
Inner: Dust-proof bag + Protective Foam Panel
Outer: Rigid carton + Water-proof film
Outer: Rigid carton + Water-proof film
Company Introduction
CM Refrigerant recovery machine (recovery/recharge/reclaim/vacuum /etc)are widely used in the field of HVAC/R. CM is a
comprehensive hi-tech. Enterprise specialized in R&D, manufacture, sales of products for HVAC/R industry.
CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems including recovery / recharge / reclaim / vacuum, etc. With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.
comprehensive hi-tech. Enterprise specialized in R&D, manufacture, sales of products for HVAC/R industry.
CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself to R&D and manufacturer of refrigerant recovery systems including recovery / recharge / reclaim / vacuum, etc. With its unremitting efforts and more than 20 years of experience, their refrigerant recovery systems have got several national and international patents and their machines have earned good reputation among the customers.
WHY CHOOSE US?
Experienced R&D team bring more than 10 years of process cooling & heating experience with knowledgeable application, product and service specialists available to discuss your needs.
>> You want someone who understands your process…
Provided with experience in a wide range of process cooling & heating industries. When you give us the chance, we will show the rich experience and get you the correct solution to your problems.
>> You want a product that fits your unique needs…
Offer a wide range of standard units, what's more, our application specialists can suggest the customized units to meet unique needs.
>> You want professional design manufacturer…
We specialize in industrial refrigerant recovery machine (recovery/recharge/reclaim/vacuum /etc), and provide the complete systems solutions.
>> Our Warranty
All the products are passed strict test, and CM Refrigeration provide 12 months guarantee since the date of bill of lading. During this guarantee period, CM Refrigeration provide spare parts without any charge in case of quality discrepancy caused by us. If out of guarantee period, we still can charge the buyer cost price of spare parts and provide Technical Product support for customers.
