JS630 Single Phase Marble Floor Polishing Machines
US $3100-$3200
JS630 Industrial Floor Polishing Machine Pulidoras
- Category: Polisher >>>
- Supplier: Shanghai,Jiansong,Industry,And,Trade,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
7*24 on line service
please contact: Ms. Echo
Mobile and whatsapp: +86 136 3149 9577
Email: echo.guan#jiansongsh.com

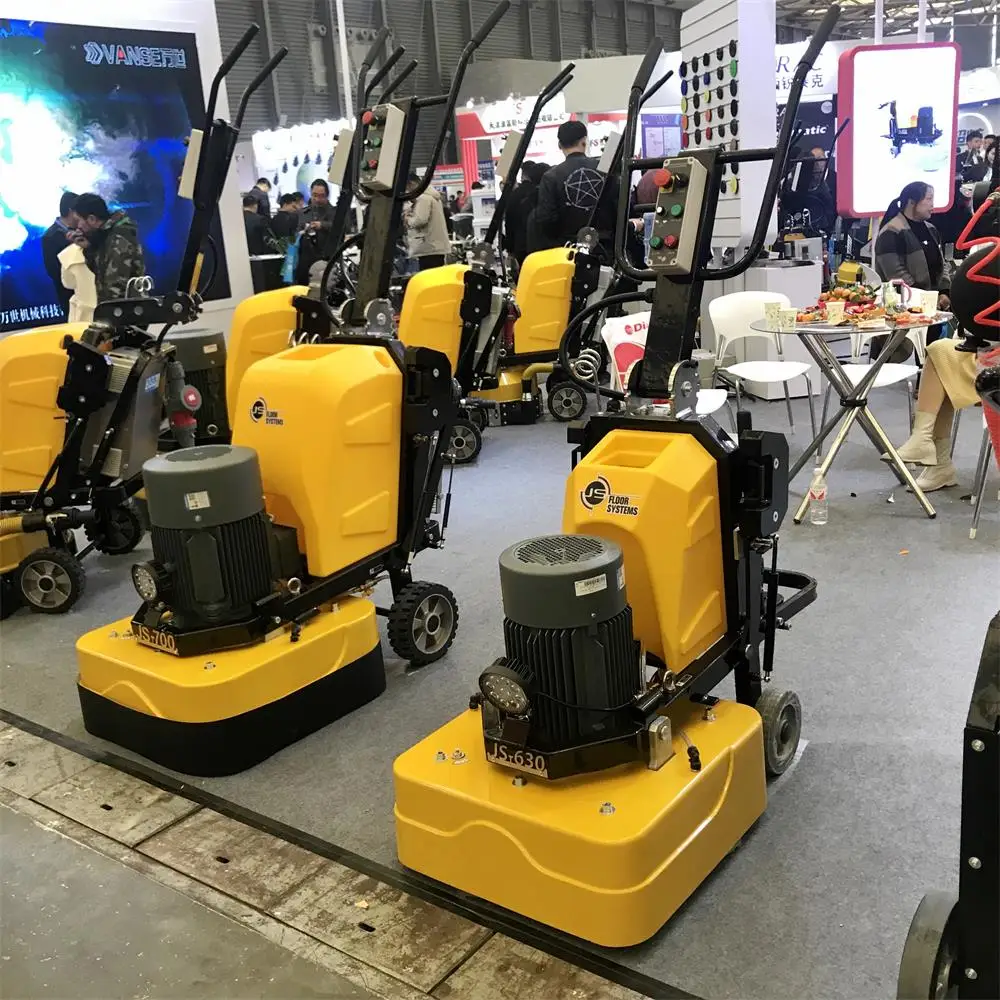

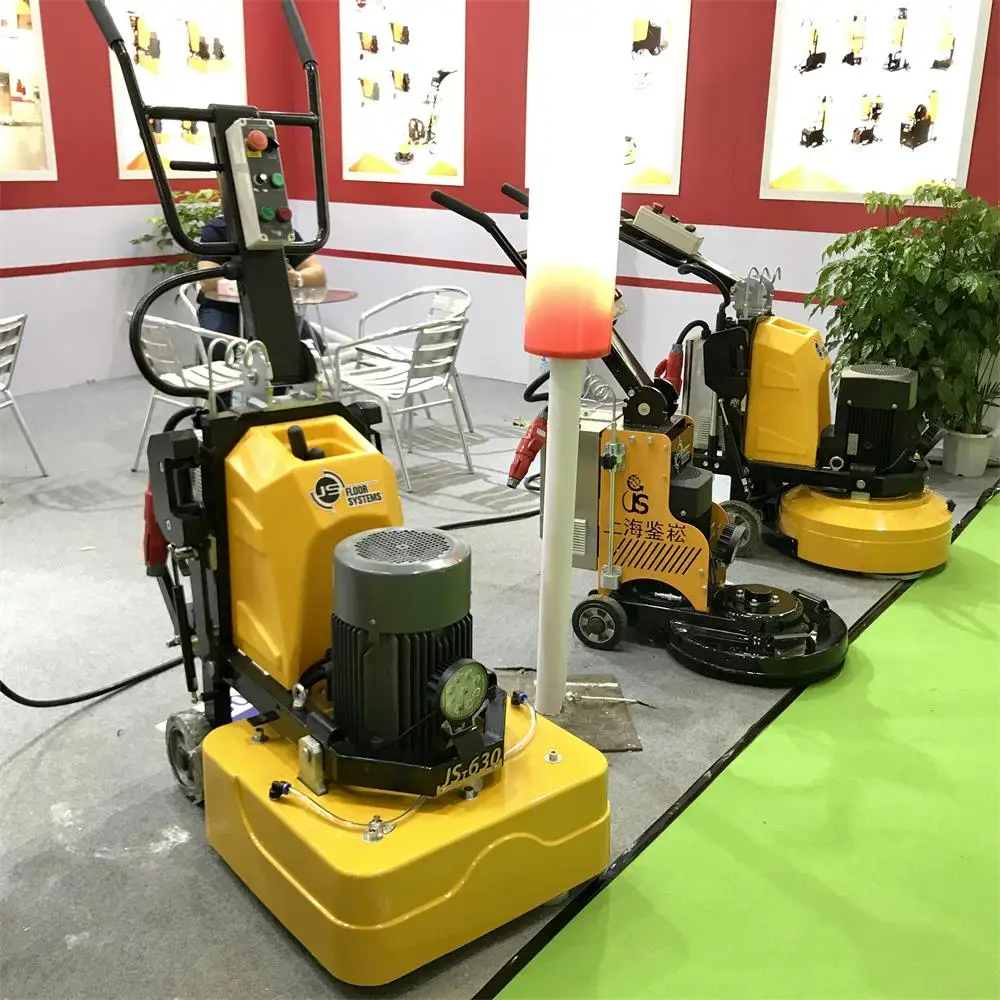

JS630 Single Phase 630mm Concrete Polishing Machine
Square head grinder can cut deeper, can be used for uneven floor, super hard floor, especially good at 6# and 16# metal diamond grinding.
Advantage of square head:
- Less maintenance
- More durable
- Aggressive grinding
Technical Data
| Model# | JS580 | JS630 | JS700 | JS780 |
| Width | 560mm | 630mm | 680mm | 780mm |
| Disk size | 300mm | 360mm | 370mm | 420mm |
| Weight | 270KG | 300KG | 380KG | 450KG |
| Speed | 0-1800 rpm | 0-1800 rpm | 0-1800 rpm | 0-1800 rpm |
| Motor | 10HP | 10HP | 15HP | 20HP |
| AMPS | 16 | 16 | 22 | 30 |
| Phase | One | One | Three | Three |
Features
Aluminum integral casting gear box
Quick-change magnetic tooling systems
Variable-speed soft start
Both grinding and polishing
Big water tank for wet polishing
50mm dust port and dust skirt for dry polishing dust control

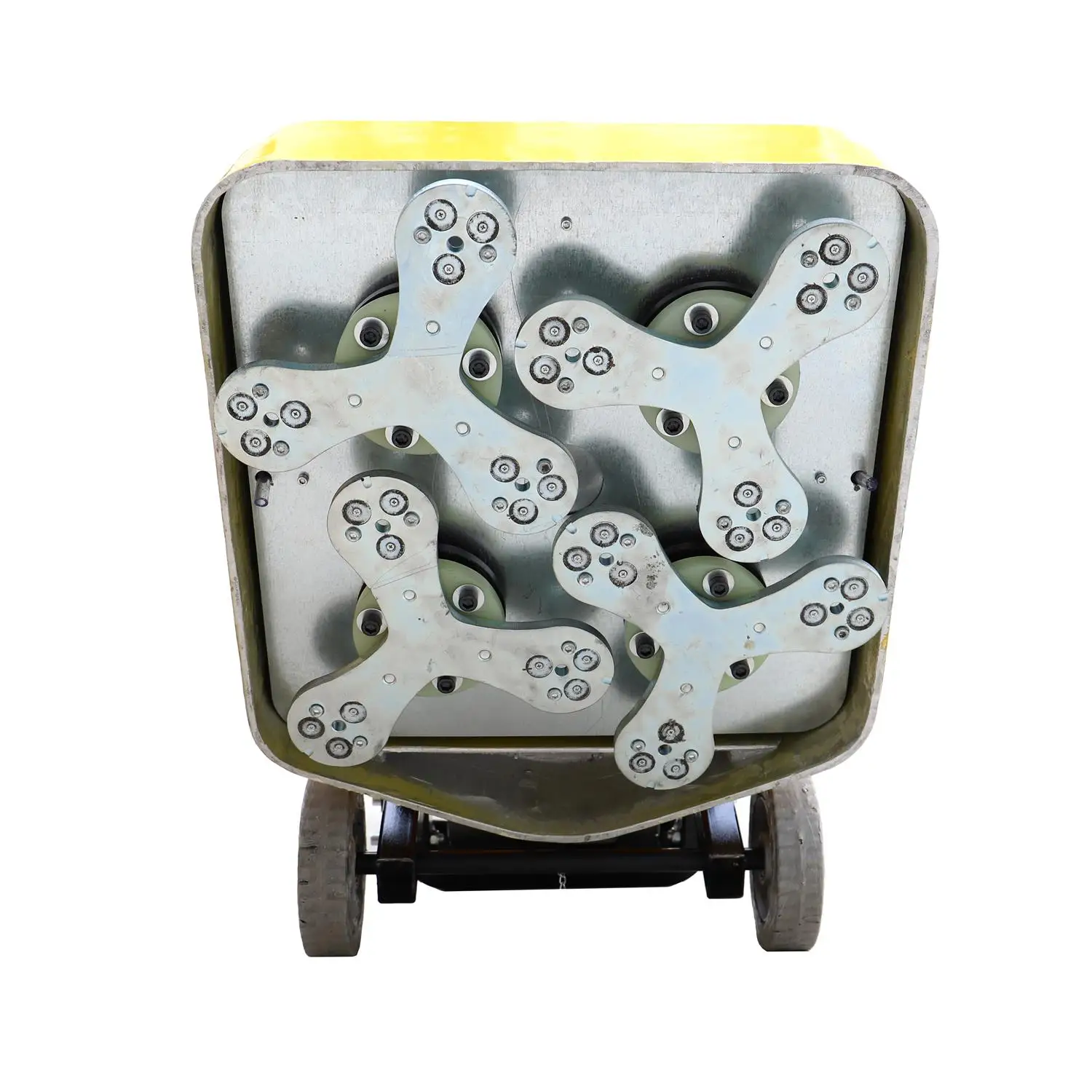

Grinding Head
This machine can use metal gridning diamond pad, resin polishing pad and bush hammer, one machine with multi function.
Grinding plate can be customized base on your diamond types, then you can use just one type diamond tooling for all your machines.
Machine Construction
1, Water tank
2, Dust skirt
3, Suction pipe for industrial VAC
4, Inverter
5, Handle with adjustable height
6, Extra weight to increase grinding pressure
7, Control panel
8, LED light
Field of Application
Renovation of old floors
Fine grinding and polishing
Leveling of uneven spots and surfaces
Polishing and Grinding of concrete surfaces
Removing of adhesive residues, painting, coatings, putty, epoxy and cement slurry
Company Information
JS Floor Systems has been established in 2009. Specializing in floor grinders, polishers, burnishers, scrubbers, vacuum cleaners and diamond tools. Our factory locates in Shanghai & Suzhou, China with professional R&D, technical support, production and sales team. Our service and products are appreciated by customers all over the world.
Our advantage
1, More than 11 years of experience of machine design and produce.
2, Own two factories and one software office, in Shanghai and Suzhou
3, Product range include concrete grinder, vacuum cleaner, floor scrubber, diamond tooling and many related machines.
4, More than 70 machine models, one stop buying service.
5, Own CNC machines, welding robot, laser cutting machine, spinning lathe etc. The high precision and quality is controlled by these high tech equipment and professional R&D staff.
FAQ
Q1: Do you make the metal and resin pads yourself?
A1: Yes, we have our own diamond workshop and make the diamond tools ourselves.
A1: Yes, we have our own diamond workshop and make the diamond tools ourselves.
Q2: How long is production time for one container?
A2: For hand push machine is 2-3 weeks, for remote control models usually take 3-4 weeks.
Q3: You are based in Shanghai?
A3: Yes.
Q4: Do you have any advantages over other suppliers in terms of design?
A4: Yes. For example, we use seamless plastic water tank, aluminum casting mold grinder head which is stronger and add grinding pressure.
Q5: What is the warranty on the products?
A5: 1 year warranty for machine.
Q6: Do you recommend buying spare parts already with the order?
A6: Yes, we will recommend some spare parts.
Q7: What parts are usually needed for replacements?
A7: Resin pad holder, rubber cushion, dust skirt, switch.
Q8: Does your gear quality better than those from other company?
A8: Yes, we make the gear our own. JS gear is skewed tooth and being heat treatment processed which guarantee stable performance and long life time. But many company don’t use such gear because this gear need high-precision process. We make the gears with CNC machine.
Q9: Do you offer diagrams for electrical and electronic layout for your machines?
A9: Yes, come with machines.
Q10: Is your company ISO registered and approved?
A10: Yes, we have got ISO, CE and SGS certificates.
Q4: Do you have any advantages over other suppliers in terms of design?
A4: Yes. For example, we use seamless plastic water tank, aluminum casting mold grinder head which is stronger and add grinding pressure.
Q5: What is the warranty on the products?
A5: 1 year warranty for machine.
Q6: Do you recommend buying spare parts already with the order?
A6: Yes, we will recommend some spare parts.
Q7: What parts are usually needed for replacements?
A7: Resin pad holder, rubber cushion, dust skirt, switch.
Q8: Does your gear quality better than those from other company?
A8: Yes, we make the gear our own. JS gear is skewed tooth and being heat treatment processed which guarantee stable performance and long life time. But many company don’t use such gear because this gear need high-precision process. We make the gears with CNC machine.
Q9: Do you offer diagrams for electrical and electronic layout for your machines?
A9: Yes, come with machines.
Q10: Is your company ISO registered and approved?
A10: Yes, we have got ISO, CE and SGS certificates.
