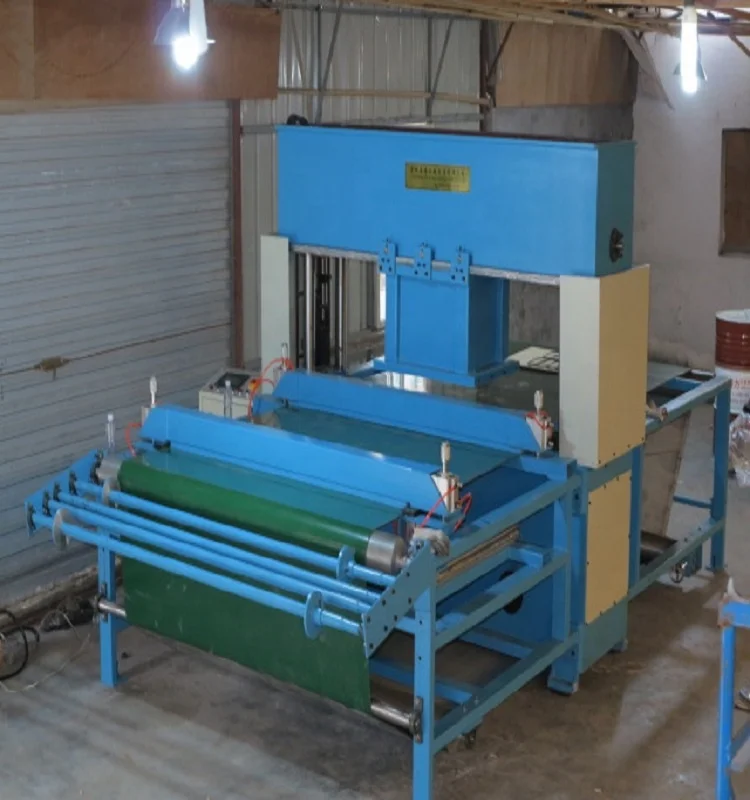

Hydraulic leather belt gantry moving cutting machine

Product Overview

Description

Cutting machine features:

• Precise four-column double-cylinder double-link automatic balancing mechanism, with cutting error of each cutting position within ±0.1mm.

• machine is suitable for continuous blanking of non-metallic rolls of the same specification and large quantity with forming knife mold. For example, it can be used in artificial flower, football, volleyball, tennis, sandpaper, medicine and other industries.

• Microcomputer controls the coordinated movement of the machine's transverse moving shaft and the feeding shaft, so that the machine can automatically complete the blanking action of the material, and the displacement distance of the punch and the length of the feeding can be set, reducing the loss of the leftover material and saving nearly 10% of the raw material.

• central automatic lubrication system ensures the cutting effect of the machine and improves its durability.

• Because the machine is controlled automatically by microcomputer, only one worker is needed for the whole machine, the production efficiency can be increased 4-5 times, and nearly 1/3 power can be saved.

Applicable products:

shoe upper, football, volleyball, tennis, sandpaper, medicine, plastic, foam, floor, felt, car interior, PP,PE,EVA,EPE,EPP,EPS, sponge, rubber, bubble film, double-sided glue, advertising paste, magnetic paste, insulation cotton, pearl cotton, computer accessories, paper, mat, Xuan paper, fan, seal, protective clothing, film, jigsaw puzzle, chocolate, filter material, sound-absorbing cotton, corrugated board, clean cloth, non-woven cloth, leather, seat cover, foot pad, umbrella, mouse pad, carton, cup, tablecloth, simulation flower, raincoat, hat, ear cover, mask, glove, insole, coaster  Loofah cloth, blanket, cork, plaster, nuts, camouflage net, soundproof cotton, clothing, etc.

Cutting machine parameters:

Model.No	Cutting Force	Area of Work Table	Storeke Control Range	Main Moter Power	Platen size/mm	Voltage/Hz
xclp3-300	30tons	1600×550mm	50-190mm	6.8kw	500*500	3P380V/50HZ
xclp3-350	35tons	1800×550mm	50-190mm	6.8kw	500*500	3P380V/50HZ
xclp3-350	35tons	2600×700mm	50-190mm	6.8kw	600*600	3P380V/50HZ
xclp3-350	35tons	3200×800mm	50-190mm	8kw	700*800	3P380V/50HZ
xclp3-400	40tons	1200×600mm	50-190mm	7.9kw	300*300	3P380V/50HZ
xclp3-400	40tons	1600×550mm	50-190mm	7.9kw	500*500	3P380V/50HZ
xclp3-400	40tons	2000×700mm	50-300mm	8kw	400*650	3P380V/50HZ
xclp3-500	50tons	1600×650mm	50-190mm	9.5kw	500*500	3P380V/50HZ
xclp3-600	60tons	1600×800mm	50-190mm	10.5kw	400*600	3P380V/50HZ

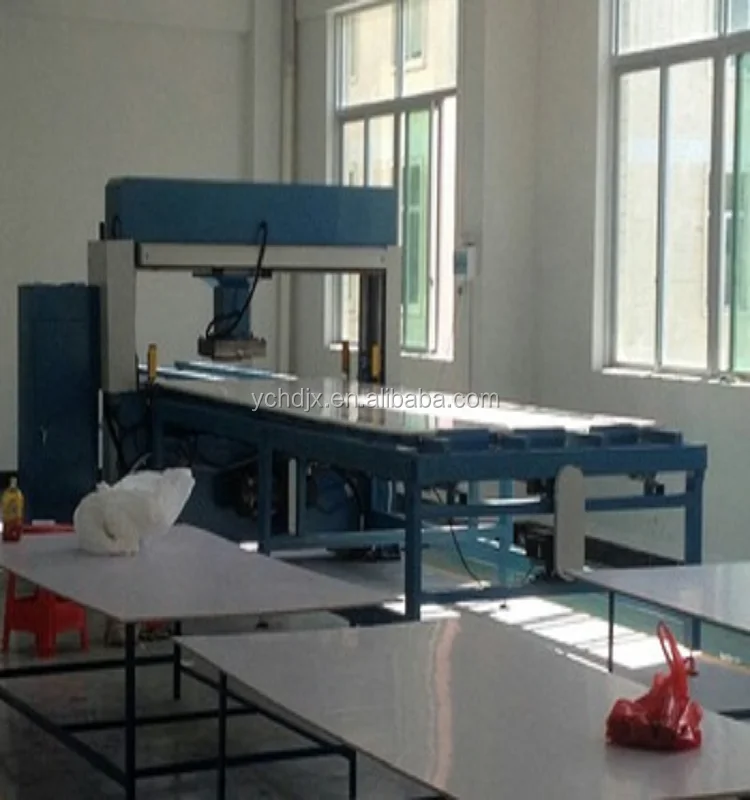

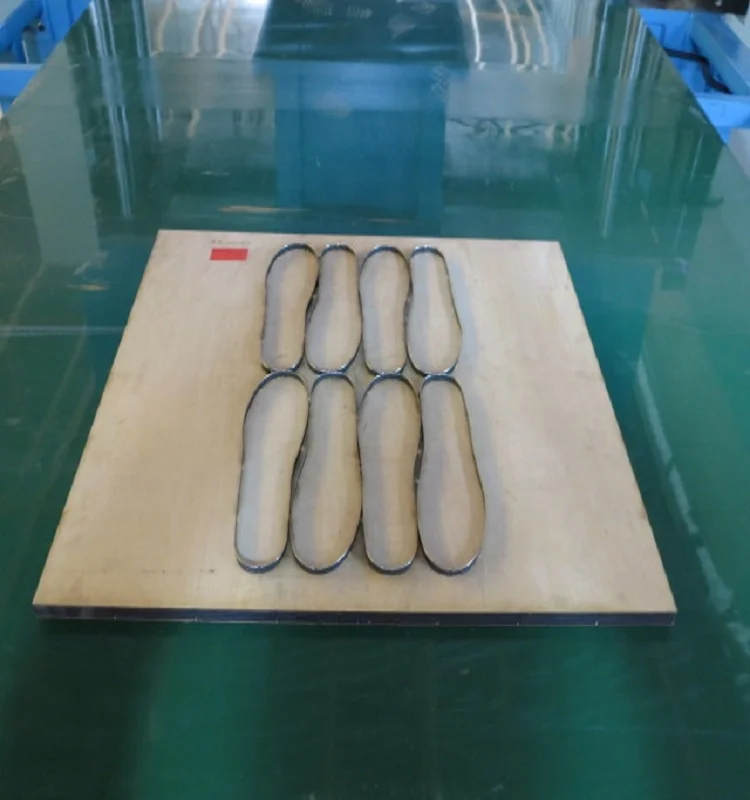

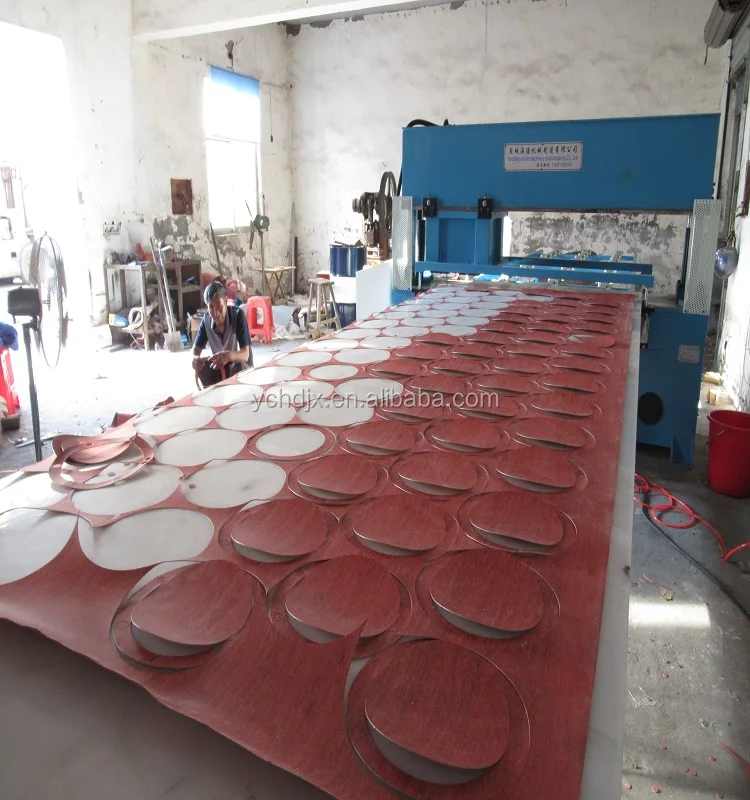

Customer case of cutting machine:

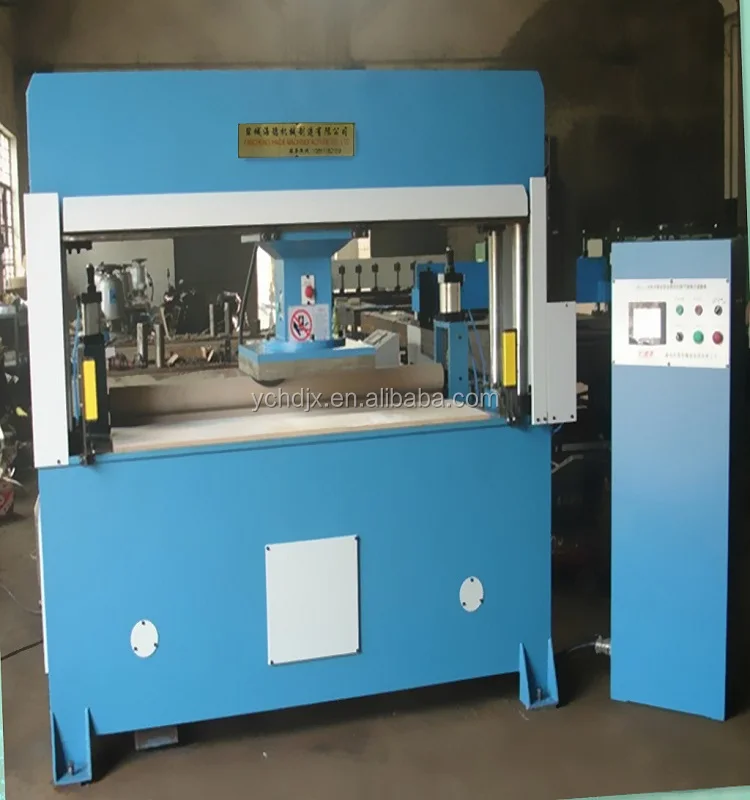

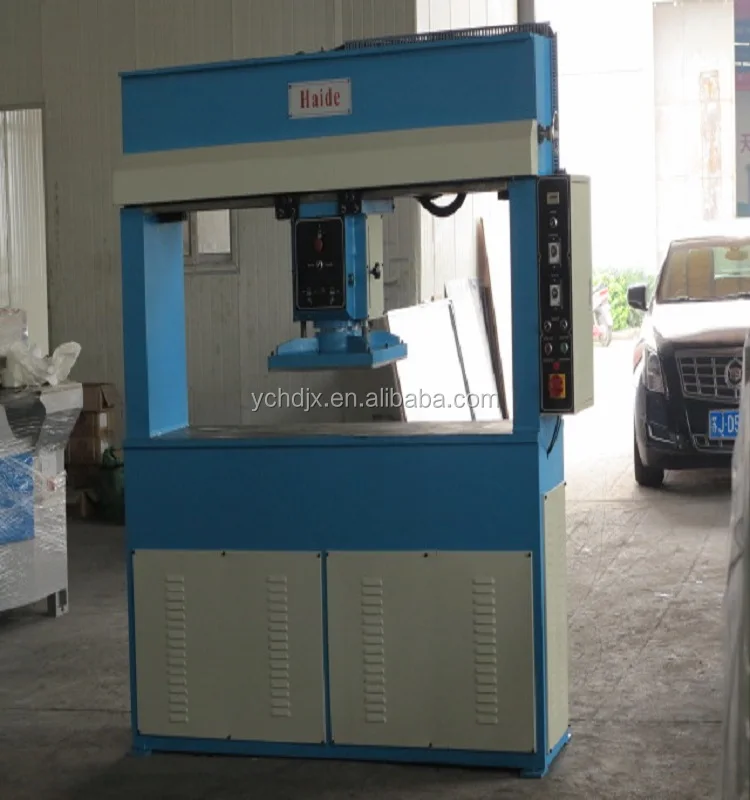

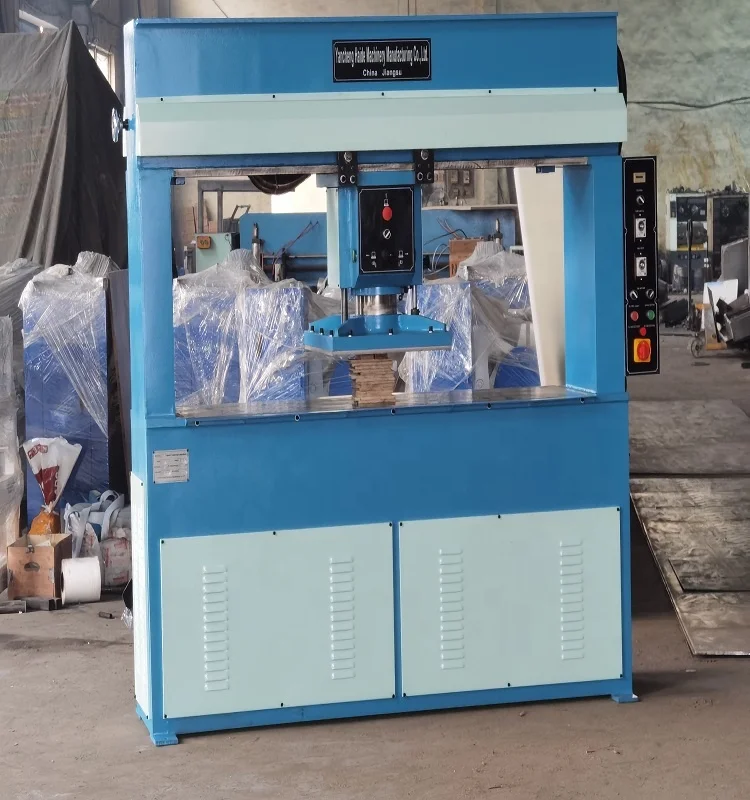

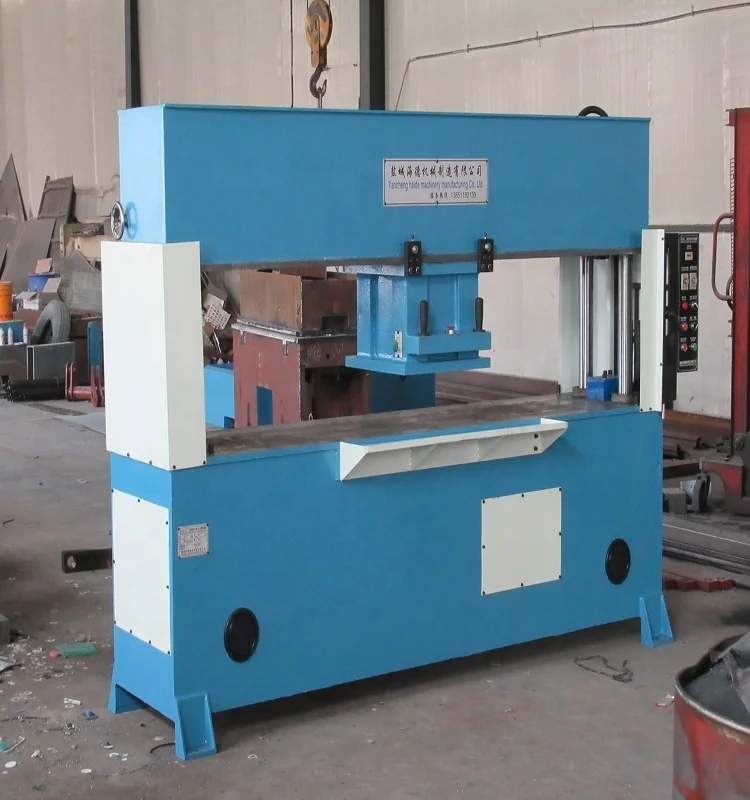

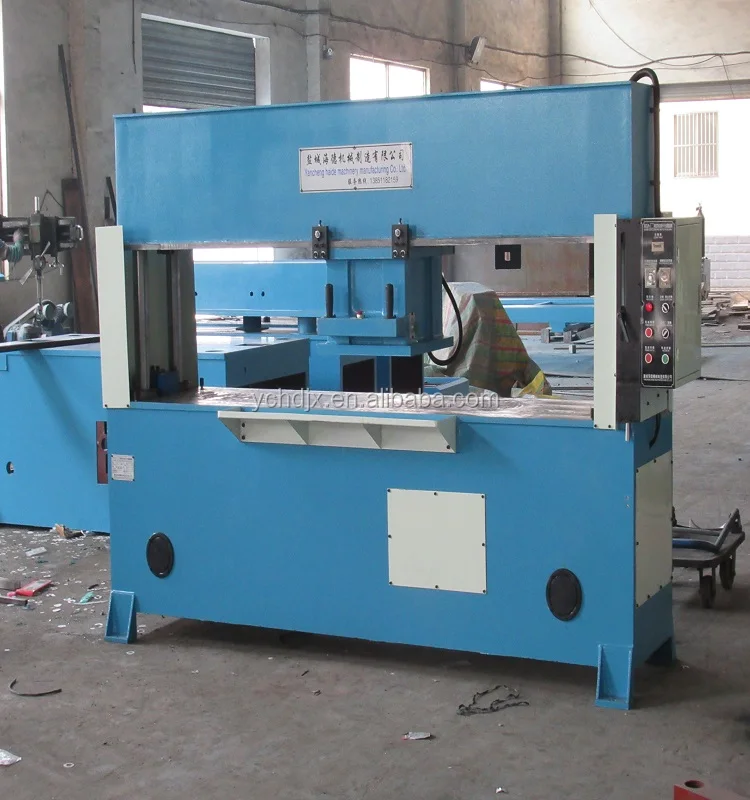

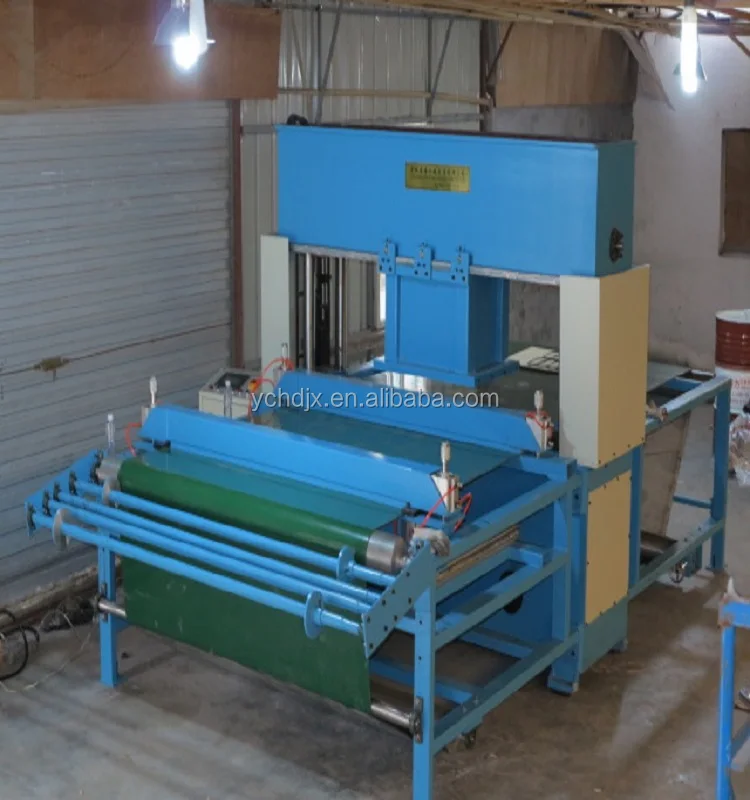

Picture of cutting machine:

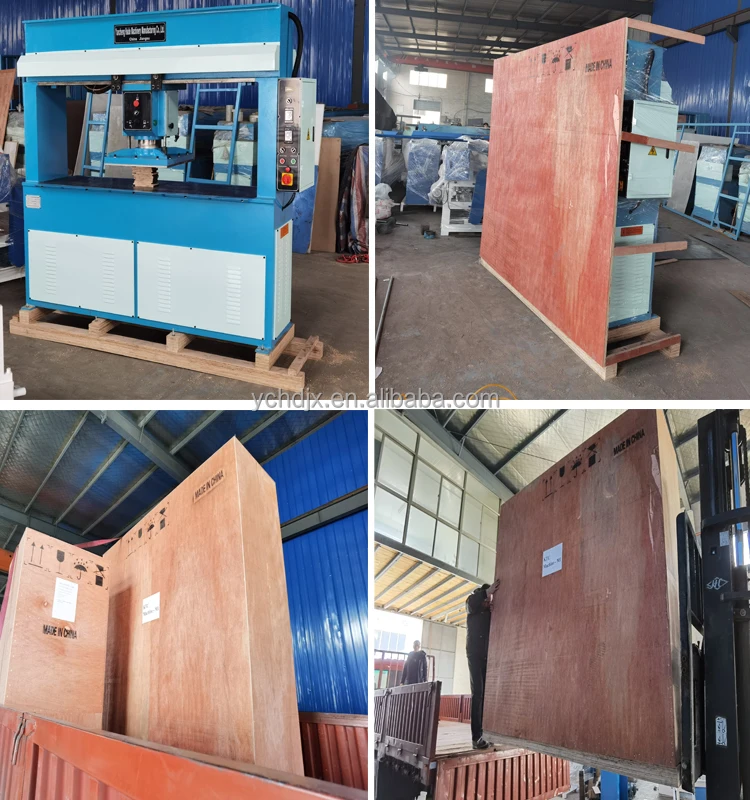

Product packaging picture:

Product Certificates and Qualifications:

WHY CHOOSE HAIDE MACHINERY?

 1.More than 20 years experience in the field of Vertical cutting machine.
2.Strictly Quality control

(Comparing with other company Hai De has our own quality control team, every product will be checked again and again before delivery according to standard.)

3.Reasonable price and quick delivery time

(We are the directly manufacturer of cutting machine and with full experience, the price is competitive and we have our big factory working house and many experience workers can ensure the delivery time)

 4.OEM and ODM service.

(We have OEM for many oversea customers and we have our own ODM team can produce product on your demand accordingly )

 5.Professional salesman and good service

(All of our foreign sale man have to pass the strictly professional production knowledge training before their start to communicate with customer, and we will reply your inquiring asap no later than 24 Hours)
