Product Overview
Description
Type: R2E140-H060-01F-H

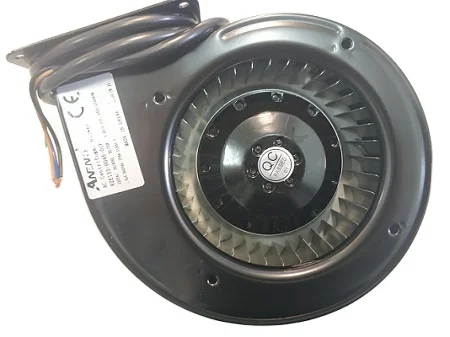

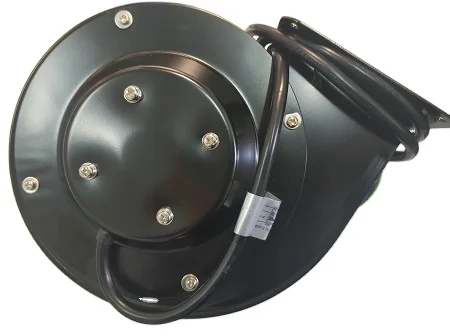

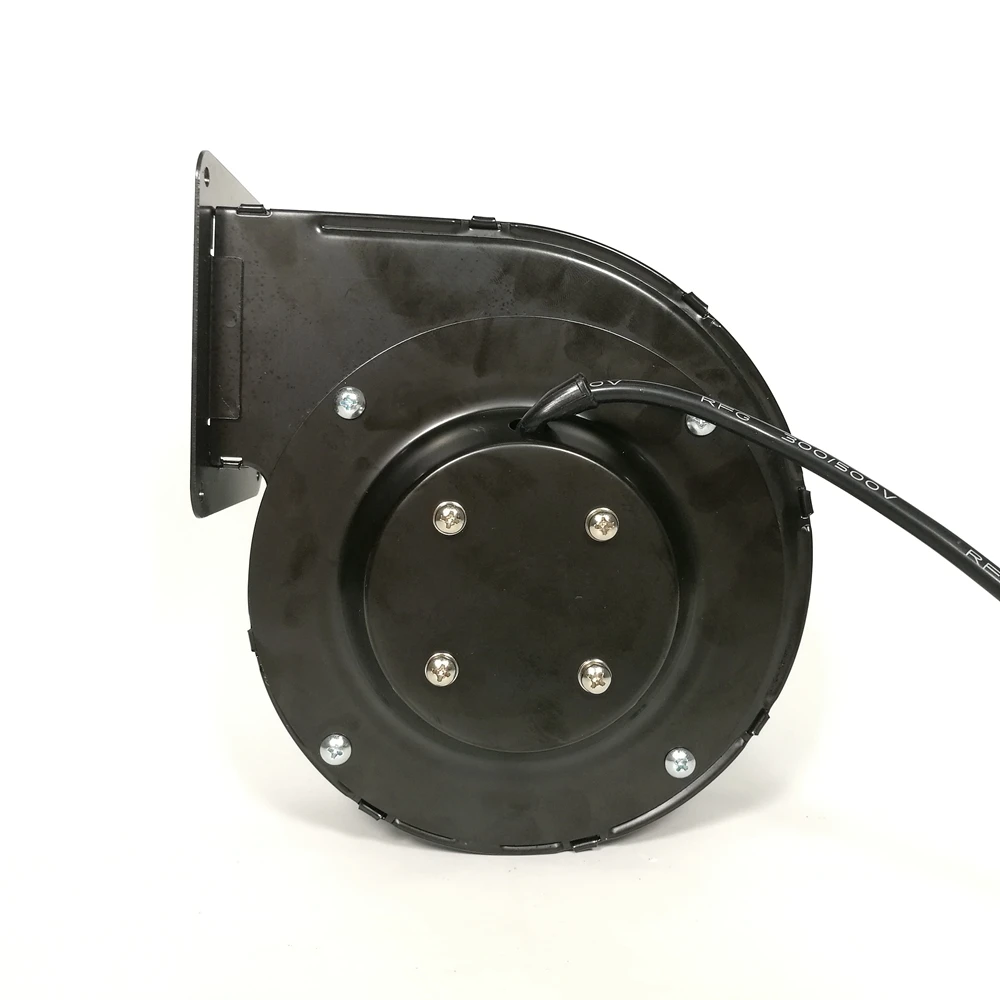

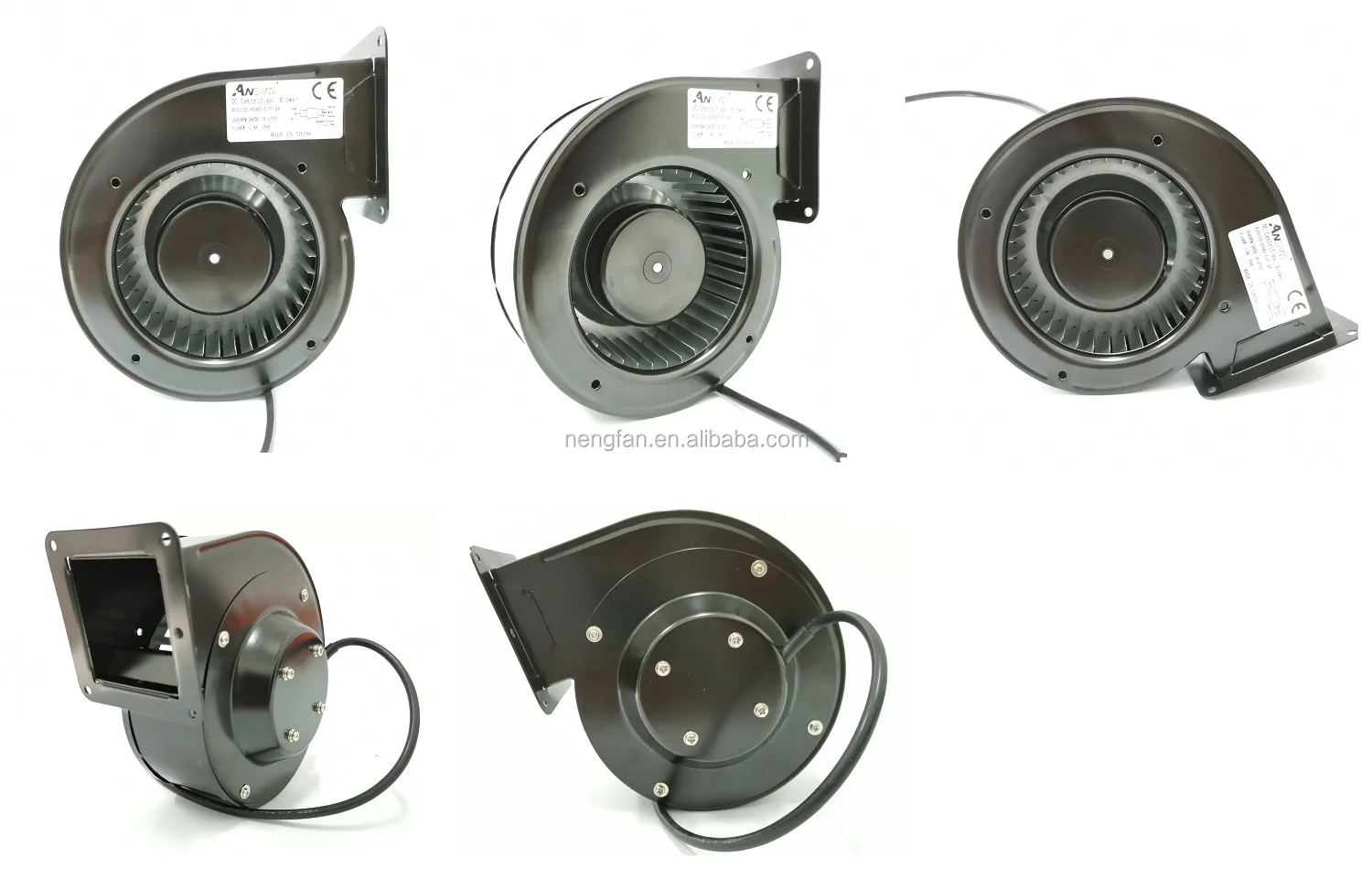

Product Pictures
Product Datasheet
| Specification | |||||||
| Model Type: R2E140-H060-01F-H / Motor Type: 72mm | |||||||
| Rated Voltage | Frequency | Rated Current | Input Power | Speed | Air Flow | Air Flow | Static Pressure |
| (VAC) | (Hz) | (A) | (W) | (RPM) | (CFM) | (m3/h) | (Pa) |
| 220 | 50/60 | 0.8/1.0 | 52 | 2200/2050 | 294/276 | 500/470 | 410/535 |
| Details Description | |||||||
| Current Leakage | <=3.5mA | ||||||
| Operation Mode | continuous operation S1 | ||||||
| Direction of Rotation | clockwise, seen on rotor | ||||||
| Mounting Position | at will | ||||||
| Insulation Class | "F" | ||||||
| Cable Length | 450mm | ||||||
| Bearing | ball bearing (NMB) | ||||||
| Net weight | 1.8kg | ||||||
| Surface of Rotor | electrophoresis | ||||||
| Number of Blades | "7" | ||||||
| Type of Protection | IP44 | ||||||
| Speed control | 0-10v / PWM signal | ||||||
| Approval | CE | ||||||
| Operate Life | >=40,000hours | ||||||
| *Motor Protection Function | |||||||
| 1. Soft Start (8 seconds) | |||||||
| 2. Polarity Protection | |||||||
| 3. Undervoltage Protection | |||||||
| 4. Overvoltage Protection | |||||||
| 5. Current Limit Protection | |||||||
| 6. Over Current Protection | |||||||
| 7. Blocking Protection | |||||||
| 8. 3 Self Starting Function | |||||||
| 9. Stepless Speed regulation Function | |||||||
| 10. FG Speed Signal Output (open drain) | |||||||

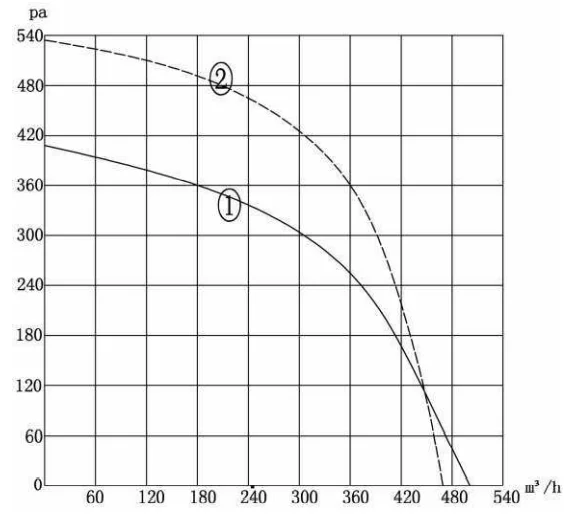

Characteristic Curve

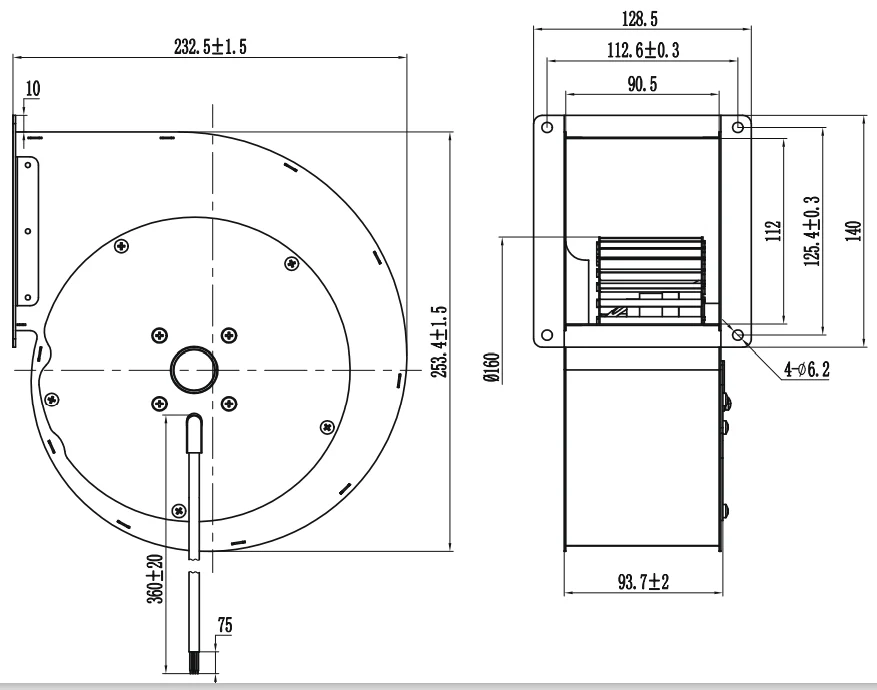

Drawing
Factory Display
Production Line
Packaging
Our Guarantees
Quality Guarantee
We are professional manufacturer in ac,dc,ec centrifugal fans with brushless external rotor motor. All the fans are produced by ourselves independently, including the motor. So we have more confidence on the products' qulaity and performance.
Price Guarantee
The products are sold by our own factory directly. So the reason for low price is simple: no middlemen.
Delivery Time Guarantee
We will make production on time as order and send the goods according to mutual confirmed delivery time. We will try our best to avoid risk of any delay.
Service Guarantee
We adopt the mode of combining the sales team and engineers team. So we can provide the responsible suggestion and recommendation when we contact at first time.We will check all details before accepting the order, and keep quality before delivery.
