Product Overview

Description





  This AQ1000 is specifically designed to increase the productivity of field personnel       working on the installation and deployment of optical access networks such as Fiber To     The Home (FTTH). Although it is positioned as an entry-level model, it still retains     Yokogawa's established standards of quality/reliability and features characteristics which   are usually present in higher-level models, such as a high-quality capacitive multi-touch   touchscreen and wireless connectivity.





 Features

 1. Multi-touch touchscreen

    Tap, swipe, pinch or press with the intuitive and responsive multi-touchscreen display.   This high resolution, responsive 5.0-inch multi-touch capacitive touchscreen combined     with hard-key buttons make OTDR operations simple and intuitive.



  2. One-button measurement

    By simply pressing one singe button, the AQ1000 initiates an OTDR measurement,       detects and comprehensively characterizes network events with PASS/FAIL judgment     based on user-defined thresholds. The measurement data can be saved automatically if       desired.



  3. OTDR view modes

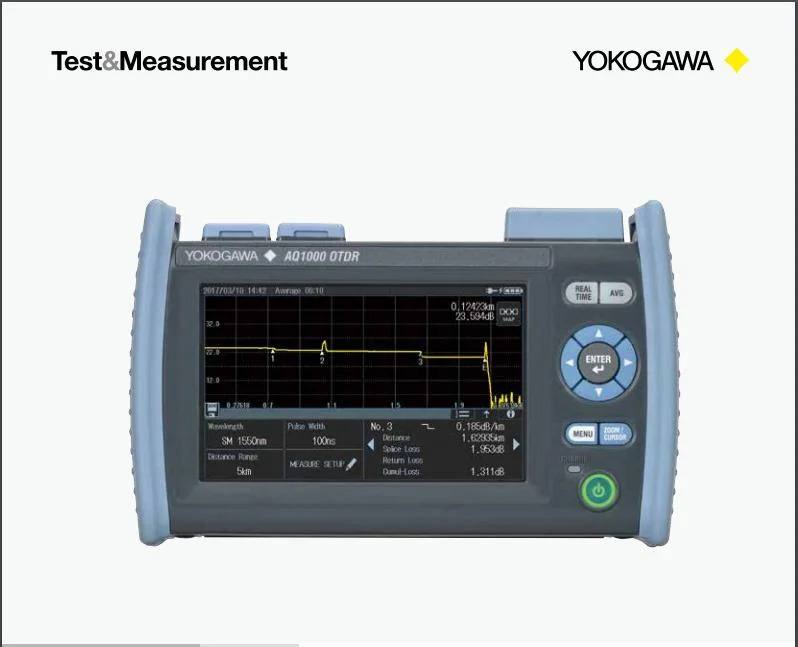

     Trace view

      Map view



  4. Long battery operation time

    No worrying about running out of battery power during your daily work. The AQ1000's         high capacity Li-Ion battery will last for 10 hours under the Telcordia standard conditions.



  5. Quick boot-up

    From completely OFF to measurement ready in under 10 seconds!

  Functions

   Distance measurement

   Loss measurement

  Return loss measurement (Total/Section)

   Auto event search

   Pass/Fail judgment

   Real-Time

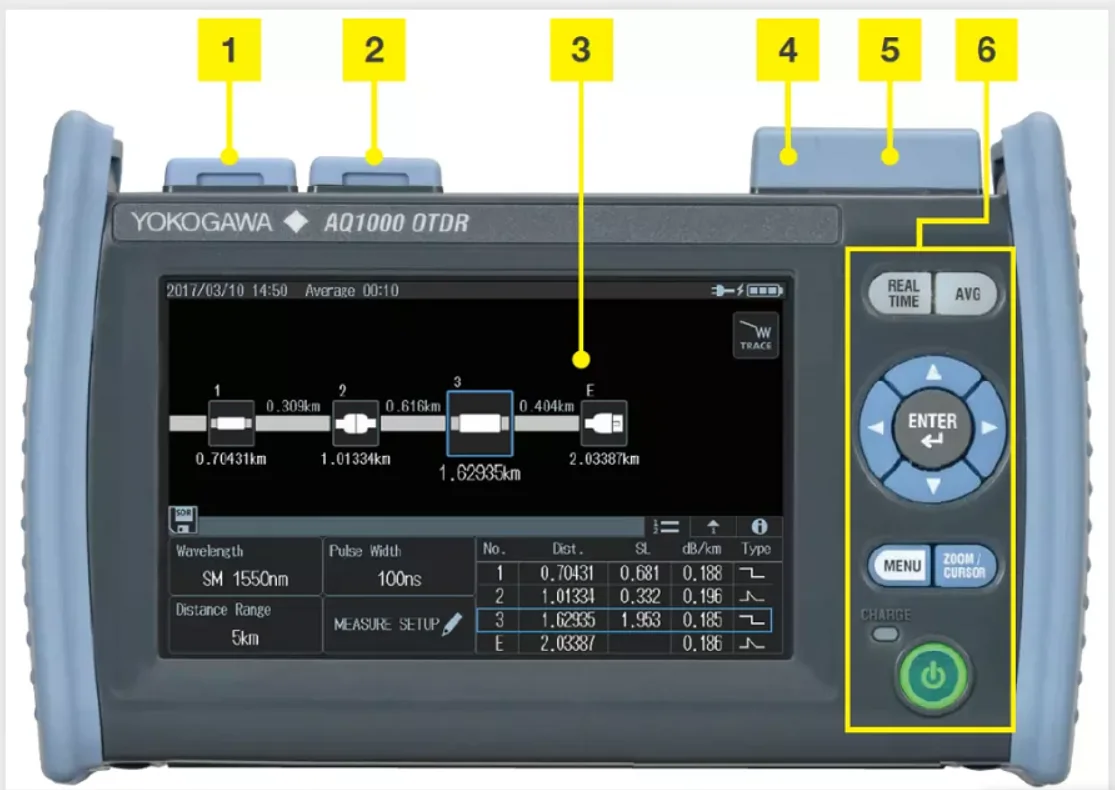

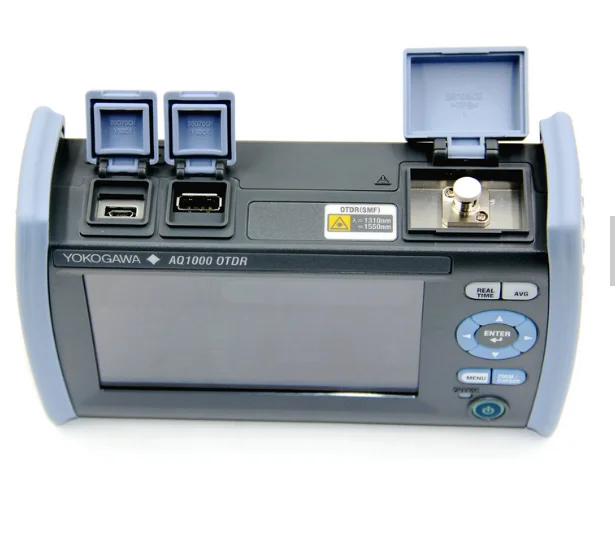

  Interfaces

  1. USB port (Type micro B)
  2. USB port (Type A)
  3. 5.0-inch color LCD with capacitive touch-screen
  4. VLS port (option)
  5. OTDR port
  6. Keys

 Detailed Images
