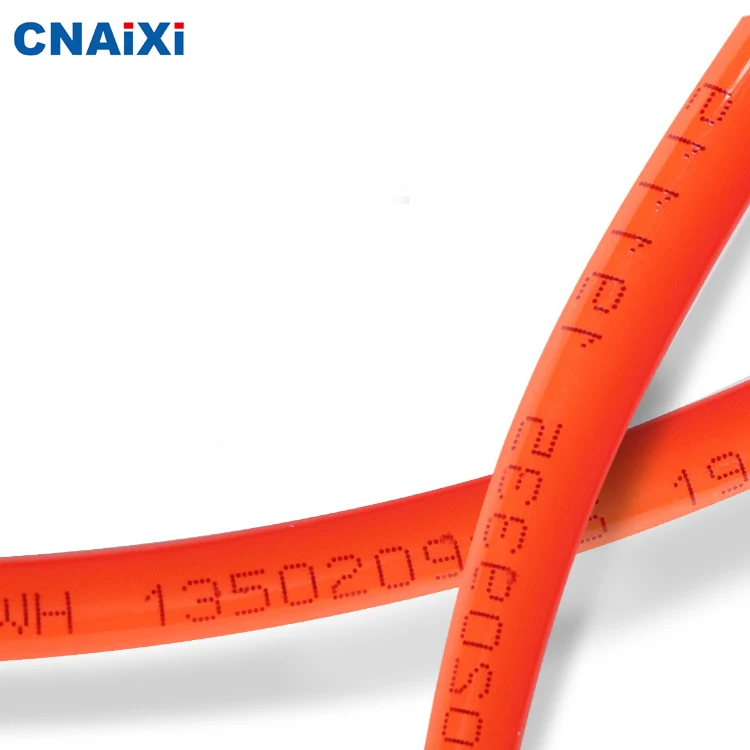

Pneumatic air hose pipe 4mm 5mm 6 8 plastic high pressure voltage resistance pa6 12 66 nylon tube
- Category: >>>
- Supplier: Yueqing Aixi Automation Equipment Co. Ltd.
Share on (1600087429295):
Product Overview
Description
Product Description
Get More Information, Contact Us.
| Name | PU-TRCHEA | |||
| Material | TPU | |||
| Color | Blue | Transparent | Blacl | Red |
| Tear strengt | 155kg/cm | 155kg/cm | 155kg/cm | 155kg/cm |
| Elongation | 490%~590% | |||
| Wear Strength | 300mg~40mg | |||
| Hardness | summer 98A winter 95A | |||
| Model | APU4×2.5 | APU5×3 | APU6×4 | APU8×5 | APU10×6.5 | APU12×8 |
| Working Media | Air ,Water,Noncorrosive Oil | |||||
| Max.Working Pressure | 0~12 | |||||
| Ambient Temperature | -20~+60 | |||||
| Tube O.D | 4 | 5 | 6 | 8 | 10 | 12 |
| Tube I.D | 2.5 | 3 | 4 | 5 | 6.5 | 8 |
| Standard Length(m) | 200 | 200 | 200 | 100 | 100 | 100 |
| Min.Bending Radius | 10 | 12 | 15 | 20 | 25 | 37 |
| Broken Pressure(kgf/cm²) | 30 | 35 | 35 | 40 | 30 | 30 |
| Model | APU10×8 | APU8×6 | APU12×10 | APU14×10 | APU16×13 | APU16×12 |
| Working Media | Air ,Water,Noncorrosive Oil | |||||
| Max.Working Pressure | 0~10 | 0~8 | ||||
| Ambient Temperature | -20~+60 | |||||
| Tube O.D | 10 | 8 | 12 | 14 | 16 | 119 |
| Tube I.D | 8 | 6 | 10 | 10 | 13 | 12 |
| Standard Length(m) | 100 | 100 | 100 | 50 | 50 | 50 |
| Min.Bending Radius | 35 | 20 | 37 | 56 | 60 | 60 |
| Broken Pressure(kgf/cm²) | 24 | 24 | 24 | 20 | 18 | 20 |
