hot chamber die casting machine zamak moulding injection machine
US $23850-$29270

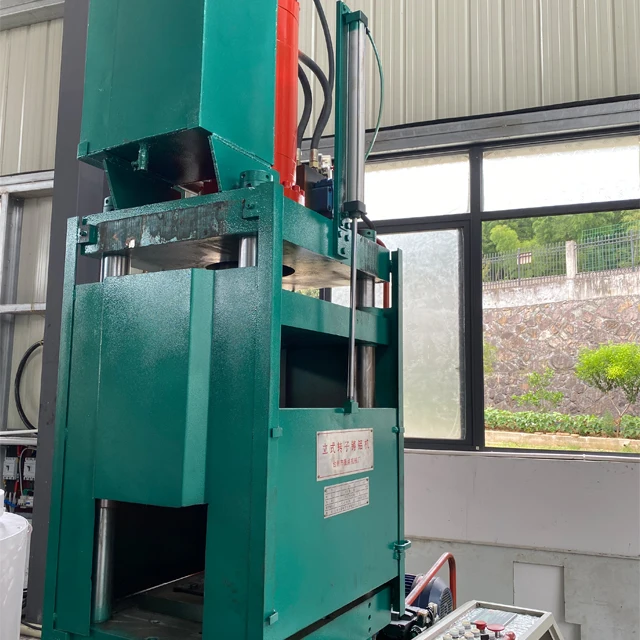

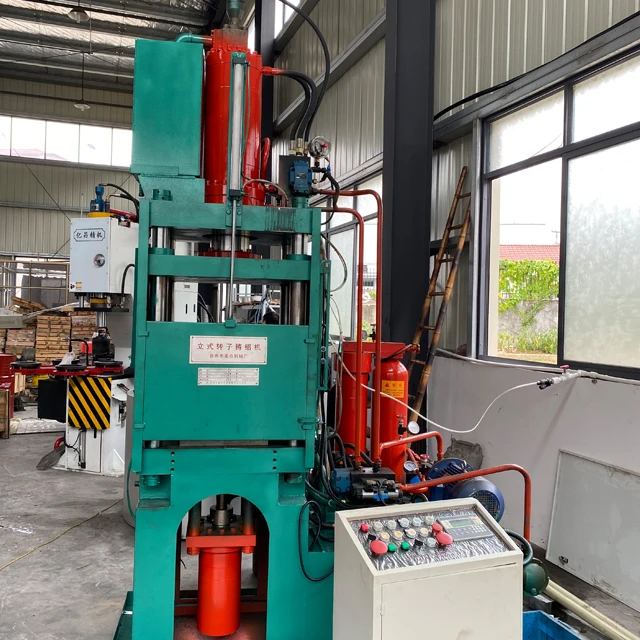

80T high quality hot chamber rotor aluminum die casting machine
- Category: Die Casting Machine >>>
- Supplier: Taizhou Lvyang Garden Machine Co. Ltd.
Share on (1600087597682):
Product Overview
Description
Products Description
It can be customized by your requirements.
Product Paramenters
Technical parameter | ||||||
Mold clamping force | 800KN | Pressure in aluminum cylinder | 300 | |||
Return force | 200KN | Fast speed of slider stroke | 150mm/s | |||
Cutting force | 200KN | Return speed of moving plate | 150mm/s | |||
Mold ejection force | 100KN | Speed of fast injection | 4000mm/s | |||
Max. hydraulic working pressure | 21mpa | Speed of slow injection | 26mm/s | |||
Max. stroke of moving plate | 500mm | Return speed of injection | 85mm/s | |||
Spacing between moving plate and workbench | 750mm | Distance between front and back of workbench | 600mm | |||
Injection stroke | 180mm | Distance between right and left of workbench | 520mm | |||
Max. amount of pooring aluminum soup | 8kg | Machine height(above the ground) | 2800mm | |||
Nitrogen pressure | 10mpa | Motor power | 7.5kw | |||
Internal pressure supercharging pressure | 13mpa | Rotor range | 80-160 | |||
Our Advantages
1.The machine is highly automated and easy to operate.
2.The required functions and parameters are controlled by touch screen.
3.The oil cylinder seal ring is made of Taiwan material.
4.Hard chromium treatment,
5.The left and right side of the protective door of this machine is fixed, and the front and rear are pneumatically movable up and down.
6.The machine adopts piston-type accumulator. It has the advantages of good stability, long service life, convenient maintenance and low maintenance cost.

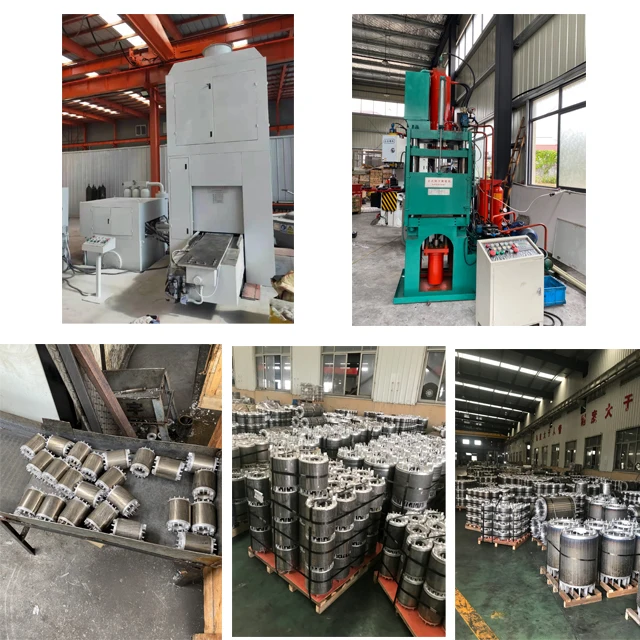

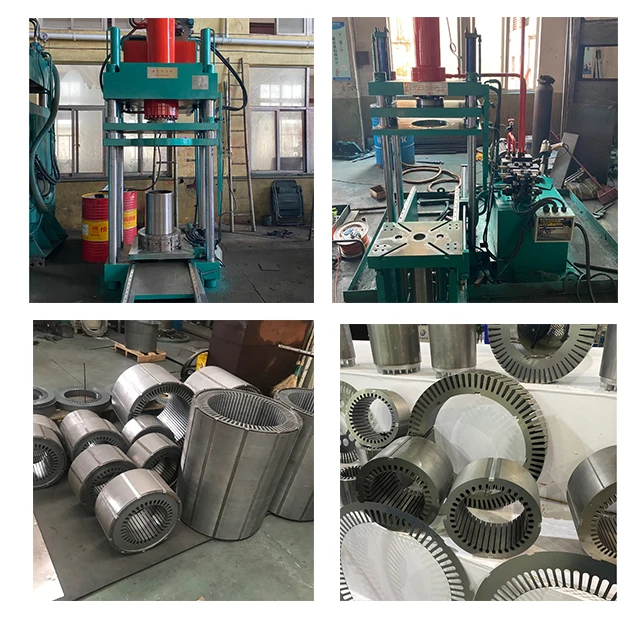

Our machines and products
Certifications
FAQ
Q1. Are you a factory?
Of course, we are factory.Machines are made by ourselves.
Q2.About Delivery team?
Usually we send the shipments in FOB terms. However terms of CNF and CIF are acceptable which depend on preference of clients.
Q3.About lead time
Usually it takes about 15-25days after we received your confirmations.(It depends on the kinds of machines and quantity）。
Q4.About payment
30%deposit,balance paid before shipment.
Q5. About presses
Each machine needs to be customized due to the industry specifics,material, size,shape,handling etc. And our trained technical team will be happy to discuss all your options either by phone and e-mail or you’re more welcomed to visit our factory to see the machines.
Of course, we are factory.Machines are made by ourselves.
Q2.About Delivery team?
Usually we send the shipments in FOB terms. However terms of CNF and CIF are acceptable which depend on preference of clients.
Q3.About lead time
Usually it takes about 15-25days after we received your confirmations.(It depends on the kinds of machines and quantity）。
Q4.About payment
30%deposit,balance paid before shipment.
Q5. About presses
Each machine needs to be customized due to the industry specifics,material, size,shape,handling etc. And our trained technical team will be happy to discuss all your options either by phone and e-mail or you’re more welcomed to visit our factory to see the machines.
