ETL cETL PWM outputs 25w 12v 24v constant voltage triac dimmable led driver for LED Strip Electrical Parts Mirror Backlighting
- Category: >>>
- Supplier: Zhuhai Shengchang Electronics Co. Ltd.
Share on (1600087729596):
Product Overview
Description
Product Description
Title
Features:
· Output constant voltage
· Universal AC input: 100-130VAC
· High efficiency :up to 84%
· Protection:short circuit/over loading/over current/ Over temperature
· Full protection plastic housing
· Easy installation
· Cooling by free air convection

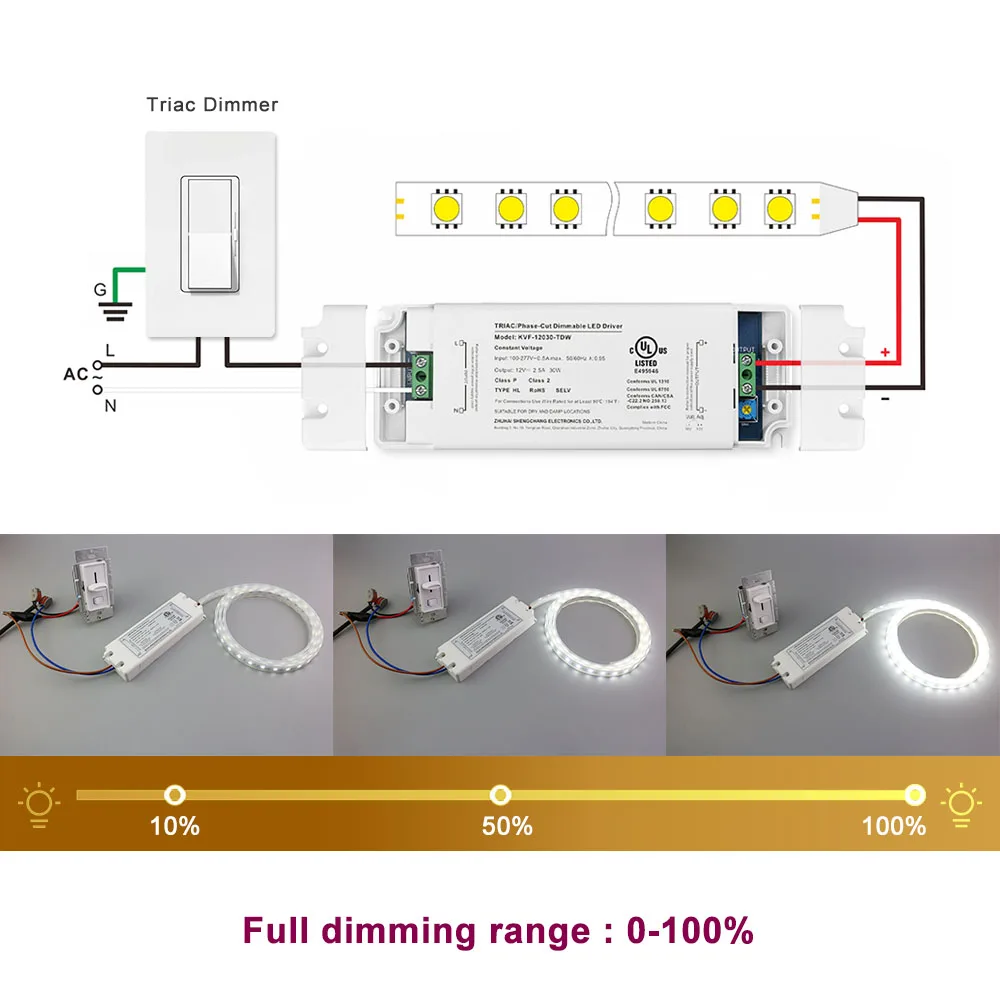

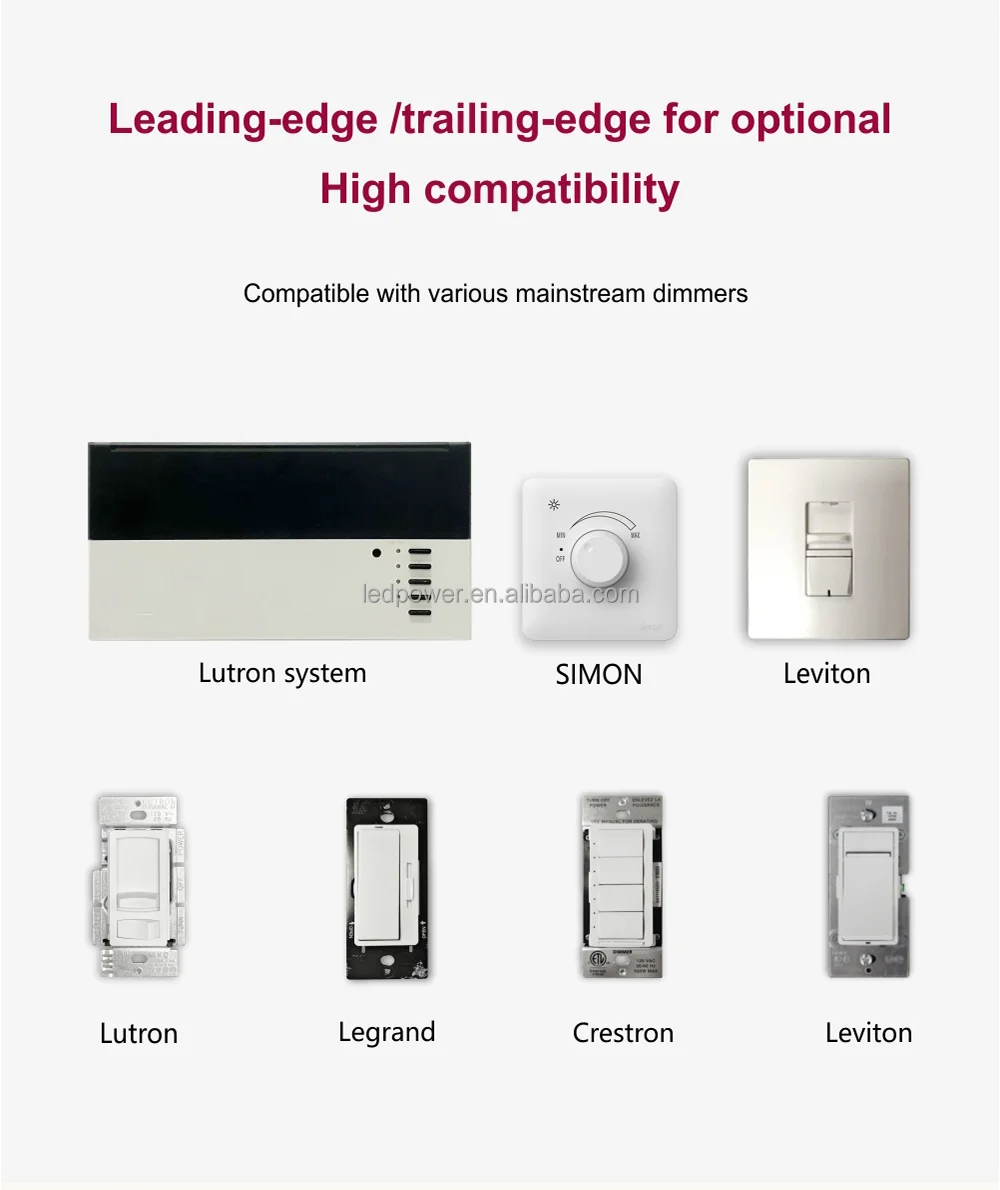

· Compatible with Forward phase,Magnetic low voltage,Triac Dimmers
· Strong compatibility, flicker-free dimming

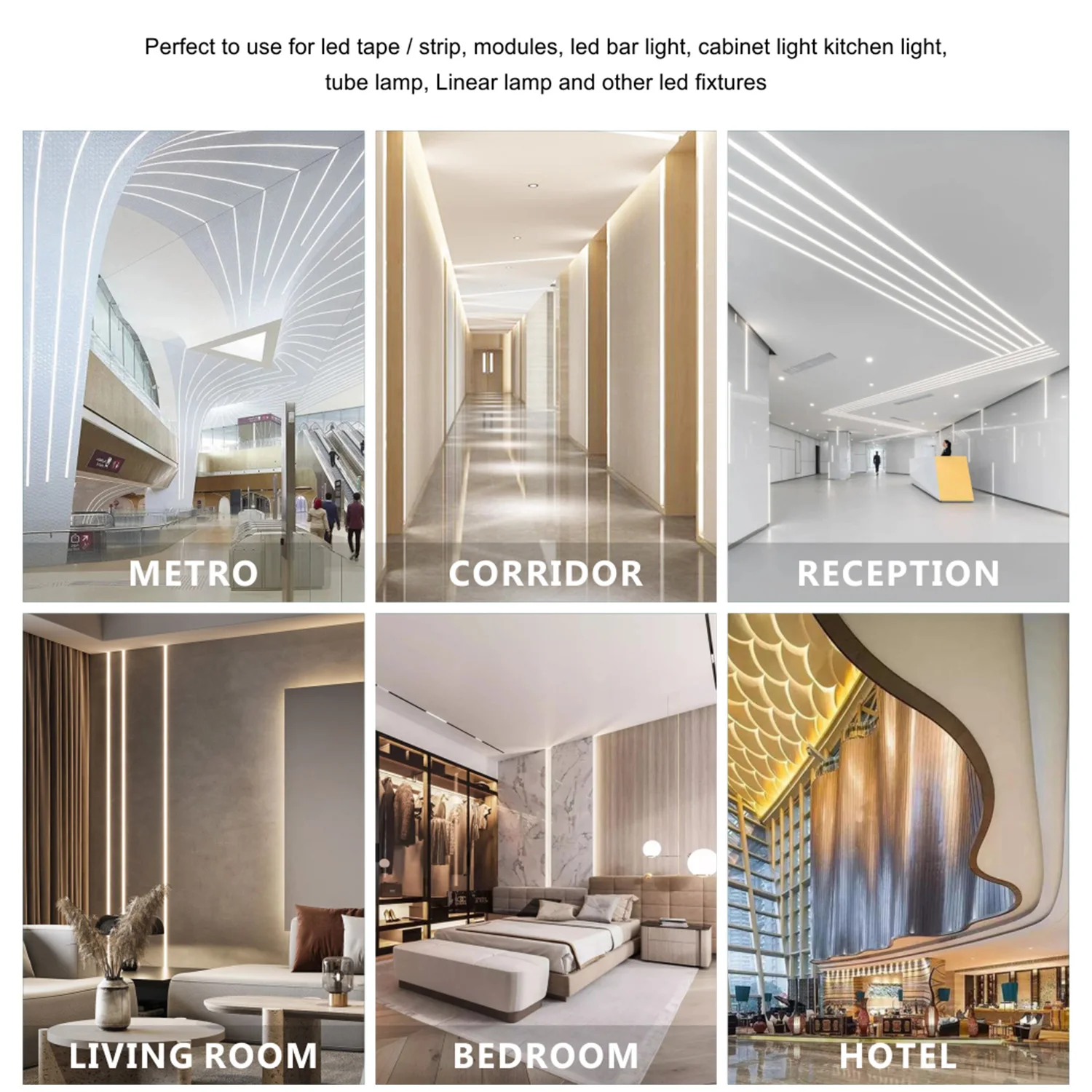

· Suitable for LED lighting and moving sign applications and others
· Suitable for dry or damp location use, IP20
Specification:
Model | KVP-12025-TDL | KVP-24025-TDL | |
Certificates | ETL,cETL,FCC | ETL,cETL,FCC | |
Output | DC Voltage | 12V | 24V |
Voltage Tolerance | ±0.5V | ||
Rated current | 2.08A | 1.04A | |
Rated power | 25W | ||
Input | Voltage Range | 100-130VAC | |
Frequency Range | 47~63HZ | ||
Power Factor | 0.65(Full loading) | ||
Efficiency(Typ.) | 81% | 84% | |
AC Current(Max.) | 0.9A | 0.9A | |
Leakage current | < 0.50mA/120VAC | ||
Protection | Short Circuit | Hiccup mode, recover automatically after fault condition is removed | |
Over Current | ≤1.2*I out | ||
Over Loading | ≤120% | ||
Over temperature | 100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down. | ||
Others | Net. Weight | 0.21kg | |

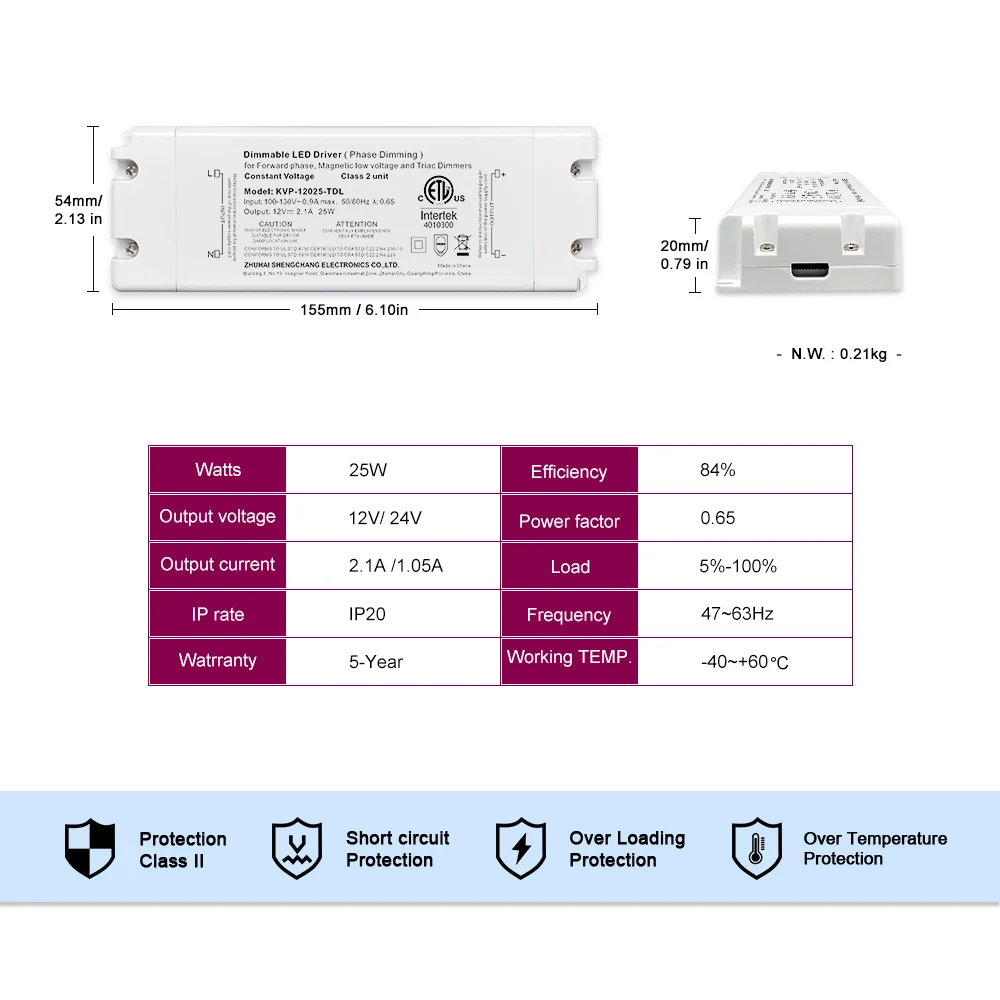

Size | 155*54*20mm(L*W*H) | ||
Packing | 350*240*130mm 40PCS/CTN | ||
Notes | 1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃ of ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. 3.Loading should be 5-100%. | ||
Company Information
Certifications
Trade Shows
Related Products
FAQ
1. How about your goods’ quality?
100% burn-in tests, full-round tests.
All products approved by CE RoHS, some products have got TUV GS CB ETL certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it?
3 years. If any wrong, we will replace in your next order, or refund.
3. What is your minimum order quantity?
The MOQ is 1pcs.
4. Which payment terms you can accept?
We accept T/T, Western Union, Money Gram, Paypal, etc.
5. What are the shipping ways you can offer?
By air/sea/land, from Zhuhai jiuzhou port, Hongkong, Guangzhou.
6. How about your delivery time?
3-7 working days according the order.
7. Can you make OEM?
Of course, OEM ODM provided.
More information, please feel free to contact us.
