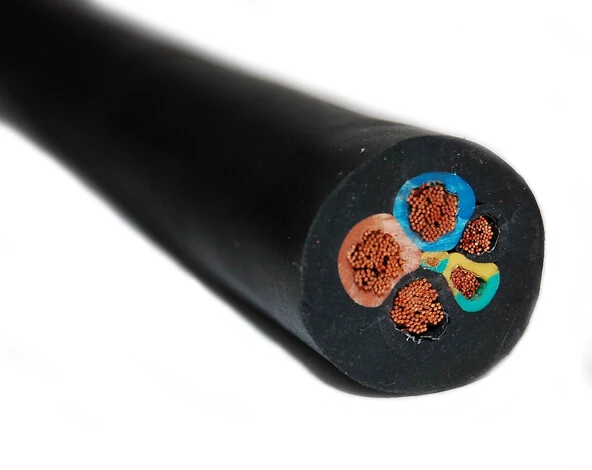

Flexible Rubber Insulated H07RN-F Power Cable
H07RN- Rubber Cable Feature:
1. Conductor: Class 5 flexible plain copper to BS EN 60228:2005(previously BS6360)
2. Insulation: EPR(Ethylene Propylene Rubber) Type E14 to BS7655
3. Sheath: PCP(Polychioroprene) Type EM3 to BS7655
4. Sheath Color: Black
5. Voltage: 450/750V
6. Temperature Rating: conductor operation temperature -30°C to +60°C(85°C max)
7. Minimum Bending Radius: Up to 25mm2:6xoverall diameter;
8. Above to 25mm2: 8x overall diameter
9. Standards: BS7919 CENELEC HD22 4S4
H07RN- Rubber Cable Parameter List :
|Normal area (mm2)||Structure (mm)||Insulated thickness (mm)||Overall dia.(mm)||Normal area (mm2)||Structure (mm)||Insulated thickness (mm)||Overall (mm2) dia.(mm)|
Zhengzhou Huadong Cable Co.,Ltd is an import and export trade co,pany in Zhengzhou City, Henan province, China, which is a branch of Henan Huadong Cable Group. Our factory occupied 50000 square meters, and specialize in overhead ABC cable, AAC, ACSR, AAAC, 0.6-35KV power cable, control cables, welding cables, rubber cables, mining cables. We can provide standard cables with GB, IEC, BS, ICEA, ASTM, DIN, VED and JIS srandards. What's more, We can design cables according to your requirement. Now you can send the inquiry, leave your email, then our sales manager will send you quotation as soon as possible.
H07RN- Rubber Cable Certifications:
Our factory has advanced equipment of 20 sets production lines and 25 sets testing machinas, The production capacity is more than 12 million kilometers. We have skillful staff over 20-year experience,before starting working, every worker need to be trained professionally. Therefore, we can promise the product will be 100% quantified.
H07RN- Rubber Cable Testing:
In our factory, every roll wire need to be test strictly, We wil test resistance, insulation thickness, the tension, stretch and so on. Before packing, every cable need to be test quantified, and we can make promise the 100% quantified.
H07RN- Rubber Cable Package:
When you identify the details, don't forget to choose the package and its color. In usually, customer usually choose wooden drum and you can choose paint blue color, yellow color or red color. If you don't like these package or color, we can customize for you, now, you can send us your wanted package and colors.
H07RN- Rubber Cable Delivery:
First of all, we will delivery on time. Especially in the busy season, we will word overtime to make sure delivery on time.
Secondary, about the loading, the cable will be protected well, all the needed measure will be adopted.
Thirdly, we have cooperated with profesional shipping agent and shipping company to keep you receive the intact on time.
Now you can send us the inquiry.
We promise 100% quantified product, and we will also pay attentiont to package and delivery. Therefore, our customer can receive the perfect product. Come to start our business.
1. The time you can get the quotation after the sending the inquiry
In the working time, our sales manager will send quotation to your email box within 1 or 2 hours. On the contrast, we will send you email within 12 hours. Therefore, email is needed to let us know, then we can contact with you.
2. For Sample
We can provide you the sample for free, if you want to check the cable, you can ask the sales manager.
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight
4. what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirement.
If you have any other question, you can send us inquiry, we will reply to you as soon as possible
