Perfect LED Lighting Aluminum PCB Assembly UV exposure machine Inner Layer Imaging PCB Manufacturing


Inner layer PCB Exposure
Features:
-For Inner-Layer Liquid
-High Resolution width/sapce 50μm/50μm
-High Throughput Cycle Time = 10sec + Exposure Time
-Scan light
-A/W Alignment Precision 3σ≤ 10μm
-LED Module Gain Control & Status Monitoring
-LED Module Off-Line Monitoring Irradiance Distribution
-LED Light Instant ON/OFF, Reduce Energy Costs. (Lift time better than Mercury UV-LAMP)



  • LED Light source

1. LED light source, energy saving, lowest cost and power consumption, no replacement consume during three years.
2. KST own design LED lght source,easy maintain and replace.
3. Long service life, >20,000 hours, and maintain for three years.
4. Automatic energy calibration and compensation, uniformity can automatic calibration to above 90%
5. Achieve the best green ink bridge, through multi wavelength.Undercut≦0.6mil(on copper surface )
6. Production speed: 5~5.5 panel/min



Model
KST-AEM6457-NX
Circuit Board size
Min:12"*12"
Max:21.5"*24.5''
Circuit resolution
2 mil/2mil
Energy Uniformity
≥90%
Exposure time
100% energy<3s
Adjustable
Time and energy can be adjust
PCB thickness
0.1mm-3.2mm




Detailed Images

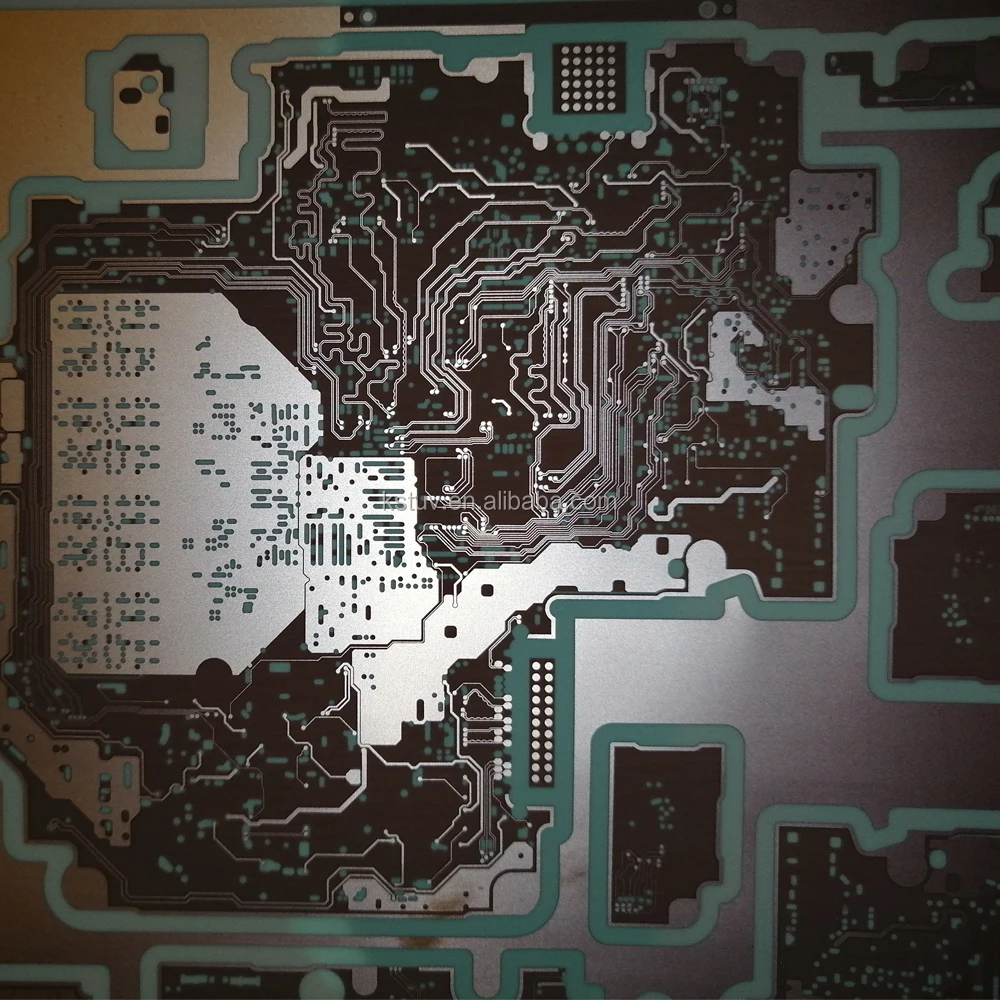

For inner layer circuit.
-Alignment accuracy: 12.5um±0.5um
-Multiple Wavelength UV-LED
